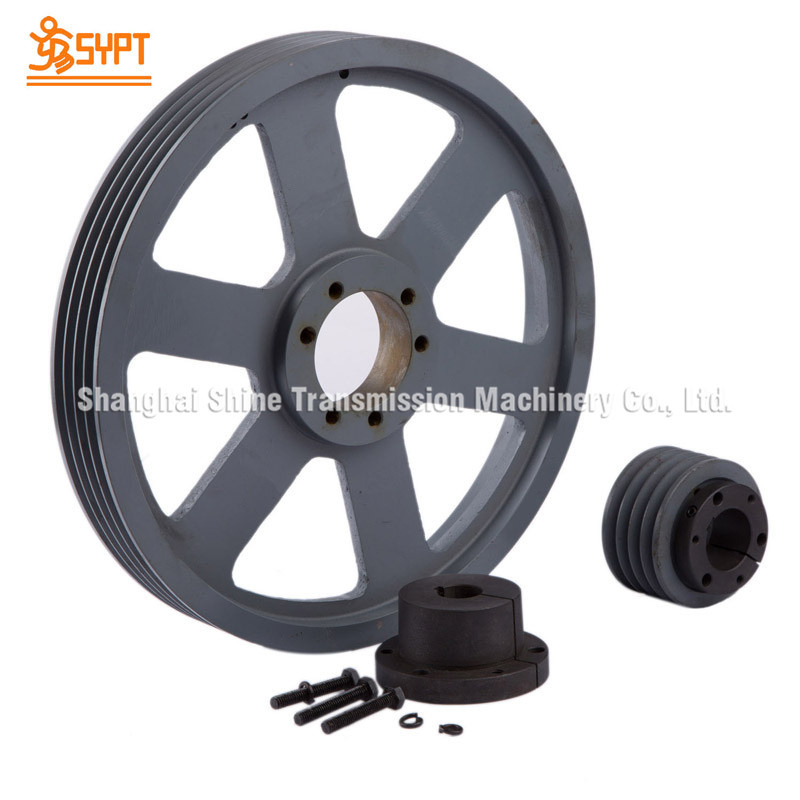

Ce ISO Approved Machining Cast Iron V Belt Pulley

CE ISO Machining cast  iron pulley

1) V-belt pulleys(taper bore)

2) Timing belt pulleys

3) Variable speed pulleys

4) Flat belt pulleys

5) Conveyor belt pulleys

6) Conveyor idlers

7) Taper lock pulleys

8) Sheaves

V-belts: SPZ, SPA, SPB, SPC; A, B, C, Z, wrapped V-belts, raw-edge V-belts, cogged V-belts V-belt

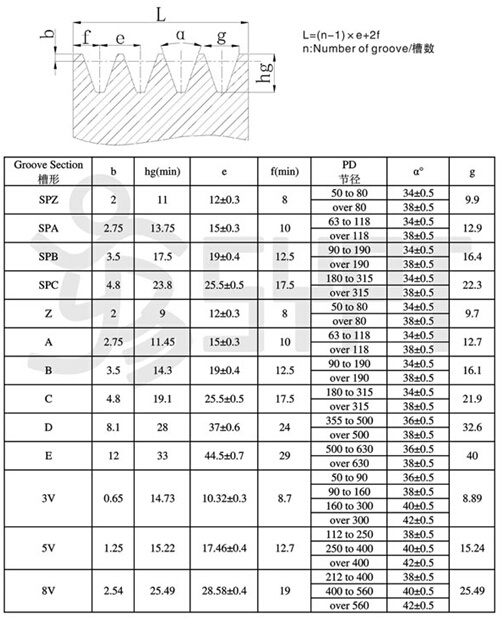

pulley specifications:

1) European standard:     a) V-belt pulleys for taper bushings: SPZ, SPA, SPB, SPC; up to 10 grooves    b) Adjustable speed V-belt pulleys and variable speed pulleys

2) American standard:    a) Sheaves for taper bushings: 3V, 5V, 8V     b) Sheaves for QD bushings: 3V, 5V, 8V    c) Sheaves for split taper bushings: 3V, 5V, 8V    d) Sheaves for 3L, 4L or A, and 5L or B belts: AK, AKH, 2AK, 2AKH, BK, BKH,2BK, 2BKH, 3BK    e) Adjustable sheaves: poly V-pulley, multi-pitch H, L, J, K and M

3) Bore: pilot bore, finish bore, taper bore, bore for QD bushing

4) Surface finish: paint, phosphate, zinc plate

5) Material: cast iron, ductile iron, nylon, aluminum

6) Made according to drawings and/or samples; OEM inquiries welcomed Timing pulley specifications:

1) Pilot bore, taper bore and QD bore

2) Materials: 1045 steel, aluminum and stainless steel

3) Surface finish: black oxidized phosphate, anodized, zinc-plated 5) Standard toothed bars are also available
