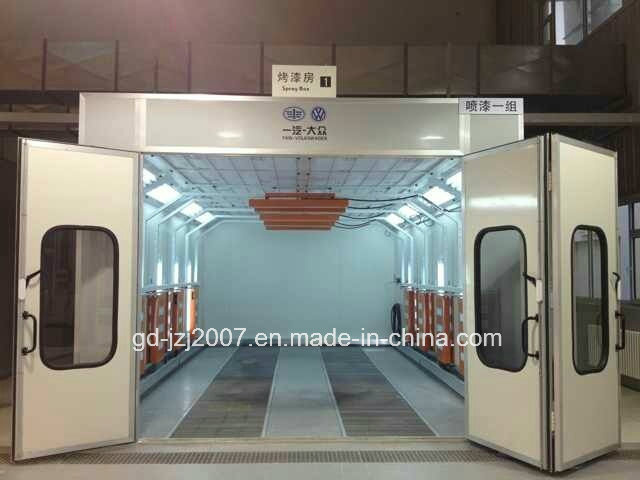

Name: CE High Quality Heat-Radiator Spray Booth
Brand: ibuyautoparts.com
SKU: 707383105
Availability: InStock
Rating: 4.8 (26 reviews)

Price:	US $ 8820-32600/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

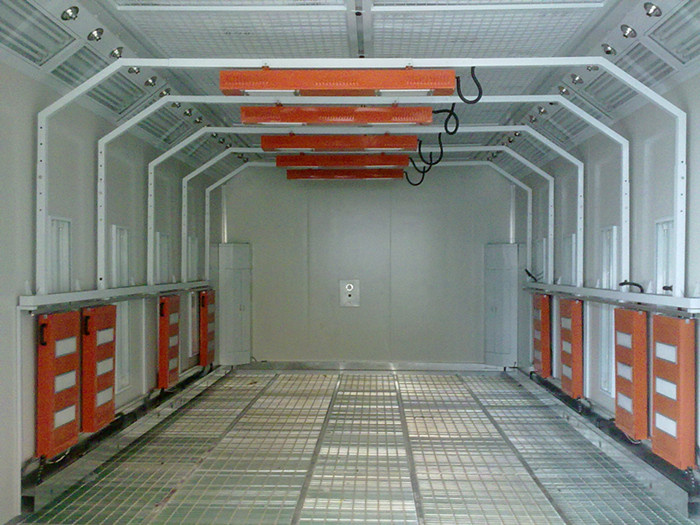

Heat-radiator spray booth:
Fire stop Spray Booth has radiator electric heater;

Specifications

1. Fire stop Spray Booth has radiator electric heater;
2. Anti-flame;
3. consisted of high-quality components



Outside size: (mm)	7000x5360x3430 LxWxH		Inside size: (mm)		6900x4000x2750 LxWxH
Front door: (mm)	3000x2700WxH		Total power: (kw)		Spray16.5/Baking37.5
Cabin system	Wallboard		Rock wool colorful steel skin panel, 50mm, galvanized steel sheet frame, anti-flame and heat-insulation. ceiling panel: galvanized steel sheet, tongue& groove style. the front door made of powder spray sheet metal.
Cabin system	Basement		The height of basement is 280mm, two row grilles, three rows diamond plate. Two embossed steel ramps: 600mm
Air circulation system	Inlet fan(1set)		Model: DDF-800	Outlet fan(1set)		Model: DDF-800

			Capacity: 25000 m 3 /h			Capacity: 25000 m 3 /h

			Air speed: 0.35m/s			Air speed: 0.35m/s

			Power: 7.5kw			Power: 7.5kw

			Air recycling times: 280 times/h			Air recycling times: 280 times/h
	The heat cabin make of painted sections and galvanized steel sheet
purification system	The primary filter can capture granules larger than 10µ m. Ceiling filters are imported from Italy and can capture granules larger than 5µ m. Fiberglass filter below the basement; TSP ≤ 1.4mg/m 3

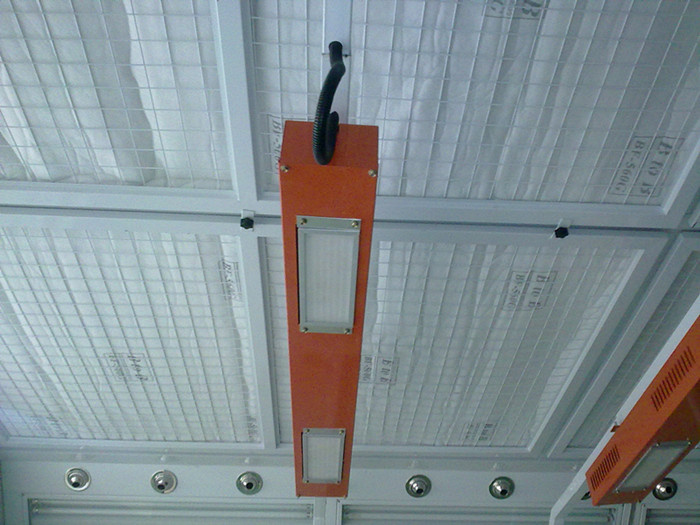

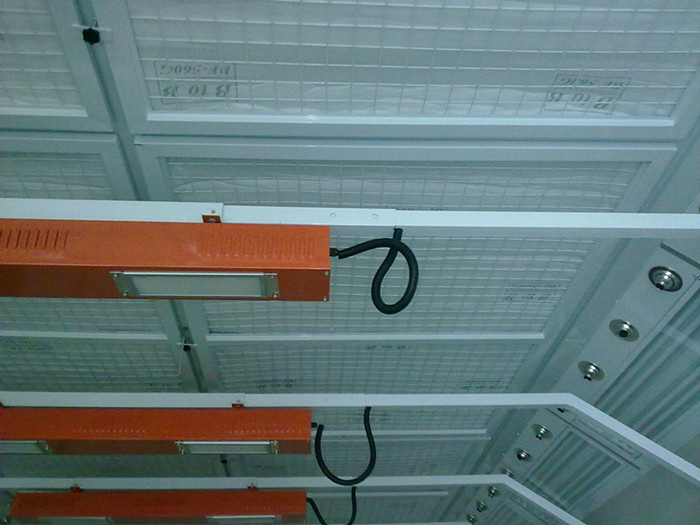

Heating System		with radiator electric heater, total power: 36kw
		Max Temp: 80° C
	Heating time: 25min(20~60° C)
Light system	Ceiling light: 24 branches 36w Philips lamp, 800lux
Electric controlling system	Use of high-quality electronic component assembly, the main circuit with multi-protection. light switch, emergency stop, time setting, spray& baking switch, Radiation Control Switch(left, right, back)
Environmental system	Multi-layer fiberglass filter, after treated by active-carbon, then exhaust from the exhaust duct.

Prod Model:	Heat-Radiator Spray Booth
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
