| Prod Model: |
Customized |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Wld-9000 |
| External Size: |
7000X5450X3480(Mm) |
| Internal Size: |
6900X3900X2800(Mm) |
| Main Door Size: |
3000X2750(Mm) |
| Air Flow: |
25000(M3/H) |
| Air Speed: |
0.3-0.5m/S |
| Fuel Consumption: |
5-6kg/Vehicle |
| Total Power: |
15kw |
| Vehicle Suited: |
Saloon Car/Jeep/SUV |
| Paint Mist Treatment: |
Dry-type |
| Heating Mode: |
Diesel |
| Airflow Direction: |
Cross-flow Type |
| Certification: |
CE |
| Condition: |
New |
| Brand: |
Weilongda |
| Substrate: |
EPS |
Product Description

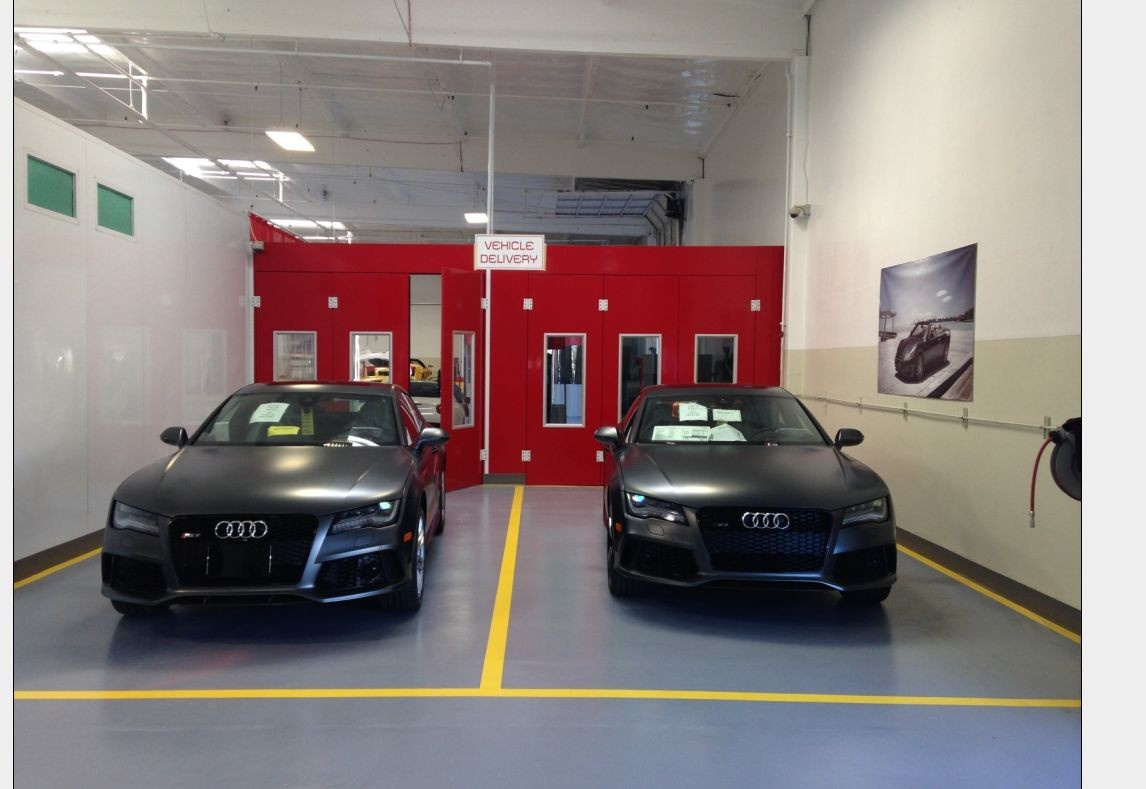

Luxury Spray Car Paint Booth WLD9000
Packaging Details: | Polyfoam and carton,1 set in a 20GP container,3 sets in a 40HQ container |
|---|
| Delivery Detail: | 7-10 days after receiving 30% deposit |
|---|
Established in 2000,our factory is one of the earliest and largest spray booth and other garage equipment manufacturers in Guangzhou,China.Welcome to visit us.
WLD9000 Saloon Car Spray Booth Configuration:
| External Size:(mm) | 7000x5450x3480 | Front Door:(mm) | 3000(w)x2750(h) |
Internal Size:(mm) |
6900x3900x2800 |
Total Power:(kw) |
14 |
Cabin System | Wallboard | Fire-retardant composite molding Sandwich style EPS(epispastics polystyrene)(Rock wool and PU are optional)
50mm thickness, EPS foam Density is 14kg/m³ ;The Colorful steel skin boards have been HDG(hot dip galvanizing),service life can reach 20 years without rusting Thickness is 0.476mm.It keeps high insulation performance with a
low weight. Four colors for your choice,including blue,red,orange and white. High quality galvanized steel roof panel |
| Basement | Galvanized steel sheet and square steel pipe construction.
Full grids,anti-rust and strong, the bearing capacity of driving grids up to 1000 kg; Basement frame is assembly formed by corrosion-resistant steel square tube, the overall performance is good, anti-heavy and strong, not deformed. |
Door |
3 pieces of luxury front doors. Size: 3000(w)*2750(h).
1 piece of emergency door. |
Air Circulation System |
Intake Fan |
1x7.5kw direct drive turbo fan, Air Flow is 25000m3/h. Siemens technology production, large air volume and low noise. |
Exhaust fan |
1x5.5kw direct drive turbo fan, Air Flow is 18000 m3/h,Siemens technology production, large air volume and low noise. |
| Air Pipe | Made of Galvanized steel sheet consisted of 4 pieces of Straight pipe 750*750*1000mm, and 1piece of elbow. |
| Air circulation type | Full inner air circulation type, particularly rapid heating, insulation ability, especially energy, reflect its superior performance in a cold environment. |
| Air Flow | Air Flow: 30000m3/h. Air Speed: 0.3-0.5m/s. |
Heating System | Burner | Imported Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min (20-60°C) Max. Temperature at 80°C. Fuel consumption is 4-5kg/vehicle. |
| Heat Exchanger | Made of stainless steel. The heat exchange rate reaches 85%. |
| Air make up cabinet | The surface plate is galvanized plate, rust force strong, beautiful; The frame is made of high-quality hot-dip galvanized sheet repression,difficult to wear,anti-rust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity. |
| Oil tank support | Tank carefully made of high quality steel, the powder coating treatment, beautiful and durable. |
| Fume pipe | Fume pipe made of galvanized pipe, diameter of 190mm, 4 pieces of 1000mm long straight pipe, two 90 ° elbows. |
Lighting System | Light tube | Ceiling light has 32 pieces of 36w lamps. Side light has 16 pieces of 36kw Lamps. 900 Lux. the grade of lighting box's dustproof and waterproof reach IP54 grade. |
| Light box | Medallions of welded galvanized plate, by the spray treatment, stiffness, repeated disassembly easy deformation, surface brightness, color uniformity,
heat is not easy to change color. |
Filtering System
| Primary filter | Dual filtering structure. The primary M pattern nonwoven filter bags,it can capture granules larger than 10μm. |
| Ceilng filter | Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%. |
| Exhaust filter | Special configure with M pattern active carbon pocket filter system. |
| Ceiling filter support | made of tube steel frame, thickness of 1.2mm, epoxy powder coating,
anti-rust and strong, rigid, beautiful and durable, can be repeated disassembly, not easy to damage, easy to replace filter cotton. |
Control Panel | Damper | Air damper,efficient and durable. |
Contral panel | Use high quality electronic component,the temperature and the drying time is accurately shown,equip with overheat,overload& shortcircuit protected,safe and reliable. Use well-known brand products, reliable quality, stable performance,display accurate |
