Prod Model: |
EZ-DT 100R |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Outside Dimension: |
7000*5500*3500mm(L*W*H) |
Inside Dimension: |
6900*4000*2800mm(L*W*H) |
Front Door(Mm): |
2800(W)*2600(H), 3 Folded |
Service Door (Mm): |
1800*650(H*W) with 2 Pressure Lock |
Wall Panel: |
50mm Rock-Wool Panel, 0.5 Steel |
Basement: |
Circumferential Diamond Plate Design, Middle Grids |
Inlet Fan(Turbo): |
1X7.5kw |
Outlet Fan(Turbo): |
1X7.5kw |
Heating System: |
3X9units Infra-Red Lamps |
Lighting System: |
8unitsx4 Ceiling, 10unitsx2 Side |
Certification: |
ISO |
Airflow Direction: |
Lateral Undershot-type |
Heating Mode: |
Electric |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Type: |
Spray Painting |
Substrate: |
Sandwich Panel |
Brand: |
Captain |
Product Description
Products Description

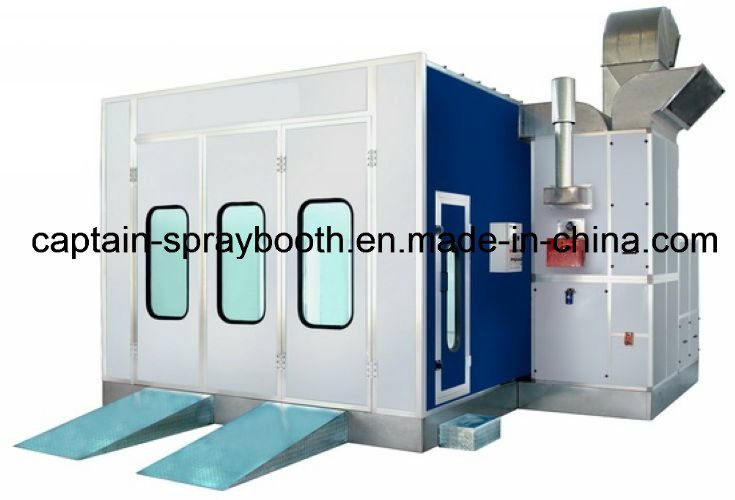

This automatic paint spraying/baking booth is used for air purification during auto paint coating operation and drying operation after painting spray. Paint spraying and drying are performed in the same booth. This paint spraying/baking booth is typical of paint spraying and baking functions, provided with automatic thermostat paint spraying, ventilation, air purification, paint mist treatment, and winter hot-air supply functions during paint spraying, and automatic heating, thermostat timing, and timed shutdown function during paint baking. The equipment is reliable in running, simple for operation, and easy for maintenance.
Equipment Constituents
The equipment of this paint spraying/baking booth is composed of booth structure system, illumination System, air supply system, circulation system, air purification system, paint mist treatment system, pressure control devices, and electrical control system, etc.
Spraying Booth Benefits
1. The device through the action of the wind, water, gas mixture enhanced through the diversion gate, retaining plate, collecting tank, etc., to achieve water and gas separation, thereby overcoming the paint Fog clogging pumps and water systems, causing water system is not working properly shortcomings. As a result of the system without pump water saving devices, saving investment and reducing the footprint.
2. The device is in use, the mist through the water curtain, curtain and roll mixing water and gas passage, multiple classification purification efficiency improves the purification process.
3. Due to the mist and water collecting channel disposed between the diversion gate, both in the collection tank with pressure chamber between the retaining plate also has a diversion gate, to prevent the passage of water vapor mist directly from the collection tank and equalizing chamber is discharged, the purification efficiency improves.
4. Due to the water vapor mixing chamber provided with at least a pan of water board, so that water vapor mist air mixing chamber contains sufficient soluble in water, improve the purification efficiency.
5. Because of the water by adding a mist cleaning agents, paint mist undermine adhesion, cohesion so loose paint mist settling on the bottom for easy cleaning.
6. As in the collection tank with access doors for easy maintenance workers.
Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as
Car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth and Offer car spray baking booth accossories
Services We Supply
Customized service
More Than 90% Of Our Spraying Booth Is Customized.
1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
Model: | EZ-DT 100R |
Sketch | |
Outside Size(mm): | 7000*5500*3500 |
Inside Size(mm): | 6900*4000*2800 |
Front Door(mm): | 2800(W)*2600(H), 3 pieces folding doors,frame cover, with two sets of pressure locks. |
Service Door(mm): | 650*1800, with two sets of pressure lock which will automatically open when the pressure inside is over the limit. |
Total Power: | 45 kw |
Cabin System | Wallboard | Rock Wool material, tongue and groove interlock construction, thickness: 50mm, 0.5mm steel plate. |
| Basement | 300mm depth, patented circumferential diamond plate design, middle with grids, 3 Pcs ramps, each size: 900X2000MM(WXL). |
| Inlet Fan | Turbo fan, Capacity: 25000m³/h. | Outlet Fan | Turbo fan, Capacity: 25000m³/h. |
| | Power: 7.5kw | | Power: 7.5kw |
| | Quantity: 1 set | | Quantity: 1 set |
| Ducting | 4 meters exhausted air duct, one flop damper, one weather hood, one anti-bird mesh. |
Purification System | G3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter, exhaust active carbon filter. |
Heating System | With 9 units high energy short wave infra-red lamps for heating. 3 pcs/ unit, each lamp 1 KW, total power of infra-red lamp:27KW. |
| Max temp: 80 degree centigrade, heating time: 3-5min(20-60 degree centigrade). |
Lighting System | Ceiling Lights: 8Units×4Pcs=32Pcs×36W, Side Lights: 10Units×2Pcs=20Pcs×36W, with electronic ballasts, lighting boxes open outside, illumination≥1200Lux. |
Controlling System | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge. |
Environmental System | G3 grade glass fiber floor filter, exhaust active carbon filter. |
