| Prod Model: |
CPYE 12001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Internal Size: |
12000×4500×4000mm(L×w×h) |
| External Size: |
12144×6396×4600mm(L×w×h) |
| Grid: |
2 Rows Air Exhust Plenum Chamber |
| Wall: |
75mm EPS Panel, 0.5mm Steel |
| Front Door: |
1 Unit, 3800X3900 mm(Wxh) |
| Service Door: |
1unit, 650X1800 mm(W×h) |
| Lighting System: |
16 Ceiling Lights, 18 Side Lights |
| Intake Air System: |
4X5.5kw Double-Intake Centrifugal Fans |
| Exhaust Air System: |
2X7.5kw Double-Intake Centrifugal Fans |
| Total Power: |
44kw |
| Certification: |
GS |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Painting Booth |
| Substrate: |
EPS Sandwich Panel |
| Brand: |
Captain |

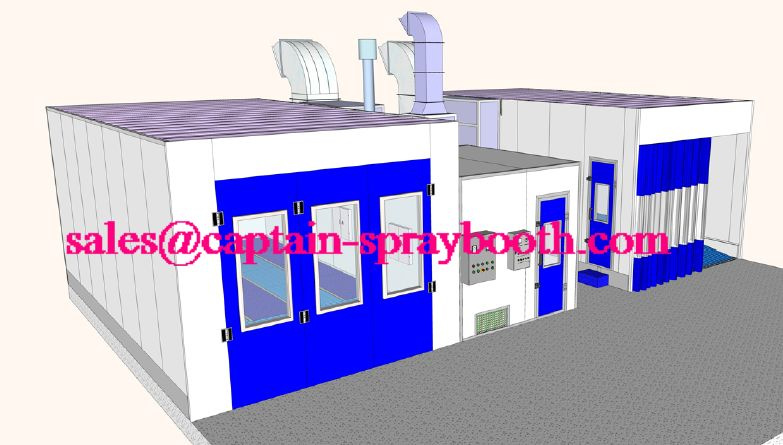

Product Description
Product Description
Booth Dimension |
| - Internal Size(L×B×H) | 12000×4500×4000mm(L×W×H) & 39'4''X14'8''X13'1'' |
| - External Size(L×B×H) | 12144×6396×4600mm(L×W×H) & 39'8''X20'9X15'1'' |
| Foundation and Floor |
| - Grid | 2 rows air exhust plenum chamber |
| - Metal Basement | Need to build the base construction , 2 rows of pits in the ground for exhaust air,
dimension of each pit is10350×760mm((LxW),
with galvanized grids made by twisted steel and flat bar above |
| Wall and Door |
| - Steel Wall | Double construction with insulations EPS , thickness 75mm,0.5mm steel thickness, width:950mm,
tongue and groove interlock structure, with Polystyrene(EPS) insulation inside |
- 3-Folded Entrance Door
With Safety Glass Window | 1 Unit, 3800×3900 mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside |
- Operator's Door With
Safety Glass Window | 1Unit, 650×1800 mm(W×H) |
| Lighting System |
| - Ceiling Lights | 16Units, each 3×36 W, with electronic ballasts |
| - Side Lights | 18Units, each 2×36W, with electronic ballasts |
| - Brightness | >1000LUX |
| Filter System |
| - Filter | Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter |
| - Filtering area | 46M2 |
| Ventilation System |
- Intake air system
(Fresh Air) | 4×5.5KW double-intake centrifugal fans for intake air, model YDW4.5S,
total air capacity 65000m3/h |
- Exhaust
air system(Exhaust Air) | 2×7.5KW double-intake centrifugal fans for exhaust air, with motor outside,
belt-drive, model TAE-560H, total air capacity 50000m3 |
| Heating System |
| - Heating Exchange | Stainless Steel |
- Heating
Exchange Capacity | 260000Kcal/h |
- Max. Drying
Temperature | 80 °C |
| - Heating time | 8-12 min (from 20 to 60) by Drying Phase |
| - Heating Type (optional) | RIELLO RG5S (260000 kcal/h)Diesel )2 sets |
| Control Box |
| - Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator,
thermostat, power supply switch, emergency stop, ampere meter, voltmeter,
hours meter, temperature limit controller, pressure gauge. exhaust reduction
voltage motor start |
| - Total power | 44KW |

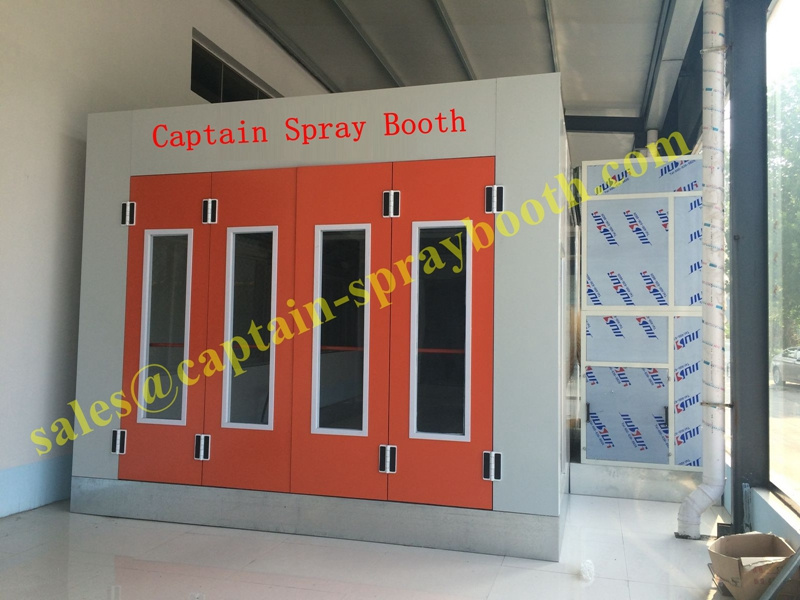

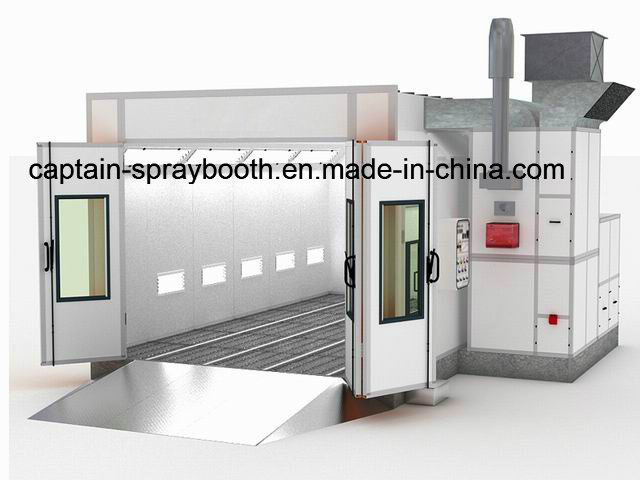

Pictures of our spray boothFront View

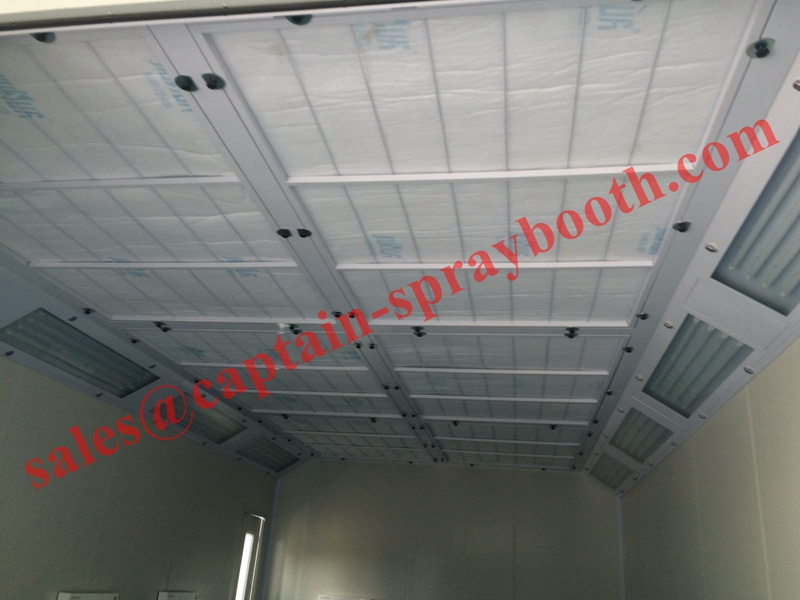

The Ceiling

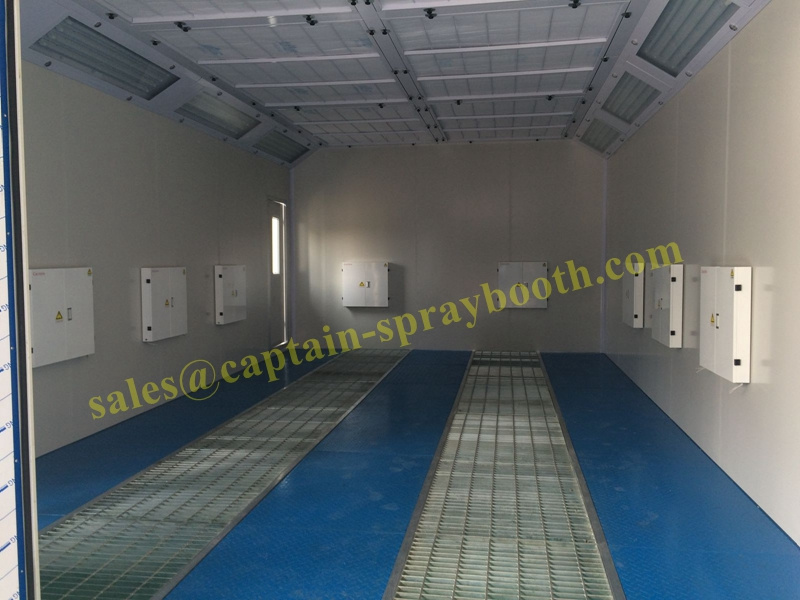

The inside View--for basement, we also can do full girlles, 3 grilles in the middle.

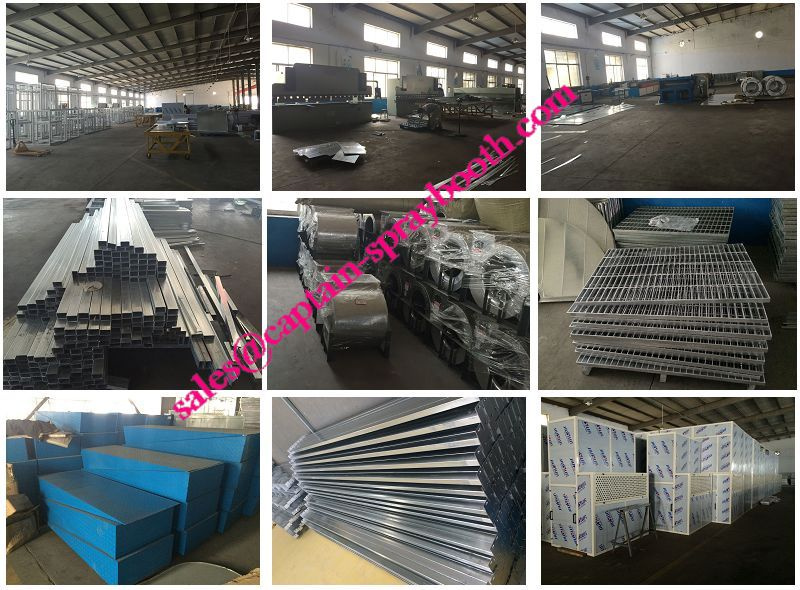

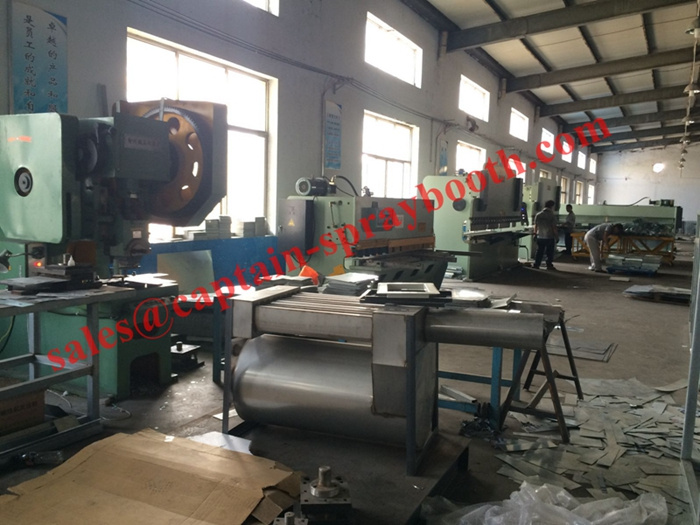

Production machine--high technology machine makes sure precise production
