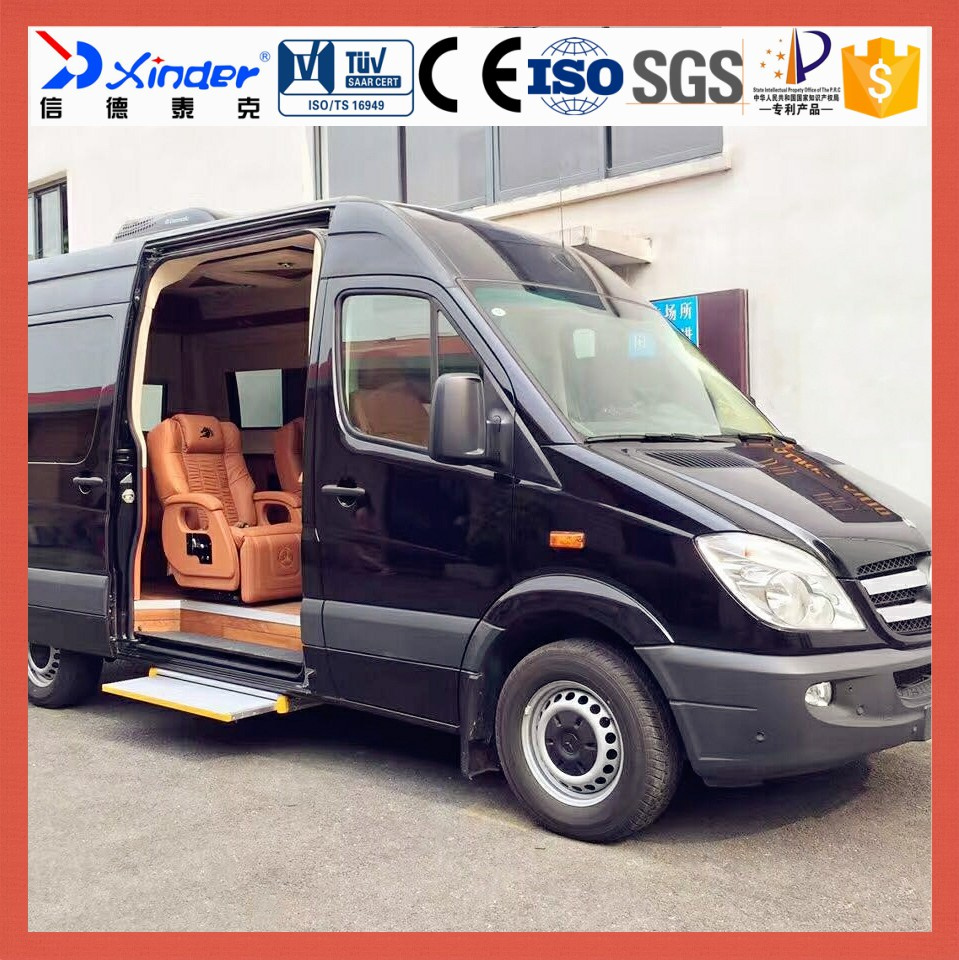

CE Certificate Electric Sliding Step for Motorhome and Caravan with Loading Capacity 250kg
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
INTRODUCTION
ES series electric step is a kind of equipment which can help passengers get into vehicles, such as cars, public bus, taxi, ambulance and so on. This step, with loading capacity of 250 kg, can work steadily, reliably and safely.
We have different steps with several specifications, which can meet different requirements.
This step has a frame with thickness of only 65mm, and it is also suitable for the low-floor vehicle. The operation can be electric or manual. Electric operation is done by remote control.
ES is a kind of electric steps. It is designed to fit a vast range of accessible vehicles, cars, minibuses, taxis and ambulances.
Description:- Small frames, downy line, smooth platform and easy operation
- Reduce the floor height to make entrance easy
- Operated by the driver or attendant.
- Rated voltage is 12V-24V
- Waterproof connectors
- If door is closed, this step will stow automatically
- If there is an obstruction when extending, the step will stow automatically.
- Can be operated fully automatically, that is to say, when door is open, this step will extend; when door is closed, this step will retract
- There is sound and light for warning during working
- There is interlock function, which can interlock with vehicle brake
- Can be stowed for emergency
- Has been tested 100000 cycles
- Test weight is 500kg
Accessory:- Fully auto operation: simply swap the switch to change to a fully automatic operation on door.
- Sensitive edge: It will stow automatically if there is a obstruction. The operator should press the switch again to extend the step.
- Buzzer: an equipment for auto alarm

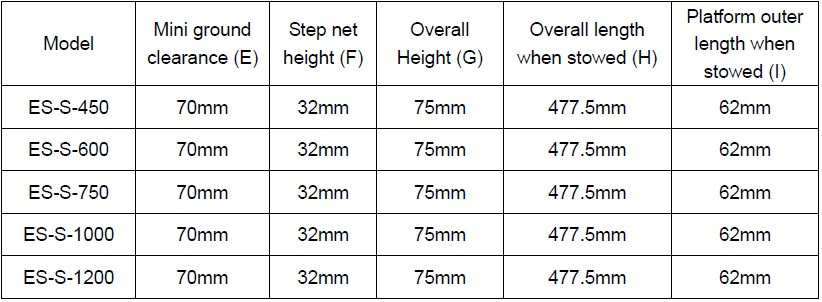

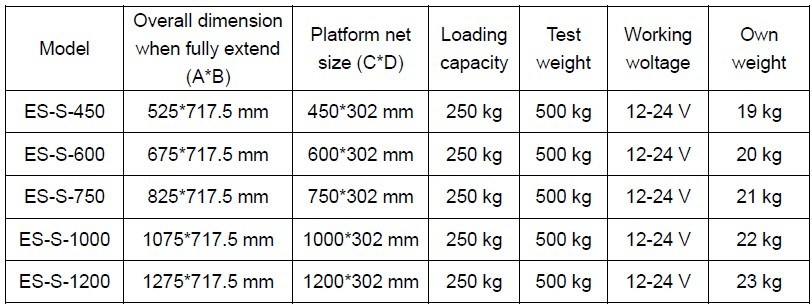

| Prod Model: |
ES-S-450/600/750/1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Volt: |
12V-24V |
| Own Weight: |
17-44 Kg |
| Extend/Retract Time: |
1-2 S |
| Test Weight: |
500 Kg |
| Loading Capacity: |
250kg |
| Certifocate: |
Ce |

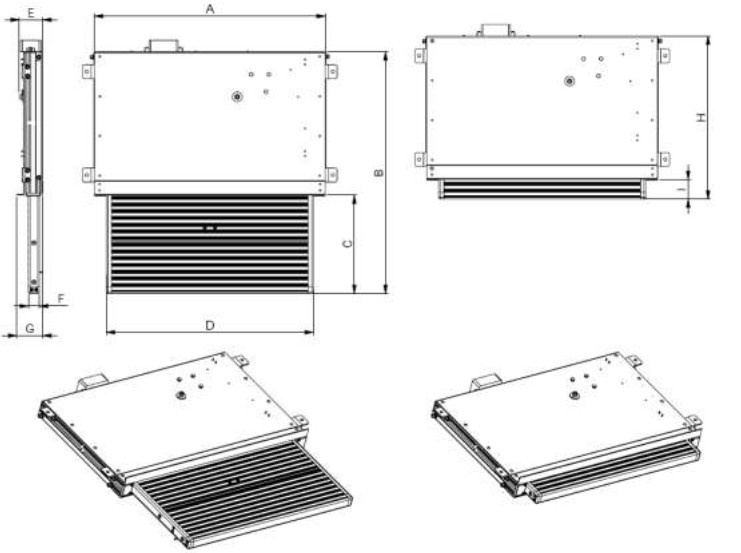

| Platform Size: |
600*300/450*300/750*300 |
| Water Proof: |
Yes |
| Packing Conditiont: |
in Carton Case Seperately |
| Function: |
Auto Sleep Mode, Less Than O.1mA |
| Bumper Position: |
Front Bumper |
| Material: |
Aluminium |
| Type: |
Electric Sliding Step |
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.
Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.
There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
XINDER works in many fields:
1 Electric & Manual Wheelchair Ramp
2 Wheelchair Lift
3 ES Series Electric Step
4 Manual Step
5 Wheelchair Restraint System
6 Manual Control System
7 Electronic Accelerator Pedal
8 Handicapped Electric car
9 Seat Fixing System
