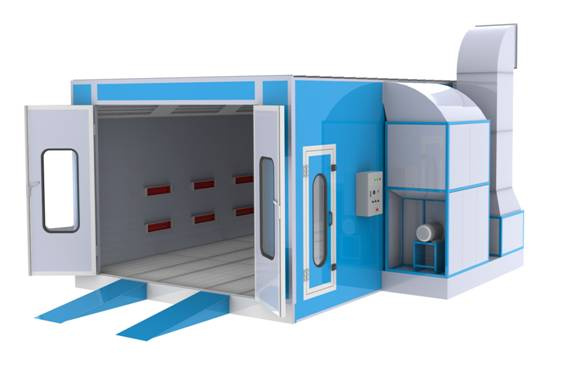

CE Car Spray Booth (AAE-SB1E)

Name: CE Car Spray Booth (AAE-SB1E)
Brand: ibuyautoparts.com
SKU: 722909025
Availability: InStock
Rating: 4.7 (39 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Electric heating spray booth,
Use electric infrared heating.
Electric heating auto spray booth.

Inner size6900×3900×2560mm (L×W×H)

Outer size7000×5050×3120mm (L×W×H)

PanelThickness 50mm, socket type, width 1150mm, material: EPS

Door3 x front door, 3000×2500mm(W×L), aluminum frame, 1 x safety door, with pressure lock, 650×1850mm, (W×H), door with window

BasementHeight 250mm, 2 x grits, 2 x ramps, 520*1500 (W×L)

Intake system1 x 5.5kw blower, fan capacity 20000 m3/h. Blower connect to motor directly, no belt, and completely isolated.

Exhaust system1 x 2.2kw blower, fan capacity 18000 m3/h, 2 x straight pipe, 1 x 90 degree pipe

Heating systemElectrical heating, 20 x 1Kw infrared heater, controlled by separate 5 groups.

FilterIntake blower filter, ceiling filter

LightingTop, 8 x 3 x 4w, illumination≥780Lux

ElectricityHigh quality electrical components, can make the spraying at set temperature, finish the baking automatically, 380V(220V) / 50Hz

Total power28.6Kw


Inner size	6900×3900×2560mm (L×W×H)
Outer size	7000×5050×3120mm (L×W×H)
Panel	Thickness 50mm, socket type, width 1150mm, material: EPS
Door	3 x front door, 3000×2500mm(W×L), aluminum frame, 1 x safety door, with pressure lock, 650×1850mm, (W×H), door with window
Basement	Height 250mm, 2 x grits, 2 x ramps, 520*1500 (W×L)
Intake system	1 x 5.5kw blower, fan capacity 20000 m3/h. Blower connect to motor directly, no belt, and completely isolated.
Exhaust system	1 x 2.2kw blower, fan capacity 18000 m3/h, 2 x straight pipe, 1 x 90 degree pipe
Heating system	Electrical heating, 20 x 1Kw infrared heater, controlled by separate 5 groups.
Filter	Intake blower filter, ceiling filter
Lighting	Top, 8 x 3 x 4w, illumination≥780Lux
Electricity	High quality electrical components, can make the spraying at set temperature, finish the baking automatically, 380V(220V) / 50Hz
Total power	28.6Kw

Prod Model:	AAE-SB1E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Color:	Blue
Length:	6900mm
Heating Mode:	Electric
Paint Mist Treatment:	Wet-type
Certification:	CE
Condition:	New
Airflow Direction:	Down
