| Prod Model: |
BTD 15-50-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Part Number: |
Btd 15-50-D |
| Price Car Paint Booth: |
Used Cars Paint Booth for Sale in Germany |
| Quality: |
High Quality |
| China Paint Room: |
Auto Maintenance Tools |
| Standard Color: |
White(Optional) |
| Standard Voltage: |
380V50Hz3pH for Motors, 220V50Hz1pH for Lights |
| Car Spray Booth: |
Price Car Paint Booth |
| Inside Size:(mm): |
15000X5000X5000mm |
| Management Certification: |
ISO9001: 2000 |
| Warranty Time: |
2 Years |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Btd |
Product Description

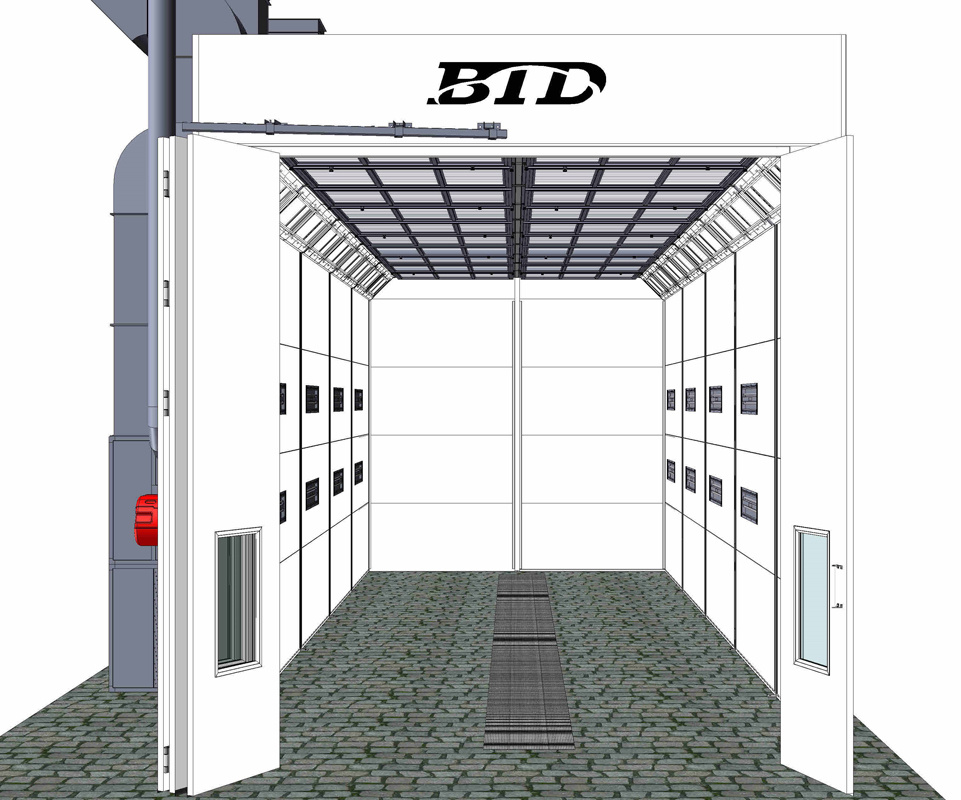

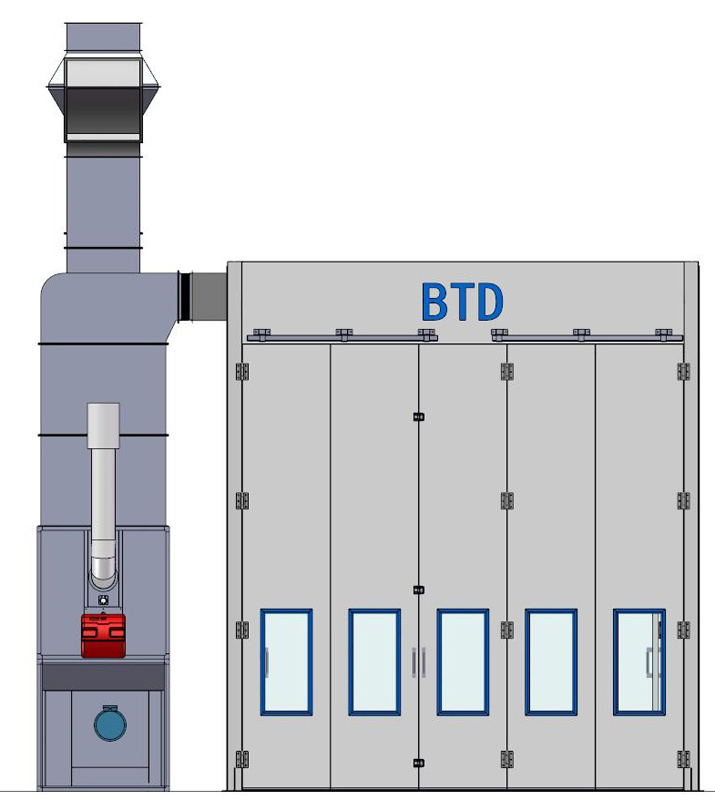

Model Number: BTD 15-50-D ( big and better effect spray booth )
Other conditions and terms:
1. Payment term: T/T 50% advanced after order confirmed, T/T 50% balance paid before delivery.
2. Delivery date: 10-15 days after order confirmed.
3. Warranty: 2 years. During the warranty time, any problem caused by products' quality, BTD has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.
4. Quality: Our products are welcomed in Europe, our quality meets the requirement of European market.
5. Service time: Life long maintenance
Model |
BTD-15-50-D |
Booth Dimensions |
|
-Internal Size(L×B×H) |
15000×5000×5000mm |
-External Size(L×B×H) |
15150×6620×5770mm |
Foundation and Floor |
|
-Loading Capacity
of Galvanized Grating |
3500KG/ wheel |
- Surface Area |
12M²(1 row galvanized grid) |
- Metal Basement |
1000mm Height(need to dig foundation) |
- Drive-in Ramps |
NO |
Wall and Door |
|
- Wall Panel |
Double Construction with Insulations EPS 60mm |
- Roof Panel |
Double Construction with Insulations EPS 50mm |
3-Folded Entrance Door With
Safety Glass Window |
4300×4800 mm (B×H) |
-Operator's Door With Safety Glass Window |
800×2000 mm (B×H) 2PCS |
Lighting |
|
- Ceiling Lightings |
16 Units, each 4×36 W, Total 2304W |
- Side Lightings |
24 Units, each 2×36 W, Total 1728W |
- Brightness |
>1000 Lux, IP54 Grade |
Filtration |
|
- Prefilters |
Fibreglass, Paint-Stop-Filters
Plate type duel filters |
- Ceiling Filters |
EU5 Fine Filters, 6 Units |
- Floor Filters |
Fibreglass, Paint-Stop-Filters |
Ventilation System |
|
-Direct Drive Motor (Fresh Air) |
2×7.5KW,970RPM,380V, 50HZ
motor certification:CE |
-Direct Drive Motor (Exhaust Air) |
2×7.5KW,970RPM,380V,50HZ Domestic
motor certification:CE |
- Fan Capacity |
50000m³/h |
- Air Flow Speed |
+/- 0.20 m/s in an empty booth |
Heating System |
|
- Heating Exchanger |
Stainless Steel 1Gr18Ni9Ti |
-Heating Exchanger Capacity |
2×232KW(260.000Kcal/H) |
-Burner Model |
RIELLO RG5D diesel burner |
-Max. Drying Temperature |
80 °C |
- Heating time |
10-15 min (rom 20 to 60°C) by Drying Phase |
-Heating Type (optional) |
Diesel /Gas Burner |
Control Board |
|
-Control system |
Standard control delta depressurization start system, EN60204-1-2006 |
-Function |
Painting, baking, warm painting, emergency stop switch |
-PLC |
yes |
-Inverter control |
Optional |
-Import element |
master device import element |
-Overpressure Manometer |
yes |
- Alarm equipment |
yes |
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray booth is getting more and more popular all over the world.
BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
FQA:
Q1: Are you Manufacturer or Trading company? A: We are a professional manufacturer with our own export department.
Q2: Where is your company ocated? How can I visit there?
A: Our company is located in Guangzhou. All clients, from home and abroad, are warmly welcomed to visit us.
Q3: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
Sources, our products are excellent in performance and craftsmanship.
Q4: What's the sort of heating types?
A: There are diesel, gas and electricity(infrared lamp) heating.
Q5: Does the BTD spray booth with the European design?
A: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.
Q6: What are range of the voltage and power for BTD spray booth when operating?
A: The standard voltage and power for our products is 220V 50Hz 1pH for lights (Residential voltage), 380V 50Hz 3pH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.
Q7: Can we customize our product?
A: Absolutely yes, BTD has the professional team with 10 years of design experience. Customized material and standard are acceptable. We can provide different standards according to your market and favor.
Our Service:
We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
