Tire Changer ATC-620 and Wheel Balancer AWB-70 Combo| SPECIFICATIONS FOR ATC-620 TIRE CHANGER |
| Rim Clamping from Outside | 10"-22" |
| Rim Clamping from Inside | 12"-24" |
| Max. Wheel Diameter | 1040mm |
| Tire Width | 3"-15" |
| Working Pressure | 8-10 Bar |
| Voltage | 110v/220v/380v |
| Power | 0.75kw / 1.1 kw |
| Machine Weight | 186kgs |
| Package Size | 1120*750*860mm |
| 20' /40' GP Loading Quantity | 30/64 sets |

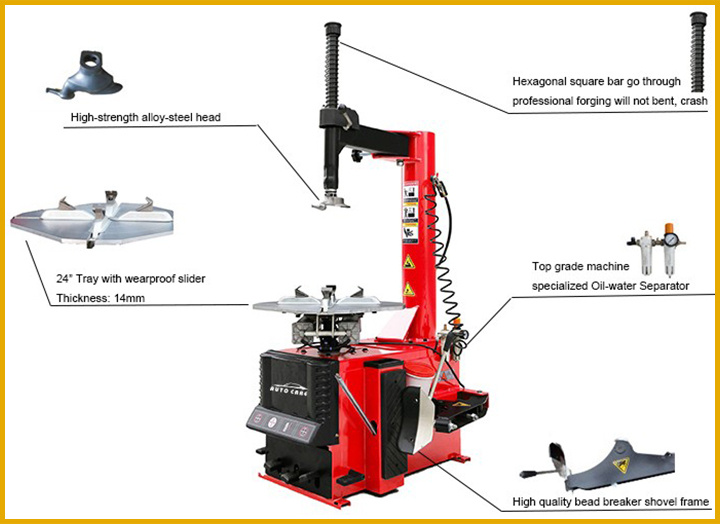

ATC-620 Tire Changer
Application range:
Applicable for changing and inflating car tyres whose rim diameter is between 10"-24".
Product features:
Adopting semi-automatic lateral swinging arm to change tyres.
Machine functions:
1. Adjusting mobile slider to be suitable for different rim ranges.
2. The motion structure of the four automatic alignment gripping jaws on the turn plate is link mechanism, which has synchronizing function and fix center automatically when gripping from outside to inside.
3. The once forming mobile slider and the design of processing machinery structure made it not easy to deformation.
4. The working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity, toughness and abrasive resistance.
5. The round working turn plate has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth.
6. When the machine is running, the noise is low.
7. The tools touching rim directly like changing working head, jaws, crowbar and spade are all equipped with protector, these protectors ensure no hurt to the rim.
8. It has good personal presentation, thick steel plate and super strong rigidness.
Machine quality:
This product gained Europe CE certification.
| SPECIFICATIONS FOR AWB-70B WHEEL BALANCER |
| Rim Diameter | 10"-24" |
| Max. Tire Diameter | 1000mm |
| Tire Width | 1.5"-16" |
| Max. Tire Weight | 70kg |
| Rotation Speed | 2000r/min |
| Balance Precision | ± 1g |
| Motor | 110v/220v 250w |
| Machine Weight | 90kg |

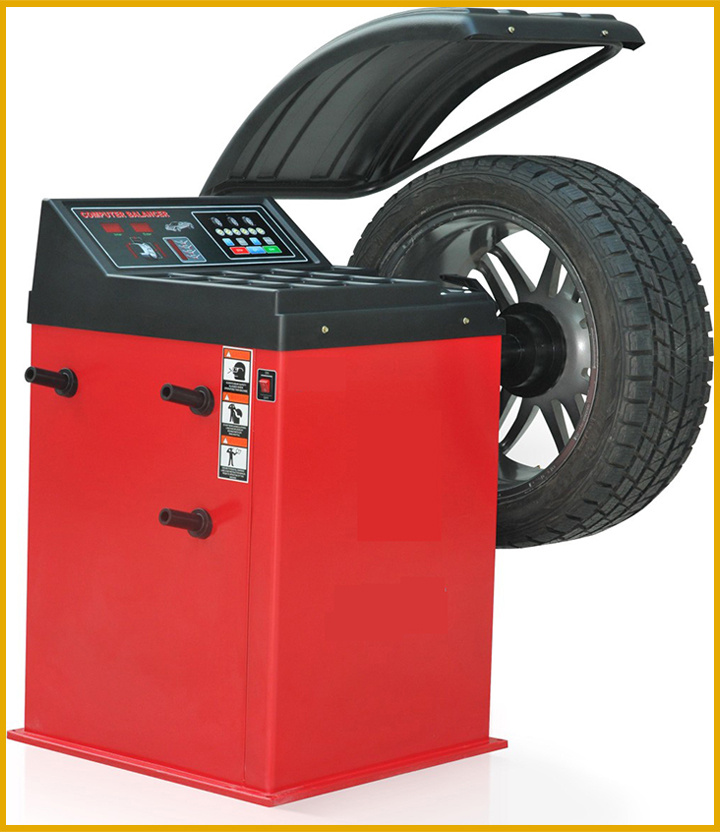

AWB-70B Wheel Balancer
Application range :
This product makes fine adjustment for tyres of various light vehicles.
Machine functions :
1.It can realize automatic dynamic balance, static balance and aluminum alloy rim balance.
2.Adopting pressure sensor,pressure datas show high precision.
3.The protective cover is optional.
Quality :
This product gained Europe CE certification.

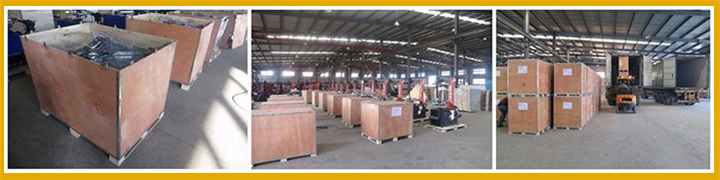

Packing & Delivery

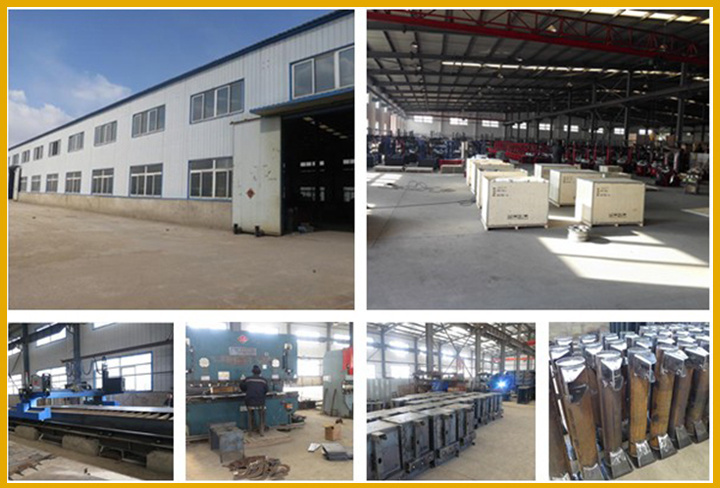

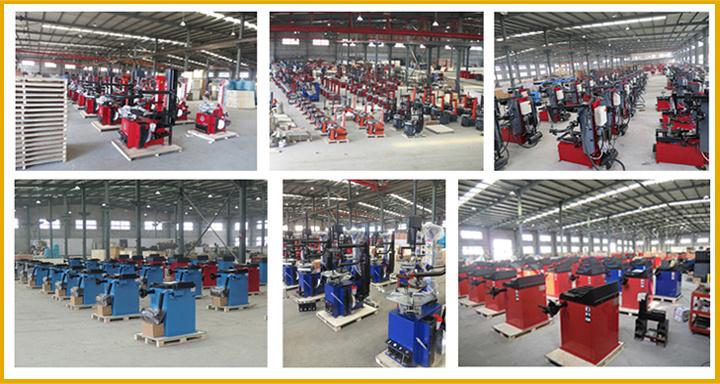

Our Factory
Our Service1. All the machines will be full tested before shipment;
2. The total machine guarantee is 12 moths;
3. 24 Hours technical support, email, telephone or video online;
4. User-friendly english manual for machine using and maintaining;
5. Several sets wearing parts will be free for you.
-----------------------------------------------------------------------------------------------------------------------------
Warmly Welcome to Contact With Me.
Henry Song(Sales Manager)
YANTAI CARE MACHINERY CO.,LTD.Tel: +86 535 3039298
Fax:+86 535 3039298
Mob:+86 187 6653 1757
Web:www.autocaremachinery.com.
Yantai Care Machinery Co., Ltd. Is a manufacturer which is also a trading company, focusing on buliding and exporting auto service equipment. Got a good reputation from all over the world in past 12 years. We have profressional technical team, sales team, QC and logistic team, can provide customized service of 4S shop, car body repair shop with all garage equipment. All products are CE approved, welcome you visit us!
