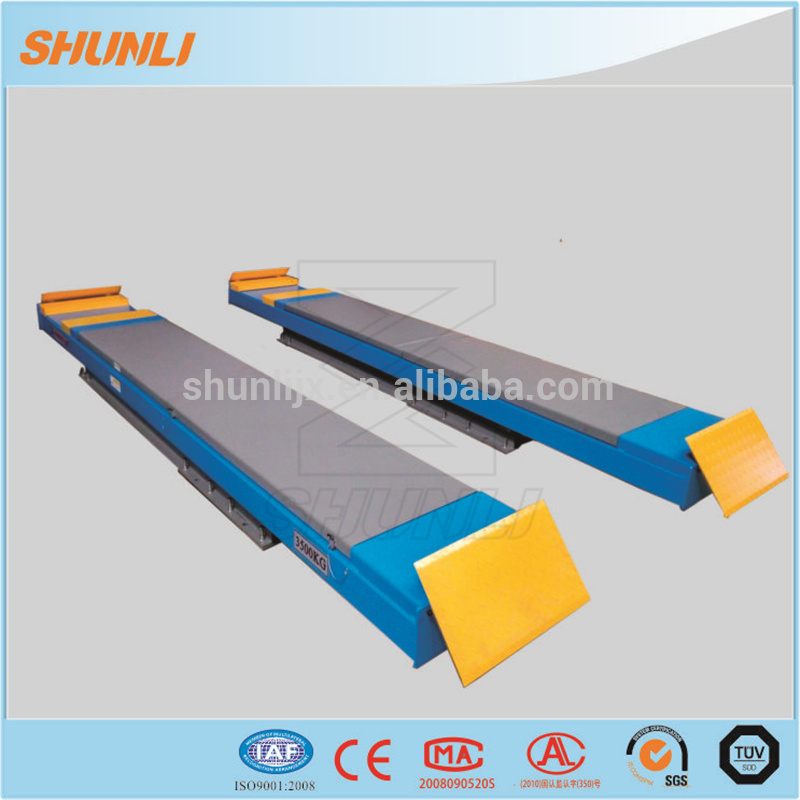

Ce Approval Scissor Car Lift with Second Jack for Wheel Alignment
| Price: |
US $ 3300/Set |
| Min Order: |
3/Set |
| Pay Type: |
L/C,T/T,Western Union |
3500kgs wheel alignment scissor car lifts in ground

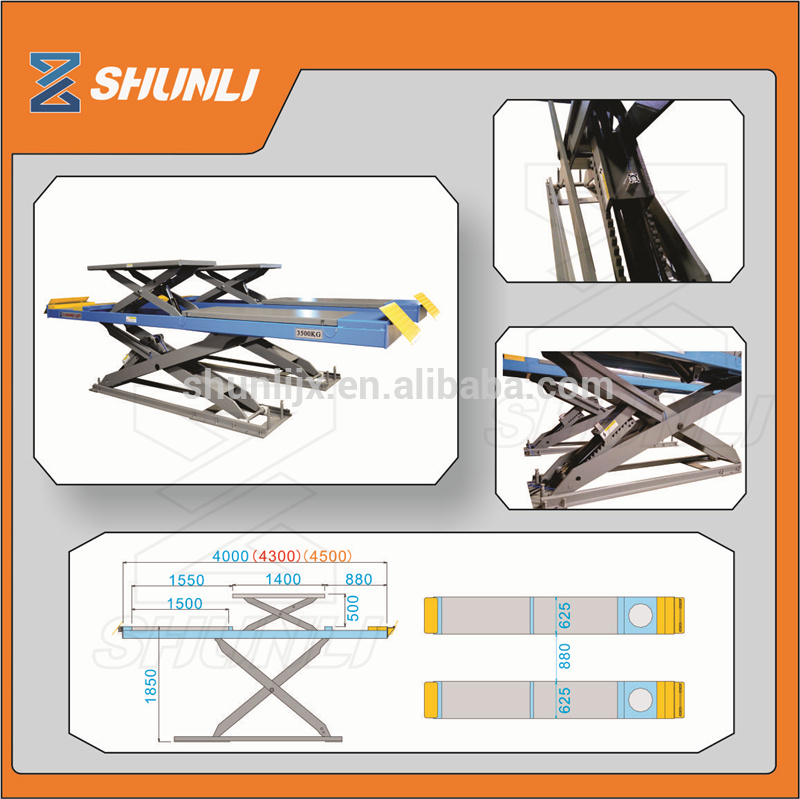

Product Specification1. Main platform lifting capacity 3500kg , second jack lifting capacity is 3500kg 2. Oil cylinder parts made by automatic CNC lathe ensure the excellent finish and concentricity. 3. Imported Oil Seal, valve and important hydraulic parts oil pipe explosion protective device. 4. Electric leakage protection overload protection 5. Shot blasting and high temperature baking powder coated surface finish self-lubricated bushings and bearings 6. Mechanical safety, double Hydraulic System pneumatic safety lock release system 7. Stable Hydraulic Balance System Optional second-level platform extension and infra-red electronic leveling sensor Technical parameterModel | SHL-Y-J-35DL | Colour | Blue/grey |
Lifting height of first level | 1850mm | Length of main platform | 4300/4500mm |
Lifting height of second level | 500mm | Length of sub-platform | 1400(optional extensi) |
Width of first lift | 610mm | Width of second lift | 570mm |
Lifting capacity | 3500kg | Certification | CE |
| 3kw | Voltage | According to customer's country |
Air pressure | 0.4-0.6MPa | Port | Guangzhou |
With the customer
Product advantage1. Easy control the lift table up &down by foot step
2. Can load the workpiece up and down, reducing working labor of worker.
3. Steady machine frame, durable and long life span
4. Almost o after-sales problem
5. The frame of this machine is welded by steel plate and Alloy solid steel with firm structure,
size accurate, machine the whole shape designs cultured beauty.
| Prod Model: |
SHL-Y-J-35DL 1 |
| Motor: |
3kw |
| Lifting Height (Main Machine): |
1850mm |
| Main Lifting Capacity: |
3500kg |
| Second Lifting Capacity: |
3500kg |
| Second Lifting Plaform Width: |
570mm |
| Second Lifting Plaform Length: |
1400mm |
| Lifting Length (Main Machine): |
4300 or 4500mm |
| Colour: |
Blue and Grey |
| Type: |
Four Cylinder Hydraulic Lift |
| Certification: |
ISO |
| Design: |
Scissor |
| Lifting Capacity: |
3500kg |
| Brand: |
Shunli |
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
