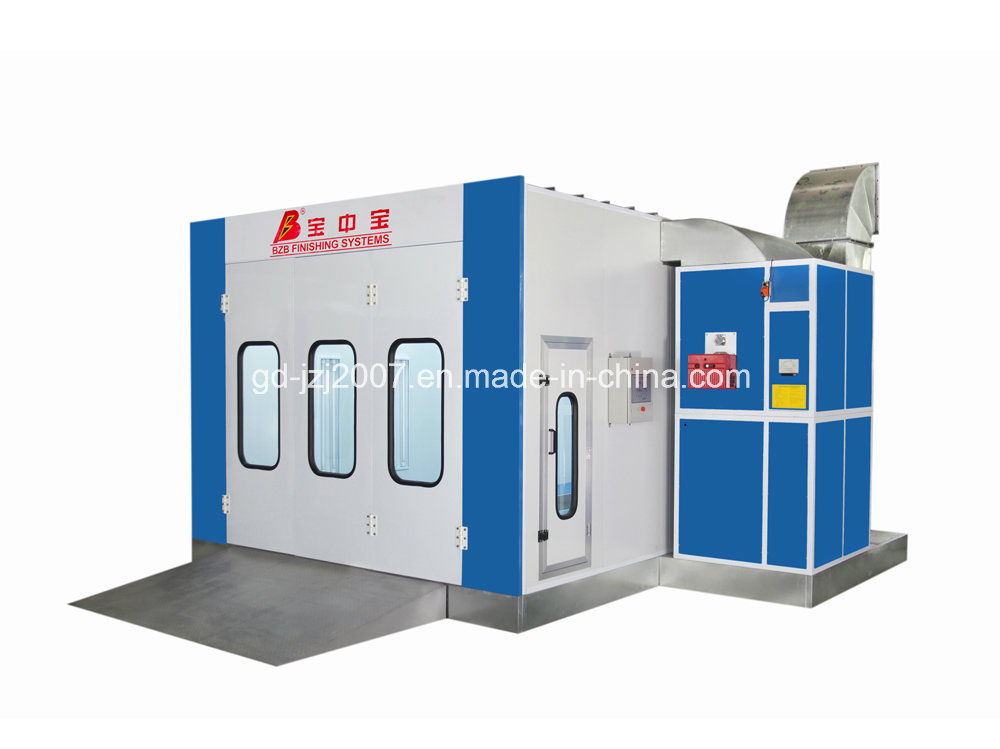

Ce and ISO Approved High Quality Car Spray Oven Paint Booth

Ce and ISO Approved High Quality Car Spray Oven Paint Booth
Price: US $ 3500-12150/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Prod Model: BZB-8300
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: as Require
Voltage: as Require
Certification: CE
Airflow Direction: Fully Undershot-type
Heating Mode: Diesel
Paint Mist Treatment: Dry-type
Condition: New
Brand: Bzb

Product Description

Car paint booth: Professional ventilation system, European-style blower,
Big-circulation exchange between spraying and coating
BZB-8300 MODEL
External size(mm)7000×5560×3430
Internal size(mm)6900×4000×2800
Front door 3000(W)×2700(H)
Total power10.5kw

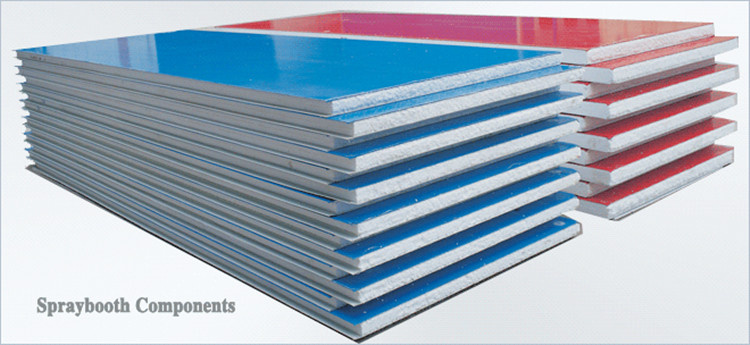

Cabin System1.WallboardEPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Compound Construction, Anti-flame and Heat-Insulation,Handiwork Door,Galvanized  Steel Roof Panel
2.Basement: Two Grid& Three Embossed Plate, Galvanized Steel Sheet Construction, Two Ramps,
Air Circulation SystemInlet  FanCapacity:  12000m 3 /h
Power:               4kw/set
Quantity:           2set
 Air Volume: 24000m 3 /h; Air Speed: 0.35m/h
Air Purification systemDual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. TSP≤1.4mg/m3
Heating System 1.BurnerItaly Riello Brand, G20 Diesel Burner, 180000Kcal/h.
2.Heat Energy ConvertersStainless Steel, Argon Arc Welding. The Heat Exchange Rare 85%
Max Temp:80 centi degree,Heating Time: 4-6min(20-60centi degree), Fuel Consumption: 4-6kg/vehicle,10N Damp Motor
Lighting SystemCeiling Light: 24 pcs 36w Philips Lamp; Bottom Light :16 pcs 36w Philips Lamp,900Lux
Control systemMicro Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
Environmental systemoptional environmental cabin



'
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
