bike engine kit/80cc gasoline motor kit/gas bike motor kit 80CC
Model: super PK80
CDH SUPER PK80 KIT:2.9HP;
Slant Head;
NEW SPEED Carburetor (marked "NT" on carburetor );
NEW Chain Tensioner with 4 bolts;
36T Sprocket;
Alum 40mm intake manifold;
spark plug 1 prong ;
Allen Bolts on motor;
Model | CDH 50cc(48cc) | CDH 60cc | CDH 80cc(66cc) |
Engine type | single cylinder, air-cooling, two strokes gasoline engine |
Bore & stroke | 40mmx38mm | 45mmx38mm | 47mmx38mm |
Ignition Mode | CDI Ignition | CDI Ignition | CDI Ignition |
Max. Power | 1.68kw/6000r/min | 1.86kw/6000r/min | 2.2kw/6000r/min |
Compression ratio | 6:1 | 6:1 | 6:1 |
Transmission ratio | 18:1 | 18:1 | 18:1 |
Starting | Kick starting | Kick starting | Kick starting |
Lubricating oil | Two-stroke machine oil (or 10W/40, 10W/30 machine oil) |
Mixing ratio of fuel and engine oil | 16:1 for new sets, 20:1 after running 500km |
Sparking plug | Z4C 16MMM |
Tank capacity | 2L | 2L | 2L |
Fuel consumption | 3L/100km | 3.5L/100km | 4L/100km |
Clutch type | Rub bloc drying | Rub bloc drying | Rub bloc drying |
Cooling | Air-cooling | Air-cooling | Air-cooling |
Shifting way | sprocket | sprocket | sprocket |
Max.speed | 30km/h | 35km/h | 38km/h |
Max. Load capacity | 120kg | 150kg | 180kg |
Fuel Type | 90# | 90# | 90# |
Net weight | 10.5kg | 10.8kg | 11kg |
Gross weight | 11.5kg | 11.8kg | 12kg |
Ctn size 0.03m³ | 42×42×17CM | 42×42×17CM | 42×42×17CM |
20'GP | 890pcs | 890pcs | 890pcs |
Gasoline motor: silver 80cc, Engine Type: Single cylinder, air-cooled,2-stroke
Mixing Ratio of Fuel(90#) and Engine Oil: 16: 1 for New sets, 20: 1 after Running 500Km
BorexStroke: 80cc:47mmx40mm
Fuel consumption: 2-3 liter gasoline/100km,Maximum speed:30-40km/h
Max. Power(kw/rpm): 80cc: 2.2KW/2.9HP/6000
Specification:
1).Gasoline motor: silver 80cc, Engine Type: Single cylinder, air-cooled,2-stroke
2).Ignition: D. I. Ignition magnetoes non-contact induction power storage
3).Max. Power(kw/rpm): 80cc: 2.2/6000
4).Mixing Ratio of Fuel(90#) and Engine Oil: 16: 1 for New sets, 20: 1 after Running 500Km
5). BorexStroke: 80cc:47xmm40mm.
6) Fuel consumption: 2-3 liter gasoline/100km
7).Maximum speed:30-40km/h
8). Fuel tank: 2 L
9). Net weight: 11kgs
10).Gross weight: 11.5kgs
11). Packing size: 42cm*42cm*17cm
12).NEW SPEED Carburetor 1set(marked "NT" on carburetor )
13): NEW chain tensioner with 4 bolts
14):36T sprocket

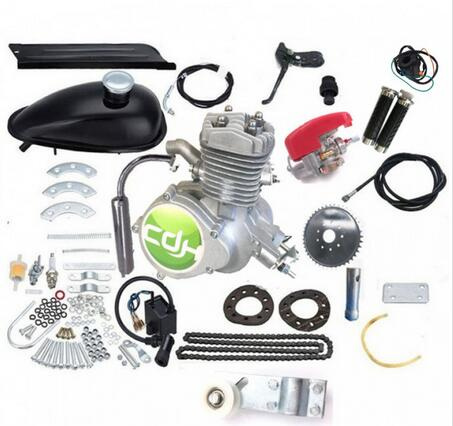

Bicycle Engine Kits including as follows parts:
1).gas motor 1 pc
2).2L Black Fuel Tank 1set
3). chromed Exhaust Pipe 1pc
4).chromed 9 hole,36Teeth Sprocket 1pc
5).clutch Lever 1pc
6).Throttle With Kill Switch 1set
7).415 Heavy Chain 1set
8).Sprocket Install Kit 1set
9).Chain Guard 1pc
10).Clutch Cable & Accelerator Cable 1set
11).Front U mount 1set
12).Spark Plug 1set
13).CDI Ignition 1set
14).Tool Kit 1set
15): NEW SPEED Carburetor 1set(marked "NT" on carburetor )
16): NEW chain tensioner with 4 bolts
More information please freely contact Kerry.
