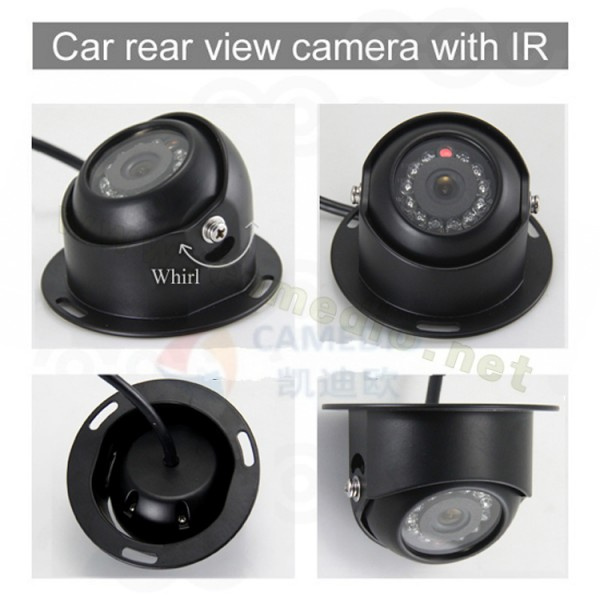

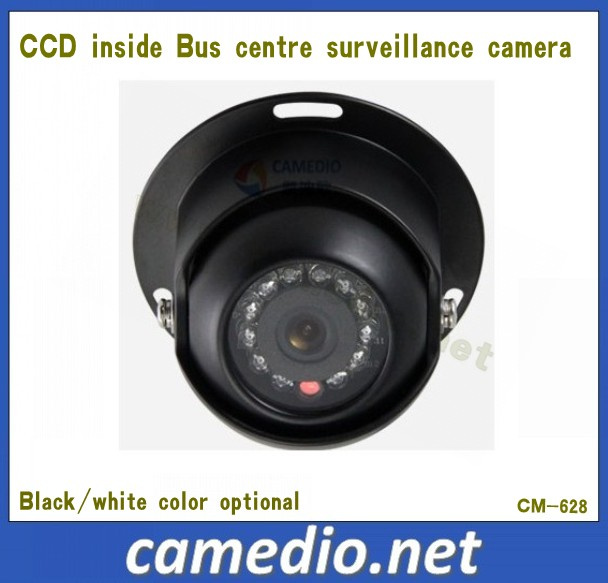

CCD 24V Bus Centre Dome Surveillance Camera
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
CM-628 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Image Sensor: |
PC7070/PC1089/Sharp CCD/Sony CCD |
| Color: |
Black/White |
| Resolution: |
480/520 Tvl Optional |
| IR Lights: |
18PCS |
| Voltage: |
12/24V Optional |
| Connector: |
RCA/Aviation Optional |
| Waterproof Grade: |
IP68 |
| Interface: |
RCA |
| Chip: |
Sharp CCD/Sony CCD |
| Definition: |
480TV Lines/560/600 TV Lines Optional |
Product Description
FEATURES:
* Bus centre surveillance camera
* Exquisite Metal housing design
* Black/white color optional
* 120 degree view angle
* 12V Sharp CCD /Sony CCD optional
* With 18pcs IR for good night vision
Bus centre camera helps in preventing accidents while driving or reversing to avoid accident with children, traffic, pedestrians, toys and pets while backing out of the driveway or parking space. SPECIFICATIONS:
Image feature:1/3" CCD COLOR(SHARP/SONY)
TV System:NTSC/PAL
Image area:4.9mm×3.7mm
Effective pixels:N:512X492/P:638X582
Horizontal Resolution(TV lines):480 TV lines
View angel:2.8mm 120°
water-proof rating:IP66
minimum Illumination:0Lux,12 pcs IR LED
Electronic Shutter Time:1/50(1/60)-1/100,000sec.
Scanning System:2:1 Interlace
Sync System:Internal
S/N ratio:>48dB
Video Output:1.0Vp-p,75ohm
Power Source:DC12V±10%
BLC:automatism
AGC:automatism
White Balance:automatism
Operation Temperature:-20ºC~+75ºC(RH95%Max.)
Storage Temperature:-40ºC~+85ºC(RH95%Max.)

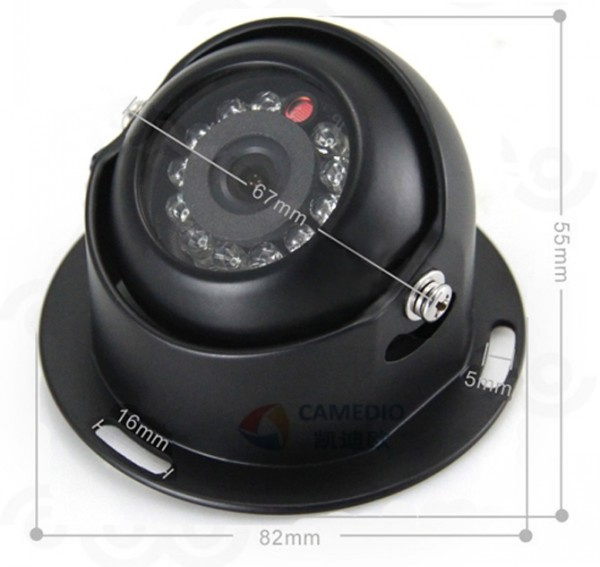

Dimension: 82*55mm
Basic feature:
1. This tilt body style camera compatible with most rear view systems or car LCD screens that support camera or video RCA/4-pin aviation connector input.
2. The camera made out of high quality components, 120 degrees wide angle lens and very sharp color CCD chip.
3. The body of the camera features weather proof, shock proof constriction with night vision infrared LEDs and light detection sensor.
Advantage:
1.Front casing----Material of PC/ABS could resistant high temperature(stock in 85°C for 4hours) as well as flame retardant.
2.Lens----We are questing for perfect definition, lens are made of 5G Full-glass.
3.Image Sensor----HD CCD
4.Rear casing----design of plug in / punch.
5.PCB board----Self-developed circuit board with PCB environmentally friendly materials, no pollution, more durable. With overload protection function, and prevent short circuit. Even if wrong interface connection for wiring, it won't bring damage to the product.
|
Image feature:Sharp CCD/Sony CCD optional |
|
TV System:NTSC/PAL |
|
Image area:5.961mm×4.276mm |
|
Effective pixels:N:510(H)x492(V)/P:500(H)x582(V) |
|
Horizontal Resolution(TV lines):480 TV lines |
|
View angel:2.8mm 120° |
|
water-proof rating:IP67-IP68 |
|
minimum Illumination:0 Lux with IR |
|
IR LED:18 PCS |
|
Electronic Shutter Time:1/50(1/60)-1/100,000sec. |
|
Scanning System:2:1 Interlace |
|
Sync System:Internal |
|
S/N ratio:>48dB |
|
Video Output:1.0Vp-p,75ohm |
|
Power Source:DC12V±10% |
|
BLC:automatism |
|
AGC:automatism |
|
White Balance:automatism |
|
Operation Temperature:-20ºC~+75ºC(RH95%Max.) |
|
Storage Temperature:-40ºC~+85ºC(RH95%Max.) |
