| Prod Model: |
49-19.5/4.0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Fitted Machine: |
Dump Truck Cat |
| Fitted Tyre: |
27.00r49, 27.00-49 |
| Type Of Rim: |
Tubeless |
| 5 PC & 6PC & 7PC: |
Available |
| Wheel Components: |
Side Ring, Lock Ring, Bead Seat Band Available |
| Material: |
Steel |
| Type: |
Rim |
| Drive Wheel: |
RWD |
| Certification: |
ISO |
| Wheel Hub Diameter: |
49 Inch |
| Finishing: |
Painting |
| Wheel Accessories: |
Wheel |
| Spoke Type: |
Weld Disc |
| Wheel Hub Brand: |
Multistar |
Product Description
Specialized in manufacturing and exporting all kinds of tyres and wheels to all over the world.And we can supply wheel rims and tires,and are especially professional in truck wheel,agricultural wheel and assemblies and components for OTR wheel and engineering wheel with multi-pieces for earthmover.
And we have dealt OTR wheel for many years. The main markets of us are Australia, South Africa, South America, North America (Canada) and Asia. We also supply OEM service to many vehicle factories not only in domestic but also abroad,and now available a wide range of Earthmover wheels with diam from 20" to 63" for mine, underground, port and bridge, etc. And the rim components such as bead bands, lock rings, side rings and wheel rims for CAT, Komatsu, Volvo, Dressta models etc. also can be supplied.
1. Application: Off-highway Dump Truck
2. Type: TL and TT
3. Multi Pieces: 1pc, 2pc, 4pc, 3pc, 5pc, 6pc
4. ISO Certificate
Color:
RAL1028, RAL9016, RAL9007
Custom colors are available by request to meet your needs.
Package:
In pallets | Dia | Rim Size | Fitted Tyre | Bolt Hole | PC Dia | Center Hole Dia | Offset/ET |
| No. | Dia. |
| 49" | 49-17.00/3.5 | 24.00-49 | DOUBLE DISC A=425 B=430 |
| 49-17.00/3.5 | 24.00-49 | DOUBLE DISC A=425 B=430 |
| 49-19.50/4.0 | 27.00-49 | WITHOUT DISC A=20 B=1120 C=1184 |
| 49-19.50/4.0 | 27.00-49 | 36 | 20.6 | 500 | 460 | 15 |
The components is also can be supplied, such as rim base, seat bead band, lock ring, side ring. | Diameter | Type | Description | Tyres |
| 15" | Multipieces | 15-9.75/1.37 | 12.00-15 |
| 15-11.00/1.5 | 14.5-15 |
| 15-11.50/1.5 | |
| 16" | Multipieces | 16-8.00/0.83 | 11L-16 |
| 16.5 | Multipieces | 16.5-8.25/0.5 | 10-16.5 |
| 16.5-9.75/0.5 | 12-16.5NHS |
| 17.5" | Multipieces | 17.5-10.50/0.5 | 14-17NHS |
| 18" | Multipieces | 18-9.00/1.0 | 12.5/80-18 |
| 20" | Multipieces | 20-7.50/1.7 | 10.00-20 |
| 20-8.0/1.7 | 11.00-20 |
| 20-8.0/2.0 | 12.00-20 |
| 20-8.50/1.7 | 12.00-20 |
| 20-9.00/1.7 | 13.00-20 |
| 20-10.00/1.7 | 14.00-20 14.00R20 365/80-20 |
| 20-10.00/2.0 | 14.00-20 14.00R20 |
| 20-11.00/1.6 | 12.5-20 |
| 20-12.00/2.0 | 15.5-20 16.00-20 |
| 20-13.00/1.0 | 16/17-20 |
| 20-14.00/2.0 | 17.5-20 |
| 20-15.00/1.0 | 500/70-508 |
| 20-15.00/1.7 | 18L-20 |
| 20-15.30/2.0 | 500/70-508 |
| 21" | Multipieces | 21-11.25/2.0 | 16.00-21 |
| 21-17.00/2.0 | 20.00-21 1300X530-533 |
| 21-18.00/1.5 | 24.00R21 24.00-21 |
| 21-18.00/1.7 | 24.00R21 24.00-21 |
| 22" | Multipieces | 22-17.00/2.0 | |
| 23" | Multipieces | 23-11.00/1.5 | 14.00-23 |
| 23-18.00/2.0 | 24.00-23 |
| 24" | Multipieces | 24-8.00/1.7 | 13.00-24 |
| 24-8.50/1.7 | 12.00-24 |
| 24-10.00/1.7 | 14.00-24 |
| 24-10.00/2.0 | 14.00-24 |
| 24-10.00VA | 14.00-24 16.00-24TG |
| 24-11.25/2.0 | 16.00-24 |
| 24-15.00/1.0 | 17.5-24 |
| 24-16.00/1.1 | 19.5-24 |
| 24-16.00/1.7 | 54*21-24 |
| 25" | Multipieces | 25-8.50/1.3 | 13.00-25 |
| 25-9.50/1.7 | 14.00R25 |
| 25-10.00/1.5 | 14.00-25 14.00R25 |
| 25-11.00/1.7 | 16.00-25 |
| 25-11.25/2.0 | 16.00-25 |
| 25-12.00/1.3 | 15.5-25 |
| 25-13.00/2.5 | 18.00-25 |
| 25-14.00/1.5 | 17.5-25 |
| 25-14.00/2.0 | 17.5-25 |
| 25-15.00/3.0 | 21.00-25 |
| 25-17.00/1.7 | 20.5-25 |
| 25-17.00/2.0 | 20.5-25 |
| 25-19.50/2.5 | 23.5-25 |
| 25-22.00/1.84 | 26.5-25 |
| 25-22.00/3.0 | 26.5-25 |
| 25-24.00/2.5 | 29.5-25 |
| 25-24.00/3.0 | 29.5-25 |
| 25-25.00/3.5 | 26.5-25 |
| 25-36.00/1.5 | 24.00R35 |
| 26" | Multipieces | 26-16.00/1.1 | 18.4-26 |
| 26-20.00/1.1 | 23.1-26 |
| 27" | Multipieces | 27-21.50/2.4 | 57X25-27/50 |
| 27-23.50/2.5 | 57X25-27/50 |
| 27-24.50/2.4 | 26.00-27 |
| 28" | Multipieces | 28-15.00/1.0 | 16.9-28 |
| 29" | Multipieces | 29-17.00/3.5 | 24.00-29 |
| 29-24.00/3.0 | 776/65R29 775/65R29 |
| 29-24.00/3.5 | 776/65R29 775/65R29 |
| 29-25.00/3.5 | 29.5R29 |
| 29-27.00/3.5 | 33.25R29 |
| 33" | Multipieces | 33-13.00/2.5 | 18.00-33 |
| 33-26.00/1.14 | |
| 33-28.00/3.5 | 33.5R33 36/65R33 |
| 33-32.00/4.5 | 37.5 R 33 |
| 34" | Multipieces | 34-14.00/1.3 | |
| 34-16.00/1.3 | 53X18-34 |
| 35" | Multipieces | 35-15.00/3.0 | 21.00-35 |
| 35-17.00/3.5 | 24.00-35 |
| 35-22.00/3.5 | SOLID TYRE |
| 45" | Multipieces | 45-36.00/4.5 | 45/65R45 |
| 49" | Multipieces | 49-17.00/3.5 | 24.00-49 |
| 49-19.50/4.0 | 27.00-49 |
| 51" | Multipieces | 51-22.00/3.0 | SOLID TYRE |
| 51-28.00/4.5 | SOLID TYRE |
| 57" | Multipieces | 57-29.00/6.0 | 40.00R57 46/90R57 |
| 63" | Multipieces | 63-36.00/5.0 | 53/80R63 |
| 63-41.00/5.0 | 55/80-63 |
| 63-44.00/5.0 | 58/80-63
|
We can supply all kinds of steel wheel rims for many models which you can see below.
More information about us:
If you are interested with our wheel rims, welcome to contact with us.
With presence in over 70 countries across 6 continents, Qingdao J&G International Trading Co., Ltd has fastly grown up an One-stop professional supplier of a wide range of tires & wheels, and axles in China. We are to deliver superior value to our customers through focus on products, innovation, technology and cost efficient manufacturing and distribution practices.
The main component of Qingdao J&G's business is to supply the Mulitstar brand tires & wheels, and axles for the global "OEM" and aftermarkets, particularly for the farming applications, comerical vehicles, construction & earthmover equipments. Meanwhile, we are also supply a full specifications of steel wheels for mining, port handlings, Off-the-Road construction equipments. As well Alloy truck wheels are also available by us.

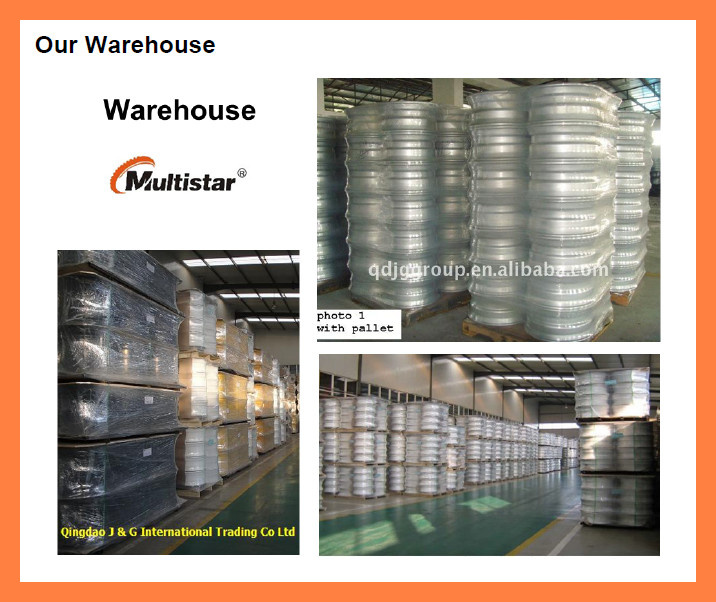

We have a well stocked warehouse in the Harbor of Qingdao now. A new bigger warehouse owned us is under construction, which is more than 2, 000 square meters. We can not only meet the demands of prompt shipment but also meet the demand of wheel assembly of tyres and rims for "OE" manufactures for the domestic and overseas markets.
Our extensive inventory of over 3000 units of complete wheel assemblies, and various range of tyres and rims, and also inner tubes and valves, clearly separaters them from our competition.
