Refone Auto Power Co., Ltd. >> Caterpillar 3406 Truck S410g 177148 169227 170354 Turbocharger

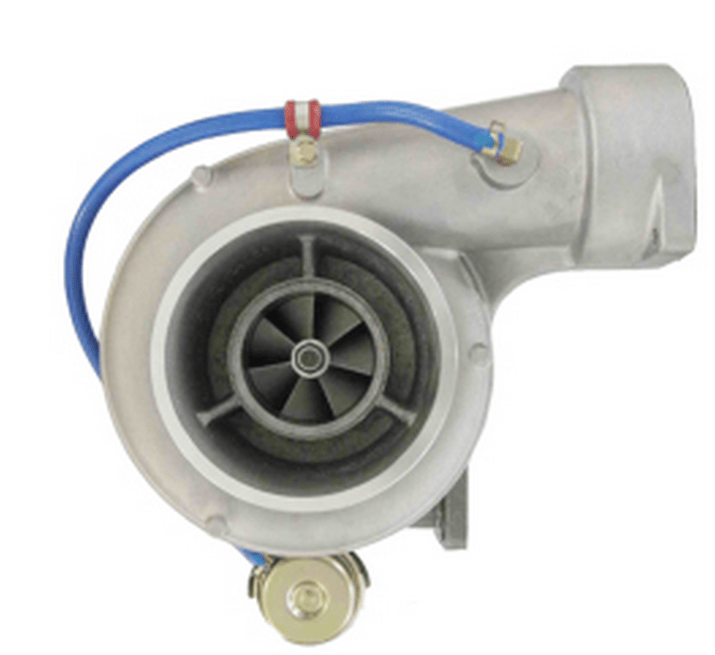

Caterpillar 3406 Truck S410g 177148 169227 170354 Turbocharger

Caterpillar 3406 Truck S410g 177148 169227 170354 Turbocharger
Price: US $ 170-200/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: S410G
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Turbine Shaft Wheel Material: K18 Shaft and Wheel
Bearing Housing: Oil Cooled
Engine Model: 3406e, 3406c, C16
Displacement: 14.64L, 14640 CCM
Fuel: Diesel
Kw: 317/404/550/355/475 HP
Gross Weight: 31kg
S/N: Okc150148
Body Material: Iron
Certification: SGS
Type: Turbocharger
Application: Caterpillar
Brand: Refone

Product Description

Δ Caterpillar 3406 Truck S410G 177148 Turbocharger Specs

Part Number
177148

Previous Version
169227, 170354, 704604-0007, 466445-0018, 466445-0023,
466445-9023, 471142-0005, 471142-9005, 471142-0003,
466445-0015, 466445-0021, 466445-9021, 471142-5005

OE number
0R7152, 0R7923, 0R7310, 0R6989, 0R7203, 0R7223, 0R6986,
0R7201, 0R7299, 166-6752, 141-8937, 124-3032, 136-6390,
146-4328, 141-8939, 124-3035, 167-9271, 196-5951, 137-4832

Description
Tractor, Truck

CHRA
174248 (161-6780, 10R-0510, 0R7287, 451686-0006)

Turbo Model
S410G, GTA470201BS, GT4702, BTG7513, GT500201BS

Engine
3406E, 3406C, C16

Displacement
14.64L, 14640 ccm

S/N
OKC150148

RPM
1800

KW
317/404/550/355/475 HP

Fuel
Diesel

Bearing Housing
451358-0004

Turbine Wheel
702892-0001

Comp. Wheel
451936-0001

Back plate
451444-0002

Heat shield Number
707967-0002 (4P3822)

Repair Kit
176392

Turbine Housing
702908-0003

Compressor Cover
447992-0027/704569-0003 (161-6783, 2099799)

Turbine housing + Actuator
447990-0099 (2212104)

Actuator
446131-0046

Gasket oil inlet
210019 (129119)

Gasket (oil outlet)
210018 (129120)

Replaced By704604-0007 (0R7310, 1679271, 167-9271, 704604-5011
(1965951. 196-5951, 160-6201))



Δ Application

1994-07 Caterpillar Engine Truck 3406E, 3406C, C16 Engine



Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive



Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support



Δ Caterpillar turbochargers

MOODELTURBO PART NO.
OE NO.
 		CAR MARKERAPPLICATIONENGINEYEAR
GT2052,
GT2052S		727265-5002S/452264-0002/727265-0002U2674A324, 2674A323, 2674A382,
2674A324, 2199773, 219-9773		PERKINS/CATERPILLARPerkins Industrial-4000, Caterpillar 3054T4.401997-
T04B91409410-0006/4/5/7/8/10/12/
5004S/5005S/5006S/5007S/5008S/5010S/5012S		7N4651, 4N6858, 4N6859, OR5796,
7N1709, 7N2342, 1W5160,
2W8139, 7C2175, 0R5796		CATERPILLEREarth Moving3304, 3304DIT, 3304-Industrial,
 3304T DITAJWAC GS		1973-
GTA4594762552-0001/2/3/5001S/762552-12472960,256-7737,295-7952,247-2957,
247-2958, 247-2960, 247-2962,
247-2963,247-2965, 247-2967,
295-7972, 247-2980, 247-2981		CATERPILLARIndustrial Petroleum Engine,
Industrial Genset		C11, B5K00001-UP2003-
GT4502762550-0001/2/3/4/5/5003S/762550-3247-2965, 256-7737,247-2962,
247-2967,295-7952		CATERPILLAREarth MovingC13
GTA4702BS740130-0001/2/5002S236-7659,2367659,2297170,229-7170CATERPILLARIndustrial PetroleumC15
GT2556S738233-0001/738233-1/738233-5001S2674A403CATERPILLAR/PERKINSCaterpillar 3054D, Perkins
T1238465032-0001/465032-9001/465032-1/
465032-5001S		6N7203, 0R5841CATERPILLARD8K,583K Earth MovingD342
T04B465088-9001S/465088-0001/465088-1/
465088-5001S		6N-8477, 6N8477, 0R5824, 6N8566CATERPILLAR926E, 953 Earth Moving 3204
TL8118465955-0001/465955-9001/465955-1/
465955-5001S		9Y8266, 0R6006, 8Y8266CATERPILLAR776B, 789, D8L Earth Moving3508
GTA429402S716269-0003/716269-3/716269-2/
716269-1/716269-5003S		190-6210, 0R7578, 0R7292,
1649490, 1906210, 2033376		CATERPILLARFreightlinerC121999-2013
F-555194848/312002/311955186497,178215,1W1053,0R6346CATERPILLARCaterpillar 3406C
TD06-17A49179-00100/49179-00130ME037700MITSUBISHI/CATERPILLARSumitomo HC78RM, LS78RM ,
Caterpillar S6D14 Earth Moving		6D14-2PT, 6D14, 6D14-325511
TD06H-16M-1249179-02230/49179-02260/49179-02220/
49179-02240/316375 		5I7589, 5I7952, 5I-7952 CATERPILLERExcavator 320, Cat 3066, 320B3066
TDO6H49179-004605I7903,5I-7903CATERPILLARExcavator Earth MovingE120B,E110B1999-
TD06H49179-00450/49179-004515I-5015, 5I5015CATERPILLERExcavatorE200B1992-
TD06H49179-02300 5I8018, 5I-8018, 2797860, 279-7860CATERPILLAR320C Earth Moving3066T2001-
S2EGL094166773/166753/3184090R6743, 102-8410, 1028410,
167604, 115-5853		CATERPILLAR960 Front Wheel Loader 3116
S2BS001313624/166321/1992989Y1279, 4P2768, 4P4681, 4P4679,
4P2768E, 0R6239, 0R6586		CATERPILLAREarth Moving Excavator3116
S3BSL119167384/1795780R6881, 106-7407, 1067407, 0R6889CATERPILLAR330B Earth Moving3306
4LF302310138/1865141W1227, 0R5801CATERPILLAREarth Moving 3306
4LE302, E-3021849538N3367, 0R5385, 4N9544CATERPILLARD7G-Tractor D333C/
D334-Industrial, 3306-Industrial/
Truck/Vehicular, 1674-Truck		SR4; 3306; D333C
4LF-302310147/1824536N7519, 0R5806CATERPILLAREarth Moving3306
3LM-3733130928N9247, 0R5811CATERPILLAREarth Moving3306
S2ES083314522100-5865, 0R6599, 1005865CATERPILLARMarine;Earth Moving3116T
S2ES083314522100-5865, 0R6599, 1005865CATERPILLARMarine, 950F Loader Earth Moving3116T
S4DSL031167053/179596211-1023, 2111023, 179-5922,
1795922, 0R6804, 107-2060, 1072060		CATERPILLARMachine Engine3406; 3406B; 3406C
S2EG1121683641251126 / 0R7012CATERPILLAREarth Moving3116
S410G1742600R7205, 132-3649, 1323649, 0R6990CATERPILLARTruck3406C, 3406E, (Earlier 3406E)
S410G,
GTA4702		177148/169227/ 170354/704604-0007/
466445-0018/471142-0005		0R7152, 0R7923, 0R7310, 0R6989,
0R7203, 0R7223, 0R6986, 0R7201,
0R7299, 166-6752, 141-8937, 124-3032,
136-6390, 146-4328, 141-8939, 124-3035,
167-9271, 196-5951, 137-4832		CATERPILLAREngine Truck 3406E, 3406C, C16
4LF-302312100/1881271W9383, 0R5761CATERPILLAREarth Moving3306
S3BSL-119, S3BSL119178480/173305/16738410R0921, 10R-0921, 219-1911, 2191911CATERPILLAREarth Moving3306
S3BSL119167380113-7919, 0R6880, 219-1911, 1137919CATERPILLAREarth Moving 3306
S2BS001313624/166321/1992989Y1279, 4P2768, 4P4681, 4P4679,
4P2768E, 0R6239, 0R6586		CATERPILLAREarth Moving Excavator3116TA (325), 3116DIT 213/214,
3116DIT 180K
4MF-721187166/1796011W3728, 0R5759CATERPILLAREarth Moving
3LM-289310134/1724940R5808, 6N7924, 6N3926CATERPILLARCaterpillar E955L-Traxcavator,
955L-Truck Crawler Loader		3304
S4DS0111781067C7580, 0R5949CATERPILLARCaterpillar Earth Moving33061987-2002
S4DS001196535/1919194W6008, 4W-6008CATERPILLARCaterpillar Industrial Engine
S4DS011178106/1965547C7580, 0R5949CATERPILLARCaterpillar Earth Moving 3306
S4DS006196547/178059/ 194992/3130130R6333, 7C7691CATERPILLARCaterpillar D8N Earth Moving3406, D8N
S4DC006196564/3130080R6334, 7C7692CATERPILLARCaterpillar D8N Earth Moving 3406, 3406B
S3AS002312881/1968017C8632, 0R6342CATERPILLARCaterpillar Earth Moving3306,SR4
F-302,
4LF-302		315792/183200/3157927N2515, 0R5804, 7N-2515CATERPILLARCaterpillar Earth Moving D398B3306, 3306B, D398B
3LM310135/1841197N7748, 0R5807CATERPILLARCaterpillar Earth Moving3306
TV8112465332-5001S/465332-0001/ 465332-19N2703, 0R5370, 9N-2703CATERPILLARCaterpillar Industrial3406 DITAJWAC
4LE-504,
E-504		3102588S9237, 4N9554, 4N9618CATERPILLAREarth Moving 3306
S3B167972118-2284, 0R6981, 219-9710, 10R1011CATERPILLAR350H, C65D, 6153306
S200171860/1784750R7979, 177-0440CATERPILLAR325C 3126B2001-
S310173264/178478/17847910R00364, 198-1845, 198-1846,
216-7815, 10R0823, 2167815		CATERPILLAR938G, 950G, 962G, 972 loaderC9 2001-2010
S310178484/171847/174755248-5246, 2485246, 248-5376, 2485376, 10R-2232, 10R2232, 1OR-2232, 1OR2232, 10R-2355, 10R2355, 1OR-2355, 1OR2355, 191-5094CATERPILLAR300C, 330C Earth MovingC9 1980-2013
S4DS 196543/3136587C7579, 0R6340CATERPILLAR966F Earth Moving3306
S4DS313272 /196550/1965527C7582, 7C-7582CATERPILLAR
S4DC0101987499Y9204,0R6155CATERPILLAREarth Moving3516
B2G,B2G0051751832525165,252-5165,10R-3749,10R3749CATERPILLARVarious, Caterpillar Bulldozer 2005-2010
S2ESL119,
S2ESL-119		167559/1673841151179,0R6899,115-1179CATERPILLAREarth Moving31163126
S2ESL094168190124-9332,0R7000,1249332CATERPILLAR235BL Loader3116TA1995-2011
S2EGL112167302105-5059,0R6865CATERPILLAREarth Moving 950F Loader3116
S2ES083314522100-5865,0R6599,1005865CATERPILLARMarine, Earth Moving3116T
S2B313614102-8409,4P4677,0R5972,4P4676,1028409CATERPILLAREarth Moving3116T
S200169439135-2650/0R7197/1352650CATERPILLAREarth Moving3116
S4TS198053/1796079Y9198 7N7878 7C7691CATERPILLARIndustrial Gen Set3406 50 Hz
S2E199713/166808103-2081,0R6728,0R6352,6I0171,1032081CATERPILLAREarth Moving3116
S3103955392/172830211-6959,CH11516,10R0569,2118251,
211-8251		CATERPILLARGen SetC18 EPG 50Hz2003-
S4DS0111781067C7580/0R5949CATERPILLEREarth Moving33061987-02
3LM-319310130/159623OR5809/180189/6N1571/4N8969/4N9555/CATERPILLEREarth MovingD333C, 3306

Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.

Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.

The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.

Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
