Catalyst of Auto Part
| Price: |
US $ 20/Piece |
| Trade Terms: |
CFR,CIF,DAT |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
WISDOM is one the leading manufacturer and supplier of advanced metal honeycomb products in China since 2006. By using heavy-duty, high-efficiency coatings and high-quality materials, we produce and offer catalytic converters of the very highest quality.
Our main products: Honeycomb metal catalyst for auto, motorcycle, universal engine exhaust system, including gasoline engine and diesel engine. Our metallic substrates are specifically designed and manufactured to deliver optimum performance for each application with minimal reduction of horsepower. Advanced methods in honeycomb coupled with our vaccum brazing technology enable us to exceed the requirements of the most demanding applications .
Product Description :
| Brand | WISDOM |
| Material | metal meterial |
| Size | more sizes and Spec. Can be customized to your engine |
| Shape | Round/ Racetrack/Oval

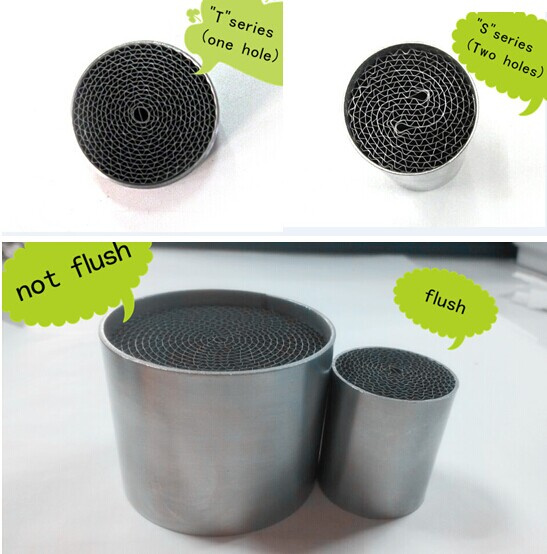

"T" series(one hole)/ "S" series (Two holes) |
| Certification | ISO9001 |
| MOQ | 1 Piece |
| Packaging | all product package can be customized based on your requirements |
| Payment terms | L/C, T/T, Money Gram, Western Union |
| Conversion Rate | CO≥96,HC≥95,NO≥90 |
| Coating losing rate | ≤3 |
| Scope | apply to Auto/Motorcycle, Infrared Gas Stove, etc. |
| Advantage | Low initiation temperature |
| Low pressure drop |
| High mechanical strength |
| Excellent thermal and coking resistance |
| Reliable braze welding intensity |
| Durable heat-resisting impact performance |
| Perfect catalyst coating binding force |
| Good anti-shock |
| Service life | Above 120,000 KM |
| Price | The price is different in different specifications between USD1 and USD100. |
Specifications: Material | Mantle | Matrix | Brazing |
| Ferritel (SUS444, SUS441, SUS430) | Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy
Domestic FeCrAl(2073/216)
Import FeCrAl(1.4725/1.4767) | Nickel base alloy |
or Austenitic heat resistant stainless steel
(SUS304) |
Dimension and Cell Densitities| Dimensions, mm | Cell densities,CPSI | Foil thickness,mm |
| round shape with diameter more than 10mm, length up to 800mm | 50, 100, 200,250,300,400,500,600,800,1000 | 0.03,0.04, 0.05,0.06,0.08,0.10 |
| Oval shape |
| Others (Rectangle etc.) |
| Mantle, mm | Matrix, mm | Density, CPSI | Material of mantle | Material of Matrix |
| Round Metallic Substrate |
|
|
|
|
| 30x22 | 28X20 | 100/200/300/400 | 441 | FeCrAl |
| 35x20 | 33X20 | 100/200/300/400 | 444/441 | FeCrAl |
| Ø35 x 70/100/130 | Ø33 x 60/90/120 | 100/200/300/400 | 444/441 | FeCrAl |
| Ø42 x 70/100/130 | Ø40 x 60/90/120 | 100/200/300/400 | 444/441 | FeCrAl |
| Ø45 x 70/100/130 | Ø43 x 60/90/120 | 100/200/300/400 | 444/441 | FeCrAl |
| Ø63.5 x 85/100/130 | Ø60.5 x 74.5/90/120 | 200/300/400 | 444/441 | FeCrAl |
| Ø73 x 70/100/130 L | Ø70 x 60/90/120 | 200/300/400 | 444/441 | FeCrAl |
| Ø93 x 70/100/130 | Ø90 x 60/90/120 | 200/300/400 | 444/441 | FeCrAl |
| Ø420 x 100/130 | Ø416 x 90/120 | 300/400 | 444/441 | FeCrAl |
| Ø100.3 x 100/130 | Ø98.3 x 90/120 | 600 | 444/441 | FeCrAl |

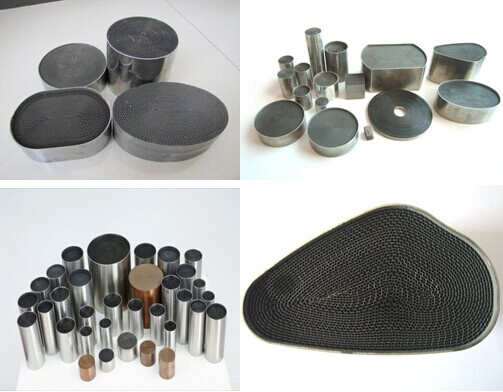

| Oval Metallic Substrate |
|
|
|
|
| 123x63x 85 | 120x60 x 75 | 200/300 | 304/441 | FeCrAl |
| 123x63)x 100 | 120x60 x 90 | 200/300 | 304/441 | FeCrAl |
| 78.5x52x104 | 76.5x50x90 | 200/300 | 304/441 | FeCrAl |
Why metallic?A metal-based monolith substrates offers many advantages in comparison with a ceramic one, for instance :Shorter light off timeLess risk of overheatingLess back pressureLarger effective areaGreater catalytic capacitySmaller and more flexible designThinner wallsHigher mechanical strengthBetter resistance to thermal shockMark:We can supply Metallic Substrate coated with noble metals of Pt, Pd and Rh. We also supply Metallic Substrate without noble.
If you are interested in our products, please see the following information before sending inquiry, please fill out the specification of the products you need in the attached form in order to make both of us understand each other in shortest time.
We will quote the most reasonable price.
Do you want to use for car or motorcycle?
Do you want to use for Gasoline vehicle or diesel motor?

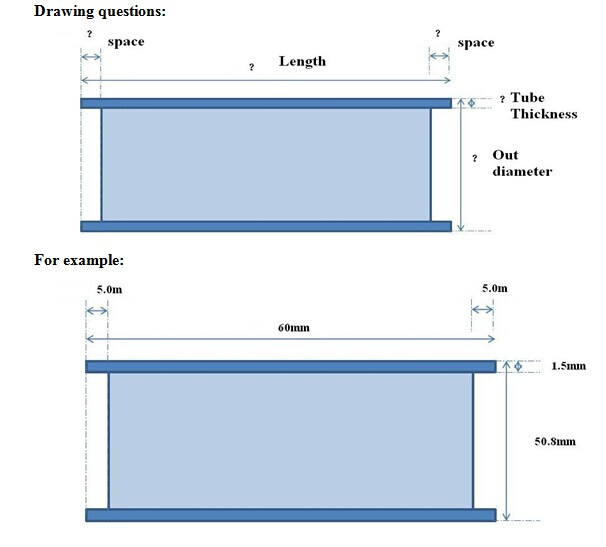

Does your side require flush or not flush on the each side?

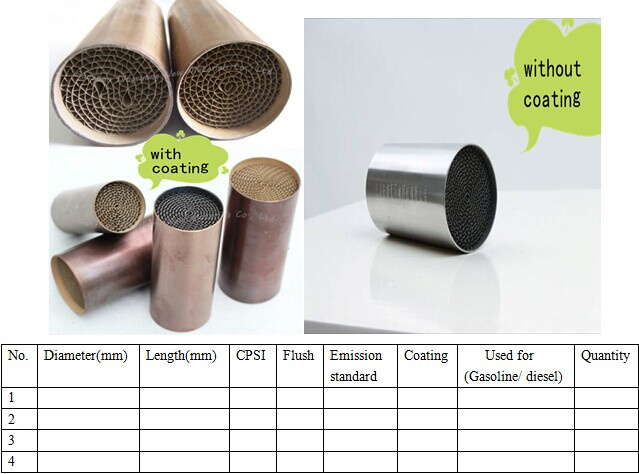

Do you need coating or not? What's your coating requirement?
Also need to confirm the density of holes (cpsi).
Common CPSI: 50, 100, 200, 300, 400, 500, 600, 800, 1000
We can produce according to your sizes, no problem.
For more information on metal honeycomb, go to http://www.metalhoneycomb.com/about.html
| Prod Model: |
WISDOM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Wisdom |
| Substrate: |
Metal Substrate |
| Size: |
More Sizes |
| Shape: |
Can Be Customized to Your Requirement |
| Durability: |
Above 120,000 Km |
| Car Make: |
Universal |
| Place Of Origin: |
Shanghai, China (Mainland) |
| Warranty: |
12 Months |
| Scope: |
Apply to Auto/Motorcycle, Infrared Gas Stove, etc. |
| Certification: |
ISO9001 |
| Type: |
Exhaust System |
| Material: |
Ss/Fecral |
Wisdom is a professional export-oriented company, which located in Shanghai, one largest commercial city in China. We mainly manage alloy products, winding machines, metallic substrates, construction products and other related products. Our company has been engaged in these fields for many years and has a sound reputation and credits among the foreign customers and suppliers with our great variety of first-rate quality products, novel design and good services. Our selling net-work has expanded to Middle East Area, European countries, America etc.
We warmly welcome friends of various circles to come to visit and talk about business with us. We have established excellent business relationships with lots of our old partners based on equality, mutual benefit, customer first & service foremost, contract respecting. We look forward to your business negotiation and will sincerely be your best trade partner.
