Advantages:
1. High efficiency silence dryer.
2. Identification technology on car body.
3. Foam sprinkling system
4. Wax sprinkling system
5. Third generation foam brush.
6. Hot-dip galvanized frame
7. High pressure water systems.
8. The sensor made by BN from America.
9. The thin film operate panel with flame retardant and weather resistance.
10. The frequency converter made by SL from Taiwan.
11. Air cylinder made by YDK from Taiwan.
12. Variable frequency motor made by CB from Japan
Specification:
Overall dimensions | 2510*3600*3150mm |
Assembling range | 11000*3700*3300mm |
Moving range | 10000*3700mm |
Available size for car | 5200*2100*2100mm |
Available car to wash | Car/ jeep/ coach with 10 seats |
Washing time | 2'45 "(1 rollover)/ 4'15"(2 rollover) |
Car wash capacity | 15-20 cars/hour |
Mains voltage | 3PHASE AC380V/ 50HZ |
Total power | 18.97KW |
Water supply | DN25mm/ Water flow rate ≥80L/min |
Air pressure | 0.75-0.9Mpa/Airflow rate ≥0.1m³/min |
Water/ electricity consumption | 72L/car, 0.31kw/car |
Shampoo consumption | 7ml/car |
Water wax consumption | 7ml/car |
Main Features:
1. Can identify the car model with photoelectric sensor.
2. With PLC electronic control panels system can easy to operate and maintain.
3. Hot-dip galvanized frame keep the whole machine stable and long life use.
4. Inclinable side brush strengthens cleaning ability around the car.
5. The dovetail foam brush makes the car washing more quiet and clean.
6. The air cylinder was safer for covered by galvanized sheet.
7. Three functions (Car wash, Inspection and management) to an operation panel.
8. High efficiency shape drying to the car with photoelectric and approaching sensors.
9. Electric motor waterproof IP67 make the machine work well in the water.
10. High quality control systems, motors and pumps from Japan can keep the car wash running with great performance in any conditions.
11. Fully automatic rolls over and easy to install, operate use and maintain.
12. With on-site installation and operate training for free and long time quality guarantee to whole car wash.

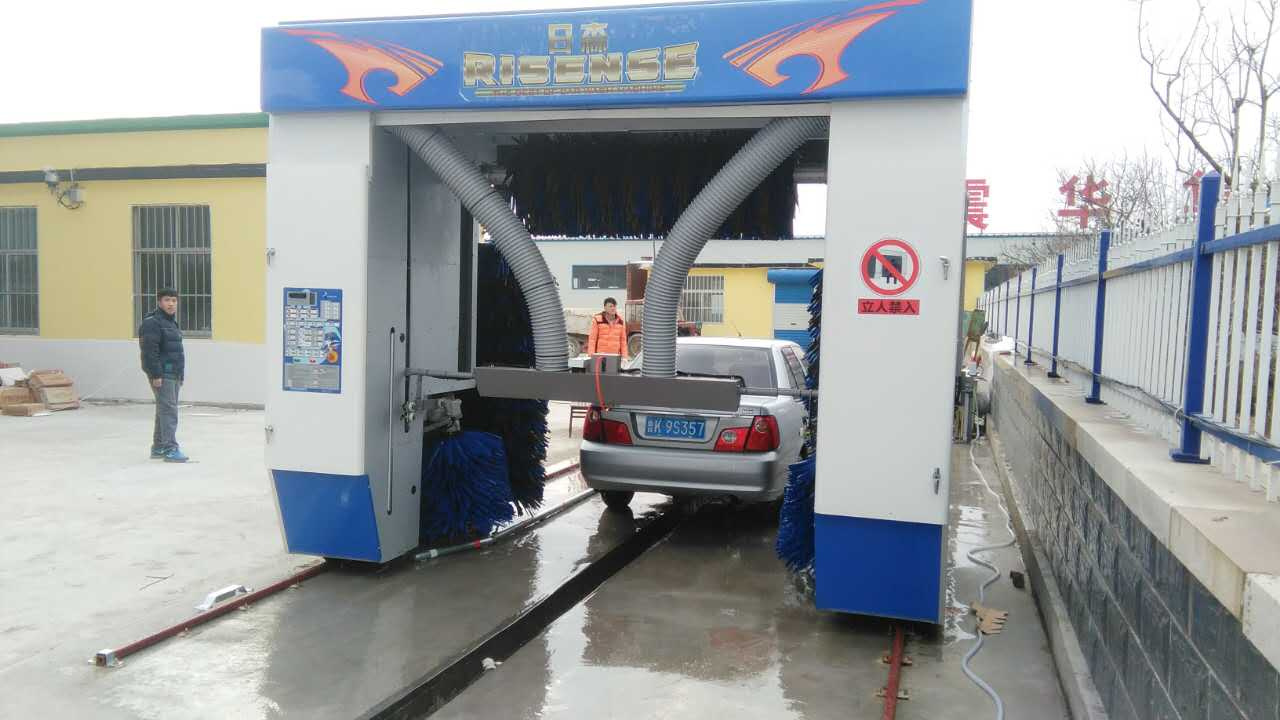

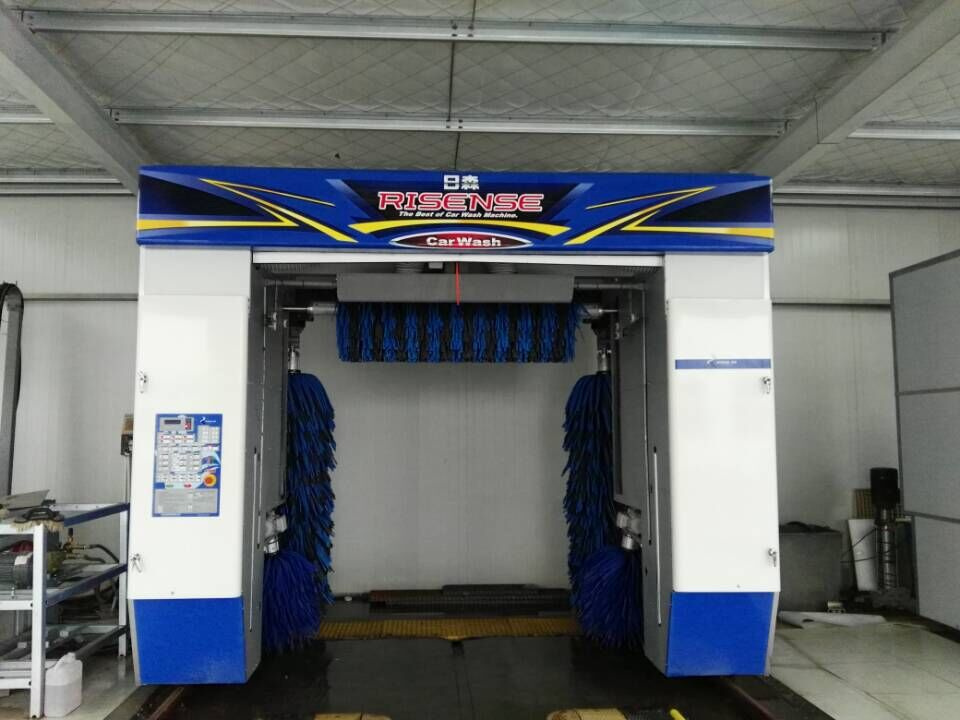

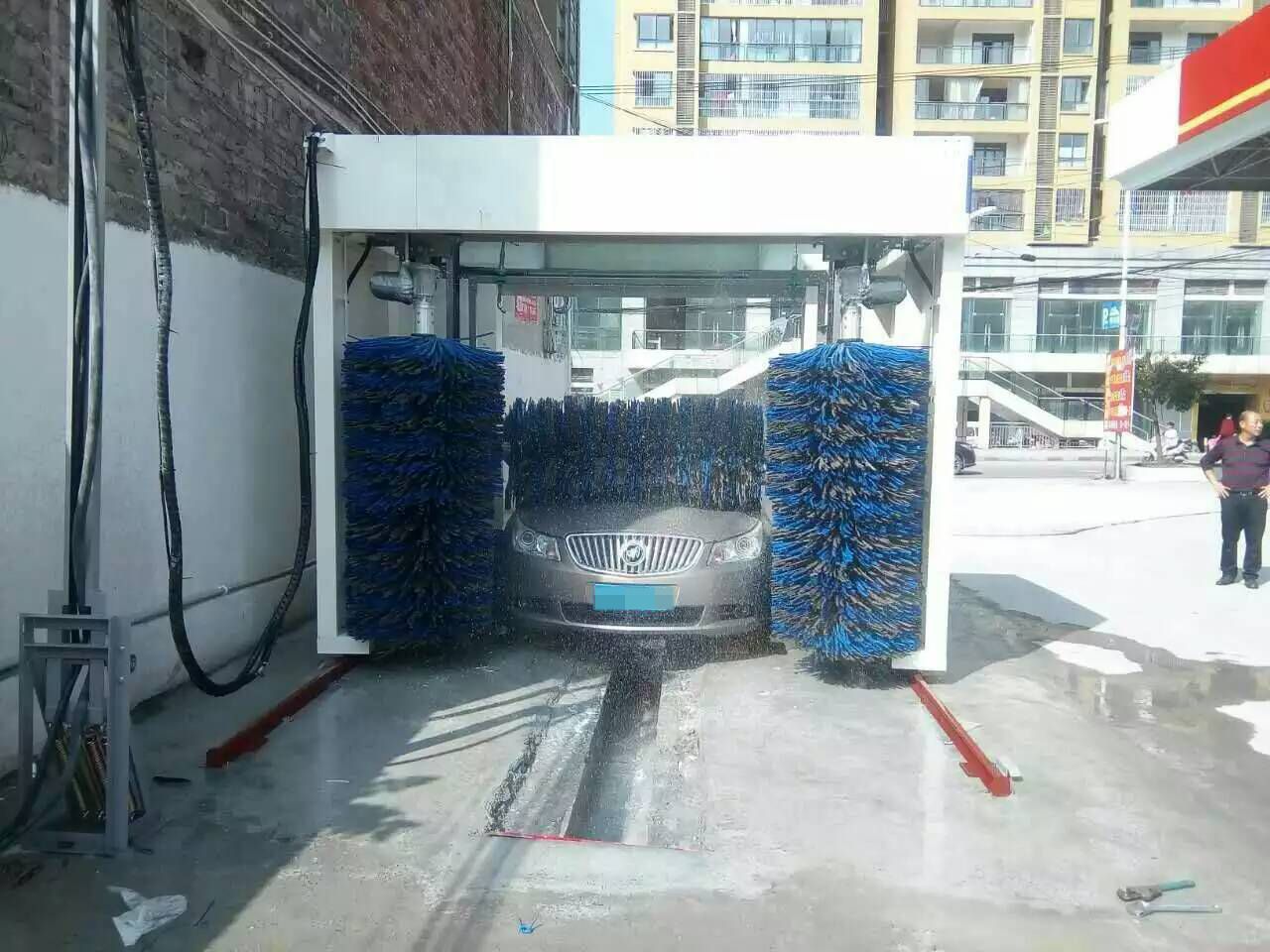

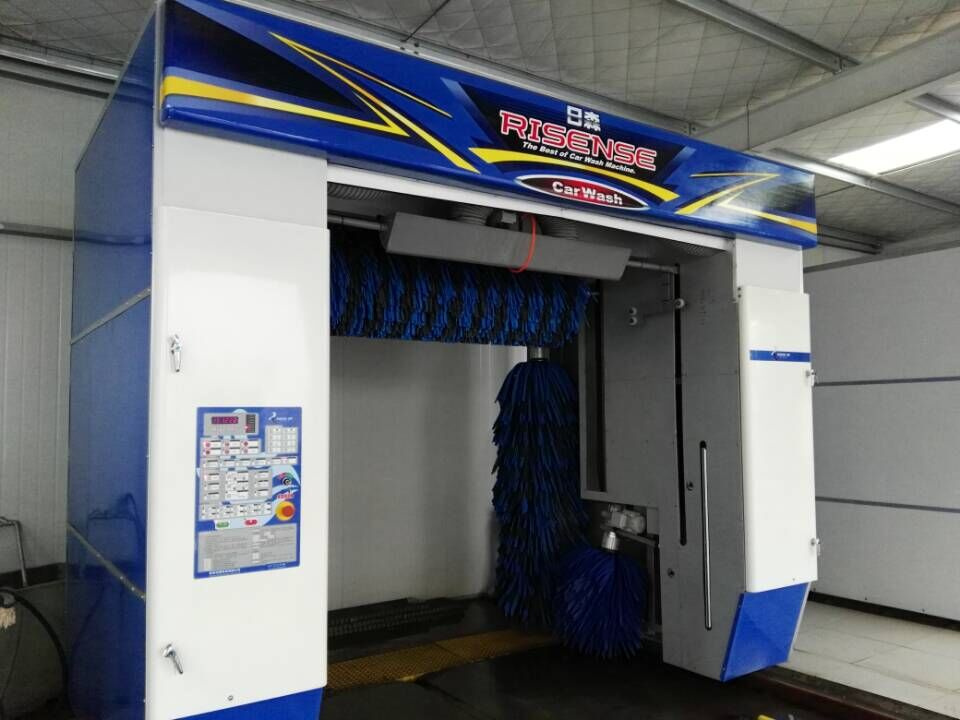

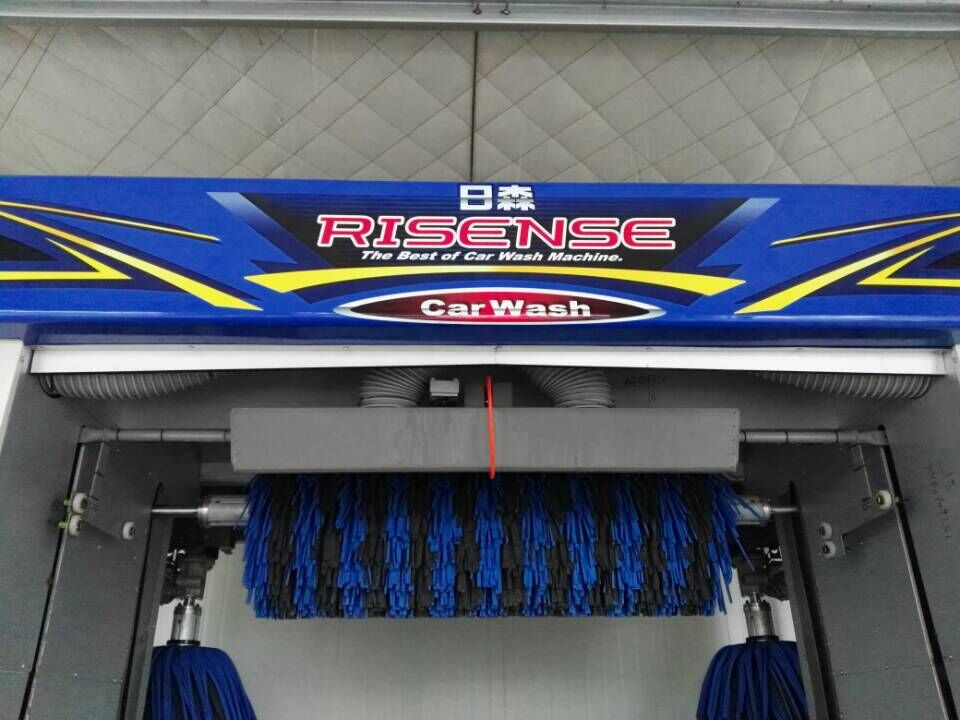

Detail Show:
After-Sale Service:
Besides the high quality machines, we also offer you professional after-sale service. These service programs include:
Installation support:
We supervise installation and commission every single unit we provide, on client's requests .Technician can be sent all over the world to set up your installation.
English documents support:
We provide detail English operating manual and maintenance manual for each model of equipment. These manuals include lots of pictures to show the detail procedures for trouble shooting and spare parts replacement. Operating DVD will be provided upon request. All documents are carefully designed and easy for user to fellow.
Life time technical support:
Our experienced customer support team will help you solve technical problems .We guarantee to respond to your inquiry within 24 hours, whether it comes from phone, mail or fax.
Our Service:
Risense Automated Car Wash Machine have a proven, time-tested track record in providing solutions for:
♥ Car wash center ♥ Motor beauty shop
♥ Car service and repair center ♥Auto 4S shops
♥ Gas station ♥Parking lot
♥ Hotel and Hospital ♥Community services center
♥ The construction industry ♥Industrial wash down
The Car Wash Business is booming right now with low operating expenses and a very pleasing net profit. No matter what happens, it is likely that as long as there are cars, there will always be a need for car washes.
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.
Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
