Prod Model: |
TW501 TW502 |
Name: |
Tire Pressure Monitor System |
Feature: |
OBD,Bluetooth APP with Smart Phone |
Chip: |
Infineon |
Batteries Brand: |
Japan Panasonic Batteries |
Batteries Life Time: |
5year and 2years |
APP: |
Download on Smart Phone |
Tire Match: |
on APP of Smart Phone |
Tire Changing: |
on Smart Phone |
Alarm: |
Human Voice Alarm |
Alarm Language: |
Chinese,English |
Certification: |
FCC Ncc |
Update Method: |
New Tech |
Product Description
Bluetooth APP TPMS Tire Pressure Monitor External Sensor
for OBD bluetooth APP tire pressure monitor,could download APP on smart phone.when the tire pressure or temperature is too high or two low,the monitor will alarm via human voice.in Chinese or English.the temperature or tire pressure will be displayed on smartphone.You could set the state of tire pressure monitor system by yourself on phone. like tire match or changing tire position.External sensor could be installed easy
*Search and download APP SYTTPMS in Google play or APP store for Android and ios smartphones
*The pressure / temperature alarm value be adjusted
*Forget to take Mobile phone ;This system also has the human voice to remind
*Parking air leakage, open the door immediately remind
*Tire pressure and temperature units arbitrary switching Global Universal
*Standard OBD plug and play, apply to most cars with four tires
*Visual, audible and vibration alarm

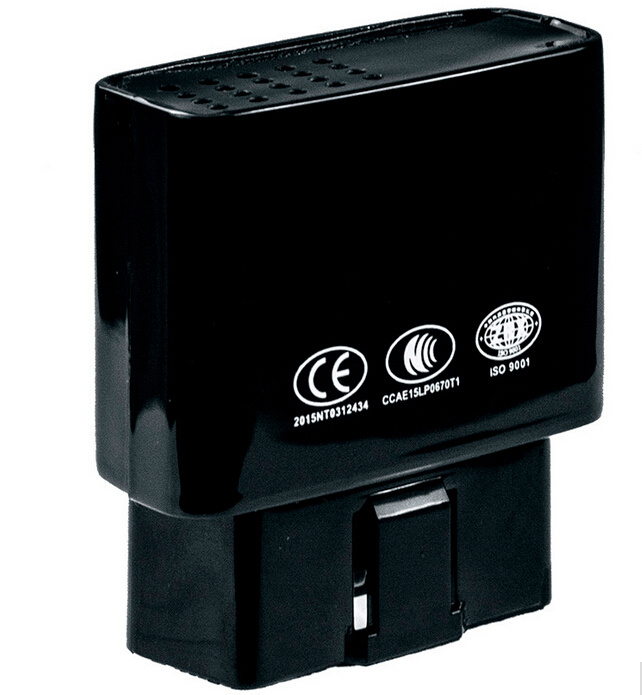

OBD Receiver Parameters
*Rated operating voltage: DC12V
*Static average operating current: ≤20mA
*Receiving center frequency: 433.92MHz
*Receiving sensitivity: ≤-110dBm
*Bluetooth transmission distance: > 8m
*Operating temperature range: -40 to 85ºC
Pressure alarm upper limit: 40.6Psi to 50.8Psi
Pressure alarm lower limit: 21.8Psi to 31.9Psi
Package includes:
1.1x Monitor
2.4x External Sensors
3.2x Wrench
4.1x Professional wrench
5.5x Hexagon nut
6.1x English manual
7.Original box pack
Operating Temperature | -20ºC-80ºC |
Pressure Range | 0-4.5Bar (65Psi) |
Pressure Sensitivity | ±0.1Bar(1.5Psi) |
Temperature Sensitivity | ±3ºC |
Power | <10dbm |
Frequency | 433.92MHZ |
Dimension | 20mm*17mm (Diameter*Height) |
Sensor Weight | 10 g |
Internal Sensor Parameters
*Operating temperature: -40 to 120ºC
*Pressure range: 0 to 65Psi (4.5Bar)
*Pressure accuracy: ±1.5Psi (0.1Bar)
*Temperature accuracy: ±3ºC
*Transmission power: <10dBm
*Transmission frequency: 433.92MHz
*Dimension: 73*63*10mm (Length*Width*Height)
*Battery life: 5 years (Non-replaceable battery)
*Weight: 38 grams
External Sensor Parameters
*Operating temperature: -20 to 80ºC
*Pressure range: 0 to 65Psi (4.5Bar)
*Pressure accuracy: ±1.5Psi (0.1Bar)
*Temperature accuracy: ±3ºC
*Transmission power: <10dBm
*Transmission frequency: 433.92MHz
*Dimension: 20mm*17mm (Diameter*Height)
*Battery life: 2 year
*Battery model: CR1632(Replaceable battery)
*Weight: 8 grams
