| Prod Model: |
BTD7200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fan Capacity: |
25,000m³/H |
| Brightness: |
>=700 Lux |
| Draft: |
Full Down Draft |
| Heating Time: |
4-6mins |
| Heating Exchange Capacity: |
160kw (180,000kcal/H) |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Btd |
Product Description

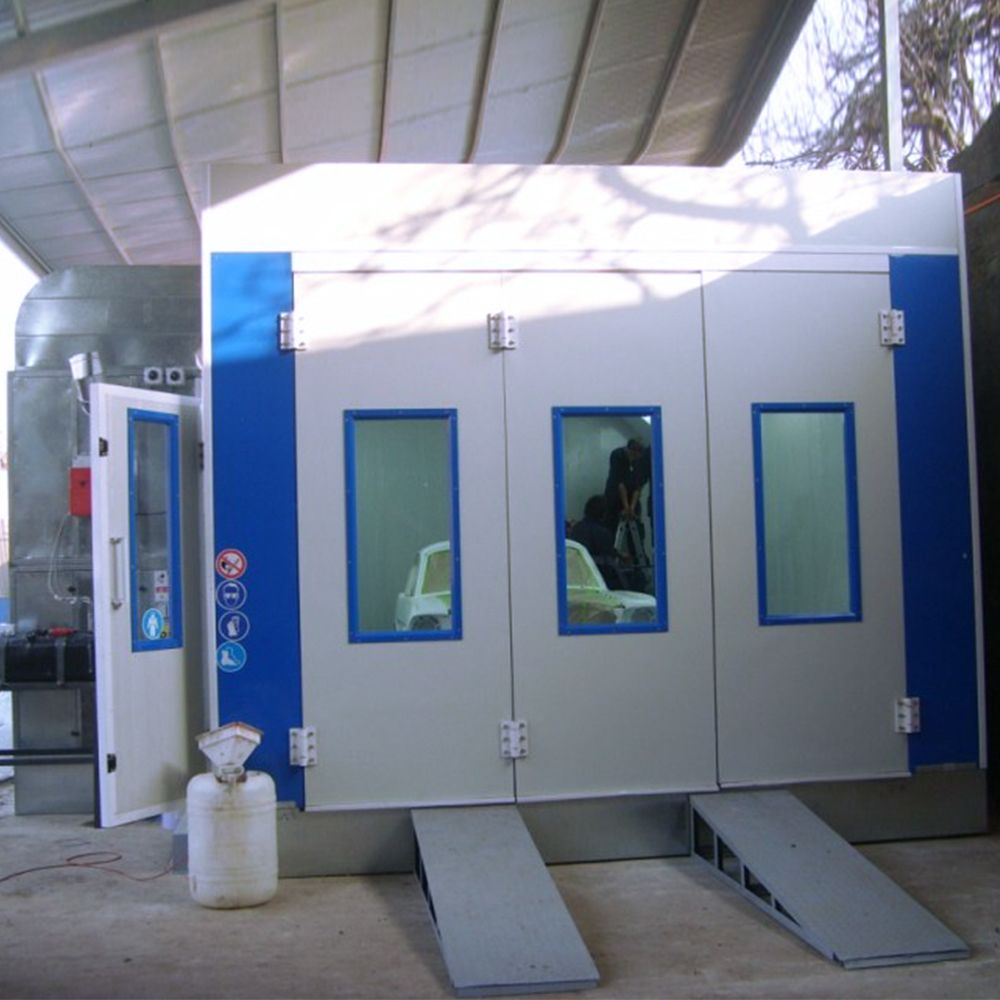

Car spray booth oven/ auto spray booth/ oven for car paint (CE& ISO)
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , BTD brand spray booth is getting more and more popular all over the world .
BTD7200
Payment
50% T/T in advance, the rest before shipping
Warranty time: 2 years
Service time: Life long maintenance
If you wish to discuss any aspect of your project
...Please feel free to contact us..
Thank you for your viewing !
| Outside Size: (mm) | 7010x5570x3610 mm (LxWxH) | Inside Size: (mm) | 6900x4000x2800 mm (LxWxH) |
| Foundation and Floor | Foundation | Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing. |
| Surface area of foundation | 10M² (area of grids) |
| Metal basement | 350mm height, the ventilation effect is better than traditional spray booth |
| Drive-in Ramps | 2 units, each size: 2000x500 mm, diamond plate construction |
| Wall and door | Wallboard and Roof Panel | Side wall panels adopt high quality double construction fireproof EPS insulation materials, thickness is50mm, have function of fireproof and keeping warm. Roof panels adopt galvanized steel plate bending forming |
| 3-Folded Entrance Door With Safety Glass Window | 1 set, size: 3200x2700 mm(B x H), size is bigger than traditional spray booth |
| -Operator' s Door With | Big opening: 800x2000mm (B x H), hand-made, tempering glass observation window |
| Safety Glass Window |
Light System
| Ceiling Lighting | 8units, each4× 36w, total 1152W, grade of lighting box' s dustproof and waterproof reach IP54 grade. |
| Side Lighting | No, optional |
| Brightness | ≥ 700 LUX |
| Filtration System | Pre-filters | Grade G2 plate type fiber glass filter |
| Ceiling Filters | EU5 grade high efficient filter |
| Bottom filter & exhaust filter | Fibreglass paint-stop filter |
| Ventilation System | Inlet fan (Direct drive motor) | Adopt big impeller turbo fan, 7.5KW, 380V, 50HZ, CE |
| Outlet fan (Direct drive motor) | No |
| Painting and baking exchange system | Solenoid valve+ pressure adjustment control cylinder driven damper exchange |
| Fan Capacity | 25000m³ /h |
| Air Flow Speed | 0.23 m /s in empty booth, 0.25_ 0.35m/s in loaded booth |
| Heating System | Heating Exchanger | Adopt high efficient heat-resistant stainless steel as cycling heat exchanger |
| Heating Exchange Capacity | 160KW (180, 000Kcal/H) |
| Burner Model | Adopt Italy RIELLO diesel burner G20(180, 000kcal/H) |
| Heating time | 4_ 6 minutes (from 20 to 60º C) under baking status, max baking temperature is 80° C |
| Control Board | Control system | Standard Y/Δ step-down start control system |
| Function | Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication |
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.
BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.
BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
