Car rear view camera video recorder with Bluetooth
Manual
Battery Charge:
1. Use rechargeable lithium battery powered.
(1)Connect the USB car charger, (2)Connected to the computer USB charging,
During process of charging, the green light is on, the green indicator light will turn off automatically when the DVR is full.
2. Connection 12V/24V car charger.
When the car starts, DVR machine will automatically start recording. Power off after five seconds, DVR machine will automatically shut down and automatically save earlier files recorded.
Note: You can only use the output voltage of 5V Car Power charger and during powered, press key or power off to shut down DVR machine.
Video feature:
After starts, The device will automatically boot into the recording mode. (Please insert the TF card first), At this point, the red DOT will flashing at screen upper left side, the file will be automatically saved in the TF card, the red DOT will stop flashing and hidden after file saved.
Camera function:
Press the power button (2) to turn on the DVR machine and press the play button stop recording, then press the mode button enter the camera mode, press the Enter key camera.
Technical parameters:
1. Camera sensor: OV9712 High-resolution sensors
2. Recording Resolution: (1920× 1080)(1280× 720)(848× 480)
3. H. 264 video codec
4. Loop Recording: Support
5. Motion detect: Support
6. Net camera: Support
7. Synchronous vioce record: Support
8. Collision sensor: 3D triaxial collision detection
9. Night vision: Super LED X4
10. Battery: High-quality built-in rechargeable Lithium battery
11. TF type: Support TF 32G (MAX)
12. Storage temperature: -20° C~60° C
13. Operation temperature: -10° C~60° C
14. Operation humidity: 15-65% RH
15. USB interface: USB 2.0
16. Video Output: Support HDMI output to TV playback
|

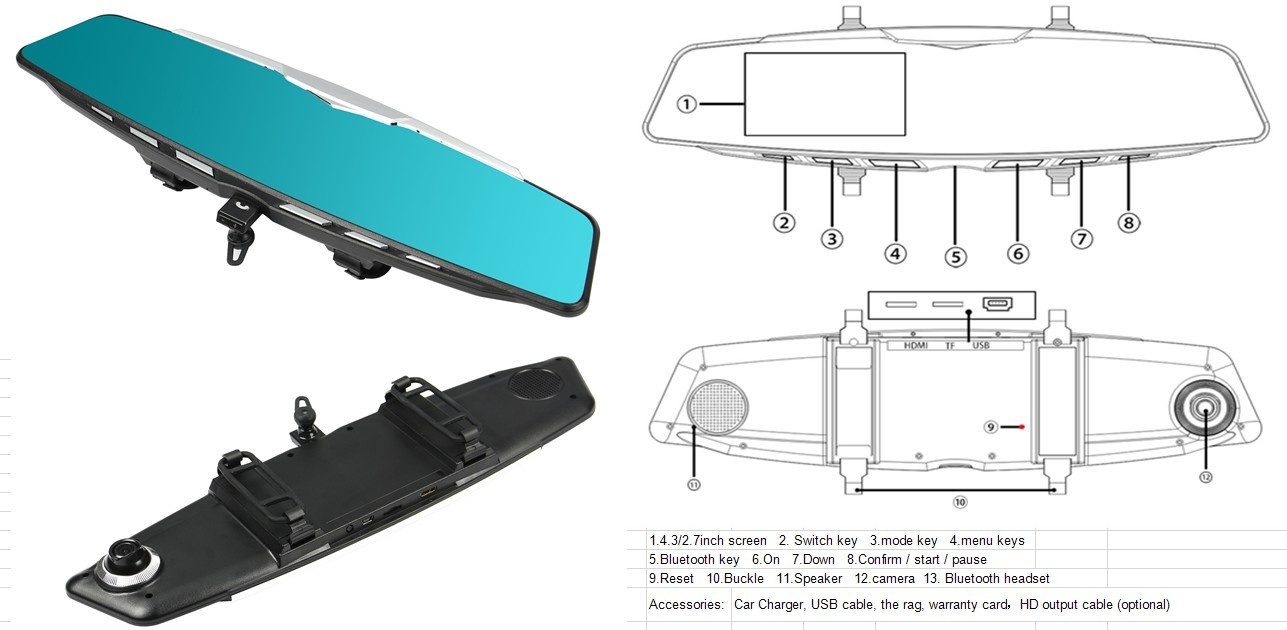

Accessories:Car Charger, USB cable, the rag, warranty card,HD output cable (optional) |
|
1.4.3/2.7inch screen |
|
|
2. Switch key 3.mode key |
|
|
4.menu keys 5.Bluetooth key |
|
|
6.On 7.Down |
|
|
8.Confirm / start / pause 9.Reset |
|
|
10.Buckle 11.Speaker |
|
|
2.camera 13. Bluetooth headset |
|
