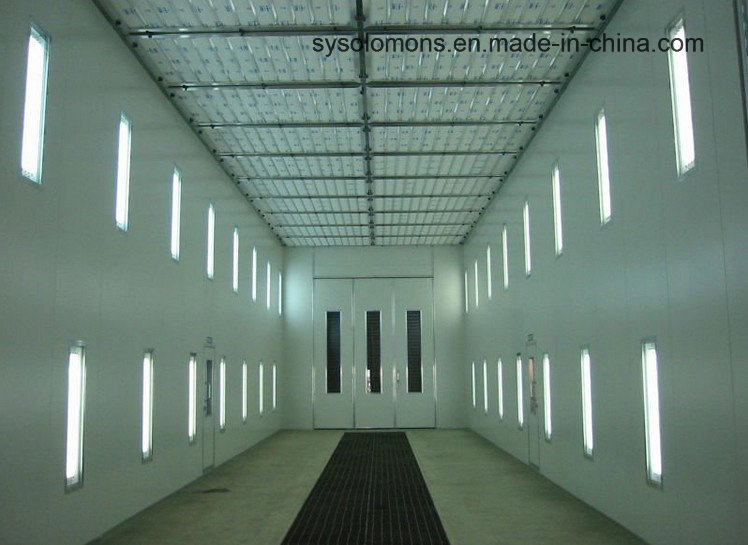

Car Care Painting Spray Booth
Price: |
US $ 17500-18000/Set |
Min Order: |
1/Set |
Pay Type: |
T/T,Western Union,Paypal |
1.our company dealing automobile maintenance equipment and tools.
2.it can used for cars in widely range of brand.HX-1000 Spray Booth Factory Net Price:US$24900Outside Size (mm) | 15100X6750X5600 (LXWXH) |
Inside Size (mm) | 15000X5000X5000 (LXWXH) |
Wall panel | EPS powder coated panel,75 mm thick, steel 0.5 mm thick,tongue & groove style,compound construction,anti-flame and heat-insulation,aluminum roof panel. |
Doors | Front door:folding door,3900*4000mm(W*H) 2 sets of personal doors,800*2000mm(W*H) |
Basement | Without basement.Be built on customer's cement floor, exhaust air from side exhaust hole with fiberglass filter on it |
Air Circulation System
| Inlet Fan | Blower capacity: 88,000 m3/h | Outlet Fan | Blower capacity: 60,000 m3/h |
Power: 7.5 kw/set | Power: 11 kw/set |
Quantity: 4 sets | Quantity: 2 sets |
Air Volume: 90,000 m3/h; Air Speed: 0.35 m/s, Air Recycling times:280 times/h |
Purification System | Pre-filter, high efficiency filter (ceiling filter), floor filter (fiberglass), dual filtering structure, the primary filter can capture granules larger than 10 μm. ceiling filter can capture granules bigger than 4μm. the whole purification system has capacity of large volume of dust. |
Heating system | 2 units Riello Brand RG5S diesel burner, Maximum heat productivity 500000Kcal/h, 2 pcs SUS304 2.5mm thick stainless steel heating exchanger, argon arc welding; max temp:80 ºC, heating time: 10-20 min (20-60ºC), fuel consumption:4-5 kg/vehicle |
Lighting System | Ceiling Lights: 18Unitsx4pcs=72Pcsx 36w; Side Lights: 14Unitsx4Pcs=56Pcsx36w Vertical ( there are 6 units on left side, 6 units on right side,2 units on rear side),tempered glass |
Control system | Electric control box, spray & baking switch, light switch, emergency stop, breakdown alarm |
Environmental System | Multi-layers fiberglass filter, active carbon |
HX-1000L Spray Booth Factory Net Price:US$33900Outside Size | 18150X6750X5600mm (LXWXH) |
Inside Size | 18000X5000X5000mm (LXWXH) |
Wall panel | EPS powder coated panel, 75 mm thick, steel 0.5 mm thick, tongue & groove style, compound construction, anti-flame and heat-insulation, aluminum roof panel. |
Doors | Front door:folding door,3900*4000mm(W*H) 2 sets of personal doors,800*2000mm(W*H) |
Basement | Without basement. Cement floor |
Air Circulation System
| Inlet Fan | Blower capacity: 90,000 m3/h | Outlet Fan | Blower capacity: 85,000 m3/h |
Power: 5.5kw/set | Power: 11kw/set |
Quantity: 6 sets | Quantity: 3 sets |
Air Volume: 90,000 m3/h; Air Speed: 0.35 m/s, Air Recycling times:280 times/h |
Purification System | Pre-filter, high efficiency filter (ceiling filter), floor filter (fiberglass), dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter can capture granules bigger than 4μm. The whole purification system has capacity of large volume of dust. |
Heating system | 3 units Riello Brand G20 diesel burner, Maximum heat productivity 600000Kcal/h, 3pcs SUS304 stainless steel heating exchanger, argon arc welding; |
Lighting System | Ceiling Lights: 20Unitsx4pcs=80Pcsx 36w; Side Lights: 16Unitsx4Pcs=64Pcsx36w Vertical (there are 7 units on left side, 7 units on right side, 2 units on rear side). |
Control system | Micro-computer programmed controlling, spray & baking switch, light switch, emergency stop, breakdown alarm |
Environmental System | Multi-layer fiberglass filter, active carbon |
Optional | A- Two sets 3D Personal lift B- exhaust air from 2 rows of pit in the ground |
if you have any inquiry, pls feel free to contact with me by email or by skype.
Prod Model: |
HX-1000L |
Certification: |
ISO |
Update Method: |
by Email |
Testing Equipment Type: |
Car Protection Equipment |
