| Prod Model: |
BTD7400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inside Size(mm): |
6900 X 4000 X 2800 |
| Brightness: |
≥1000 Lux |
| Total Fan Capacity: |
25,000m³/H |
| Air Flow Speed In Cabin: |
0. 23m/S in Empty Booth , 0.25-0.35m/S in Loaded B |
| Heating Exchange Capacity: |
160kw(180,000kcal/H) |
| Burner Model: |
Italy Riello Diesel Burner G20 |
| Control System: |
Standard Y/Δ Step-Down Start Control System |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Condition: |
New |
| Brand: |
Btd |
Product Description

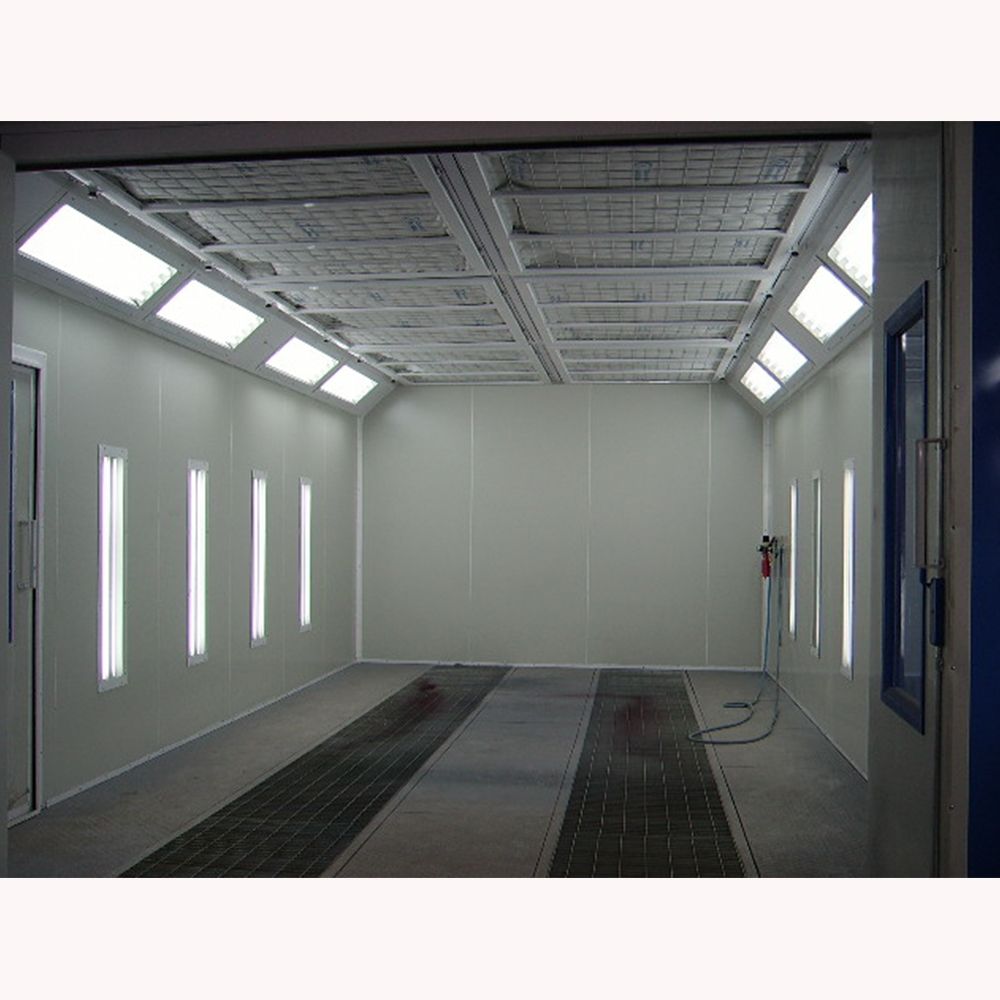

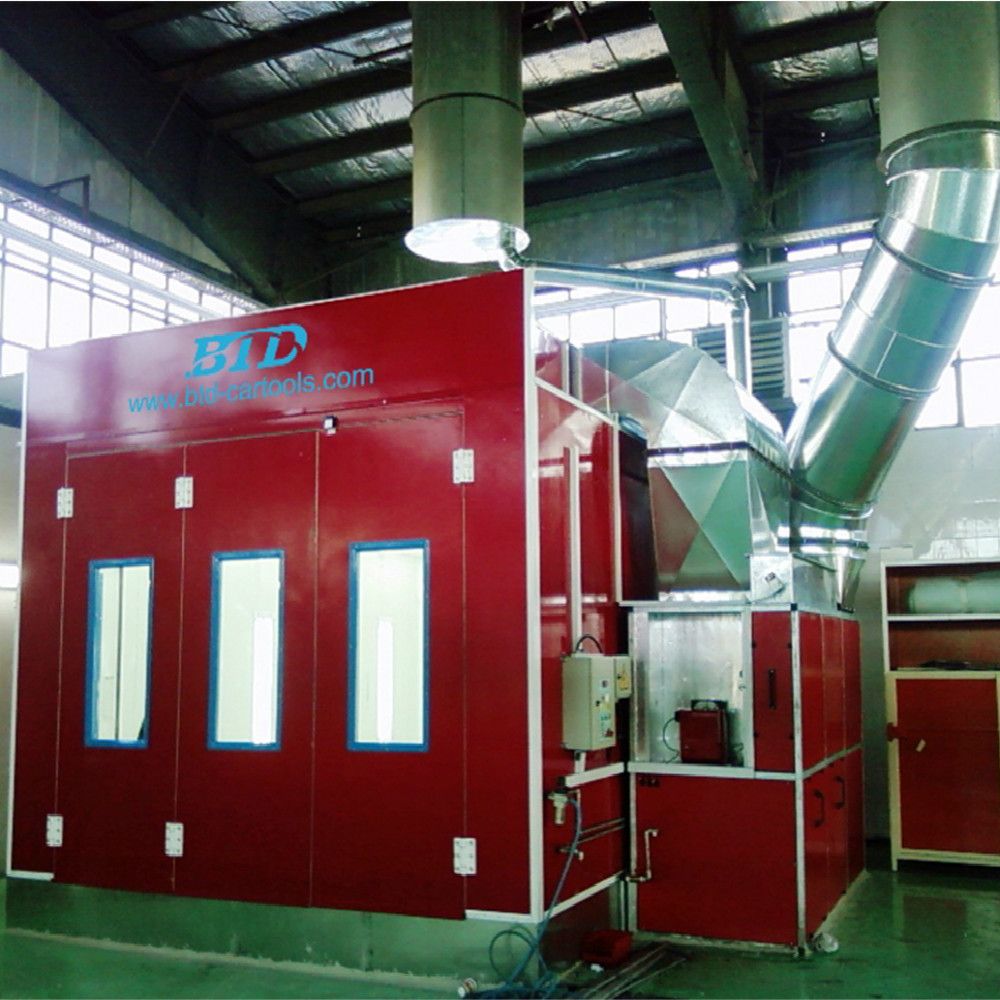

Spray Bake Paint Booth for painting car
1. CE approved
2. German Technology
3. Suitable for water painting with nozzles
4. Quick rising-up heating system
5. Spray booth professional manufacturer
6. Factory price, energy saving
7. High quality, best sell service, timely delivery
8. We can meet at customer's special requirement
Model: BTD 7400| PARAMETER |
| Product Name | Spray Booth | Brand | BTD |
| Model | BTD-7400 | Company Name | Guangzhou BTD Mechanical And Electrical Equipment Co., Ltd |
| External Size | 7010x5570x3810mm
(276x220x150″) | Internal size | 6900x4000x2800mm
(272x158x111″) |
| Wall Panel | 50mmEPS | Production cycle | 45 days |

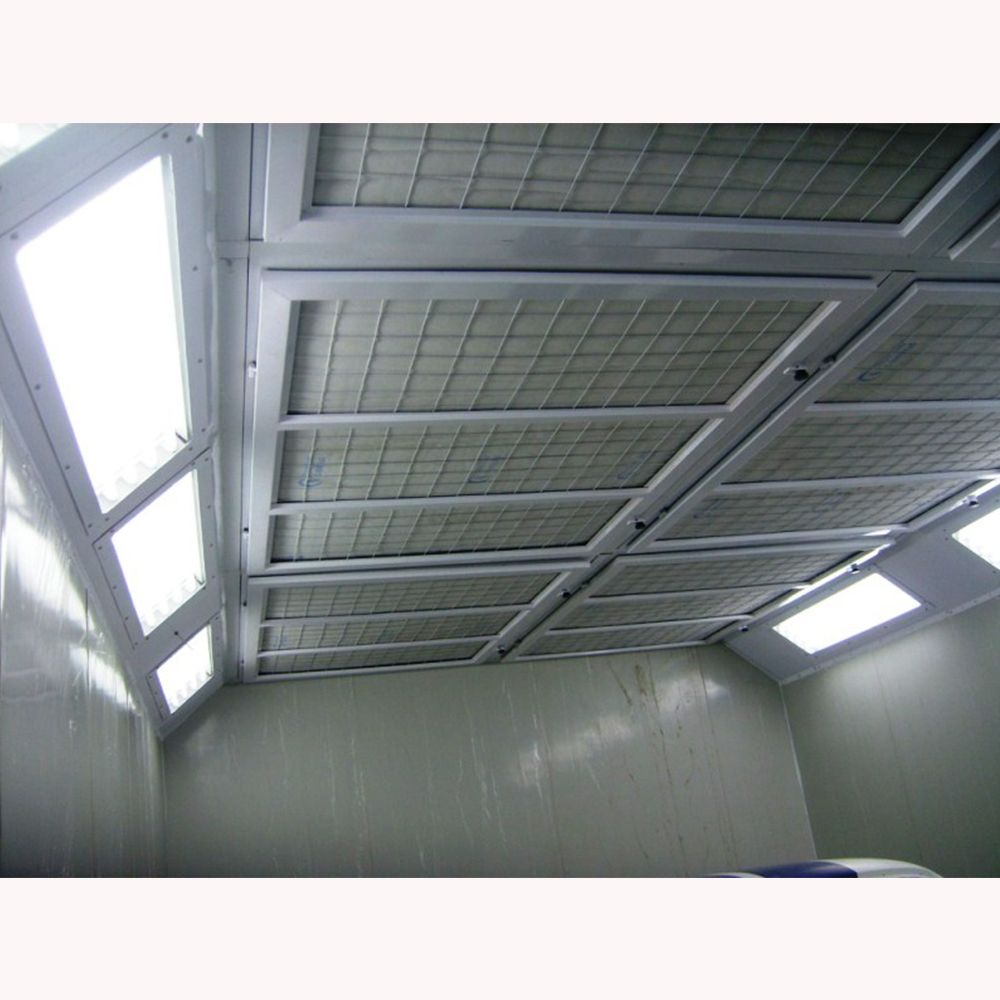

| Ceiling Lighting | 8units each2x36W | Brightness | >1000Lux |
| Inlet Fan | 7.5kW big impeller fan | Exhaust Fan | 5.5KW big impeller fan |
| Total Air Volume | 25000m³/h | Air speed inside cabin | Loaded:0.25-0.35m/s |
| Heat Exchanger Capacity | 160KW | Burner model | ITA RIELLO G20 180,000kcal/H |
| Volume | Gross Weight | Net Weight | Package | 20GP | 40GP |
| 12.5cbm | 2300Kg(2100lbs) | 2200kg(2000lbs) | 20pc | 1 set | 2 sets |
| Implementation standards | 2006j42jCE, Machinery Directive
2006j95jCE, Low Voltage Directive
Directive EMC 2004j108jCE
94j09jCE ATEX Directive, according to standard EN13355 |
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , BTD brand spray booth is getting more and more popular all over the world .
BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001:2000 quality system certification and ensures that every department follows the articles of the system.
BTD has many agency and establish many showroom around the world ,customers can easy find our products in your countryif we have agency and showroom there . Meanwhile , we welcomes partners who are interested to be our agency .
FQA:
Q1:Are you Manufacturer or Trading company?A:We are a professional manufacturer with our own export department.
Q2:Where is your company ocated? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
Q3:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
Q4: What's the sort of heating types?
A: There are diesel, gas and electricity(infrared lamp) heating.
Q5: Does the BTD spray booth with the European design ?
A: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.
Q6: What are range of the voltage and power for BTD spray booth when operating?
A: The standard voltage and power for our products is 220V 50HZ 1PH for lights (Residential voltage), 380V 50HZ 3PH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.
Q7:Can we customize our product?
A: Absolutely yes, BTD has the professional team with 10 years of design experience.Customized material and standard are acceptable. We can provide different standards according to your market and favor.
Our service:
We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
If you wish to discuss any aspect of your project,
Please feel free to contact us.
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.
BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.
BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
