Emergency Car Battery Min Portable Vehicle Auto Truck Compact Power Bank Jump Starter
Ultra-large Capacity
12600mAh, with good quality Large capacity lithium polymer battery core,full of electricity and longer time.
QC3.0 Quick Charge
Charge external USB devices,have a QC3.0 quick filling interface and a pure-fill interface,
easy to operate and plug-in automatic identification quick charge or charge. Start charging after a successful test.

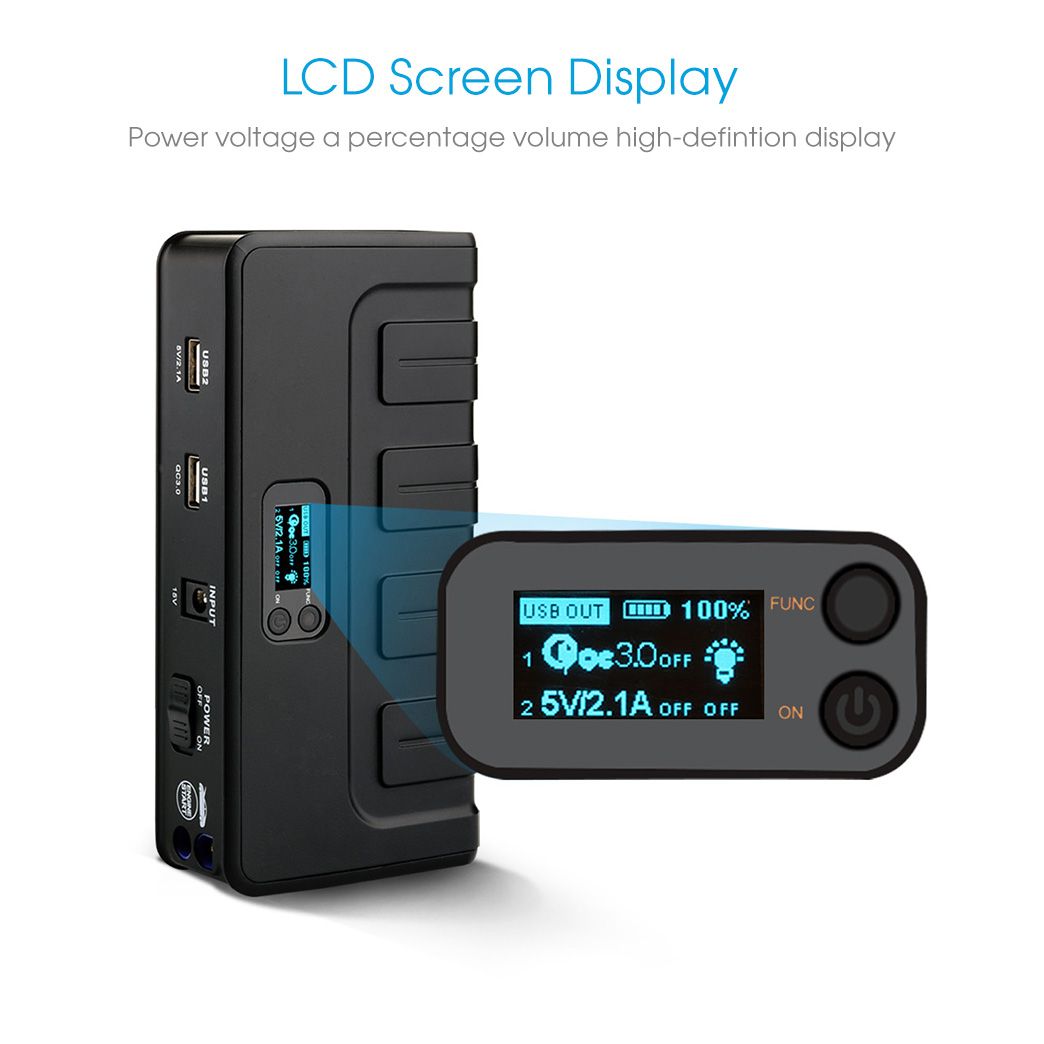

LED Screen Display
LCD display, smart power capacity display, shows the status of electricity at any time while supporting the display of the current output voltage mode.
LED Lights
Two LED/SOS aid;Bright lighting,burst flash with high frequency to alarm;There are 5 modes as below:1. Light off mode; 2. Flashlight mode; 3. Flash mode; 4. SOS mode; 5. White red warning mode.Powerful self-help tool comes with SOS emergency system, that is, LED flash switch. In outings,expeditions, and self driving tours, signals of distress can be sent out to attract attention! And support three different lighting patterns, life time is up to 48 hours of continuous lighting.

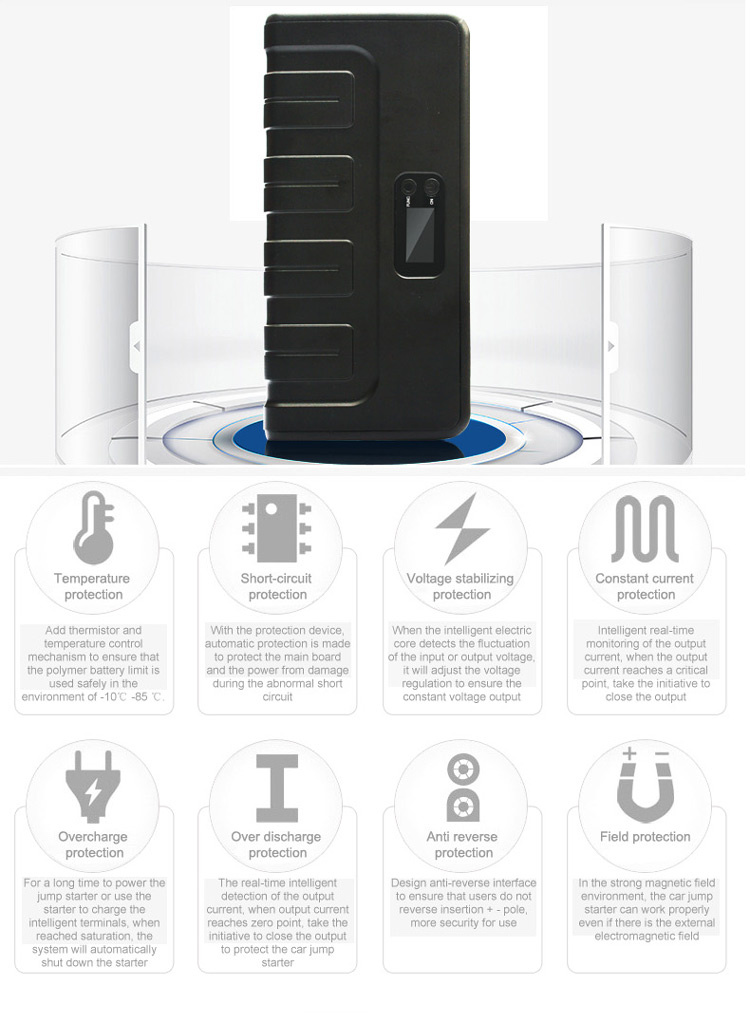

Car Jump Starter Cable and its Safety Protection
With reset button,Only press once to reset;with detection voltage function,avoid short circuit.
Preventing excessive discharge: The car jump stater can automatically check its voltage level, there is harm to the starter if the voltage it too low, so the intelligent battery clip will alarm in advance!Anti reverse charging: After success starting, there is no reverse charging situation even if you forget to pull out the car jump starter.Anti short circuit: If you make the positive and negative pole joined with each other carelessly, it will alarm only, you just need adjust the position for rejoining.Anti reverse connection: If you make the positive and negative pole of battery clip and the car battery joined with each other carelessly,it will alarm only,you just need adjust the position for rejoining.Over-current protection: If you make the positive and negative pole of battery clip and the car battery joined with each other carelessly,it will alarm only,you just need adjust the position for rejoining.
Applications
Car flame out causes drivers headache,can solve common problems for car owners!It not only can start cars,but also can recharge most of the mobile phones.
General points | Capacity | 12600mAh,Jump start 12V vehicle, MP4,Camera and other devices |
Operating display | OLD screen display the battery volume and status etc |
Protection | over-current,over-charge,over-discharge,short-circuit,over-temperature |
On-off mode | connect PB03 with the mobile phone,press on button to start charging |
Housing type | Plastic shell |
Input interface | DC in:standard 5.5*2.1 (inner positive outer negative) |
Output interface | USB (4Pin USB-A Port) x2 |
LED lights | 2 LED strong white torch/strobe/SOS light/Red emergency warning light |
Input | Input voltage | 15V±0.5V |
Input current | 1000-2000mA (Max) |
Output | No load voltage | 5V/2.1A,QC3.0(5V/2.1A ,9V/2A ) 12V Jump start |
Load voltage | 4.9V-5.25V,8.8V-9.25V,11-12.6V |
Output current | 2.1A/(QC3.0 fast charge)/300A |
Output power | 10.5W/18W/3000W(Instantaneous power) |
Other parameter | Load check | Turn on the power on button to output power |
Quiescent current | NO |
Built-in battery capacity | 12600mAh |
Average operating efficiency | 78%-82% |
Charge time | 4-6 hours |
Cycle time | >400 times |
Protection | Over charge voltage | 13V±0.05V |
Over current | 2.5A (typical)/350A |
Under voltage | 10.6V-10.8V |
Short circuit | <300μs shut down output |
Others | LED display | shows the percentage of electricity in turn on the OLED display |
Other functions | Output can recover automatically after short-circuit protection, over load protection or over discharge protection. |
Applications | The product support most mobile phone for IPHONE, for SAMSUNG,for HTC, for NOKIA, for HUAWEI, for ZTE etc.,digital product like MP3,MP4, for ipad etc.,as well as many mobile equipment powered by 5V power supply for PSP, GPS etc.In addition to support for fast protocol QC3.0 charging equipment and car emergency start. |
