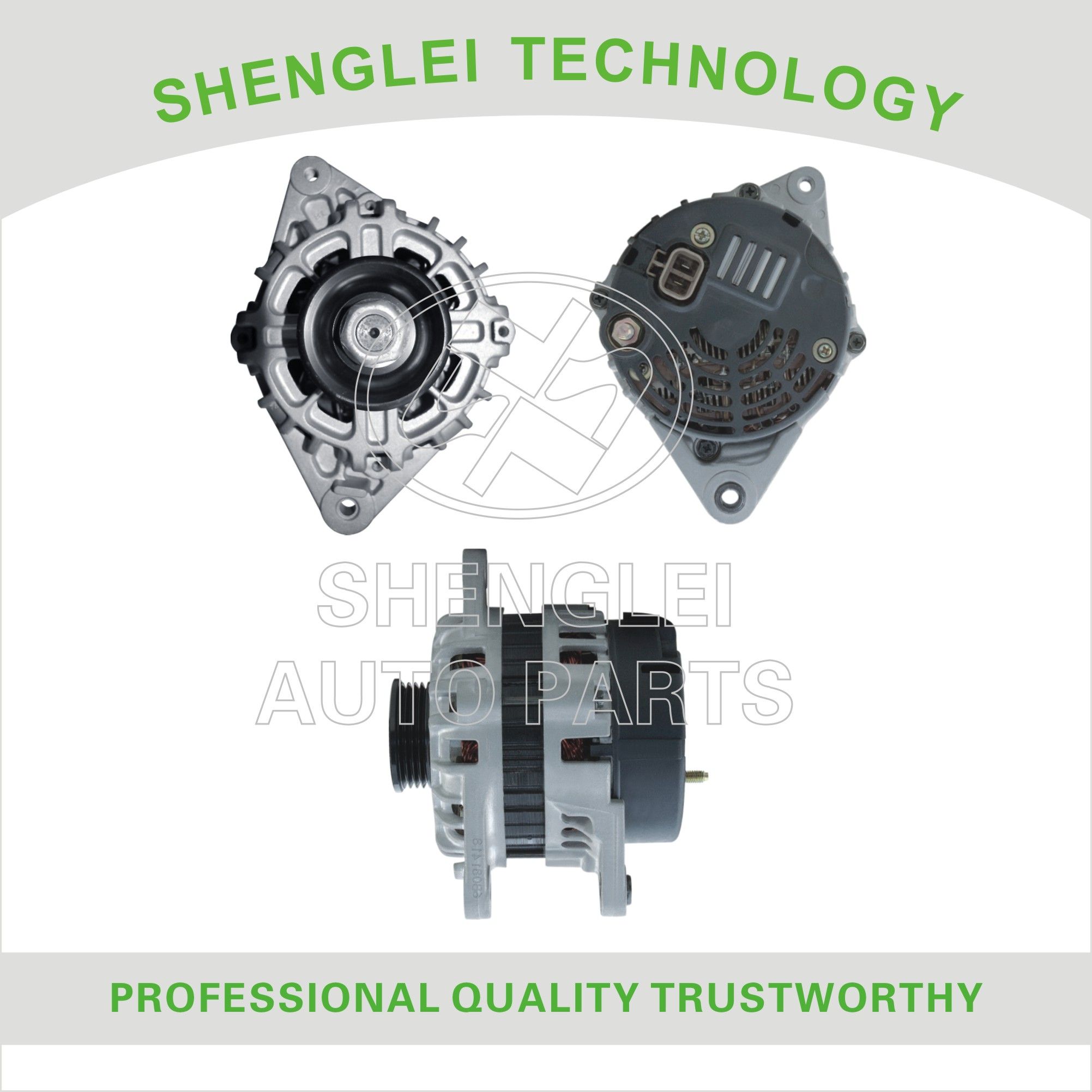

Car Alternator for Hyundai Mando Elantra (13839 3730022600 12V 90A)
| Price: |
US $ 48-50/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
Ref Information:
Specification:| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 90 |
| Pulley Class | S4 |
| Regulator | IR |
| Fan Type | IF |
| Manufacturer | MANDO |
| Brief | HYUNDAI ACCENT 1.5L 2000-02
HYUNDAI ACCENT 1.6L 2001-02
HYUNDAI ELANTRA 2.0L 2001-02
KIA SPECTRA 2.0L 2007
KIA SPORTAGE 2.0L 2007
ALSO EUROPEAN APPS AS FOLLOWS:
HYUNDAI ACCENT 1.3L, 1.5L 1999-ON
HYUNDAI COUPE 2.0L 16V 2001-ON
HYUNDAI ELANTRA 1.6L, 1.8L 2.0L 16V 2000-ON
HYUNDAI MATRIX 1.6L, 1.8L 2001-ON
4-GROOVE PULLEY
ADDL INFO: "
S-L"
PLUG
ADDL INFO: 8mm B+ STUD
SEARCH: 486867 (EARLIER UNIT-MAY INTCHG)
SEARCH: 486864 (90 AMP REPLACEMENT) |

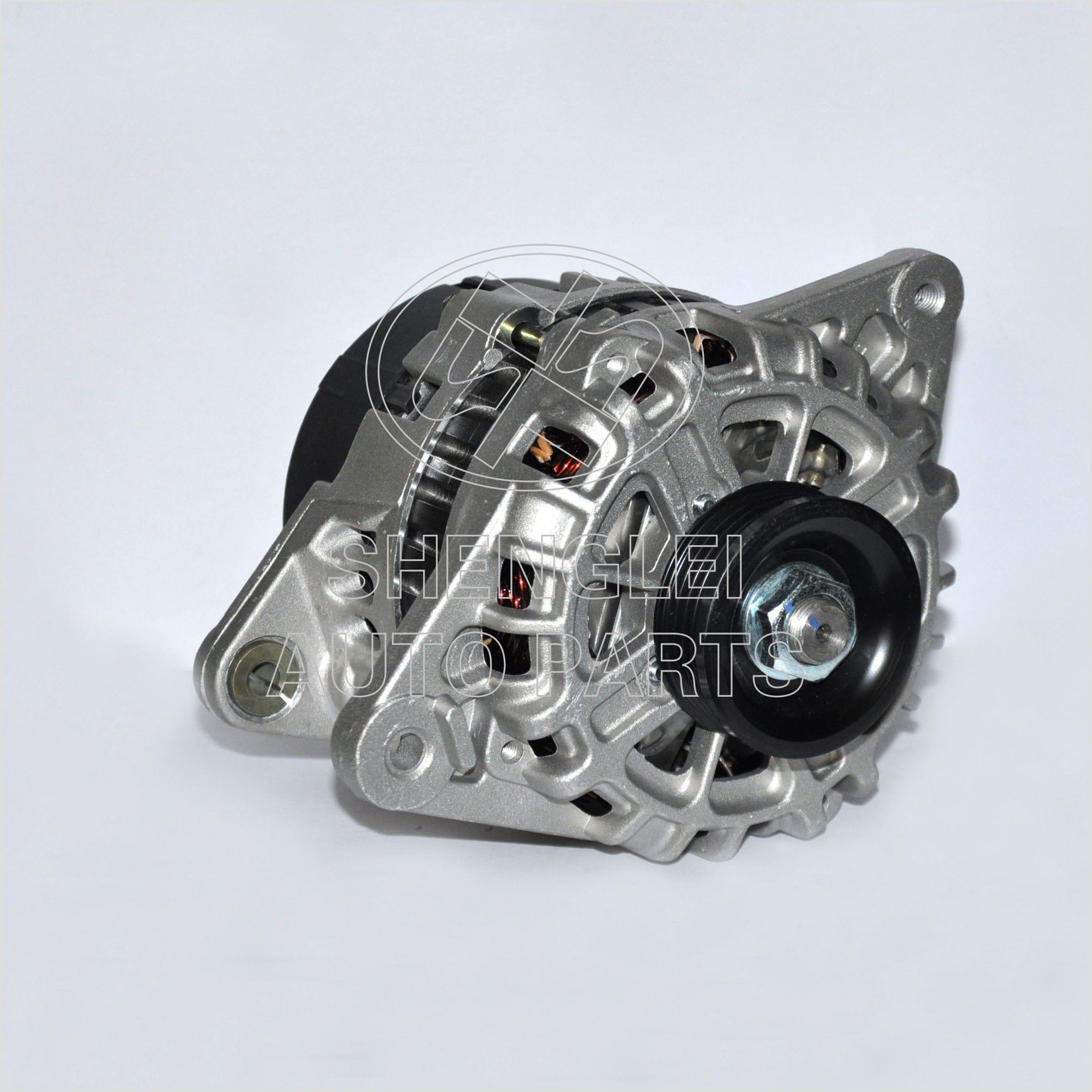

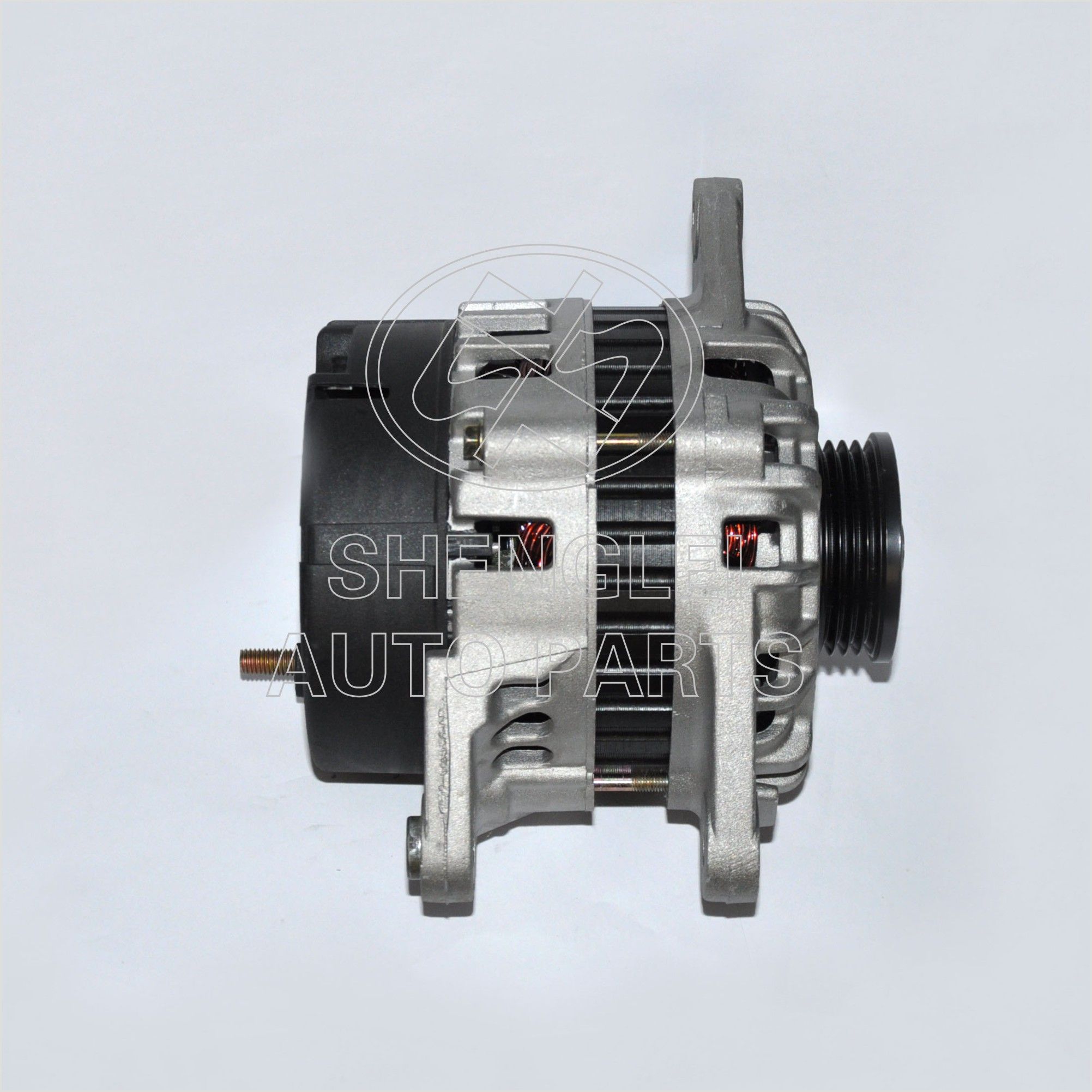

| Detailed | This is an 80A Mando Alternator for the 2000-02 Hyundai Accent. This Unit Has a Standard S-L Plug at About 9:00 the B+ Stud at 8:00 and a 4-Groove Pulley. This Unit Looks Much Like the 13702 Used Earlier With Some Minor Appearance Differences. It is Quite Possible That the Two Units Would Interchange as Long as the Pulleys Align Properly. Hyundai TSB #03-36-002 Dated March 2003 States That Hyundai Has Replaced the 80A 13839 With the 90A 13973 On 2003-On Models and May Also Supply This Unit in Place of the 13839. |
|
| AMN0019 | ARROWHEAD |
| 13839 | LESTER |
| 203-302 | PIC |
| 13839 | BBB |
| 13839 | BBB NEW |
| N13839 | BBB NEW |
| 186-0954 | BECK ARNLEY |
| 111309 | CARGO |
| A-8937 | DIXIE |
| 13839N | EMS |
| 10573 | EXCEL |
| 37300-22600 | HYUNDAI |
| A13839 | IAT |
| 400-46012 | J & N |
| LRA02136 | LUCAS ELECTRICAL EUROPE |
| AB180128 | MANDO |
| 13839 | MPA |
| 13-9438 | NAPA |
| 1N-9438 | NAPA POWER NEW |
| 213-9438 | NAPA POWER PREMIUM PLUS |
| 13-9438 | NAPA POWER SUPREME |
| ALT-3022 | NSA |
| AL-13839 | RCP |
| A2839 | USA INDUSTRIES |
| TA000A39101 | VALEO |
| 600044 | VALEO NEW |
| 429101 | WAGNER |
| 1-2378-01MD | WAI |
| 90-31-7015 | WILSON |
| 90-31-7015 | WILSON NEW |
| 90-31-7015N | WILSON NEW |
| ALT3022 | WOOD AUTO |
| 12242 | WORLDWIDE |
|
| HYUNDAI | Auto and Light Truck | ACCENT | 2000 | 1.5L |
| HYUNDAI | Auto and Light Truck | ACCENT | 2001 | 1.5L |
| HYUNDAI | Auto and Light Truck | ACCENT | 2001 | 1.6L |
| HYUNDAI | Auto and Light Truck | ACCENT | 2002 | 1.5L |
| HYUNDAI | Auto and Light Truck | ACCENT | 2002 | 1.6L |
| HYUNDAI | Auto and Light Truck | ELANTRA | 2001 | 2.0L |
| HYUNDAI | Auto and Light Truck | ELANTRA | 2002 | 2.0L |
|
| BRG0005 | ND949100-2250 | BEARING - ROLLER |
| AVA1604 | | COVER - RECTIFIER |
| | | PLUG CODE |
| AMN1203 | | RECTIFIER |
| AMN6011 | | REGULATOR w/BRUSHES |
| AMT9110 | | SEAL - RUBBER - B/H TO COVER |
| AMN3501 | | SLIP RING |
| AMN4003 | | STATOR |
| ADR9232 | | TEST LEAD |
| Prod Model: |
sl1906 |
| Material: |
Aluminum |
| Muffler Type: |
Center Muffler |
| Net Weight: |
5kg |
| Rotation: |
Cw |
| Structure: |
Integral Alternator |
| Rectifier Structure: |
Six Tubes |
| Current Level: |
9(',≥90A) |
| Bonding Type Of Magnetic Field Winding: |
Outer Bonding |
| Brushless Alternator Type: |
Claw-pole Type |
| Voltage Adjuster Type: |
Electromagnetic Vibratory |
| Voltage: |
12V |
| Head Cover Position: |
Front |
| Type: |
Assembly |
| Brand: |
Shenglei |
Wenzhou Shenglei Technology Co, Ltd is located in Binhai Industrial Wenzhou city Zhejiang province, There are 110 staff and 20 of them are technicians and professional staff. The Company covers an area of 12, 000 square meters. Almost all of the above alternators and components are exported to Mideast, Europe and Russia markets. The Company has the capacity of 200, 000 PCS of alternators per annum.
Our company supplies different kinds of alternator products. High quality and favorable price. We're pleased to get your Inquiry and we will feedback to you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

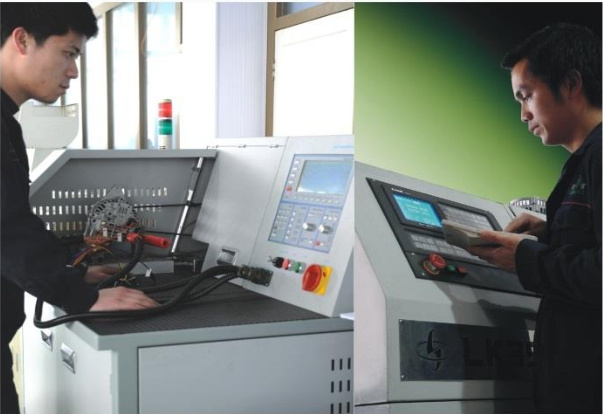

And, Shenglei company foucs on advanced manufacturing and testing facilities to ensure that products are in high quality and conform to customers specification. Shenglei pay high attention to its quality control. The Company has equipments such as CNC machining center, balancing equipment, rotor/stator varnishing machines, ultrasonic cleaning machine, D&V alternator performance tester from Canada, alternator high temperature endurance tester, rotor/stator performance tester etc.
Also, Shenglei is very active in new products development. A plan is made to develop 40 alternators within one year. The Company will be very interested in developing new units for our customers.
Shenglei will go on to carry out and enforce the standardization of quality management system, put perfecting process into operation to make perfected products through effective researching in products and scientific process management.
