WENZHOU SHENGLEI TECHNOLOGY CO., LTD. >> Car Alternator for Honda Accord 2.4L (13980, 104210-3290, 1-2953-01ND-3, 31100raaa01)

Car Alternator for Honda Accord 2.4L (13980, 104210-3290, 1-2953-01ND-3, 31100raaa01)

Car Alternator for Honda Accord 2.4L (13980, 104210-3290, 1-2953-01ND-3, 31100raaa01)
Price: US $ 68-70/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T
Prod Model: for Honda Accord SL1002
Material: Aluminum
Muffler Type: Center Muffler
Structure: Integral Alternator
Rectifier Structure: Six Tubes
Current Level: 9(',≥90A)
Bonding Type Of Magnetic Field Winding: Outer Bonding
Brushless Alternator Type: Claw-pole Type
Voltage Adjuster Type: Electromagnetic Vibratory
Voltage: 12V
Head Cover Position: Front
Type: Assembly
Brand: Shenglei

Product Description

Product Description
Ref Information:

Unit TypeAlternator
Part TypeUNIT
Voltage12
RotationCW
Amperage100
Pulley ClassS7
RegulatorIR
Fan TypeIF
ManufacturerDENSO
BriefACURA TSX 2.4L 2004-05
HONDA ACCORD 2.4L 2003-05
HONDA ELEMENT 2.4L 2003-06
7-GROOVE PULLEY 60mm OD
ADDL INFO: SQUARE C-FR-IG-L PLUG
ADDL INFO: SIDE MOUNTING - 2 BOTTOM MOUNTS
ADDL INFO: PLUG AT 10:00 - B+ AT 12:00
ADDL INFO: DELTA WOUND STATOR (6 DIODE TYPE RECTIFIER)
DetailedThis is a Denso Hairpin Stator Alternator for the 2004-05 Acura TSX and the 2003-04 Honda Accord and Element With the 2.4L Engine. This Unit Mounts Sideways With One Top and Two Bottom Mounts. The Plug (Square - Terminals C-FR-IG-L) is at 10:00 (Side) While the B+ Stud (Top Rear) is at 12:00. Denso Claims That the 126600-0140 Regulator Used in the Original 104210-3290 and the 126600-3200 Regulator Used in the 104210-3291 Will Not Replace Each Other (No More Info as to Why is Available Yet). They Do Sell One Aftermarket in the Aftermarket to Replace All Versions of the 104210-3290 thru -93.
MFG#MFG NAME
AND0257ARROWHEAD
13980LESTER
290-5096PIC
31100-RAA-A01ACURA
CSC29ACURA
023290ANDRE NIERMANN
13980BBB
13980BBB NEW
186-1080BECK ARNLEY
104210-3290DENSO
104210-3291DENSO
104210-3292DENSO
104210-3293DENSO
210-0511DENSO FIRST TIME FIT
A-8955DIXIE
13980NEMS
10680EXCEL
Denso HairpinFAMILY
31100-RAA-A01HONDA
31100-RAA-A03HONDA
31100-RAA-A04HONDA
31100-RAA-A05HONDA
CSC29HONDA
LRA02354LUCAS ELECTRICAL EUROPE
213-9549NAPA POWER PREMIUM PLUS
13-9549NAPA POWER SUPREME
A2280USA INDUSTRIES
1-2953-01NDWAI
90-29-5542WILSON
90-29-5542WILSON NEW
12504WORLDWIDE
MAKETYPEMODELYEARENGINE
ACURAAuto and Light TruckTSX20042.4L
ACURAAuto and Light TruckTSX20052.4L
HONDAAuto and Light TruckACCORD20032.4L
HONDAAuto and Light TruckACCORD20042.4L
HONDAAuto and Light TruckACCORD20052.4L
HONDAAuto and Light TruckELEMENT20032.4L
HONDAAuto and Light TruckELEMENT20042.4L
HONDAAuto and Light TruckELEMENT20052.4L
HONDAAuto and Light TruckELEMENT20062.4L
AEP NumberAEP (OEM)PART TYPE
BRG0005ND949100-2250BEARING - ROLLER
BRG0014ND949100-2790BEARING - ROLLER
AND7501ND021660-0390BRUSH - ALTERNATOR
AND1626 INSULATOR - BRUSH HOLDER
  PLUG CODE
AND1254 RECTIFIER
AND6159ND126600-3200REGULATOR
AND4031 STATOR
AND9209 TEST LEAD
HDW1326 THRU BOLT - ALT.

Alternators Introduction
Features:

  • Ensures cranking and starting performance under all temperature extremes
  • 100% full-load tested - meets or exceeds OE manufacturers' torque, amperage draw and RPM standards
  • Ensures stable voltage output, eliminates shorts and open circuits
  • Provides unsurpassed reliability under extreme conditions
  • OE design to ensure exact fit, form, and function
  • Tested in an endurance simulaor to ensure OE quality and function

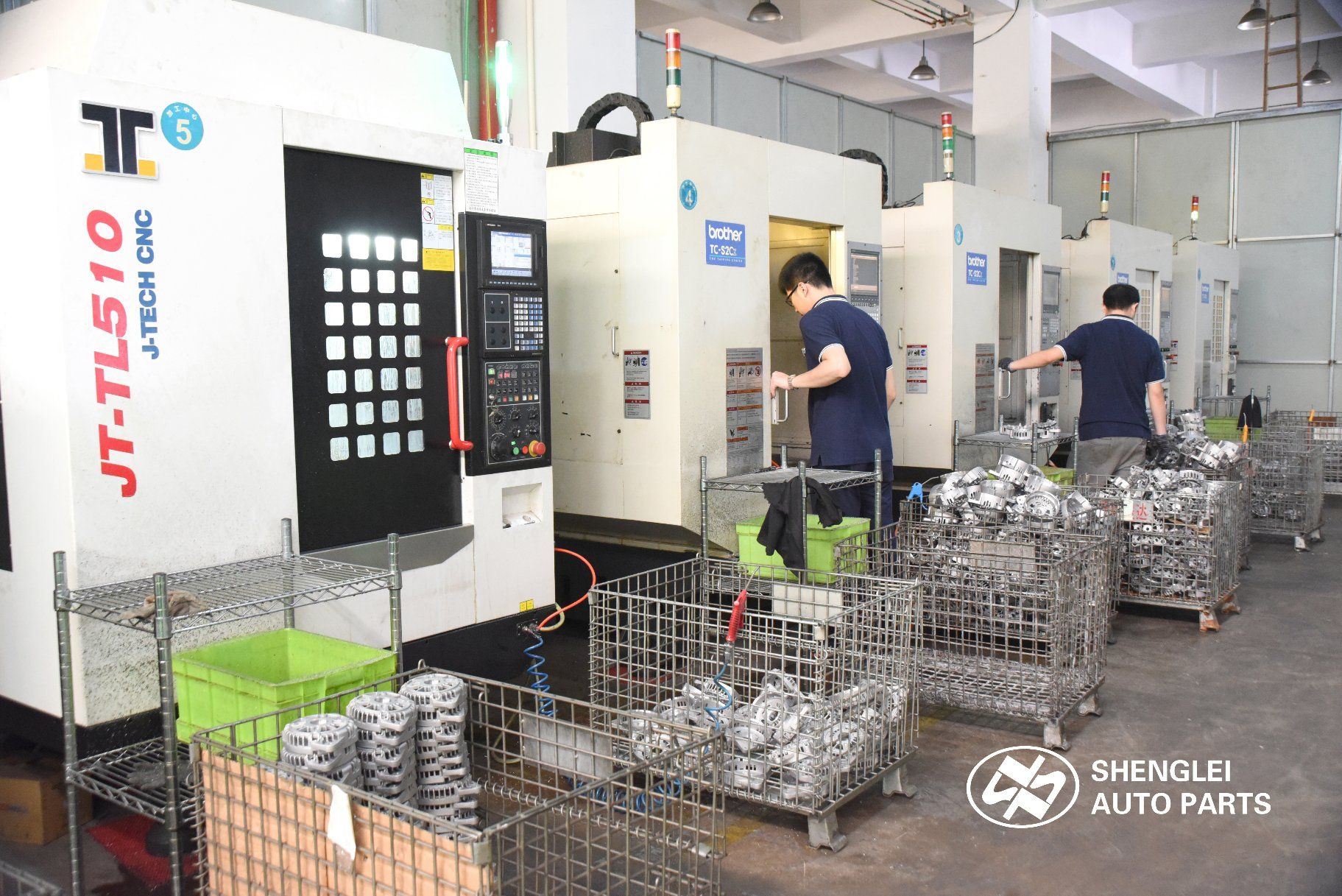

Production Line






Packing details:Support neutral or customized colorful carton packing.




Want sample first:we will supply sample if we have them in stock or have enough parts to assemble.
We will return sample once you place order.

Contact :
Wholesaler:please contact our sales first,you will get response within 12h.
John Xue (Sale Dept Executive)

Wenzhou Shenglei Technology Co, Ltd is located in Binhai Industrial Wenzhou city Zhejiang province, There are 110 staff and 20 of them are technicians and professional staff. The Company covers an area of 12, 000 square meters. Almost all of the above alternators and components are exported to Mideast, Europe and Russia markets. The Company has the capacity of 200, 000 PCS of alternators per annum.

Our company supplies different kinds of alternator products. High quality and favorable price. We're pleased to get your Inquiry and we will feedback to you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

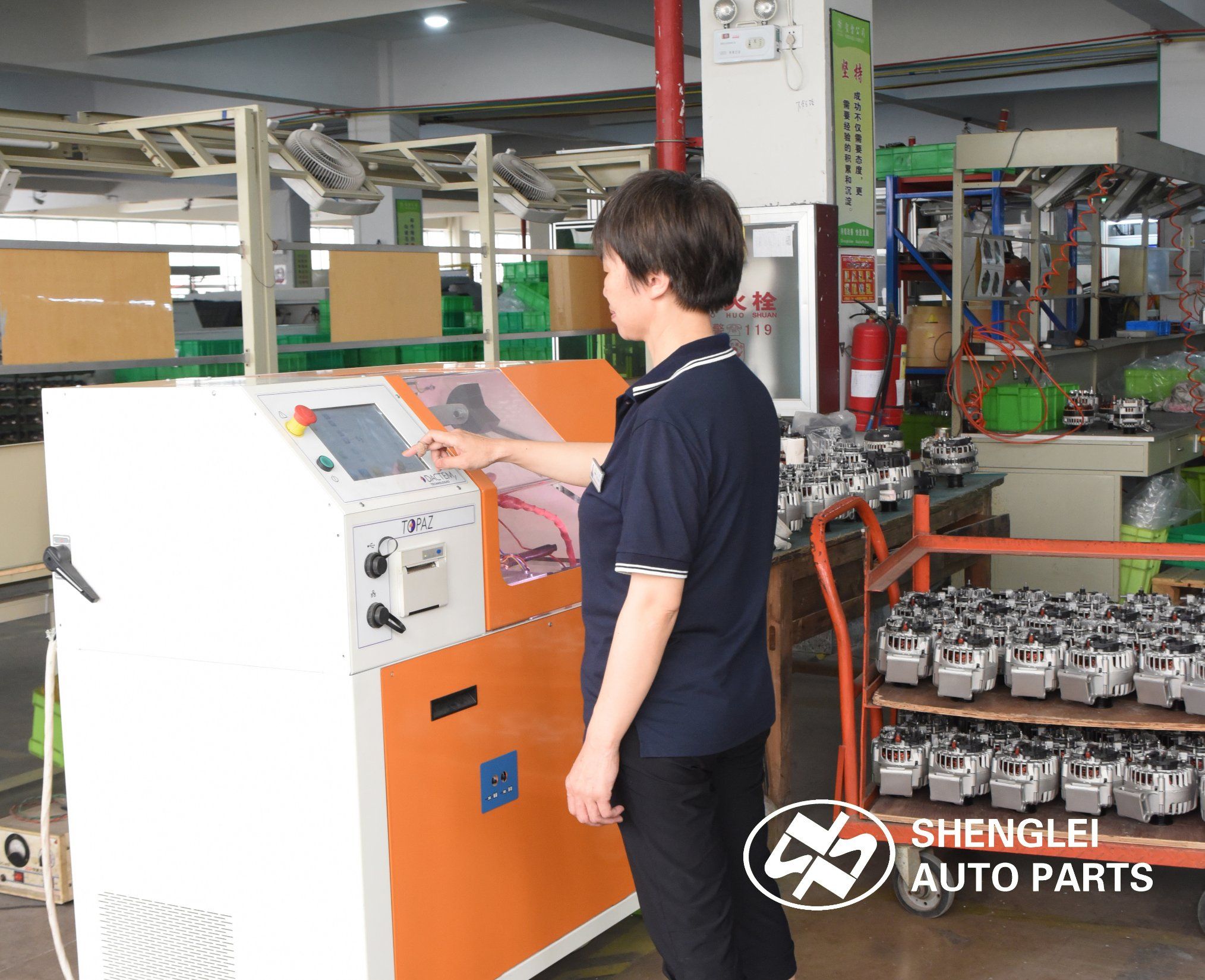

And, Shenglei company foucs on advanced manufacturing and testing facilities to ensure that products are in high quality and conform to customers specification. Shenglei pay high attention to its quality control. The Company has equipments such as CNC machining center, balancing equipment, rotor/stator varnishing machines, ultrasonic cleaning machine, D&V alternator performance tester from Canada, alternator high temperature endurance tester, rotor/stator performance tester etc.

Also, Shenglei is very active in new products development. A plan is made to develop 40 alternators within one year. The Company will be very interested in developing new units for our customers.

Shenglei will go on to carry out and enforce the standardization of quality management system, put perfecting process into operation to make perfected products through effective researching in products and scientific process management.
