Capacitance Fuel Sensor with GPS Tracker for Fuel Consumption

Capacitance Fuel Sensor with GPS Tracker for Fuel Consumption
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union

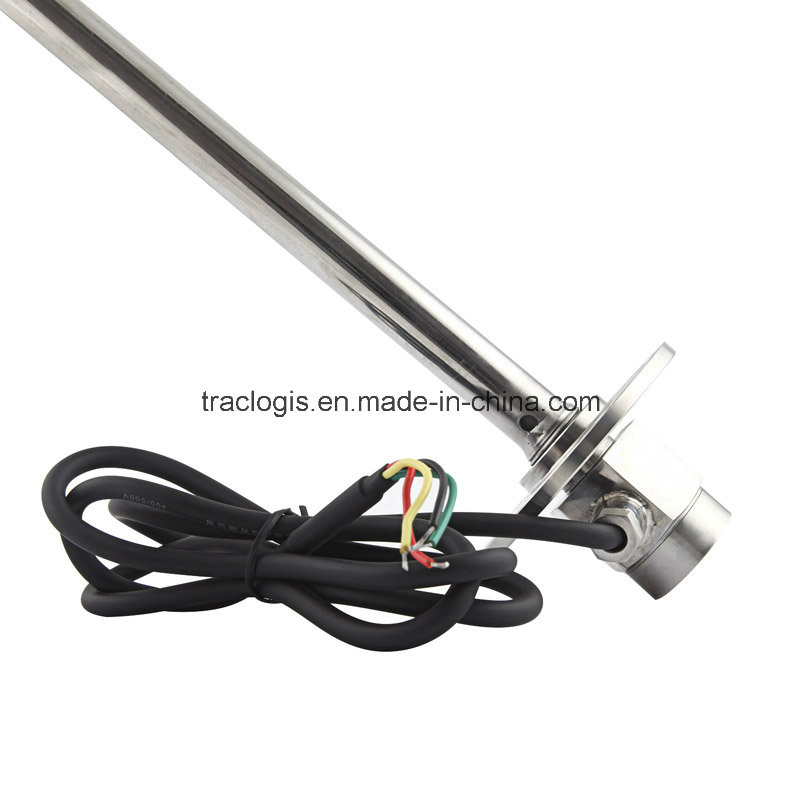

Capacitive Fuel Level Sensor TL800

Introduction
Fuel and Oil level sensor Traclogis TL800 is intended for precision fuel and oil level measurement in containers and fuel tanks of vehicles, road tanker monitoring systems, fuel storages, generators, GSM station etc, with capacitive technology and unique assembly, which enable convenient operation in harsh environments steadily.

The sensor can be integrated with any professional control units and equipment of GPS tracking.



Features

Simple Installation
With the unique installation technology of Traclogis, the sensor can be mounted with one hole drilled, which will save more time for the installation compared with the traditional fuel level sensor.

Multi-signal Outputs
Voltage Signal Output:(0-5v)
Digital Signal Output: RS232
Digital Signal Output: RS485

High Precision Measurement
High resolution of the sensor(1 mm)

Can Be Truncated
Probe can be cut down in the filed to suit for proper height of the tank

Key Features:
Accuracy: 0.5%
Resolution: 1mm
Output Signal: Voltage, Current, RS232, RS485
Output Voltage: 0- 5V
Output Current: 4- 20mA
Size: 10- 1500cm
Easy Installation
Easy Calibration

Parameters

Index
Parameter
Acquisition PrincipleCapacitive
Power Input5-70V
Power Consumption0.13W/5V,0.19W/12V,0.38W/24V
AccuracyResolution: <1mm, Accuracy: <0.5%
Communication InterfaceRS-232, RS-485, CAN (Customizable)
Baud Rate2400,4800,9600,57600,115200 (or customized by users)
OutputVoltage : 0-5V, Current: 4-20mA
Measuring Range10CM-150CM
Protection GradeIP67
Housing MaterialAluminum alloy
Operating Temperature-40°C ~~+85°C
Storage Temperature-40°C ~~+105°C
Weight400g (500mm)
Size550mm, 750mm, 1000mm (Customizable)




Application

With years of research of real-time remote fuel-level monitoring solution, Traclogis accumulated rich experience in the field of fuel monitoring field, A real-time remote fuel-level monitoring solution is an option for managers who need to know exactly when and where fuel losses are occurring.

In addition to notification of a sudden change in fuel-level, a well-designed remote monitoring solution is able to provide other valuable information, such as how much fuel is lost, as well as the fuel cost management with driver's behavior, which will make fleet managers to save more cost and manage the fleet efficiently.

Benefits

increase vehicle or special machinery effectiveness;
minimize non-productive expenses;
supervise fuel usage;
optimize drivers working effectiveness
prevent (or minimize) fuel theft;






Prod Model: TL800B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 20-150cm
Installation: Flange
Type: Capacitive Liquid Level Sesnor
Output Signal Type: Analog/Digital
Material: Aluminum
Established in 2009, Traclogis is dedicated to provide Fuel control system and Fuel consumption monitoring solution and GPS-GSM/GPRS vehicle monitoring and fleet management solutions that has a transformative effect on the way business optimize their fleet and mobile assets.

With the development of modernization in industry and agriculture, and the wide use of industry monitoring and automatic management, the wireless control system is expanding rapidly, especially in irrigation works and electronic power, fuel consumption, with the strong demands from the market, Traclogis started the remote fuel monitoring solution study in 2009, based on the experience of fleet management solutions, we have released the complete solution of remote fuel monitoring solution successfully, which has helped our customers saving a lot of cost on the management of fleet and industrial equipment operation.

Traclogis is dedicated to enhancing the value of its customers' business through intelligent integration of location technology, information and services, according to the requests from the market, we can fulfill the needs of all sizes of companies,

No matter you are just going to enter into the fleet management industry or you have done successfully in this field, Traclogis can always be your partner.

Traclogis' strategy is to help our customers to lower threshold of entering into fleet management field, as well as saving cost for the fleet managers, Traclogis is ideally to provide full range of solutions to satisfied our clients, which include also OEM project according to customer's requests.
