Bzb Hot Sale Car Paint Spray Booth

Name: Bzb Hot Sale Car Paint Spray Booth
Brand: ibuyautoparts.com
SKU: 691066865
Availability: InStock
Rating: 4.7 (22 reviews)

Price:	US $ 5500-8650/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-8400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

For car painting and baking, maintains a high level of safety and performance together with top quality construction and material

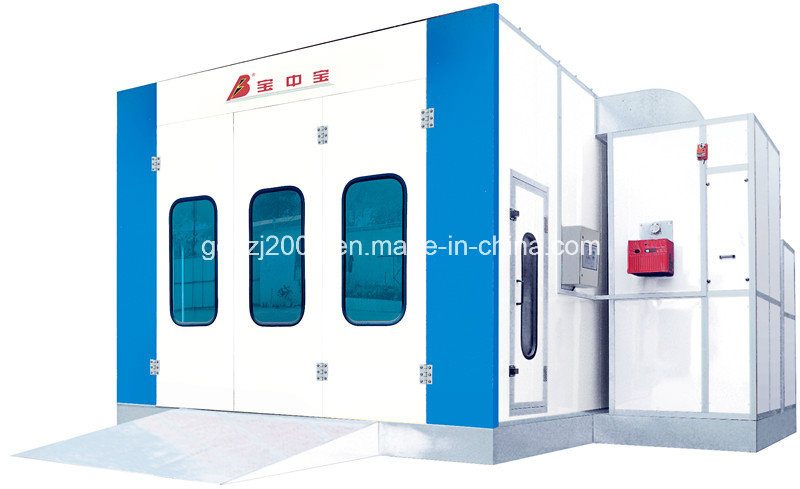

BZB is a high-performance double wall, insulated downdraft spray booth designed for automotive refinish body shops that demand high quality of the paint process, minimum running costs, reliability.

BZB-8400 SPRAY BOOTH

Outside Size (mm)	7000× 5560× 3430	Front Door(mm)	3000(w)× 2700(H)
Inside Size(mm)	6900× 4000× 2750	Total Power(km)	16kw
Cabin System	Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation
	Basement	two rows of Grids, 280mm basement, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps
Air Circulation System	Inlet Fan	Model: YDW 4.5L1	Outlet Fan	Model: YDW 5.6S
		Blower capacity: 24000m 3 /h		Blower capacity: 15000m 3 /h
		Pressure: 815Pa		Pressure: 810Pa
		Rolling speed: 900rpm		Rolling speed: 900rpm
		Power: 4kw		Power: 5.5kw
		Quantity: 2 sets		Quantity: 1set
	Air Volume: 24000m 3 /h; Air Speed: 0.35m/s;
Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10μ m. Ceiling Filter Capture Granules Bigger than 4μ m. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤ 1.4mg/m 3
Heating System	Burner	Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h, 20N Damp Motor
	Heat Energy Converter	SUS304 Stainless Steel heat exchanger, argon arc welding;
	Max Temp: 80, Heating Time: 4-6min(20-60), Fuel Consumption: 4-5kg/vehicle
Light System	Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 1000 Lux
Controlling System	Micro-computer programmed controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm, Failure alarm, timer
Environmental System	Multi-Layer Fiberglass Filter, active-carbon

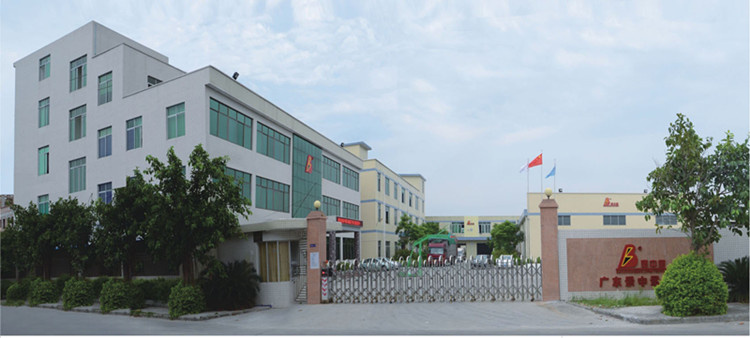

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
