Name: Bus Doos Sqz 6 RS Auto Parts Ball Joint Bearing
Brand: ibuyautoparts.com
SKU: 797562925
Availability: InStock
Rating: 4.8 (65 reviews)

Price:	US $ 1-10/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

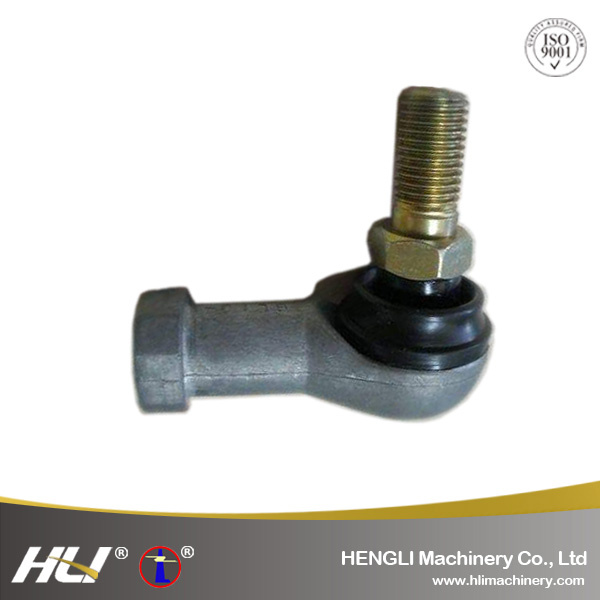

Bus Doos SQZ 6 RS Auto Parts Ball Joint Bearing

Application

- Features of structure
The unit consists of a body and thread stud, assembled in 90 degree position.
With lubricant inside and covered with a rubber seal.
- Properties
Self-alignment, easy installation.
- Application
Pneumatic components, bus doors, packaging equipments, agriculture
equipments etc.

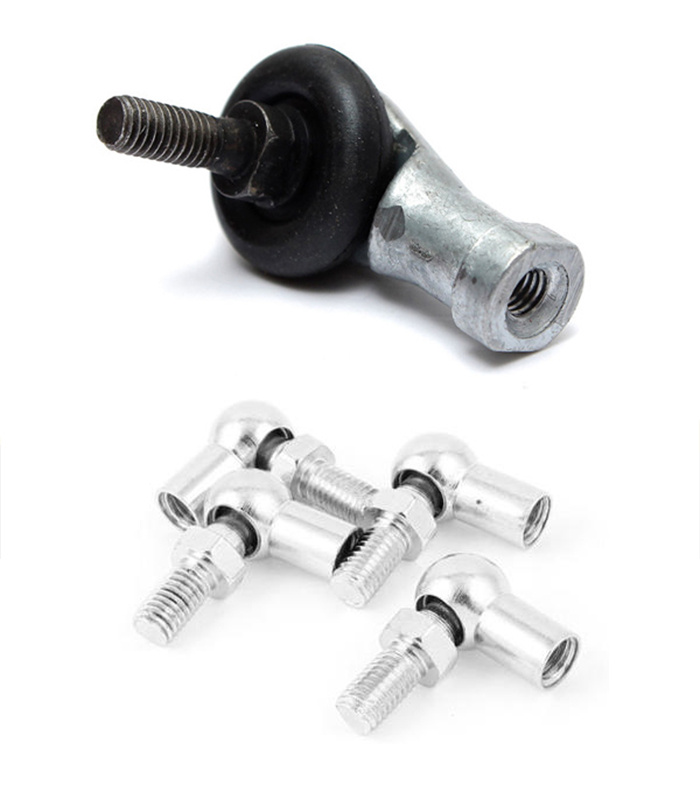

Ball Joint Bearing

Product Name	Ball Joint
Precision Rating	P6, P0, P5, P4, P2
Material	Bearing Steel (GCr15)
Clearance	C0 C1 C2 C3 C4 C5
Vibration & Noisy	Z1,Z2,Z3 V1,V2,V3
Features	High Precision, High Speed, Long Life, High Reliability, Low Noise , Reduce Friction
Certification	ISO 9001:2008
Packing	1.Neutral Packing Bearing 2.Industrial Packing 3.Commercial Packing Bearing 4.Customize
Delivery Time	30 - 45 Days After The Order is Confirmed
Shippment	1.By Sea 2.By Air 3.By Express
Website	http://www.hlimachinery.com

Ball Joint Bearing Specification

Bearing No.	Dimensions (mm)																Load ratings	Mass
Bearing No.	d	d2	d2 min	d3 min	I2 min	I3	S2	L min	L 2	L2 min	L3 min	D1 min	D2 min	D3 min	S3	a	KN	kg
SQZ 5 RS	5	M5x0.8	9	20	8	11.0	7	46.0	24	4.0	12	9.0	11	17	9	15	2.8	0.025
SQZ 6 RS	6	M6x1	10	20	11	12.2	8	55.2	28	5.0	15	10.0	13	20	11	15	3.7	0.041
SQZ 8 RS	8	M8x1.25	12	24	12	16.0	10	6.5	32	5.0	16	12.5	16	24	14	15	5.8	0.075
SQZ 10 RS	10	M10x1.25	14	30	15	19.5	11	74.5	35	6.5	18	15.0	19	28	17	15	8.4	0.120
SQZ 10 RS-1	10	M10x1.5	14	30	21	19.5	11	80.5	35	6.5	18	15.0	19	28	17	15	8.4	0.120
SQZ 12 RS	12	M12x1.25	17	32	17	21.0	15	84.0	40	6.5	20	17.5	22	32	19	15	11.0	0.180
SQZ 12 RS-1	12	M12x1.75	17	32	24	21.0	15	91.0	40	6.5	20	17.5	22	32	19	15	11.0	0.180
SQZ 14 RS	14	M14x1.5	19	38	22	23.5	17	103.0	45	8.0	25	20.0	25	36	22	11	15.0	0.270
SQZ 14 RS-1	14	M14x2	19	38	28	23.5	17	109.0	45	8.0	25	20.0	25	36	22	11	15.0	0.270
SQZ 16 RS	16	M16x1.5	22	44	23	25.5	19	112.0	50	8.0	27	22.0	27	40	22	11	15.0	0.360
SQZ 16-1 RS	16	M16x2	22	44	29	25.5	19	118.0	50	8.0	27	22.0	27	40	22	11	15.0	0.360
SQZ 18 RS	18	M18x1.5	23	45	25	32.0	20	130.5	58	10.0	32	25.0	31	45	27	11	19.0	0.540
SQZ 20 RS	20	M20x1.5	27	50	25	29.0	24	133.0	63	10.0	38	27.5	34	45	30	7.5	19.0	0.570
SQZ 22 RS	20	M22x1.5	27	52	26	33.0	24	145.0	70	12.0	43	30.0	37	50	32	7.5	23.0	0.760

About Us

HENGLI Machinery Company is a well-established Chinese bearing supplier. We design, manufacture and wholesale bearings.

Our specialized manufacturer of Spherical Roller Bearing & Cylindrical Roller Bearing, LUAN Rolling Bearing Co., Ltd

was established in 1970 and is accredited by the Chinese Ministry of Machine Building.

We invested in two additional specialized bearing factories, which allow us to provide our clients with top of the line products such

as Needle Roller Bearings, Spherical Plain Bearings, Rod Ends Bearings, Ball Joint Bearings, Tapered Roller Bearings,

Wheel Hub Bearings and Non-Standard Bearings.

FAQ
Q1 - What is our advantages?

A - Manufacturer - Do it only with the Best;

-Your Choice make different.

Q2 - Our Products

A - Spherical Roller Bearing, Cylindrical Roller Bearing, Needle Roller Bearing, Cam Followers, Thrust Bearing

- Spherical Plain Bearing, Rod End, Ball Joint, Wheel Hub, Tapered Roller Bearing

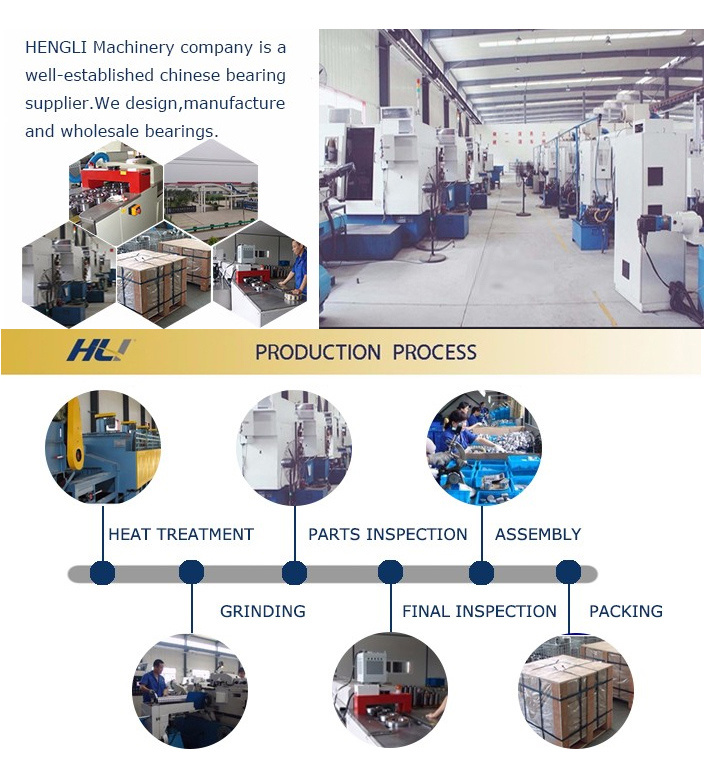

Q3 - Process of our production

A - Heat Treatment - Grinding - Parts Inspection - Assembly - Final Inspection - Packing

Q4 - How to customize bearing(non-standard) from your company?

A -We offer OEM,Customized(Non-standard) service and you need to provide drawing and detailed Technical Data.

Q5 - What should I care before installation?

A - Normally, the preservative with which new bearings are coated before leaving the factory does not need to be

removed; it is only necessary to wipe off the outside cylindrical surface and bore, if the grease is not compatible

with the preservative, it is necessary to wash and carefully dry the bearing.

-Bearings should be installed in a dry, dust-free room away from metal working or other machines producing

swarf and dust.

Q6 - How to stock and maintenance my bearings right?

A - Do not store bearings directly on concrete floors, where water can condense and collect on the bearing;

-Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidity

or sudden and severe temperature changes that may result in condensation forming;

-Always put oiled paper or, if not available, plastic sheets between rollers and cup races of tapered roller bearings.

Prod Model:	SQZ 6 RS
Type Name:	Sqz 6 RS Ball Joint
Certificate:	ISO9001:2008
Service:	OEM ODM
Main Market:	Europe, North America, East Asia
Thread:	Pinch Bolt
Feature:	High Temperature Resistance
Sliding Contact Surfaces:	Steel-on- Zinc Based Alloy Steel
Stud:	Black Oxide Coated
Assemble:	90 Degree Position
Apply:	Pneumatic Components

HENGLI Machinery Company is a well-established Chinese bearing supplier. We design, manufacture and wholesale bearings.

Our specialized manufacturer of Spherical Roller Bearings & Cylindrical Roller Bearings, LUAN Rolling Bearing Co., Ltd, was established in 1970 and is accredited by the Chinese Ministry of Machine Building.

We invested in two additional specialized bearing factories, which allow us to provide our clients with top of the line products such as Needle Roller Bearings, Spherical Plain Bearings, Rod Ends Bearings, Ball Joint Bearings, Tapered Roller Bearings, Wheel Hub Bearings and non-standard Bearings.

We are proud to say that in our years of international trading experience, we never had a single order returned to us. For all our clients, dealing with us is a synonym of satisfaction and efficiency. You will receive exactly what you ordered, and you will receive it on time.

Our resources

We employ more than 500 people, including 80 professional technicians. We have over 400 sets of production equipment as well as 350 sets of advanced testing machines on site.

We offer a complete range of bearings, from precision size to heavy industry size; Including 500 standard specifications as well as customized bearings.

After years of development and innovation, our network of distributors now spreads across China.

Geared towards the future

In 2007, we inaugurated a 45, 000 square meters factory in Jinan Economic Development Zone.

We passed the ISO9001 system certification in 2000, and have been enforcing ISO9001: 2008 standards since 2009.

In Feb, 2009, HENGLI International Company Limited was founded in Hong Kong.

In Feb, 2012, HENGLI International (Shanghai) Co., Ltd was founded in Shanghai.

In Feb, 2015, HENGLI International Company Limited & HENGLI International

(Shanghai) Co., Limited were renamed HENGLI MACHINERY Co., Ltd
