| Prod Model: |
BTD9910 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Management Certification: |
ISO9001: 2000 |
| Technology: |
German Technology |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Used Painting Booth: |
Spray Painting Booth |
| Painting Booth: |
Used Painting Booth |
| Color: |
Red + White |
| Diesel Burner: |
Italy Riello Two Ranges Diesel Burner Rg5d |
| Control System: |
Inverter Control System |
| Used Paint Booth: |
Used Auto Paint Booth |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Btd |
Product Description
Car Spray Booth for Painting Cars Auto Painting room
1. CE approved
2. German Technology
3. Large air volume system
4. Quickly rising up heating system
5. Spray booth professional manufacturer
6. Factory price, energy saving
7. High quality, best sell service, timely delivery
8. We can meet at customer's special requirement

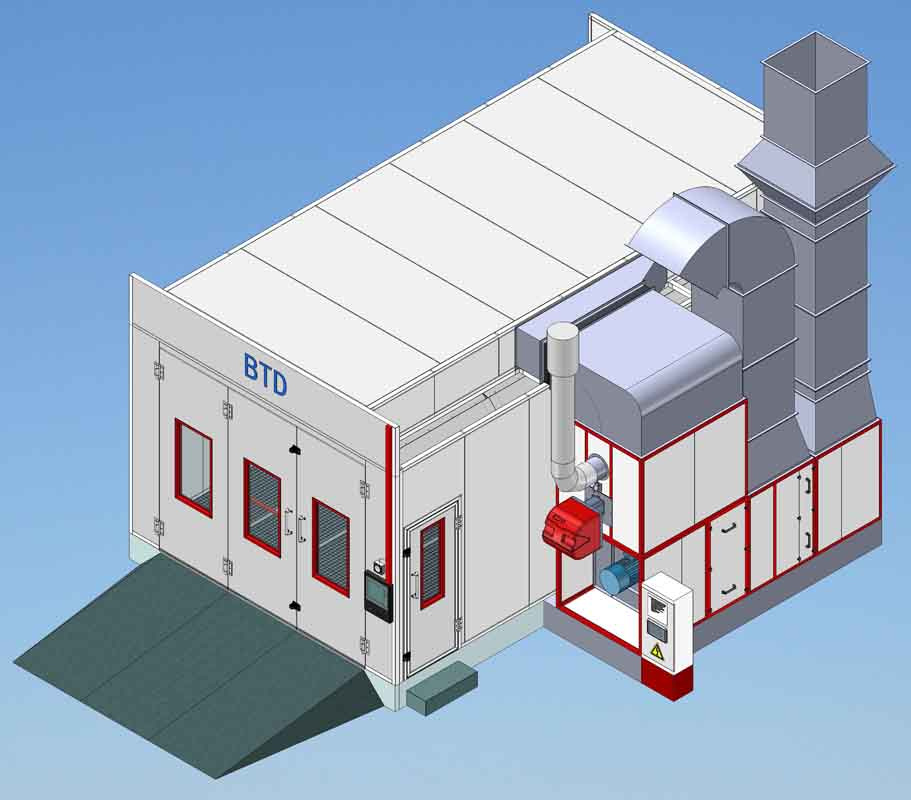

Model: BTD 9910
| Outside size: | 7110 x 5570 x 3810 mm (L x W x H) | Inside size:(mm) | 7000 x 4000 x 2800 mm (L x W x H) |
| Foundation and floor | Foundation | Adopt galvanized bending forming, more durable and strong. Full grids, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing. |
| Surface area of foundation | 27 M²(full galvanized grids) |
| Metal basement | 350mm height, the ventilation effect is better than traditional spray booth. |
| Drive-in ramps | 3 big drive-in ramps, each size: 2000x1030mm, diamond plate structure. |

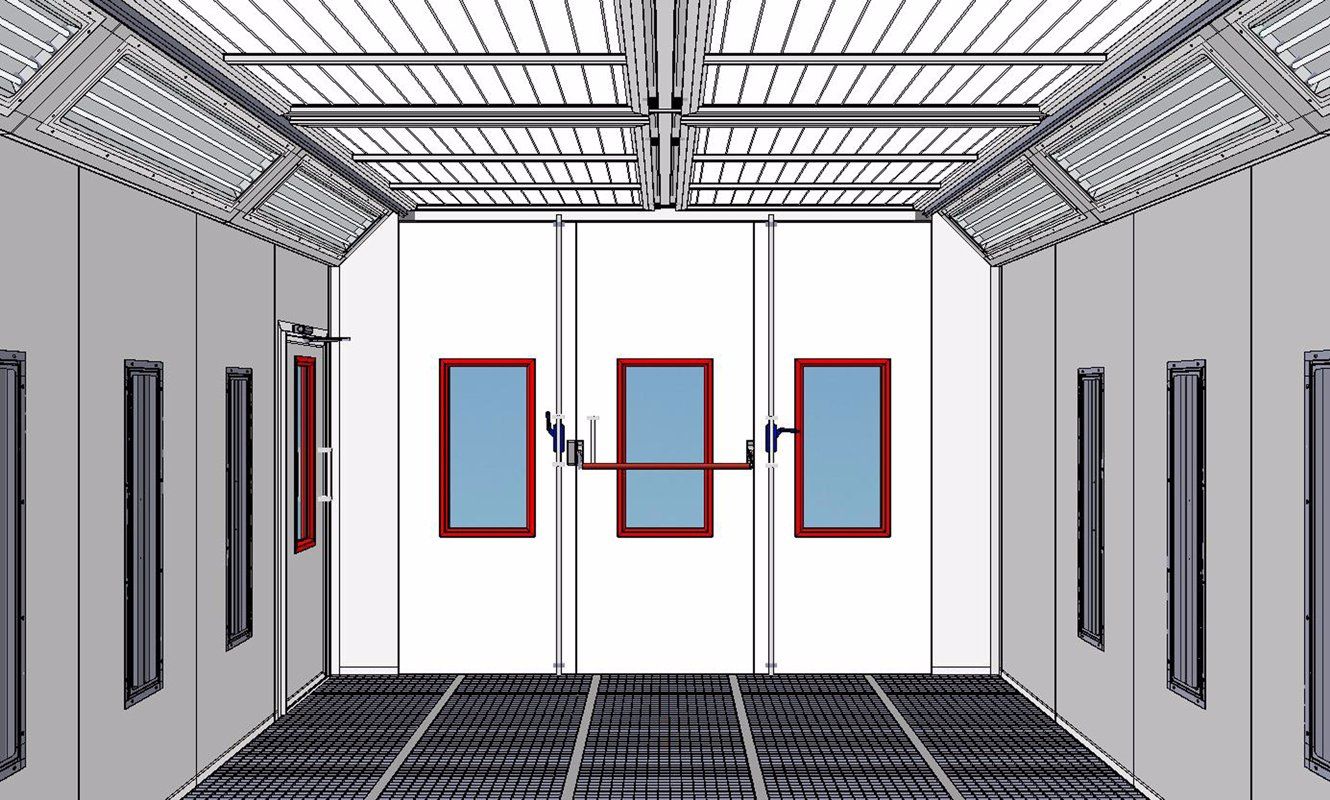

| Wall and door | Wallboard and roof panel | High quality double construction fireproof insulation rock wool panel, thickness: 50mm |
| 3-folded entrance door with safety glass window | 1set,size: 3200x2700 mm(B x H),tempering glass observation window , size is bigger than traditional spray booth. |
| Operator's door with safety glass window | 800x2000mm(B x H)the top of service door installs door closer to close the door automatically |
| Spray gun hanging system | Install hanging arm in cabin, convenient for operators to hang spray gun, etc. |
| | Ceiling lighting | 8units,each 4 x 36 W,total 1152w , adopt Germany OSRAM Lamp, grade of lighting box's dustproof and waterproof reach IP54 grade. |
| Lighting | Side lighting | 8units,each 2 x 36 W,total 576w, adopt Germany OSRAM Lamp, grade of lighting box's dustproof and waterproof reach to IP54 grade. |
| | Brightness | ≥1000 LUX |
| Filtration system | Pre-filters | EU3 grade pocket filter, filtration effect is much better |
| Ceiling filter | EU5 grade high efficient filter |
| Bottom filter and exhaust filter | Fibreglass paint-stop filter |
| Ventilation system | Inlet fan (Direct drive motor) | Adopt big impeller turbo fan,Germany SIEMENS Brand motor, 7.5KW,6-pole motor, 970RMP, 380V,50HZ |
| Outlet fan(Direct drive motor) | Adopt big impeller turbo fan,Germany SIEMENS Brand motor, 7.5KW,6-pole motor, 970RMP, 380V,50HZ |
| Painting and baking exchange system | Solenoid valve+ pressure adjustment control cylinder driven damper exchange |
| Total fan capacity | 25.000m³/h |
| Air flow speed in cabin | Inverter adjustment, 0.23m/s in empty booth, 0.25-0.35m/s in loaded booth |
| Heating system | Heating exchanger material | Adopt high efficient heat-resistant stainless steel as cycling heat exchanger |
| Heating exchanger capacity | 200KW(260.000Kcal/H) |
| Burner model | Adopt Italy RIELLO two ranges diesel burner RG5D(260.000kcal/H),quicker heating and much better effect, more rest assure for quality |
| Heating time | 3-5 minutes( from 20°C to 60 °C) under baking status, the max baking temperature is 80°C |
| Control system | Control system | Inverter control system |
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray booth is getting more and more popular all over the world.
BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
FQA:
Q1: Are you Manufacturer or Trading company? A: We are a professional manufacturer with our own export department.
Q2: Where is your company ocated? How can I visit there?
A: Our company is located in Guangzhou. All clients, from home and abroad, are warmly welcomed to visit us.
Q3: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
Sources, our products are excellent in performance and craftsmanship.
Q4: What's the sort of heating types?
A: There are diesel, gas and electricity(infrared lamp) heating.
Q5: Does the BTD spray booth with the European design?
A: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.
Q6: What are range of the voltage and power for BTD spray booth when operating?
A: The standard voltage and power for our products is 220V 50Hz 1pH for lights (Residential voltage), 380V 50Hz 3pH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.
Q7: Can we customize our product?
A: Absolutely yes, BTD has the professional team with 10 years of design experience. Customized material and standard are acceptable. We can provide different standards according to your market and favor.
Our Service:
We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
If you wish to discuss any aspect of your project,
Please feel free to contact us.
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.
BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.
BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
