| Prod Model: |
BTD-22-60-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Part Number: |
Btd-22-60-a |
| Price Car Paint Booth: |
Used Cars Paint Booth for Sale in Germany |
| Quality: |
High Quality |
| China Paint Room: |
Auto Maintenance Tools |
| Standard Color: |
White(Optional) |
| Standard Voltage: |
380V50Hz3pH for Motors, 220V50Hz1pH for Lights |
| Car Spray Booth: |
Price Car Paint Booth |
| Inside Size:(mm): |
15000X5000X5000 mm |
| No Load Speed: |
0.28m/S |
| Warranty Time: |
2 Years |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Btd |
Product Description
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , BTD brand spray booth is getting more and more popular all over the world .
BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001:2000 quality system certification and ensures that every department follows the articles of the system.
BTD has many agency and establish many showroom around the world ,customers can easy find our products in your countryif we have agency and showroom there . Meanwhile , we welcomes partners who are interested to be our agency .

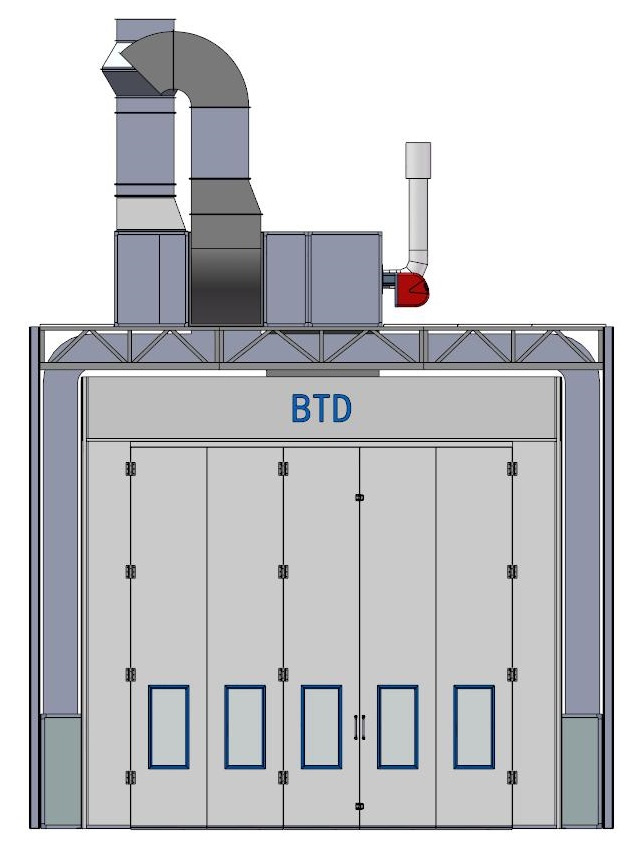

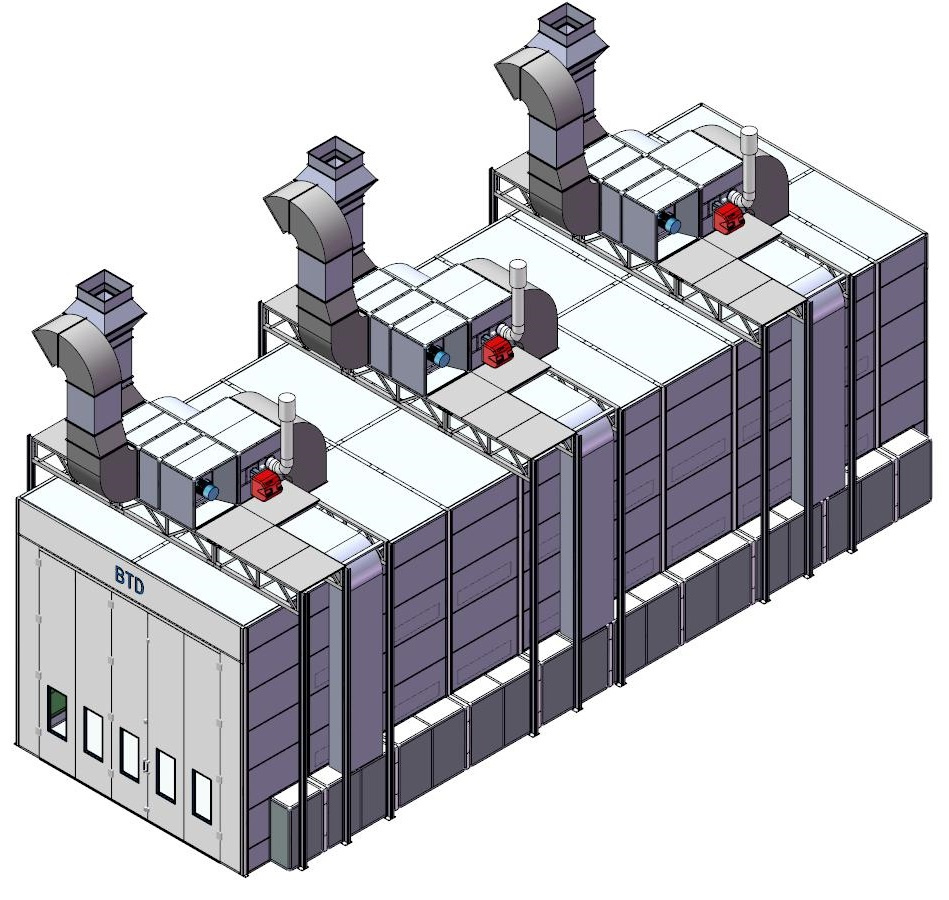

Model Number: BTD-22-60-A ( Big And Economy spray booth )
| Model | BTD-22-60-A |
| Booth Dimensions | |
| -Internal Size(L×B×H) | 22000×6000×5000 mm |
| -External Size(L×B×H) | 22150×6160×8000 mm |
| Foundation and Floor | |
| -Loading Capacity | NO |
| of Galvanized Grating |
| - Surface Area | 48M² 2 rows air exhaust plenum chamber |
| - Metal Basement | NO |
| - Drive-in Ramps | NO |
| Wall and Door | |
| - Steel Wall and Roof Panel | Double Construction |
| with Insulations EPS 60mm |
| -Thickness | Double Construction |
| with Insulations EPS 50mm |
| 3-Folded Entrance | 5300×4800 mm (B×H) |
| Door With |
| Safety Glass Window |
| -Operators Door | 800×2000 mm (B×H) 2PCS |
| With Safety , |
| Glass Window |
| Lighting | |
| - Ceiling Lightings | 24 Units, each 4×36 W, |
| Total 3456W |
| - Side Lightings | 28 Units, each 2×36 W, |
| Total 2016W |
| - Brightness | >1000 Lux, IP54 Grade |
| Filtration | |
| - Prefilters | Fiberglass,Paint-Stop-Filters Plate type duel filters |
| - Ceiling Filters | EU5 Fine Filters, 6 Units |
| - Floor Filters | Fiberglass, Paint-Stop-Filters |
| Ventilation System | |
| -Direct Drive | 3×11KW,970RPM,380V,50 HZ |
| Motor (Fresh Air) | motor certificationCE |
| -Direct Drive | 3×11KW, 970RPM, 380V,50HZ Domestic |
| Motor (Exhaust Air) | motor certificationCE |
| - Fan Capacity | 90000m³/h |
| - Air Flow Speed | +/- 0.25 m/s in an empty booth |
| Heating System | |
| - Heating Exchanger | Stainless Steel 1Gr18Ni9Ti |
| -Heating | 315KW(340.000cal/H) RIELLO |
| Exchange Capacity |
| -Max. Drying Temperature | 80 °C |
| - Heating time | 10-15 min (from 20 to 60º) |
| by Drying Phase |
| -Heating Type | Diesel / Gas Burner |
| (on option) |
| Control Board | |
| -Control system | Stander control |
| Delta Depressurization |
| start system |
| EN60204-1-2006 |
| -Function | Spraying ,baking, warming |
| spray paint, emergency stop switch |
| -PLC | yes |
| -Inverter control | On option |
| -Import element | master device import element |
| -Overpressure Manometer | yes |
| - Alarm equipment | yes |
Other conditions and terms:
1. Payment term: T/T 50% advanced after order confirmed, T/T 50% balance paid before delivery.
2. Delivery date: 10-15 days after order confirmed.
3. Warranty: 2 years. During the warranty time, any problem caused by products' quality, BTD has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.
4. Quality: Our products are welcomed in Europe, our quality meets the requirement of European market.
5. Service time: Life long maintenance
Dear friends, if you have any problem and requirment for CE approved auto maintenance tools painting camera China paint room, you can feel free to contact with us.
