| Prod Model: |
BTD 7400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Management Certification: |
ISO9001: 2000 |
| Technology: |
German Technology |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Usage: |
Car Spraying and Baking |
| Configuration Level: |
Medium Configuration Spray Booth |
| Popular In: |
Europe, Australia |
| Color: |
White |
| Diesel Burner: |
Italy Riello Diesel Burner G20(180, 000kcal/H) |
| Lighting System: |
Osram Lamp with Tempered Glass |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Btd |
Product Description

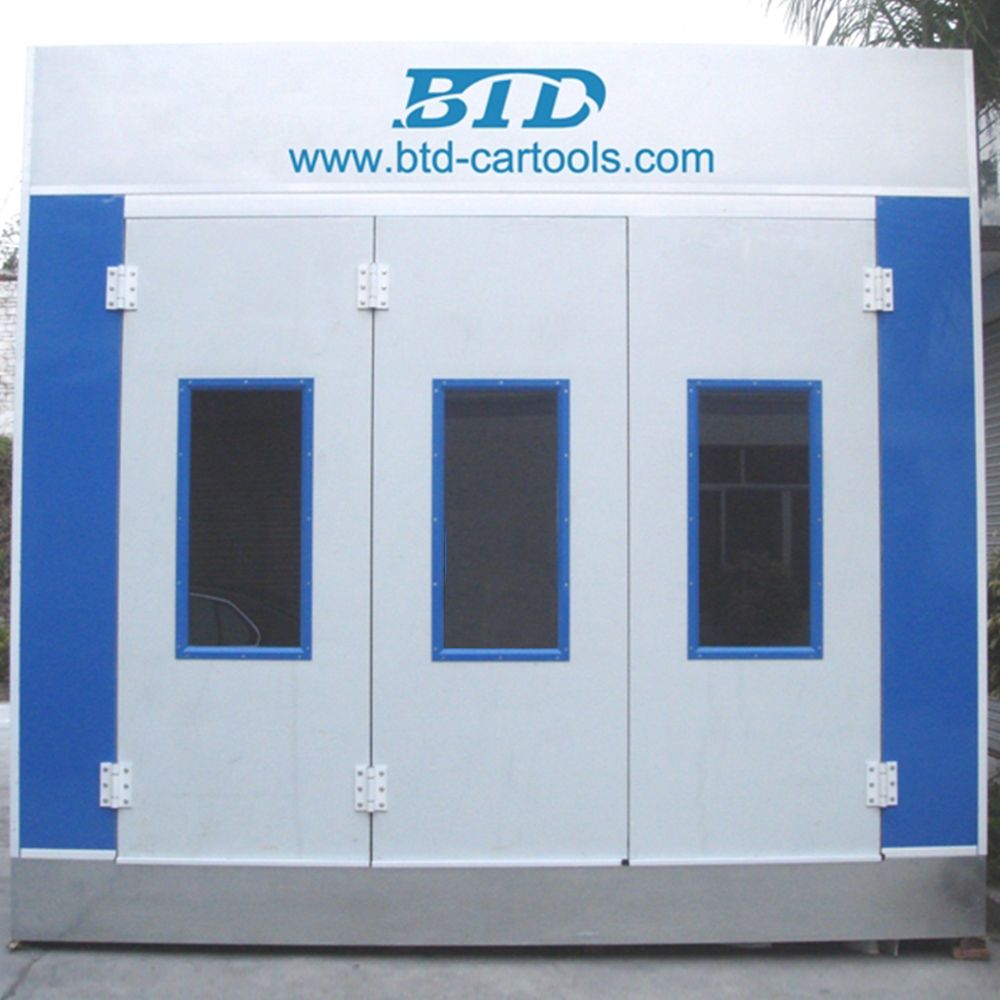

Full Down Draft Car Spray Booth
1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Model: BTD 7400
| Outside Size: (mm) | 7010x5570x3810 mm (LxWxH) | Inside Size(mm) | 6900x4000x2800 mm (LxWxH) |
| Foundation and Floor | Foundation | Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing. |
| Surface area of foundation | 10M² (area of grids) |
| Metal basement | 350mm height, the ventilation effect is better than traditional spray booth |

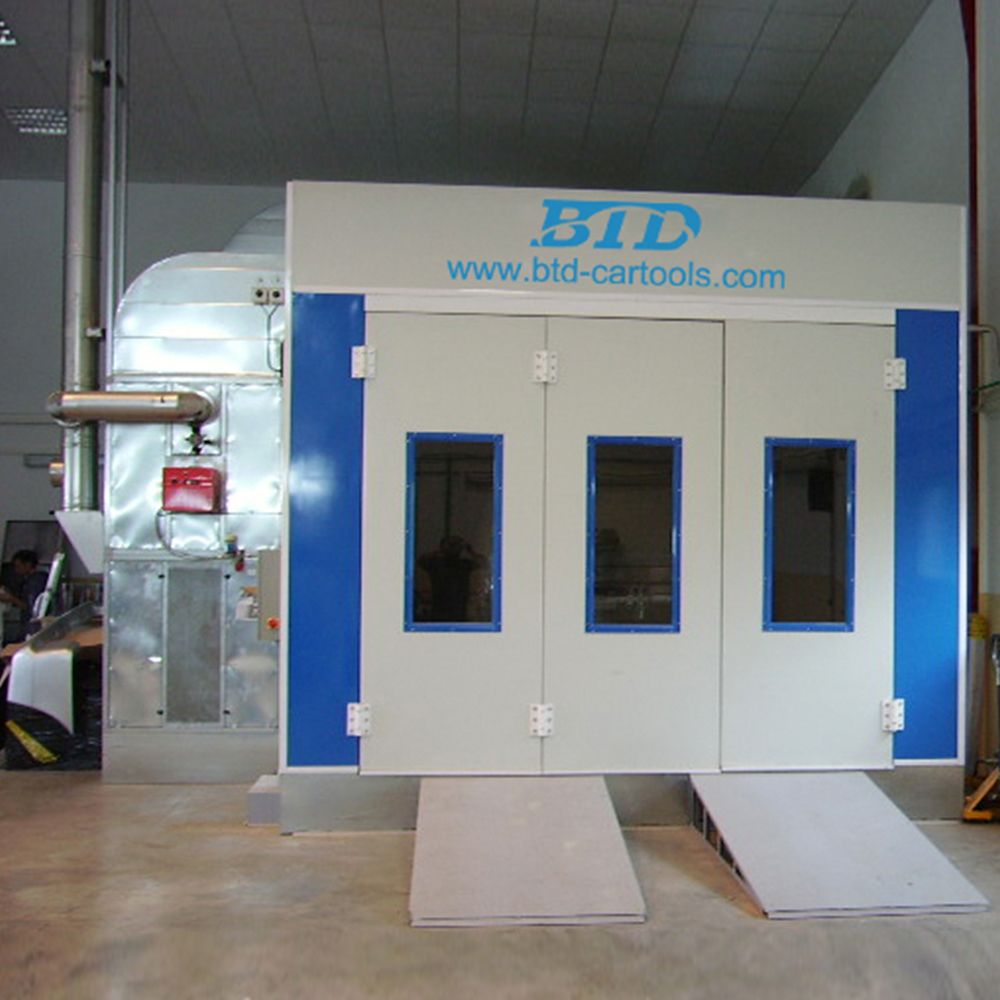

| Drive-in Ramps | 2Units, eachsize: 2000X1030mm, diamond plate construction |
| Wall and door | Wallboard and Roof Panel | Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm |
| 3-Folded Entrance Door With Safety Glass Window | 1 set, size: 3200x2700 mm(B x H), size is bigger than traditional spray booth |
| -Operator' s Door With Safety Glass Window | Big opening: 800x2000mm (B x H), hand-made, tempering glass observation window |

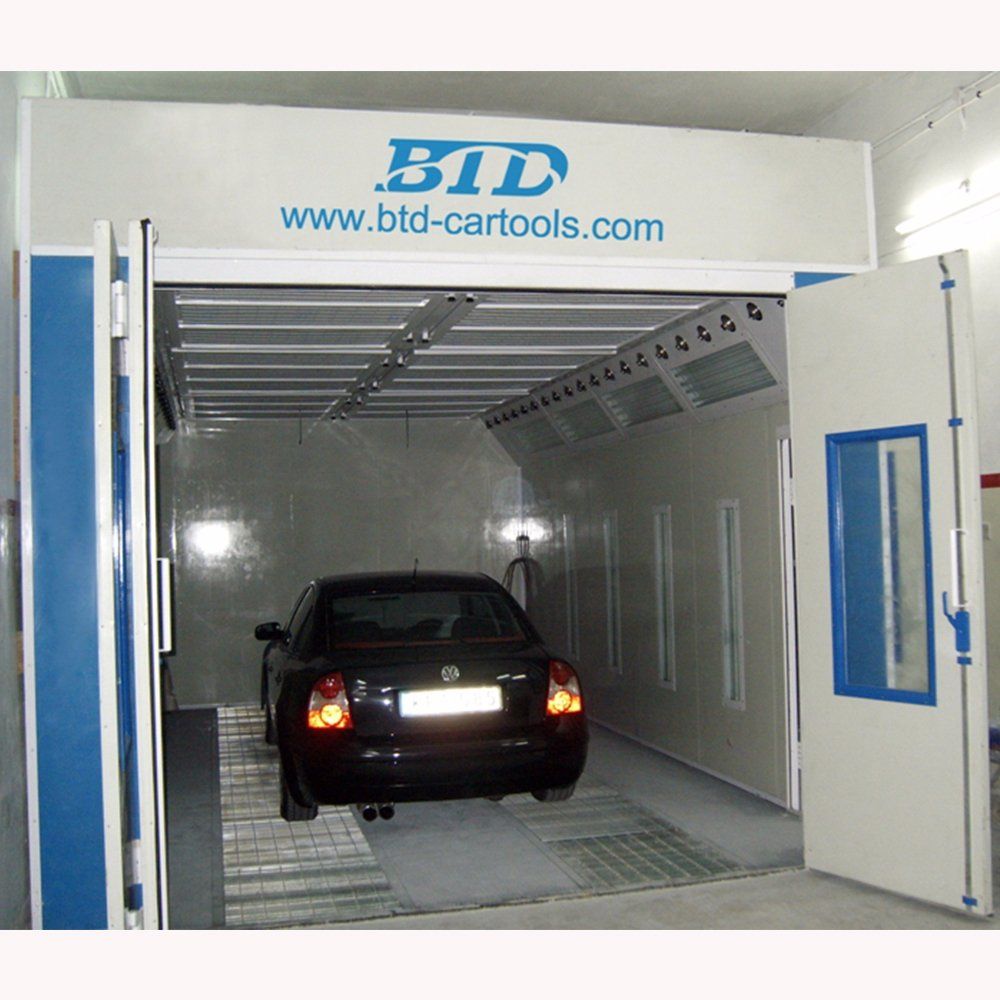

| Light System | Ceiling Lighting | 8Units, each4× 36W, Total 1152W, grade of lighting box' s dustproof and waterproof reach IP54 grade. |
| Side Lighting | 8Units, each2× 36W, Total 576W, grade of lighting box' s dustproof and waterproof reach IP54 grade. |
| Brightness | ≥ 1000 LUX |
| Filtration System | Pre-filters | Grade G2 plate type fiber glass filter |
| Ceiling Filters | EU5 grade high efficient filter |
| Bottom filter & exhaust filter | Fibreglass paint-stop filter |
| Ventilation System | Inlet fan (Direct drive motor) | Adopt big impeller turbo fan 7.5KW, 380V, 50HZ, CE |
| Outlet fan (Direct drive motor) | Adopt big impeller turbo fan 5.5KW, 380V, 50HZ, CE |
| Painting and baking exchange system | Solenoid valve+ pressure adjustment control cylinder driven damper exchange |
| Total fan Capacity | 25, 000m³ /h |
| Air Flow Speed in cabin | 0.23m/s in empty booth, 0.25-0.35m/s in loaded booth |
| Heating System | Heating Exchanger | Adopt high efficient heat-resistant stainless steel as cycling heat exchanger |
| Heating Exchange Capacity | 160KW(180, 000Kcal/H) |
| Burner Model | Adopt Italy RIELLO diesel burner G20(180, 000kcal/H) |
| Heating time | 4-6minutes (from20 to 60º C) under baking status, max baking temperature is 80° C |
| Control Board | Control system | Standard Y/Δ step-down start control system |
| Function | Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication |
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , BTD brand spray booth is getting more and more popular all over the world .
BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001:2000 quality system certification and ensures that every department follows the articles of the system.
BTD has many agency and establish many showroom around the world ,customers can easy find our products in your countryif we have agency and showroom there . Meanwhile , we welcomes partners who are interested to be our agency .
spray booth / spray paint booth / inflatable spray booth / used spray booth for sale / portable spray booth / car spray booth price / spray booth for painting cars/semi down draft spray booth/automotive paint spray booth/truck spray booth/car spray oven bake boothspray bake paint booth/mini spray booth/automatic spray booth/spray booth paint booth bake oven/water wash spray booth/water curtain spray booth/retractable spray booth/cabinet spray booth/italy spray booth/spray booth car painting/ Car paint /auto paint
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.
BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.
BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
