| Prod Model: |
BTD8700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lighting System: |
German Osram Brand Lamps with Tempered Glass |
| Burner Brand: |
Italy Riello Brand Diesel Burner |
| Usage: |
Electrical Heating Spray Booth/Paint Booth |
| Color: |
White |
| Configuration Level: |
Economical Type |
| Technical Support: |
German Technology |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Management Certification: |
ISO9001:2000 and CE |
| Infrared Heating Lamp: |
10 Units, Each 3X1100W Infrared Lamp Tubes, Total |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Btd |
| Airflow Direction: |
Full Down Draft |
Product Description
BTD Car Tools Co., Ltd. Is a global player in the automotive aftermarket providing a full range of equipment and service solutions for workshops. We are specializing in the manufacture and worldwide sale of high quality car / bus / truck spray booths, preparation stations, mixing rooms, car benchessince year 2002.
Our Services
Other trading conditions and terms, please find below:
A: Payment term: T/T 50% in advance after order confirmed, 50% in balance before shipment.
B: Delivery time: To effect shipment within 20 days after receipt of deposit.
C: Warranty time: 2 years. During the warranty time, any time, any problem caused by products' quality, BTD has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier. Enclosed please kindly find the BTD guarantee & after-sales services clause.

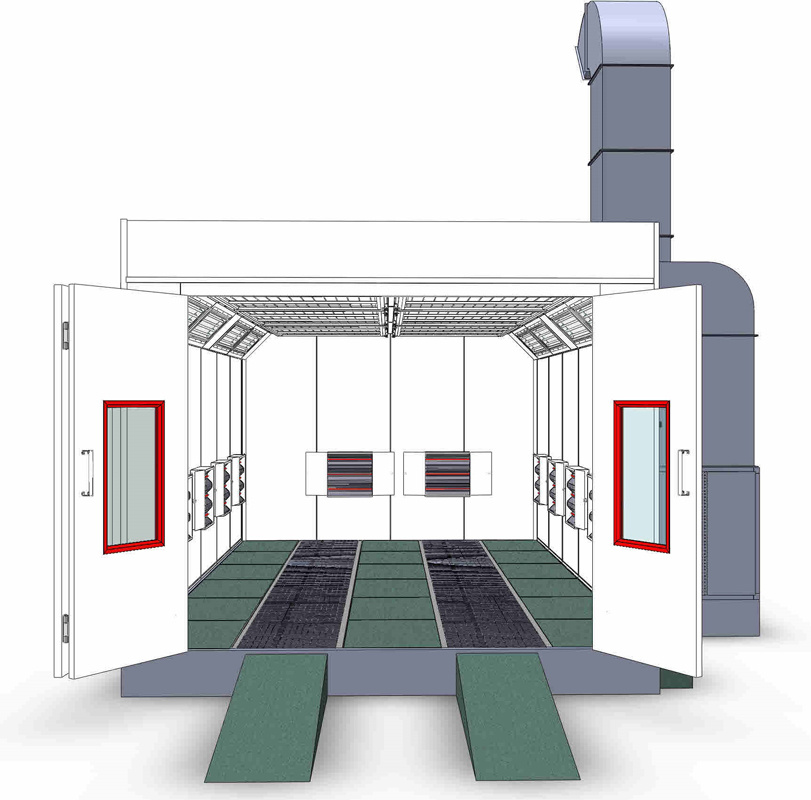

Infrared lamp heating spray booth BTD8700(6.9×4×2.8M)
|
| Design standards | BS EN 13355:2004+A1:2009
BS EN 60204:2006+A1:2009 | |
| Cabin size | | |
| Internal size | 6900×4000×2800mm (L×W×H) | |
| External size | 7010×5570×3810mm(L×W×H) | |
| Basement | | |

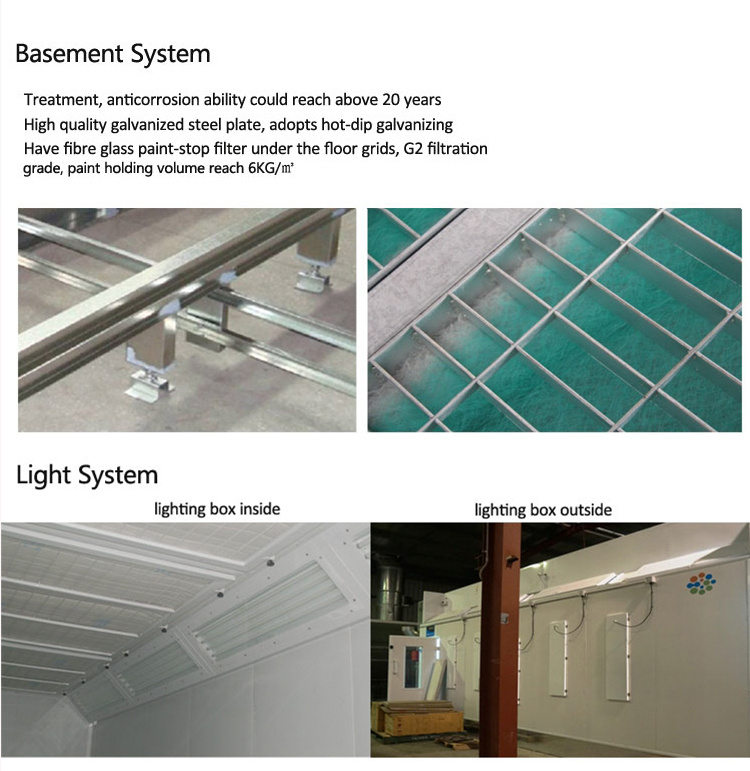

| Basement design type | Galvanized plate bend forming, two rows flat steel grids and three rows metal non-slip diamond plates, basement height is 350mm | |
| Floor grids load capacity | 650kg/wheel | |
| Filtration area | 10M2 | |
| Ramps | 2 units;size: 2000*500*320,diamond plate construction | |
| Floor grids description | Size: 997*756mm , 40*3mm,grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating, the biggest features for it are beautiful, durable and better force bearing | |
| Cabin | | |

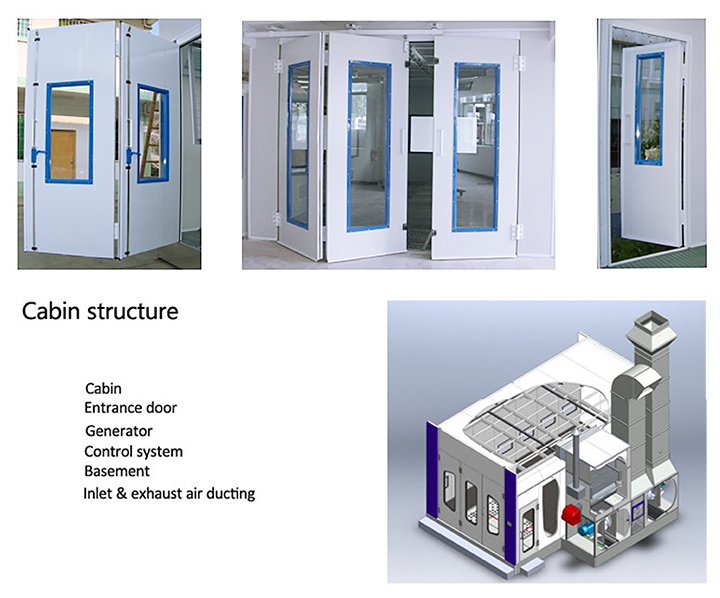

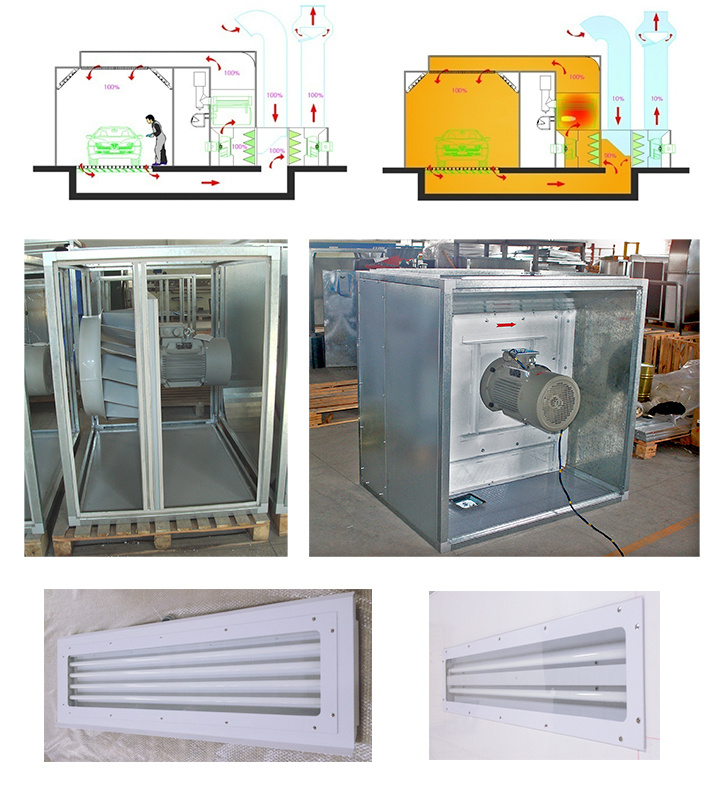

| Cabin structure | Wall panel vertical insert | |
| Plenum chamber height | 400mm | |
| Wall panel | 50mm rock wool panel | |
| Roof panel | 50mm rock wool panel | |
| Material of wrap edge | 1.2mm galvanized plate bend forming | |
| Entrance door | | |
| Type of entrance door | Hand made entrance door,2+1 structure | |
| Size of entrance door | 3200×2700 mm (W×H) | |
| Door arrangement and QTY | 1 set | |
| Description of door | With frame inside, fill with high temperature resistance rock wool | |
| Service door | | |
| Type of service door | Frame structure | |
| Size of service door | 800×2000 mm (W×H) | |
| Door arrangement and QTY | 1 set | |
| Description of service door | With safe glass observation window | |
| Ceiling lighting | | |
| QTY and power | 8 units, each 4×36W, total 1152W | |
| Lighting arrangement | On two sides | |
| Lighting description | IP55,CE certified electronic ballast, OSRAM brand lights | |
| Total illumination | >1000Lux | |
| Filtration system | | |
| Pre filter | G2 Grade plate type filter | |
| Ceiling filter | EU5 Grade filter, model is SP-600G | |
| Bottom paint-mist collection | Fiber glass paint-stop filter | |
| Exhaust filter | Fiber glass paint-stop filter, with features of big air ventilation volume, small resistance, fire resistance and so on | |
| Inlet system | | |
| Inlet fan | Direct drive turbo fan | |
| Inlet fan power and motor | 7.5KW,970 rpm, 380 V, 50 Hz, | |
| Inlet fan parameter | 500pa 25000m3/h | |
| Exhaust system | | |
| Exhaust fan | Direct drive turbo fan | |
| Exhaust fan power and motor | 5.5KW,970 rpm, 380 V, 50 Hz, | |
| Exhaust fan parameter | 500pa 18000m3/h | |
| Equipment air speed when empty loaded | +/- 0.23m/ when empty loaded | |
| Noise | <78 dB | |
| Heating system | | |
| Infrared heating lamp | 10 units, each 3X1100W infrared lamp tubes, total 33KW | |
| Ducting configuration | | |
| Straight duct | 4 sections | |
| 90 degree | 1 section | |
| 45 degree | 1 section | |
| Reducing | 1 section | |
| Control system | | |
| Performance standard | Standard Y/Δ step-down start control system | |
| Function | Painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication | |
| Loading condition | One 20GP container |
