| Prod Model: |
D598 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Brake Pads |
| Material: |
Non-Asbestos |
| Position: |
Front |
| Certification: |
ISO9001 |
| Classification: |
Pads |
Product Description

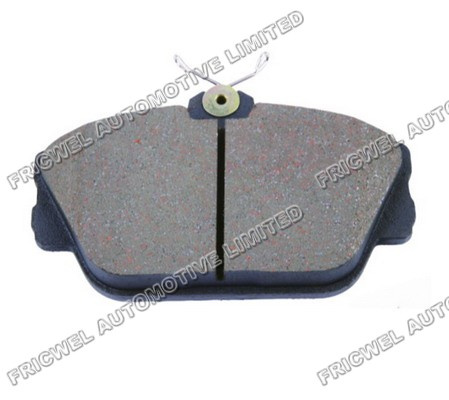

D598
Mercury Ford/lincoln brake pad
Material: Semi-metal, Non-asbestos
Most of the brake pads we had developed in our factory are for passenger cars brake pad, auto brand including all kinds of vehicles for: Toyota, Honda, Isuzu, Nissan, Mazda, Daewoo, Hyundai, KIA.
The main specification we adopted for our production and inspection showed as follows:
GB /T5763-2008 Automotive disc brake pad inspection standard
GB /T17469-1998 Inspection specification for Automotive brake pads friction property
GB/T5766-2006 Friction material Rockwell hardness
According to the above national specification, we have formed our own work flow:
Powder weighing- powder mixing-cold pressing- back plate degrease-back plate blasting- hot pressing for friction powder and back plate- heat treatment for the rough unfinished brake pads surface grinding-cutting grooves- chamfering- cleaning-painting- accessories installation- printing- finished products -inspection-packing.
For each batch of production, we will test a certain numbers of finished products by instant, and test the friction of coefficient/wearing rate property to make sure it is with the required specification.
Our Brake pads friction coefficient is between: 0.34-0.50 (10-7 cm3/ N. M), which is within the national specification, and hardness is 90 HRR or so;
For bake pads production and inspection, we strictly follow the national technical specification for brake pads GB 5763-2008, based on this standard, we have formed our own production procedure, the simple brake pads work flow in our factory showed as follows:
Step 1: Powder weighing- powder mixing-cold pressing for friction powder-
Step 2: Back plate degrease-back plate blasting-
Step 3: The hot pressing for friction powder and back plate- heat treatment for the rough unfinished brake pads surface grinding-cutting grooves- chamfering- cleaning-painting-
Step 4: Accessories installation- printing- finished products -inspection-packing
For our customer's selection about our material formula, there are several main brake pads formulas in our factory include the semi-metallic, and the NAO(non-asbestos organic). We no longer produce the asbestos material. But with the different percentage of the steel fiber and other stuffs, we have divided our semi-metal and NAO formula as follows:
A. Regular NAO formula;
B. Steel fiber formula;
C. Steel fiber with non-asbestos formula;
D. Non-asbestos with compounded fiber formula;
E. Semi-metallic formula
We suggest our customer make the selection according to the local market requirement to decide the specific materials.
Founded in the year 1992, our factory is one of the oldest friction material manufacturer in China, our primary business starts from 1000 square meters workshop, the products were mainly clutch buttons and clutch facing products.
In 1999, we moved to the new 4, 000 square meters workshop, with the quick development of our clutch facing business, we were certified the quality authentication of ISO9001 in year 2000, and in 2008, our new 24, 000 square meters workshop was finished, we became one professional manufacturer of clutch facing and clutch button in China. Our current friction products production is around 100 tons per month, products includes all kinds of products like clutch facings, clutch button, friction disc, clutch disc, brake pads.
The Fricwel brand was created with the purpose to combine all our friction materials lines. We welcome our customers to visit our factory for friction materials business. To learn more about our products linesl, please visit the online brochure or E-mail us for the latest catalouge.
