Name: Brake Lathe machine for Sale C9350 with Ce Approved
Brand: ibuyautoparts.com
SKU: 813051725
Availability: InStock
Rating: 4.8 (28 reviews)

Price:	US $ 2200-2500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Feature:

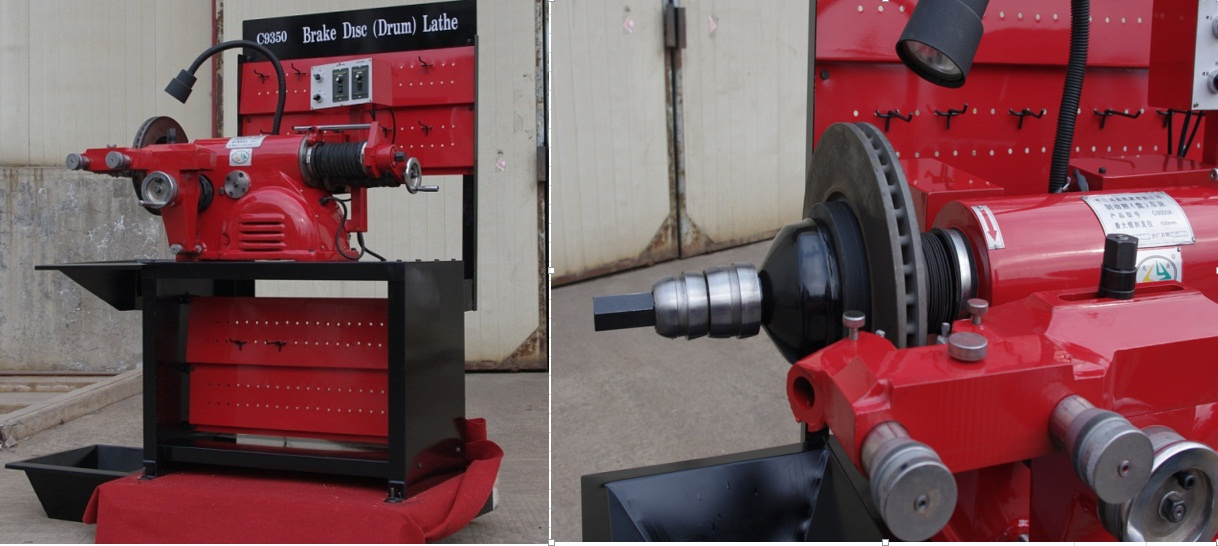

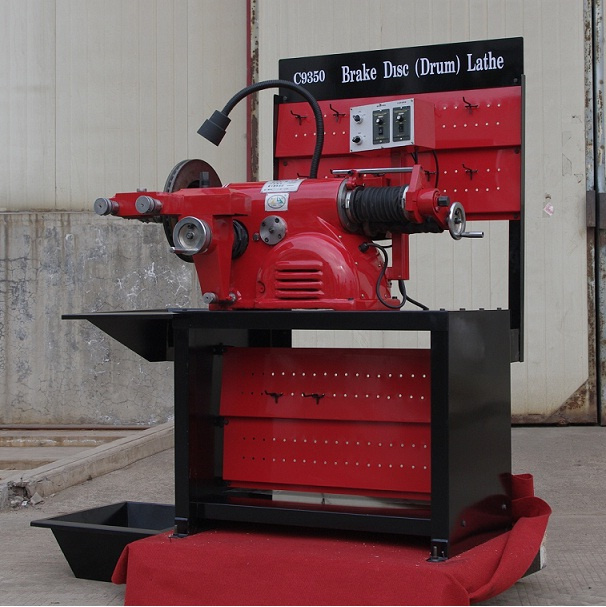

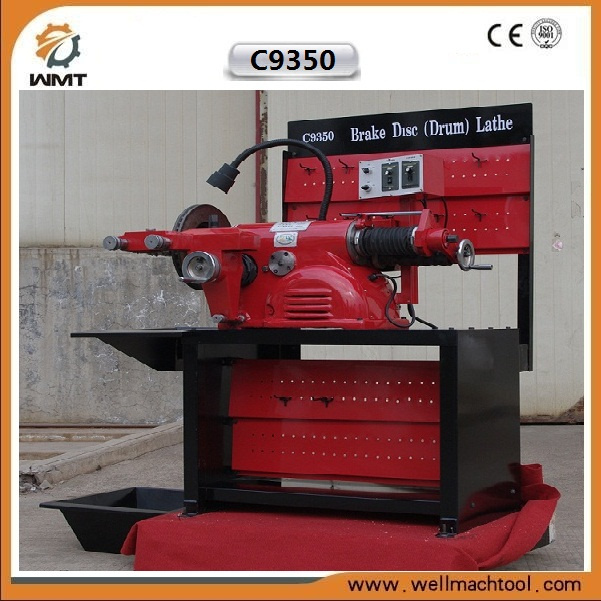

1. The machine is main used for boring and repairing the brake drum and plate for pick-up truck,car and mini car.

2. The machine use horizontal structure, low center of gravity and easy to clamping.

3. Use bearing outer ring of brake drum as the locating datum, use dabber and taper sleeve can easy to made clamping ,boring and repairing the brake drum come true.

4. The machine are good in rigidity,quick in cutter speed,high in efficiency.In general you only should turning one time, the machine can reach your accuracy requirement.

5. The machine is variable speed control without step,easy to operate, easy to repair, on the safe side.

Main specification:

Model		C9350
Range of processing	brake drum	Φ152-Φ500mm
	Brake plate	Φ180-Φ330mm
Max depth of processing brake drum		175mm
Rotor thickness		1-7/8" (48mm)
Spindle Speed		70,80,115r/min
Spindle feed speed		0.002"-0.02" (0.05-0.5mm)Rev
Cross feed speed		0.002"-0.02" (0.05-0.5mm)Rev
Max processing depth		0.5mm
Machine Power		0.75kw
Motor		110V/220V/380V,50/60HZ
NW/GW		300/350KG
Overall Dimension (L×W×H)		970×920×1140mm
Packing Dimension (L×W×H)		1220×890×1450mm

Machine details:

Prod Model:	C9350
Color:	Customer Appoint
Lathe:	Drum/Disc Repair
