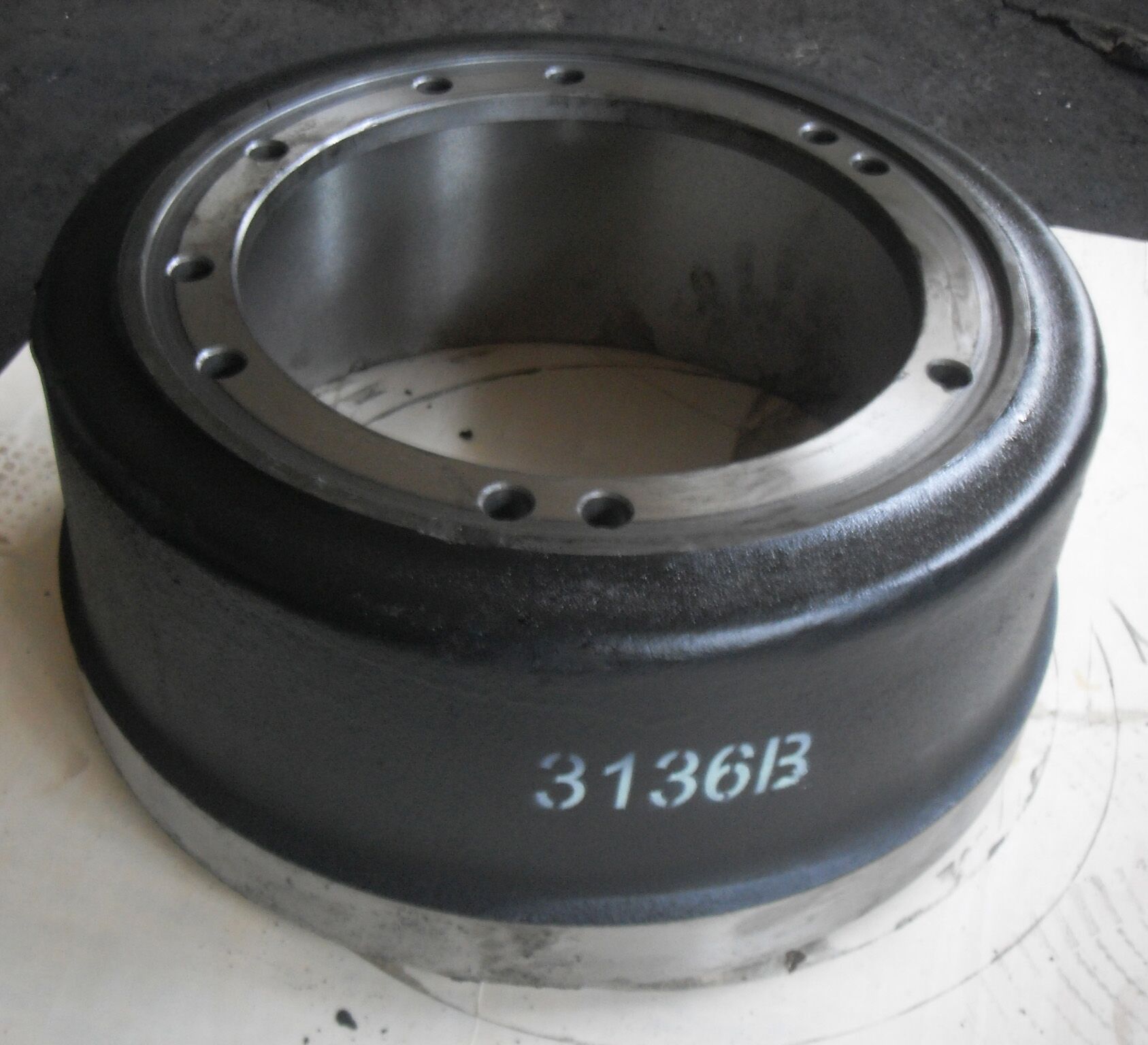

Brake Drum for Nissan 43207-90118

Standard Brake Drum 3018A for Mecedes Benz Series






BRAKE DRUM FOR MERDEDES BENZ, SCANIA, VOLVO, RENAULT, BPW, NISSAN,ECT

Also accept customized casting parts, such as brake drum, brake shoe, gearbox cover, bracket,ect.

Xingtai Bossa Machinery Manufacturing Co., Ltd is a group company that specialized in research, manufacture, sales and service .
It is very famous in north of China and locat in Xingtai Hightech
Development  Zone, Hebei province ,China.
Our Own Factory is specialized in casting product.
FOR EUROPEAN TRUCK, JAPANESE TRUCK, American Truck, Such as Mercedes benz, VOLVO, SCANIA, BPW, HINO,IVIAZ LIZA IK,ECT
According to the drawings to processed. products.

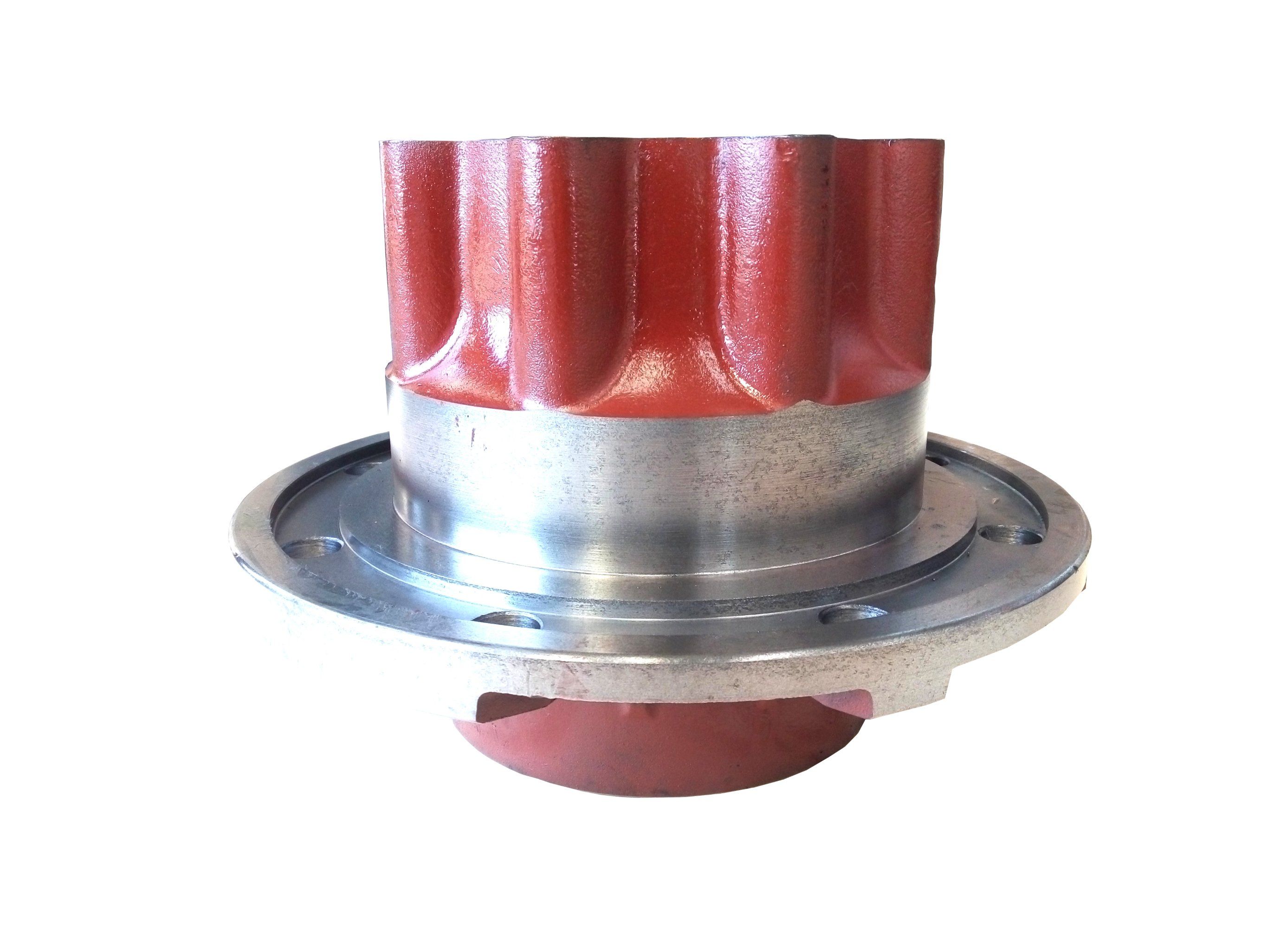

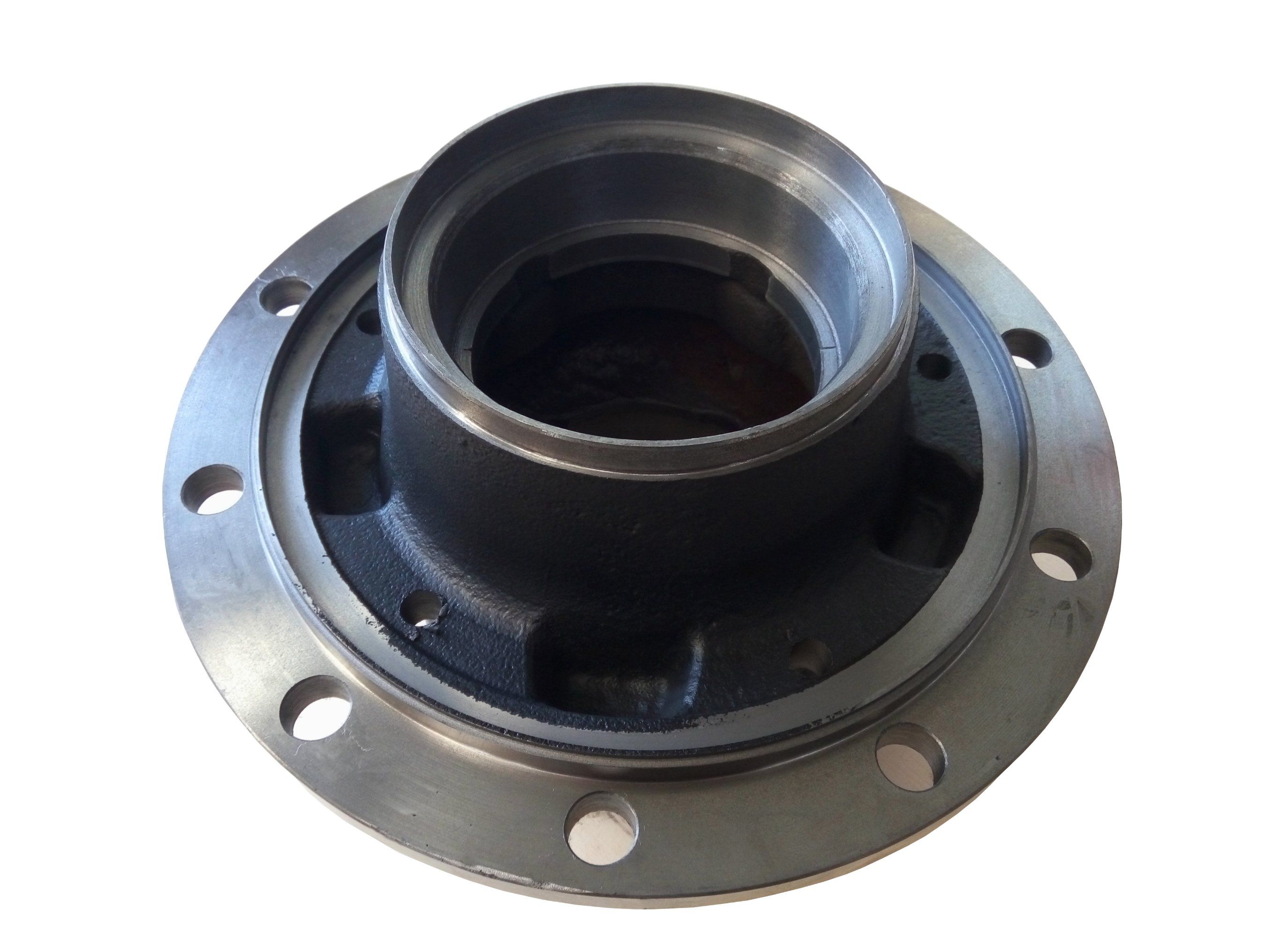

Our leading product:  Brake Drum, Brake Shoes, Wheel Hub, Gearbox Covering, Leaf spring bracket,ect.
30% our products according to cuationer's drawing or samples.

Casting: Automatic production line including sand mixing, moulding and pouring



Machining: CNC machining center

Inspection: Advance test equipment including CMM, tensile strength testing machine,
hardness tester, spectrometer, parallel tester, etc.

Every detail contributes to our products of consistent quality and excellent performance

1.     Material:Gray iron HT250/GG25
2.     Weight:20-85kg
3.     Price:35-65 USD
4.     Chermical composition:C:3.0-3.3% Si:1.6-1.9% Mn:0.7-0.9% P<0.12% S<0.12%
5.     Degree of hardness:163-255HBS
6.     Testing rod tensile strength>=220mpa
7.     Packing: Wood pallet& Waterproof membrane
8.     Payment: T/T L/C
9.     OEM & sample & drawing accepted
10.   competitve price
11.   Prompt delivery
12.   part of OEM list about Volvo brake drum

1.  Type:
2.  Material:HT-250
3.  Car Make: Heavy-Duty Truck
4.  Model NO.: HBOE-1107
5.  Part No.:3464230501
6.  Brand Name: Mercedes Benz
7.  Mark: As your request
8.  Color:

Good quality brake drum with competitive price

part of OEM list about Volvo brake drum

Volvo	1134817	Volvo	1599678
Volvo	1590313	Volvo	1599679
Volvo	1075305	Volvo	1577439
Volvo	1075306	Volvo	1589429
Volvo	1075307	Volvo	1584132
Volvo	1075308	Volvo	1590146
Volvo	1075309	Volvo	1605785
Volvo	1075310	Volvo	3171743
Volvo	1075311	Volvo	3171744
Volvo	1075312	Volvo	3171745
Volvo	1599009	Volvo	3171746

Also We can supply brake drum for the following trucks:

M-Benz				BPW
3054210001			6584210001	0310677560		0310677720
3054210401			3464230001	0310667290		0310677410
3054230401			3464231201	0310677040		0310677440
3464230501			3464230101	0310677630		0310677120
3464230601			3834230201	0310667940		0310677190
Scania				VOLVO
1414435	1333117			1599009		1599010
1361331	1414153			1599011		1599012
360571	1414152			1599972
ROR				NISSAN

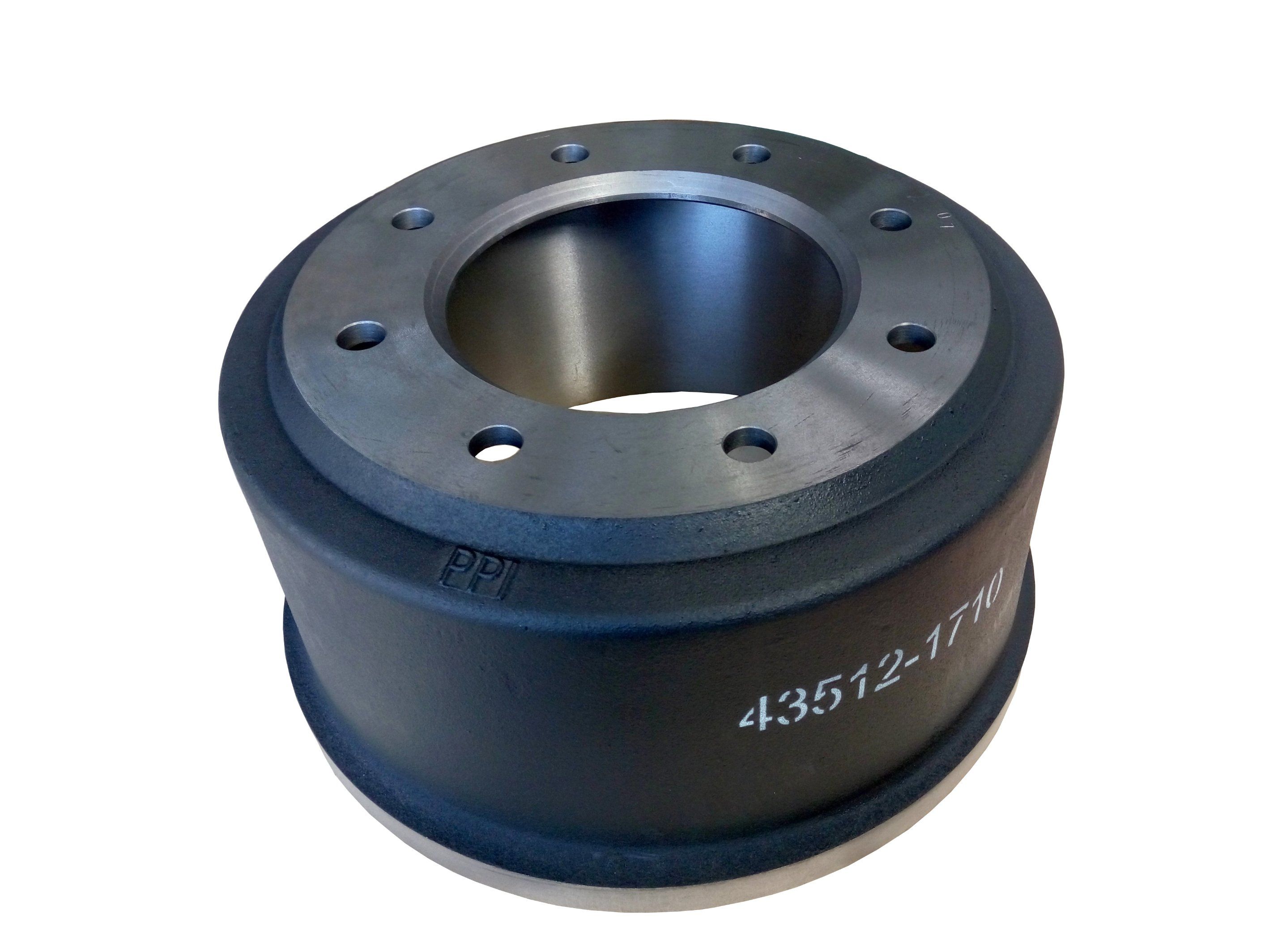

21021114	21021164			43512-1710		43512-4900
21018986	21023064			43512-1720		43512-1193
21021114A	21011284			43512-4090
				KIC
81501100144		81501103114		KICO555-20057		KIC555-2035B
81501100107		81501100104		KIC555-18006B		KICO555-02027
WEBB				DEAWOO	Others
3782X	2983C			3453100741	6502807M
3721AX	2705			3453100740	5000737768
3800X	3166			YORK	51761-83411
68897F	3600A			500770	52761-83420
66864F	3600AX			786110

2.We also serve as OEM suplier to develop with the sample or drawing.

Reference no.	Brake face diameter	Brake face width	Pilot diameter	Bolt circle diameter	Number of bolt holes & bolt hole size	Overall depth	Application
310679060	φ420	223	φ240	φ285	8-φ21	286	BPW
310687150	φ420	240	φ290	φ335	10-φ23	296	BPW
310677040	φ420	215	φ290	φ335	10-φ23	277	BPW
310967130	φ420	200	φ290	φ335	10-φ23	226	BPW
310967190	φ420	200	φ290	φ335	10-φ23	226	BPW
2507760130	φ420	225	φ290	φ335	10-φ23	283	BPW
1134502	φ420	200	φ290	φ335	10-φ23	252.5	BPW
1144502	φ420	225	φ290	φ335	10-φ23	298	BPW
1164502	φ420	240	φ290	φ335	10-φ23	298	BPW
S360573	φ412.75	266	φ295	φ335	10-φ23.5	320	SCANIA
21018986	φ419	200	φ282.6	φ335	10-φ24	249	ROR
21021114	φ419	236	φ282.6	φ335	10-φ24.5	272	ROR
21220183	φ311	200	φ183	φ225	10-φ24.5	262	ROR
And more...

Please contact us if you have any inquiry or question.
We can also produce according to your samples.

GUNITE  Brake Drum for truck we have



Company Information


Product Description

More  than 10 years production history and large production capacity.

Casting process:sand casting  lost foam casting  and machining
Casting weight: 0.5~120KG
Surface roughness: Ra6.4~12.5
Dimension tolerance: CT7
Standard: ASTM,AISI,DIN,BS JIB
Certified: ISO9001,TS16949,SGS etc..

Productivity: above 25000 tons per year


FAQ

1.Can you do machining in house? Rough machining or final machining?
   Yes, we could do machining, both rough and final machining.

2.Casting technology of our products?
Sand casting, Die casting, Pressure casting, Lost foam casting.

3.Most used pattern tech? Lost foam casting.

4.Is it possible to do painting? Yes, painting by ourself.

5. What are the key raw material used in your foundry?
Casting iron, steel , Aluminum raw material etc

6.What is it the range of unit weight your production facilities currently handles?
Min: 1KG Max:7000kg

7.Furnace type? Electric

8.What is it the range of sand box dimensions that your production can handle?
Lengh:22000mm*Thickness:10000mm*Height:15000mm

9.Max production capacity per year in ton? Actual annual production in last year?
Max production 30000 tons, 26000 tons in last year.

10. Raw material of Iron used? Grey cast iron, Ductile cast iron, Vermicular cast iron

11.All the processes are produced by yourself?
Yes, From moulds development, lost foam casting production, painting to final machining parts, all the process are produced by ourself.

12.How could you guarantee the products quality?
Pls look at our QUALITY MANAGEMENT SYSTEM, all the process will be passed our technical test. 100% qualified products can leave our factory.

13.How about your after sales service?
24 hours service by our professional sales man, any question you could ask us through alibaba or by email.

14. Is it competitive for your price?
Yes, Our price is very competitive in north of China. Such as, labor cost, (Xingtai is a small city, for our labor cost is cheap than the big cities.)

15. Can you arrange the goods timely ?
With advanced equipment in production and laboratory tes, We bossa could timely
