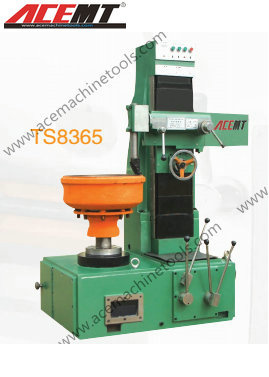

Brake Drum Boring Machine (TS8365 TS8350)

Prod Model:	TS8365 TS8350
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Range Of Processing Diameter Mm Mm:	200-650
Rotating Speed Of Work-Piece R/Min:	25 / 45 / 80

Product Description

Brake drum boring machine TS8365 & TS8350 are mostly applied to repair brake drum and brake shoe of various vehicles.
1. Professional driving system, superior structure of column & slide board, and functional operation system realise perfect performance.
2. Convenient operation.
3. The quick moving to workpiece of tool post crossly matches with micro feed enables convenient operation.
4. Positive/negative feed satisfies operators with different habits.
5. The tool post can quickly move up/down to get close to the work-piece when it doesn't run.
6. The work piece can rotate when the tool post doesn't move up/down.
7. The slide board moves up/down manually.
8. The handwheel at the right enables convenient gear shift.
9. The quick up/down improves working efficiency, and the positive/negative feed without lifting slide board for secondary feed saves time.
10. High rigidity. Superior spindle structure enables the machining of deformed & face-hardened brake drums.
11. This model is applicable for machining not only the brake drum & brake shoe of Jiefang, Dongfeng, Yellow River, Yuejin, Beijing130, Steyr, Hongyan and so on, but also the followings: Zhongmei Axle, York Axle, Kuanfu Axle, Fuhua Axle, Anhui Axle, four major types, BPW Axle, JAC car type, Steyr front wheel.

Main Specifications	TS8365	TS8350
Max.boring Diameter(mm)	650	500
Range of boring diameter(mm)	200-650	200-500
Vertical travel of toolpost(mm)	350	350
Spindle Speed(r/min)	25 / 45 / 80	25 / 45 / 80
Feed	0.16 / 0.25 / 0.40	0.16 / 0.25 / 0.40
Travelling speed of toolpost(vertical)	490	490
Motor Power	1.5	1.5
Overall Dimensions(L x W x H)mm	1140 x 900 x 1600	1090 x 750 x 1600
Weight	960	800
