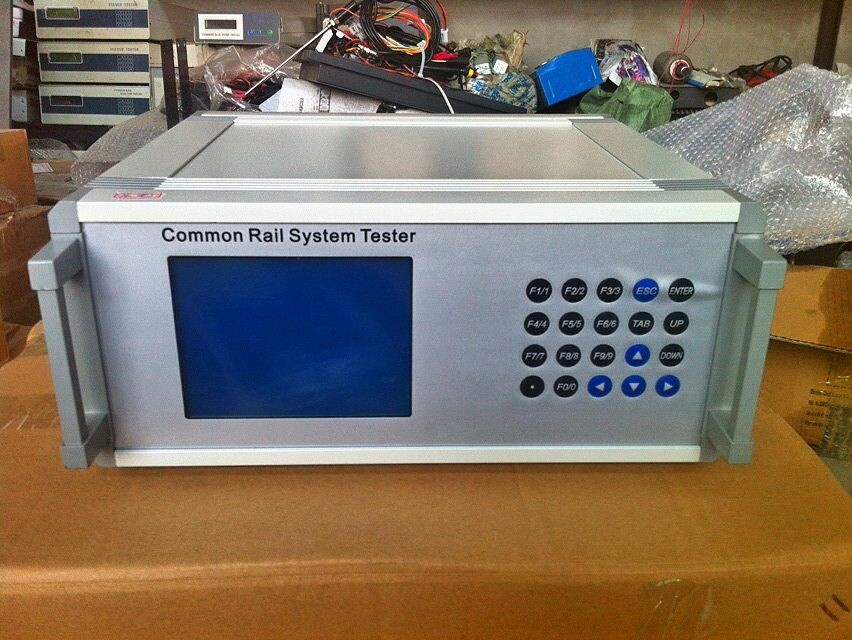

Bosch Common Rail Injector and Pump System Tester
Price: |
US $ 600-1400/Piece |
Trade Terms: |
FOB,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
CRS-B Common Rail Tester is upgraded from CRS-A by adding a digital fuel flow meter. CRS-B is able to test all kinds of common rail fuel injection injectors and pumps by Bosch, Delphi, Denso and Siemens.

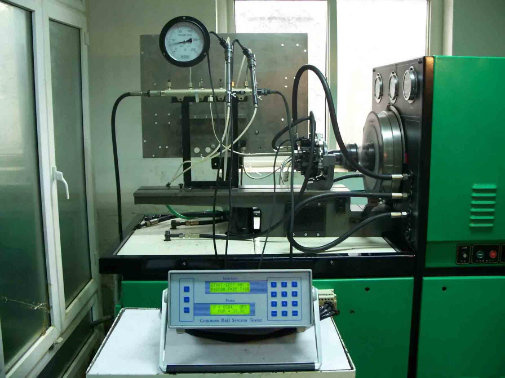

CRS-B is aimed to upgrade a traditional diesel high pressure pump test bench and replace the attached fuel metering glass
Graduatesto a full functioned automatic equipment for all tests of repairing common rail injectors, pumps or CR systems.
CR Injector Drivers6 solenoid injectors |
High voltage for Bosch, Denso injectors Low voltage for Delphi injectors |
4 piezoelectric injectors, made by Siemens, Bosch |
Short circuit protection for both solenoid and piezo injector drivers |
CR Pump DriversMultiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids |
Testing pumps with single regulation valve |
Bosch CP1/CP2/CP3 |
Delphi CRSP |
Denso HP3/HP4 |
Testing Siemens DCP pump with two regulation valves |
Drive 3 DRVs for testing pump capability |
2 special output channels synchronous with pump speed to drive the two control solenoids on Denso HP0 (ECD-U2)pump |
Fuel Rail Pressure SensorPre-calibrated for Bosch, Delphi, Denso pressure sensors |
User calibrateable for different pressure sensor |
Automatic rail pressure control |
Software based over-pressure protection |
User InterfaceTouch screen with a simple 4-key panel |
User friendly multi-language interface |
User manageable test database |
Standard keyboard and mouse |
USB port or standard SD card port for system software upgrade, a USB memory stick is included in the package |
6 LED to indicate injector status |
Standard VGA port for external large screen display |
Fuel Flow MeterTo be installed easily on the swing arm of a pump test bench to replace the glass graduates |
Gear meter, imported from Germany |
6 measurement channels |
User definable channel connection |
Automatic fuel flow measurement for testing common rail injectors or pumps |
Service and AccessoriesOne year manufacture warranty |
One year software free upgrade |
Injector and pump test procedure and database |
DRV adaptor for pump flow rate test (Optional) |

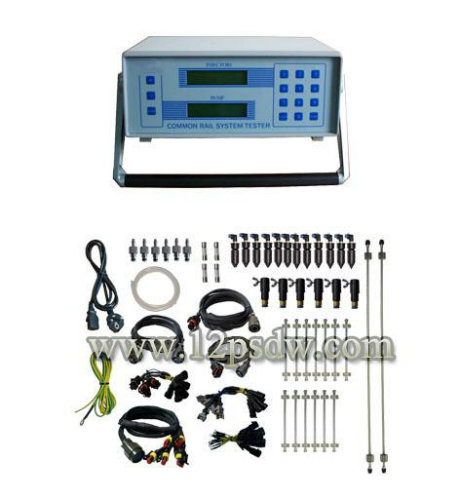

Rich accessories |
Matching supporting cabinet with 4-wheels (Optional) |
Prod Model: |
CRS-2000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Bosch Common Rail Injector and Pump System Tester |
Test Brand: |
Bosch, Denso, Delphi |
Test Injector: |
Bosch Common Rail Injector |
Test Pump: |
Bosch Common Rail Pump |
Connection: |
Connect with Test Bench |
Certification: |
ISO |
Update Method: |
by Internet |
