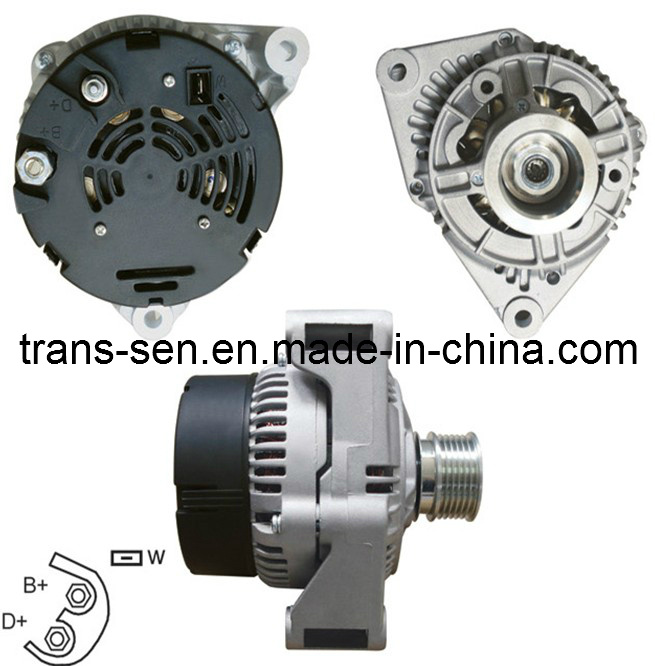

Bosch Auto Alternator (0120485022 12V 70A FOR MERCEDES)

Prod Model:	TA13376BO 0120485022 1-1846-01BO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Peremeter:	12V 70A IR/If Cw S6
Structure:	Integral Alternator
Brand:	Bosch
Current Level:	7(',70～79A)
Brushless Alternator Type:	Permanent Magnet Type
Voltage Adjuster Type:	Electronical
Voltage:	12V
Bonding Type Of Magnetic Field Winding:	Inner Bonding
Head Cover Position:	Front
Type:	Alternator

Product Description

TYPE   Alternator
MFR  BOSCH
DESIGN  IR/IF
VOLTAGE  12
AMPERAGE  70
ROTATION  CW
PULLEY DESIGN  S6
PULLEY OD56
PLUG CLOCK11
PLUG CODE381

COMPANY NO	TA13376BO
LESTER	13376
PIC	220-279A
ANDRE NIERMANN	2485012
BBB	13376
BBB NEW	13376
BBB NEW	N13376
BECK ARNLEY	186-0716
BOSCH	0-120-485-022
CARGO	111354
DELCO REMAN (EUROPE)	DRA6820
DIXIE	A-6317
EMS	13376N
EXCEL	10259
HC PARTS	CA833IR
J & N	400-24002
LETRIKA (ISKRA) AFTERMARKET	IA 0744
LUCAS ELECTRICAL EUROPE	LRB00192
MERCEDES BENZ	008-154-96-02
MINNPAR	47-3549
MPA	13376
NSA	ALT-2034
USA INDUSTRIES	A1444
VALEO REMAN	436450
VALEO SERVICE	555232
VALEO SHORT	VA392
WAI	1-1846-01BO
WILSON	90-15-6197
WILSON NEW	90-15-6197
WILSON NEW	90-15-6197N
WOOD AUTO	ALT10140
WORLDWIDE	14998

DESCRIPTION:
This is a Bosch Internal Fan for Mercedes 190E w/2.3L Engine Others. Bosch OEM No. 0-123-320-011 Used on Saab'
s and the 0-123-335-002 Used on Other Mercedes Vehicles Are the Same Units Except for the Pulley. Rotor Shaft Lengths May Vary Slightly Also. The Valeo 13355 is the Same Unit and Will Interchange as Long as It is Supplied With the Pulley. The 13798 (90A) Looks Like the 13376 (70A) Except With 11mm Mounting Holes (Instead of 10mm) and the Distance From the Mounting Holes to the Rotor is 87mm (13798) vs. 90mm (13376). The 13613 is the 90A Version of the 13376 (Same Measurements). The 13610 Looks Similar to the 13376 Except One Mounting Hole is 12mm (Instead of 10mm).

APPLICATION:

MERCEDES 1991-95
6-GROOVE PULLEY 55mm OD
SEARCH: 490612 (DIFFERENT 6-G PULLEY)
SEARCH: 488930 (VALEO)
SEARCH: 494385 (ISKRA)
