| Prod Model: |
Bluetooth 4.0 ELM327 OBDII |
Product Description

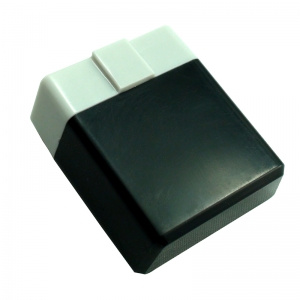

Bluetooth 4.0 ELM327 OBDII auto detector
A single weight: 23 g
Shape size: 35 mm * 30 mm * 7.4 mm (black and white mix build, pure black, pure white 3 kinds of color can choose)
Properties: fast connection, low power, the wi-fi version supports desktop. Notebook. Tablet computers, mobile phones (android, symbian, Wp. IOS)
Parameters:
This can be done/WIFI bluetooth 2.0/4.0
Output protocol: RS232 serial port
Baud rate: 38400
Working voltage: 9-16 v
Bluetooth 2.0 parameters:
Working current: 55 ma
Standby current 35 ma
Bluetooth 4.0 parameters:
Working current: 45 ma
Standby current: 40 ma
WIFI parameters:
Working current: 85 ma
Standby: current 80 ma
Elm327 is a multi-function, a full range of automotive high-tech electronic products, with the vehicle ECU computer interface and data synchronization, the implementation of the monitoring of electric control system of vehicle body electronic understanding;Can also through the vehicle ECU computer system set up the internal functions of the vehicle, make more human for drivers to use their car.Is not only an information display system, and is a very powerful fault detection equipment, understand the vehicle if there is a fault, system can be very clear to display fault information in the form of text, can eliminate hidden danger for vehicles through fault information
Bluetooth Elm327 is a multi-function, a full range of automotive high-tech electronic products, with the vehicle ECU computer interface and data synchronization, the implementation of the monitoring of electric control system of vehicle body electronic understanding;Can also through the vehicle ECU computer system set up the internal functions of the vehicle, make more human for drivers to use their car.
Is more than just an information display system, and is a very powerful fault detection equipment, understand the vehicle if there is a fault, system can be very clear to display fault information in the form of text, can eliminate hidden danger for vehicles through fault information, but also can ensure that during the warranty period of the vehicle to find fault as soon as possible, make timely make corresponding processing, safeguard the interests of the owners.
Product features: bluetooth Elm327 is the latest scan tool based on personal computers and mobile phones.It supports all OBD II protocols, and with a number of software compatibility.It outputs a agreement with bluetooth with computer and mobile interconnection.
Software support platform: Windows XP, Windows 7/8 android, symbian, WP7, PC and other systems.
Support the OBD II agreement:
The SAE J1850 PWM (41.6 Kbaud)
The SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
KWP ISO14230-4 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11 bit ID, 500 Kbaud)
ISO15765-4 CAN (29 bit ID, 500 Kbaud)
ISO15765-4 CAN (11 bit ID, 250 Kbaud)
ISO15765-4 CAN (29 bit ID, 250 Kbaud)
Price:
Bluetooth 2.0 V
The unit price is usd 9.2
Bluetooth v4.0
The unit price is usd 12.0
WIFI
The unit price is usd 17.5
