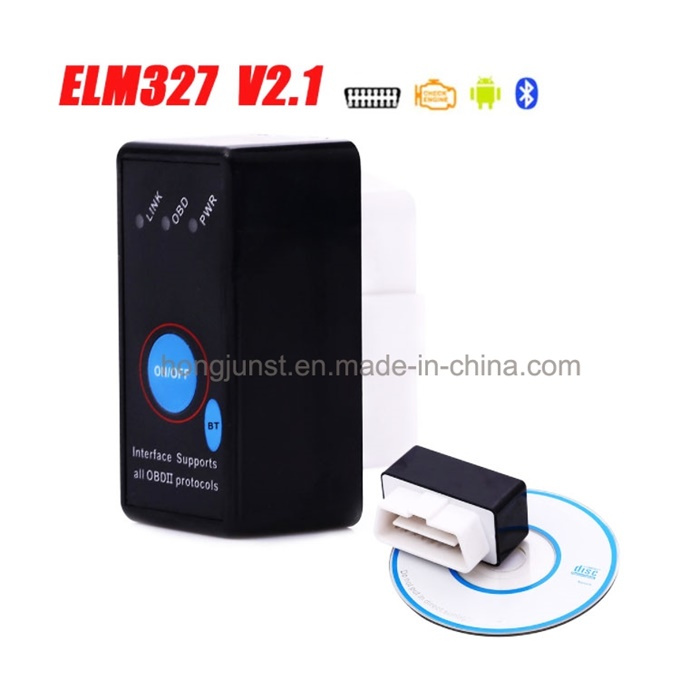

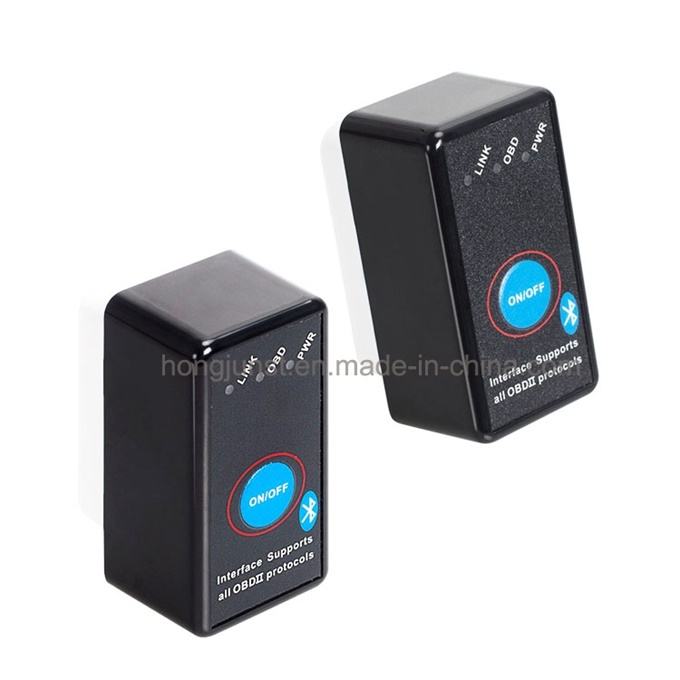

Bluetooth 2.0 Elm327 OBD2 Scanner Adapter V2.1 with Switch

Bluetooth 2.0 ELM327 OBD2 Scanner Adapter V2.1 With Switch


Product Function:

1) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2) Clear trouble codes and turn off the MIL ("Check Engine" light)

3) Display current sensor data, including:

4) Engine RPM

5) Calculated Load Value

6) Coolant Temperature

7) Fuel System Status

8) Vehicle Speed

9) Short Term Fuel Trim

10) Long Term Fuel Trim

11) Intake Manifold Pressure

12) Timing Advance

13) Intake Air Temperature

14) Air Flow Rate

15) Absolute Throttle Position

16) Oxygen sensor voltages/associated short term fuel trims

17) Fuel System status

18) Fuel Pressure

Specifications:
Type: code readers & scan tools
Output protocol: bluetooth
Color: blue
Material : plastic
Voltage: 9-16V
Current: 45mA
Wave frequency: 38400Hz
Applicable scope: 5-10m/ 16.4-32.8ft
Item size: 4.7 * 2.3 * 3.1cm/ 1.8 * 0.9 * 1.2in
Item weight: 25g/ 0.7oz
Total weight: 43g/ 1.2oz

Packing List:
1 * OBD2 Scanner V2.1
1 * CD-ROM

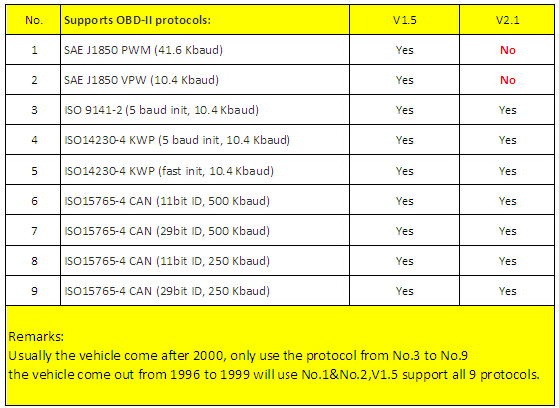

Protocols Supported:

1) ISO9141-2(5 baud init,10.4Kbaud)

2) ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

3) ISO14230-4 KWP (fast init, 10.4 Kbaud)

4) ISO15765-4 CAN (11bit ID, 500 Kbaud)

5) ISO15765-4 CAN (29bit ID, 500 Kbaud)

6) ISO15765-4 CAN (11bit ID, 250 Kbaud)

7) ISO15765-4 CAN (29bit ID, 250 Kbaud)

-SAE J1939 CAN (29bit ID, 250*Kbaud)

-USER1 CAN (11*bit ID, 125*Kbaud)

-USER2 CAN (11*bit ID, 50*kbaud)

* *default settings (user adjustable)

1) Works with all OBD-II compliant vehicles

2) Wireless (Bluetooth) 5~10meters

3) Software included for Palm, PDA, Mobile

4) Software included for Windows PC

5) Software included for Windows Smartphone
