Bike Engine with Slant Spark Plug (F50, F80)

Name: Bike Engine with Slant Spark Plug (F50, F80)
Brand: ibuyautoparts.com
SKU: 635464455
Availability: InStock
Rating: 4.8 (61 reviews)

Price:	US $ 1-100units
Trade Terms:	FOB,CFR,CIF
Min Order:	40units
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

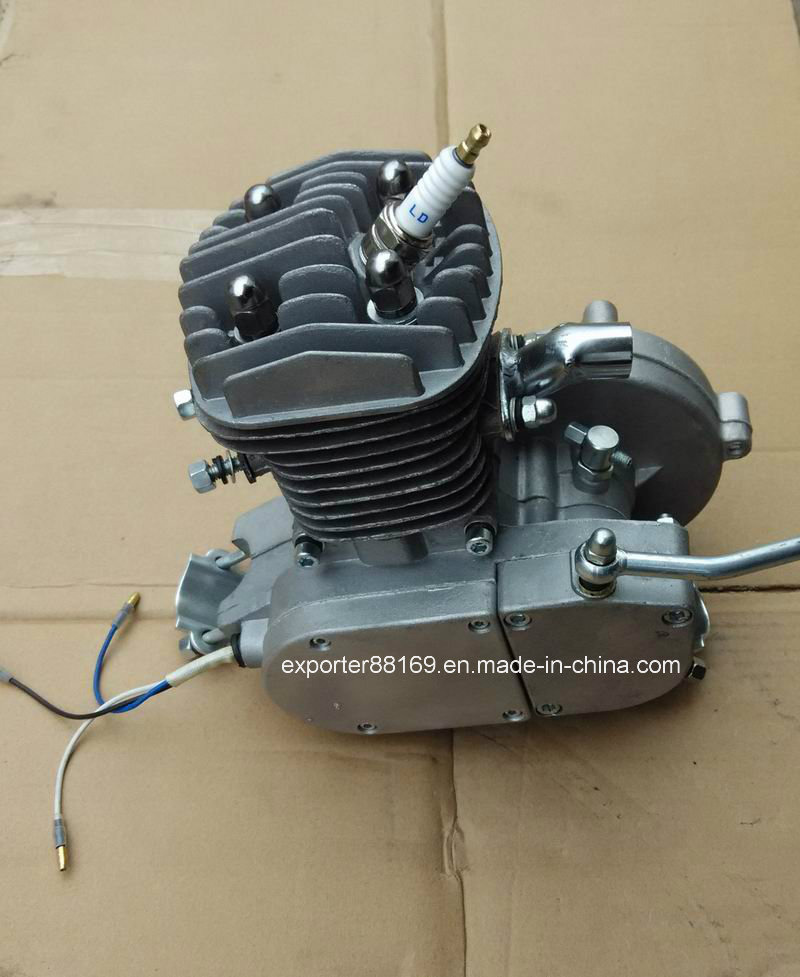

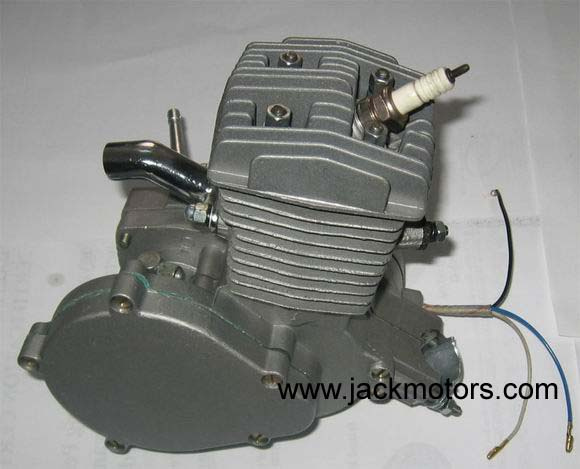

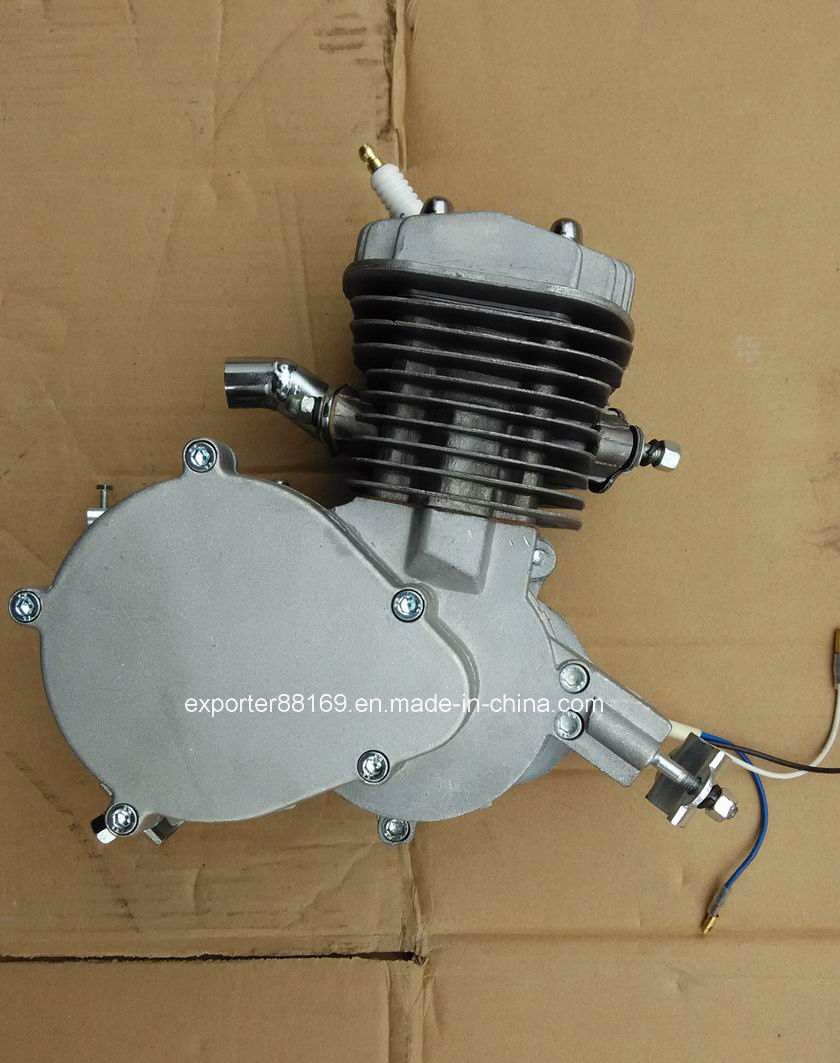

Model No. F50, F80 bicycle engine with tilted spark plug

1. Engine type: Single cylinder, air-cooled, 2-stroke
2. Type of fuel mix: 16: 1/20: 1
3. Displacement: 48CC
4. Ignition: CDI
5. Transmission: Steel chain
5. Max. Power(kw/rpm): 1.6/6000
6. Fuel consumption: 1.2 liter gasoline/100km
7. Maximum speed: 40km/h
8. Fuel tank: 2 L

Net weight: 8kgs
Gross weight: 11kgs(kit)
Packing size: 42cm x 42cm x 17cm

Option
1.round head engine
2.square head engine
3.black engine
4.engine head with slant spark plug
5.chrome plated fuel tank or 2.5L black fuel tank
6.black muffler or special muffler
7.bigger fix point for bigger bike frame tube.
8.36T ,44T,48T,56T sprocket.

The engine with tilted spark plug can be installed on bike with small
V frame.

tem no.	Description	Quantity	Item no.	Description	Quantity
1	F80 engine assy	1	12	Sprocket(9holes, 44teeth)	1
2	Black fuel tank	1	13	CDI ignitor	1
3	carburetor	1	14	Clamping rubber assy	1
4	Chromed exhaust muffler	1	15	Pulley assy with bearing	1
5	Clip, exhaust pipe	1	16	Strong lock nut	1
6	Tank valve	1	17	alloy push button clutch lever	1
7	415 heavy duty chain	1	18	Clutch cable	1
8	Clip, chain cover	1	19	throttle cable	1
9	Chain protect cover	1	20	Screw tool	1
10	Fuel hose	1	21	Instruction manual(English or Spanish)	1
11	Throttle with kill switch	1	22	mounting adaptor(U bolt, nut)	1

Prod Model:	F50, F80
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
48cc,80cc:	2stroke
New:	Gasoline
High Quality:	All Spare Parts Available

Liuzhou Jack Import and Export Co., Ltd. Was well registered and established in 2005. We are located in Liuzhou which is an industrial city in South of China. We are specialized in manufacture and supply of small motors, bicycle motors, outboard motors, inflatable boat, agricultural machineries and equipments, vehicles, auto parts and tools. Our turn over is up to one million US dollar each year.

We sell bicycle motor kit, electrical motor kit, outboard motors, general motors, inflatable boats, electric car jack, sugarcane harvester, farm vehicle, car cover, steering parts, tile cutter.

Our employees have more than 20 years experience of import and export and good reputation in China and other countries in the world. We closely work with our factories of engines, agricultural machineries, auto parts to manufacture parts or complete products according to samples or drawings. We can put brands or trade marks from our clients on ordered parts if request. We will continuously upgrade our products and supply high quality products and good service to all our clients with competitive prices.
