Big View Angle 180 Degree Car Backup Rearview Camera

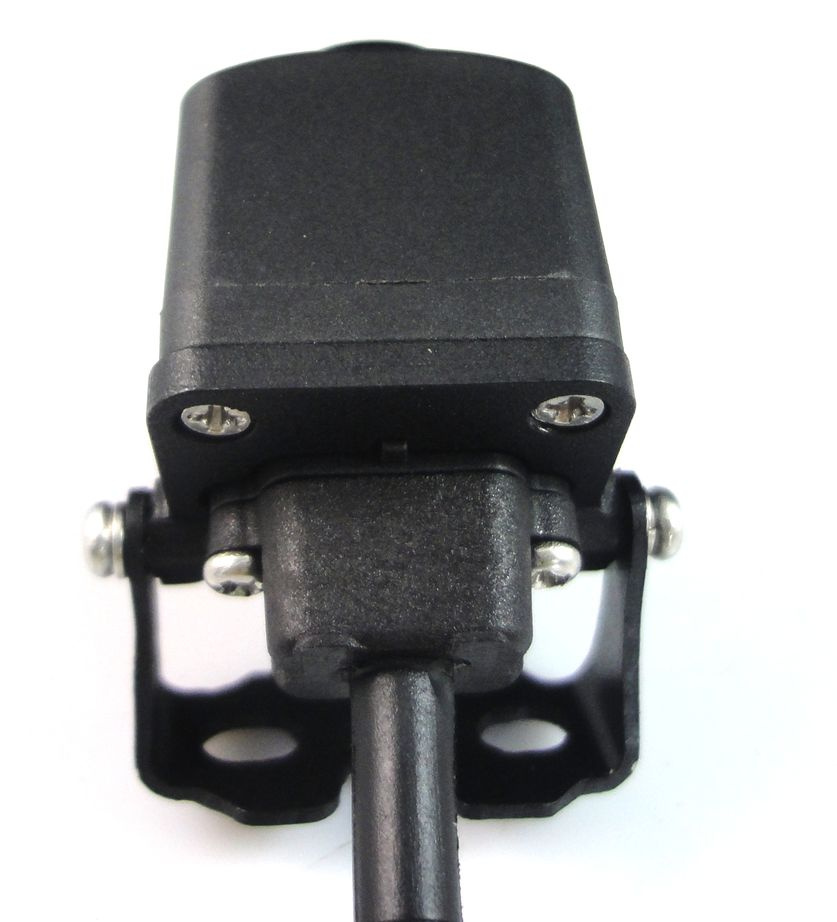

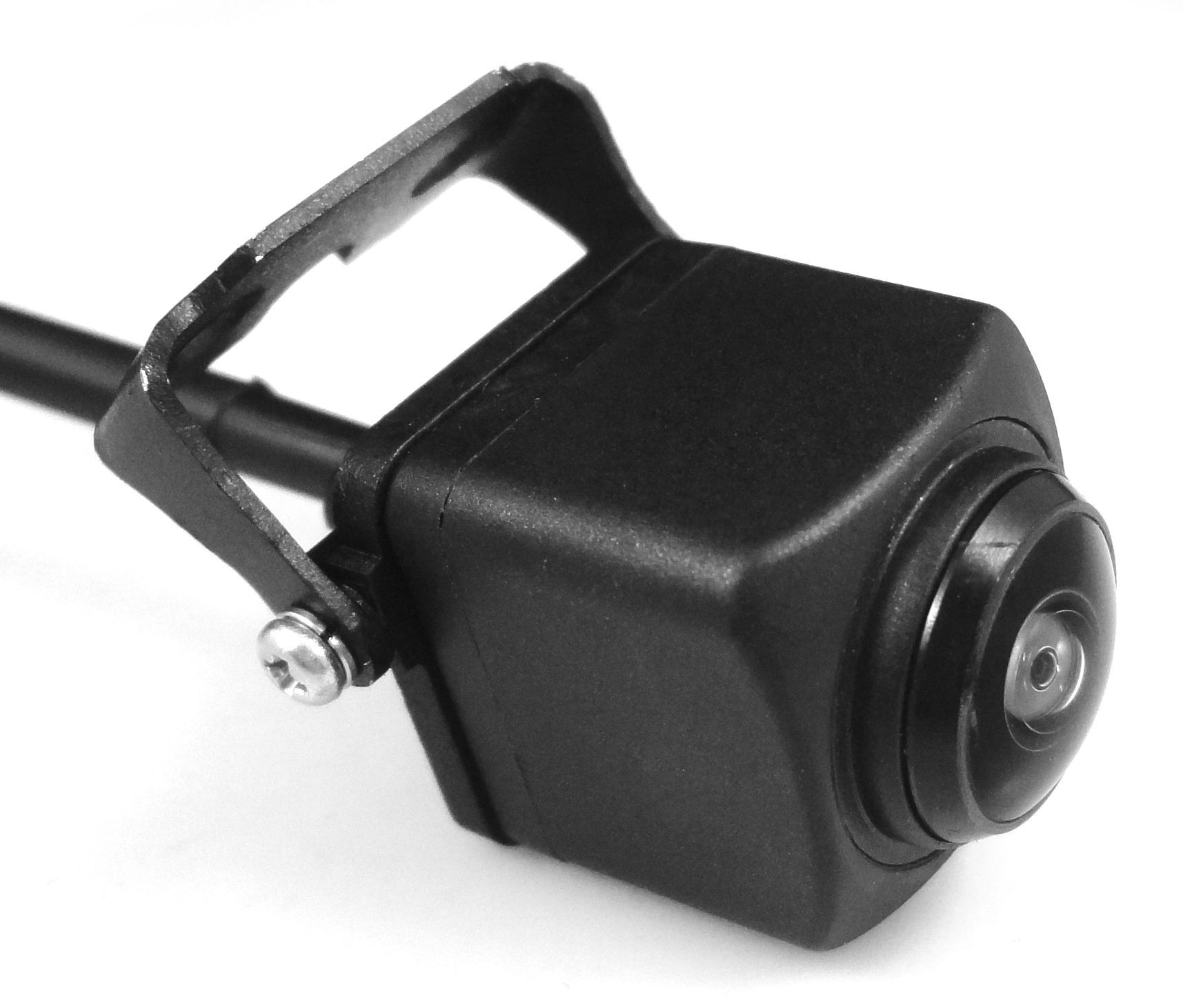

Name: Big View Angle 180 Degree Car Backup Rearview Camera
Brand: ibuyautoparts.com
SKU: 751576525
Availability: InStock
Rating: 4.9 (137 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Image Sensor: 1/4" IT CMOS
TV System: NTSC
Pixels: 728 x 560
Horizontal resolution: >300 tv line
Vertical resolution:>300tv line
Horizontal view angle : 192 degree max
Vertical view angle :142 degree max
Interlace :2:1
video output:1.0vpp/75Ω
luminance signal:0.46±0.1(Vp-p)
Sync signal :0.286±0.05(Vp-p)
Burst signal:0.286±0.05(Vp-p)
White clip level:0.82±0.05vpp
IRIS Method: Auto electronic Exposure control
Shutter speed:1/60~1/100000 second
Gain control : Auto gain control
Signal to noise ratio: >46 at AGC off
Dunamic range: 74db
Minimum illumination: 1.5 lux (30IRE including set-up)
Horiontal scan synchronization frequency: 15.734khz±75ppm
Vertical scan synchronization frequency: 59.94hz±75ppm
Gamma value :0.45
Input voltage:DC9-16V
response time : in 1.5s (from mistiness image to clear image)
power consumption : <100Ma
working humidity :<90RH%
working temperature:-40ºC ~+85ºC

Prod Model:	CA-309
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
View Angle:	192 Degree Horizontal Max
Warranty:	24 Months
Interface:	RCA
Chip:	CMOS
Waterproof Grade:	IP68
Probe Number:	1
Definition:	420-600tvl

Guangzhou Candid Co., Ltd. is a leading professional auto camera and LCD monitor system manufacturer in China.

Founded on 2003, we specialized in car reversing system developing, all our camera products are used in vehicles. Now our brand "CANDID" is No. 1 famous brand in China, we also exported to worldwide.

From 2008, we have got ISO9001, TS16949 certification, Also established a long-term and stable partnership with most of the domestic automotive manufactures, Such as China Toyota, Nissan, MAN, JAC, Brilliance. At present, among the top 20 domestic auto-manufacturers, of which 8 are our customers. Meantime, we have been approved to be the qualified supplier by the famous international automobile manufacturers.

We provide high quality customized services such as development, testing, consulting for the domestic and foreign customers.

We would like to provide OEM & ODM for customers, we have strong technology ability to do both hardware and software development.

Welcome to contact us.
