Prod Model: |
QDS-2A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Big Power Starter Testing Machine for Truck,Bus |
Voltage: |
220V 50Hz |
Motor Power: |
7.5kw |
Frequency Converter Power: |
11.5kw |
Starter Working Current: |
0-2000A |
Starter Torque: |
0-200n.M |
Certification: |
ISO |
Update Method: |
by Hard Disk |
Testing Equipment Type: |
Starter Diagnostic |
Product Description

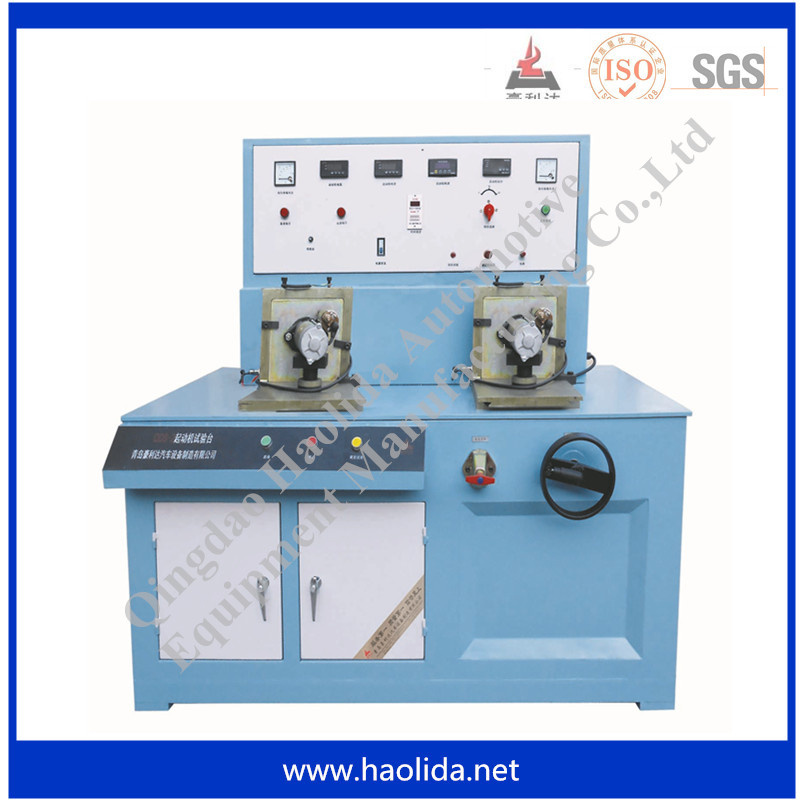

QDS-2A model Big Power Starter Testing Machine for truck,bus
General introduction
It can be used to test Starters of various vehicles (Car, Truck, Bus, Tractor, Excavator, etc);
Test Starter: 15KW, 0-2000A, 0-200N.M, 12V or 24V or 48V
Advantages:
1.It uses variable frequency speed regulation
2.It displays result by digital instrument, the test result is accurate and can be read directly.
3.It is easy to learn and operate.
4.It is with fuse protection.
5.It is with indicator lamp following each step and warn you the problems.
6.It needs external battery to test starter.
7.High quality speed sensor.
8.It possesses high control sensitivity and strong controllability.
9.It has two working plates with different fluted disc and clamps, it is not necessary to dismount the fluted disc as long as the number of the fluted disc is the same.
10.It can be matched with PLC computer to operate, too see and test process and results directly, it can save & print test results and curves.
Test items:
1.Test no load performance of starter: no load current, no load voltage, no load speed
2.Test load performance of starter: load current, load voltage, load torque, load speed
3.Test braking performance of starter: braking voltage, braking current, braking torque
4.Test electromagnetic coil of starter: pull and suck voltage ,current
Technical parameter:
Model no | QDS-2A |
Language | English/Spanish, etc |
Material | Metal plate |
Painting | Powder painting, durable and beautiful |
Color | Blue |
Voltage | 220V 50Hz |
Motor power | 7.5KW |
Starter testing: |
Maximum Power | 15KW |
Maximum current | 2000A |
Maximum torque | 200N.m |
Test solenoid excitation voltage | 12V/24V |
Need external battery | 12V/24V/48V, choose according to starter type |
Pressure set | 0-1.0Mpa (adjust randomly) |
Starting time | 0-9.9s (set randomly) |
Starter braking | Hand wheel control, pneumatic hydraulic |
Accessories: |
Accessory wires, blank plates for starters, etc. |
Others you may want to know: |
MOQ | 1set |
Warranty period | 12 months |
Payment term | T/T 50% in advance, the balance should be paid before delivery (negotiable) |
Delivery time | 35 days after receiving downpayment |
HS code | 90312000.90 |
Packing sizes | 1870*1020*1660mm=3.17CBM |
