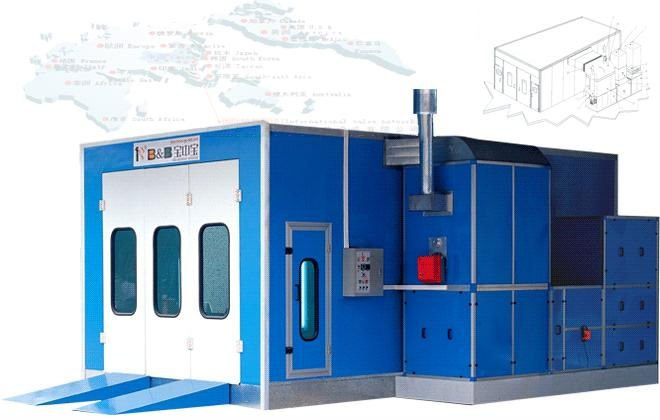

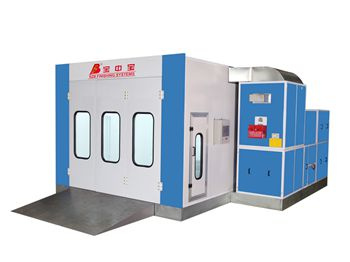

Best Price Dry Filter Booths Car Paint Booth

Name: Best Price Dry Filter Booths Car Paint Booth
Brand: ibuyautoparts.com
SKU: 642225335
Availability: InStock
Rating: 4.6 (86 reviews)

Price:	US $ 3500-12150/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

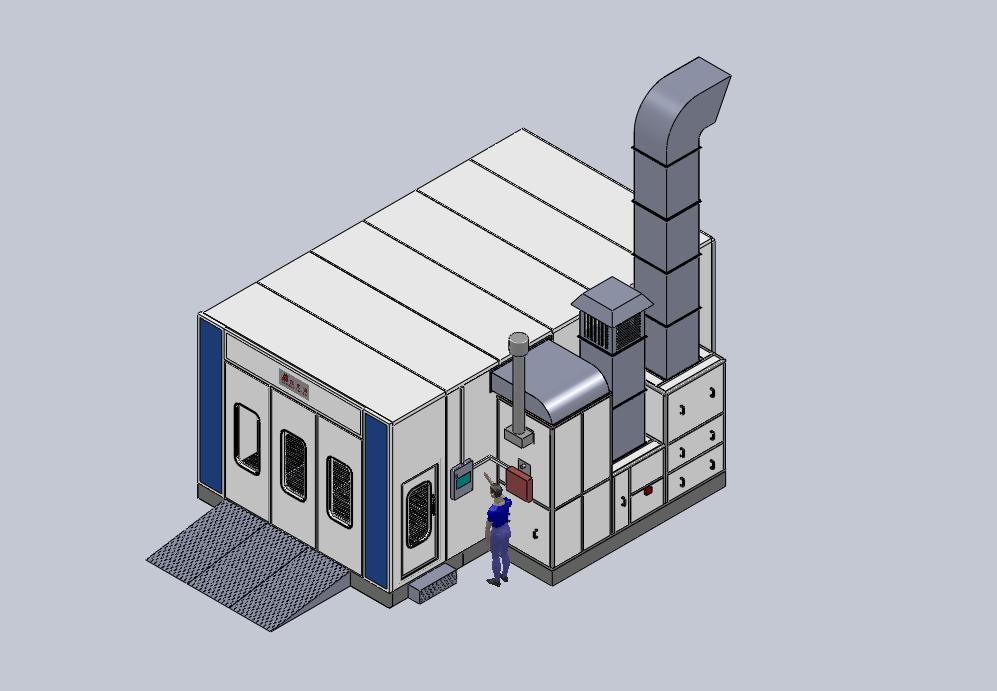

8500 Spray booth 6.9m*4m*2.65m
Outside dimension:7000×5560×3430mm(L×W×H);
Inside dimension: 6900×4000×2650mm(L×W×H);
Front door dimension: 3000×2600mm(W×H);
Working door dimension: 800×1800mm(W×H);
Cabin system:
1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS panel; 0.476 thick colored steel.
Roof panel: 50mm thick flame-resistant and heat-preserving rock wool panel; 0.476 thick colored steel.
2) Basement: adjustable base, complete grilles, three ramps, height is 280mm;
One set automatic damper, 20N actuator
Generator: separate air inlet and outlet duct and cabin; quadrate steel frame;
Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter, active carbon;
Heat system: RIELLO RG5S diesel burner one stage, heating capacity is 260000Kcal/h, electric damper from spraying to baking cycle; the heating time is 5~7 minutes;
Lighting system:≥1000Lux
Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W
Side Vertical Lights: 8Groupsx2Pcs=16Pcs x36W
Glass: all glass is toughened glass.
Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, emergency stop, temperature controller, temperature limit controller, air pressure meter, emergency stop, breakdown alarm;
Power: 17.7KW

Inhaling Ventilator	Model: YDW4.5L	Exhaust Ventilator	Model: YDW5.6M
	Blower Capacity: 24000m 3 /h		Blower Capacity: 21000m 3 /h
	Pressure: 800Pa		Pressure: 800Pa
	Rolling Speed: 940rpm		Rolling Speed: 900rpm
	Power: 4kw		Power: 7.5kw
	Quantity: 2 sets		Quantity: 1 set

Prod Model:	BZB-8500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colors:	White,Red,Orange,Blue.......
Voltage:	as Require
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
