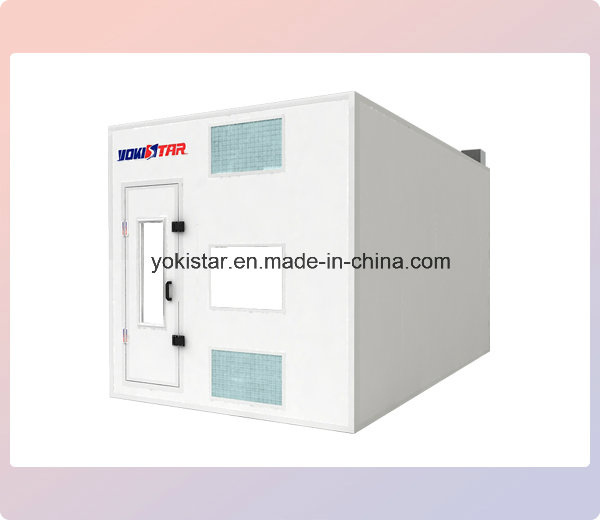

Best Industrial Mixing Room for Car
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

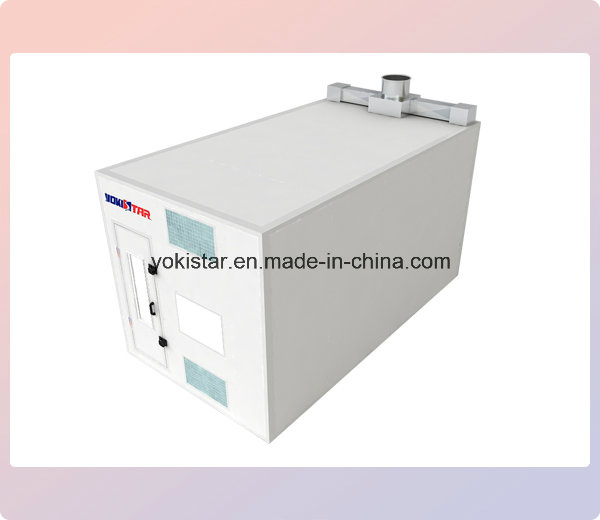

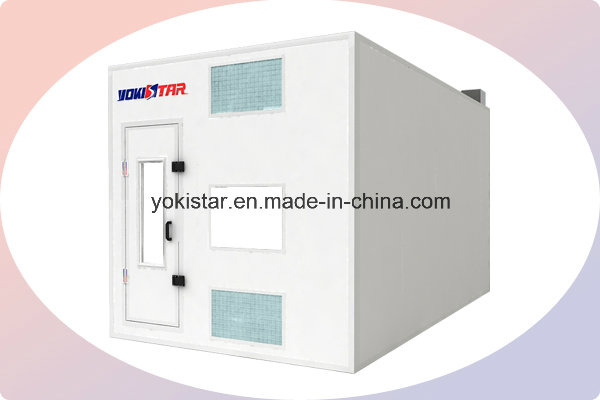

Product DetailsIndustrial Mixing Room Is a Portable Auto Paint Booth with Excellent Filtering System
Model: YS-MR2
Inside dimention:2,030x1,930x2,500mm-5,530x2,430x2,500mm L*W*H
Any Size Requirements Can Be Met
Environmental friendly

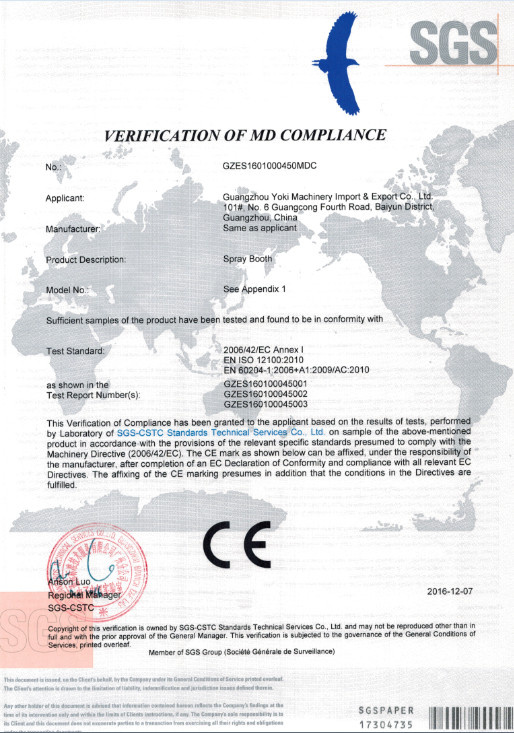

CE certificate approval
Painting Mixing Room FunctionsA. Paint mixing room provides a controlled area to safely mix paints.
B. Paint mixing room contained an automatic fire extinguishing system.
C. Paint mixing rooms are available in a range of sizes and specifications; Nonstandard sizes can be manufactured to suit a specific area.WarrantyThe goods are guaranteed for 12 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.YOKISTAR ProductsHigh quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.Custom Design paint booth is our super advantage.
| Model | YS-MR1 | YS-MR2 | YS-MR3 | YS-MR4 |
| Inside Dimension | 2,030x1,930x2,500
mm(LxWxH) | 3,030x1,930x2,500
mm(LxWxH) | 4,530x2,430x2,500
mm(LxWxH) | 5,530x2,430x2,500
mm(LxWxH) |
| Outside Dimension | 2,130x2,030x2,550
mm(LxWxH) | 3,130x2,030x2,550
mm(LxWxH) | 4,630x2,530x2,550
mm(LxWxH). | 5,630x2,530x2,550
mm(LxWxH) |
| Escape Door | 1 unit, 800x2,000mm(WxH) |
| Room Body | Wall panels and roof panels are double skinned, tongue and groove structure, thickness: 50mm, made by 0.326mm color steel with polystyrene(EPS) inside, color: white. |
| Lighting System | Ceiling lights 1units× 4pcs=4pcs36W, with electronic ballasts. | Ceiling lights 2units× 4pcs=8pcs36W, with electronic ballasts. | Ceiling lights 4units× 4pcs=16pcs36W, with electronic ballasts. | Ceiling lights 5 units× 4pcs=20pcs36W, with electronic ballasts. |
| Ventilation System | Exhaust air from top side. Motor:external setting; total power:0.18KW. Fan type: axial fan, BAF-300 anti-explosion motor, total air capacity: 2,200m3/h. | Exhaust air from top side.Motor:external setting; total power:0.18KW. Fan type: axial fan, BAF-300 anti-explosion motor, total air capacity: 2,200m3/h. | Exhaust air from top side. Motor:external setting total power:0.37KW Fan type: axial fan, BAF-400 anti-explosion motor, total air capacity: 2,880m3/h. | Exhaust air from top side. Motor:external setting total power:0.37KW Fan type: axial fan, BAF-400 anti-explosion motor, total air capacity: 2880m3/h. |
| Filtering System | Pre-filter, exhaust fiberglass filter. |
| Control System | Power Switch,Light Switch,Fan Running Switch,Power Socket. |
| Prod Model: |
YS-MR3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ventilation: |
Cross Flow Way |
| Air Exhaust: |
Axial Fan |
| Voltage: |
1X220V, 3X380V, Your Special Voltages Are Accepted |
| Optional Colour: |
White, Blue, Orange and Red |
| Port: |
Huangpu Port or by Your Order |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Paint Booth |
| Substrate: |
Steel & Aluminum |
| Brand: |
Yokistar |
| Coating: |
Painting & Powder Coating |
| Heating Mode: |
No Heaters |
