Automobile Pneumatic Trench Lift

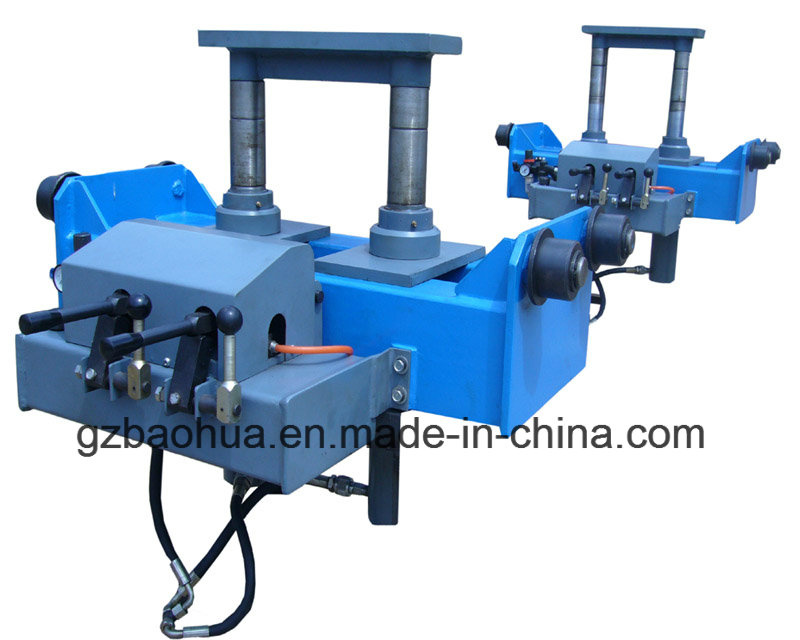

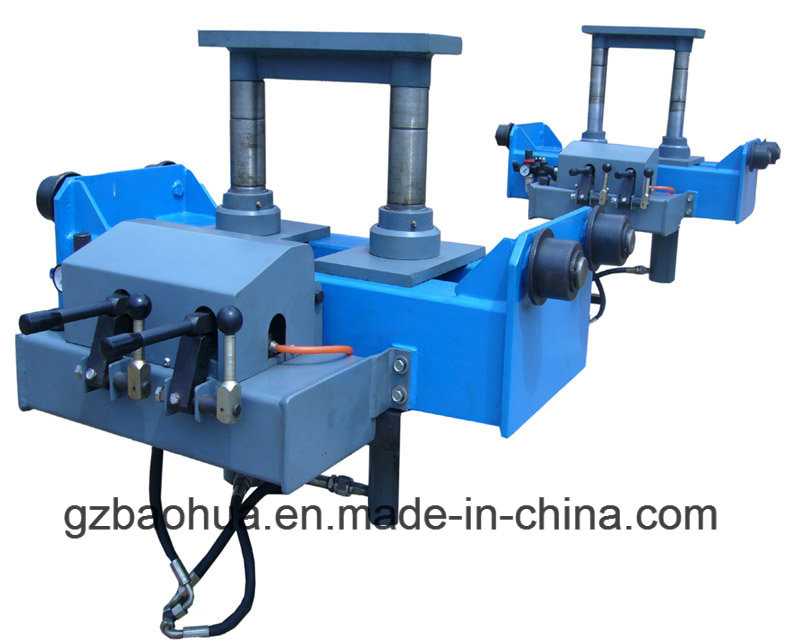

Name: Automobile Pneumatic Trench Lift
Brand: ibuyautoparts.com
SKU: 811734705
Availability: InStock
Rating: 4.7 (39 reviews)

Price:	US $ 1-2/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

1.Function Introduction

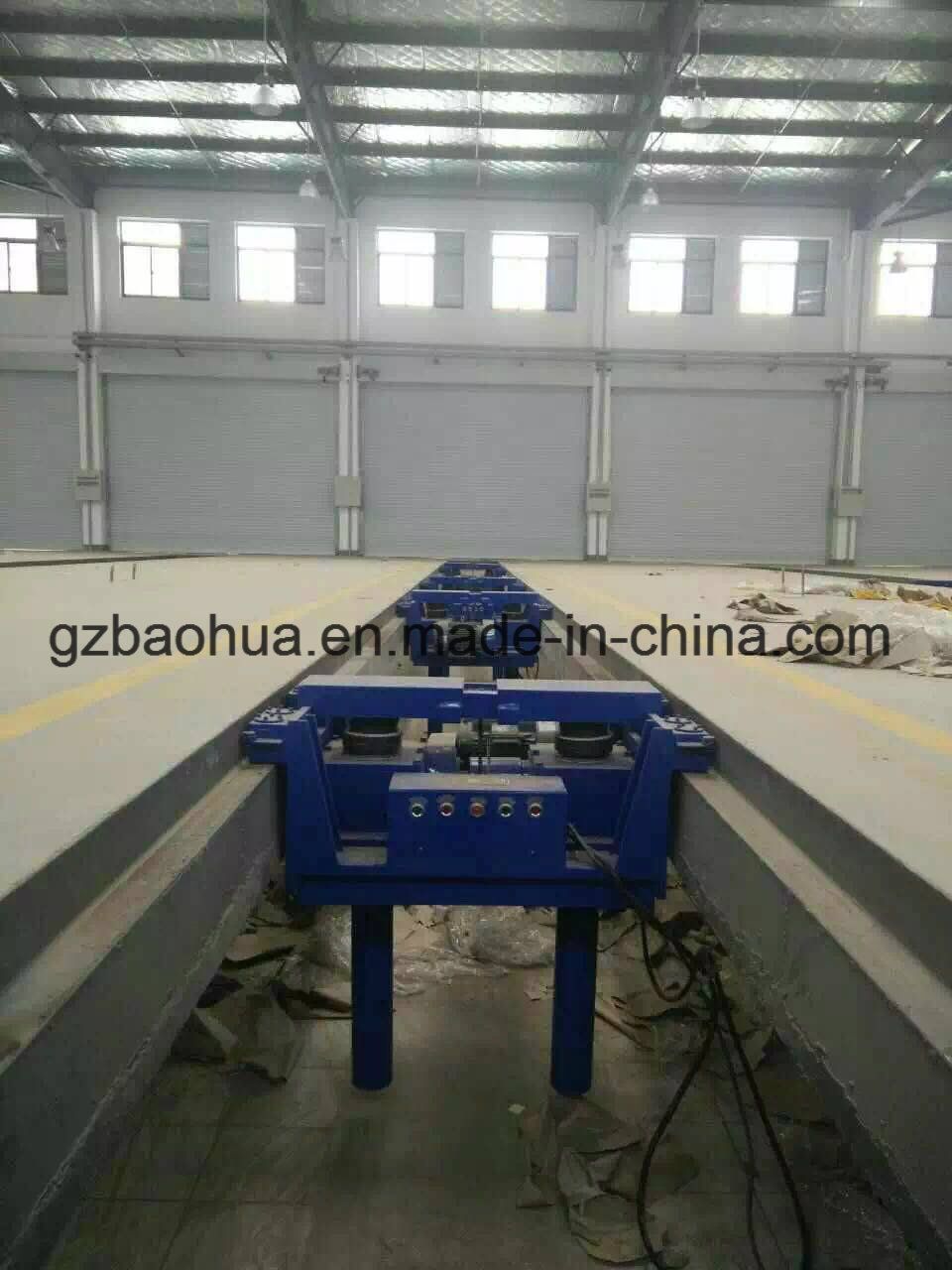

HL-2 Model Automobile Pneumatic Trench Lifter is used for lifting various buses during maintaining them in the trench. This equipment uses compressed air as power source and hydraulic lifting and possesses features like convenient operation, stable lifting and large lifting force and is customized according to the sizes of customers' trenches.

2.Technical Parameter
Maximum lifting weight:30000kg
Maximum working stroke of oil cylinder:280mm
Maximum lifting height with extension rod:480mm
Air pressure of air source:0.7-1.0MPa
Length of upper beam:400mm
Lifting speed :80mm/min
Overall dimension (L*W*H) :950*700*620mm (customized according to the demand of customer)

Prod Model:	HL-2
Maxi Lifting Weight:	30000kg
Max Working Stroke Of Oil Cylinder:	280mm
Max Lifting Height With Extension Rod:	480mm
Air Pressure Of Air Source:	0.7-1.0MPa
Length Of Upper Beam:	400mm
Lifting Speed:	80mm/Min
Overall Dimension (LWH):	950700620mm (Customized According to The Demand
Type:	One Cylinder Hydraulic Lift
Certification:	CE
Design:	Trench
Lifting Capacity:	30t
Brand:	Baohua
