Automobile Master Cylinder Test Machine
Price: |
US $ 1/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |

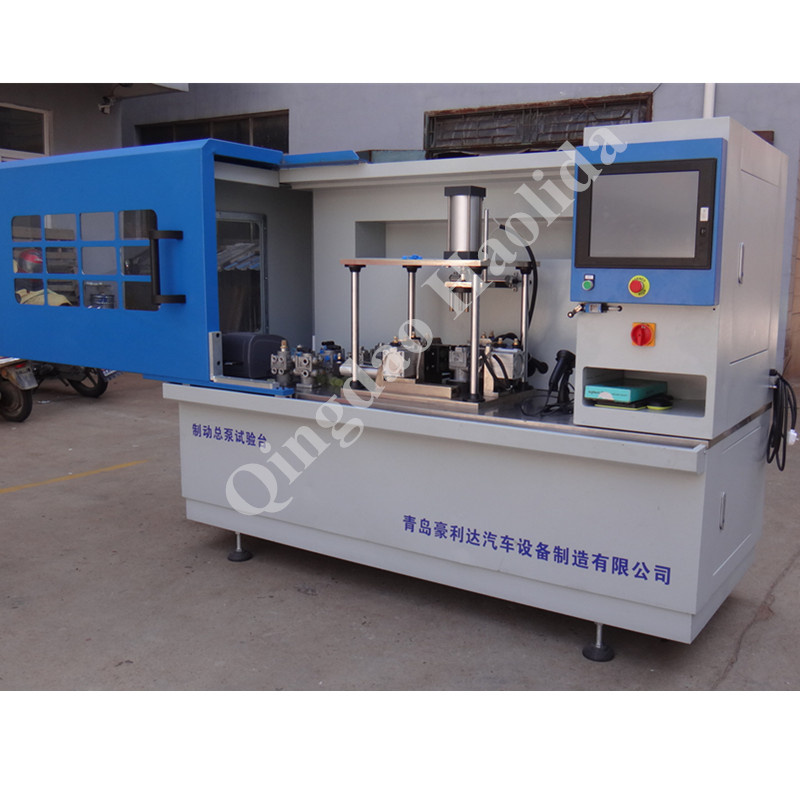

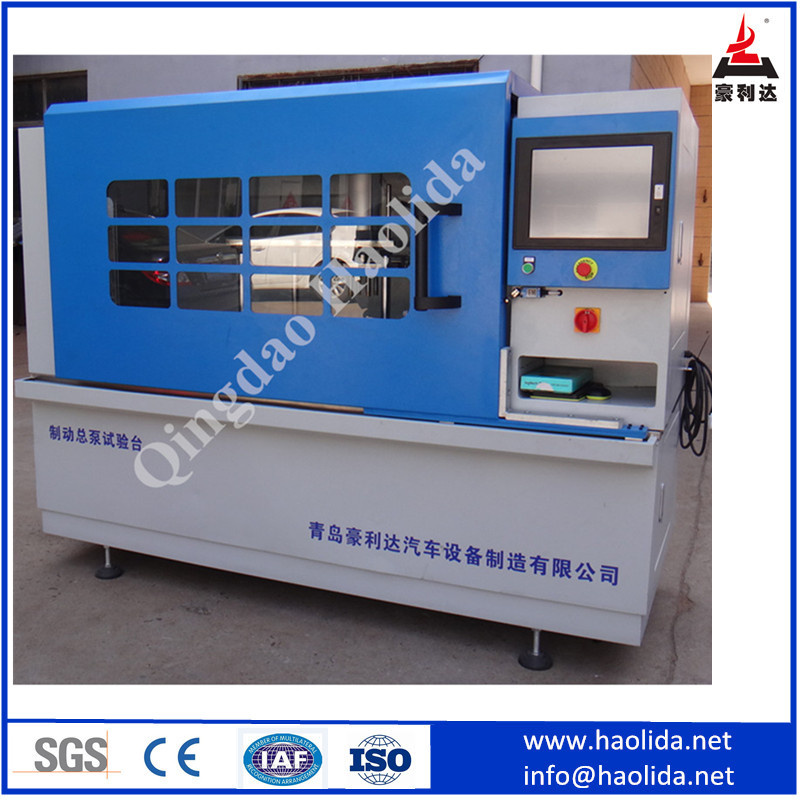

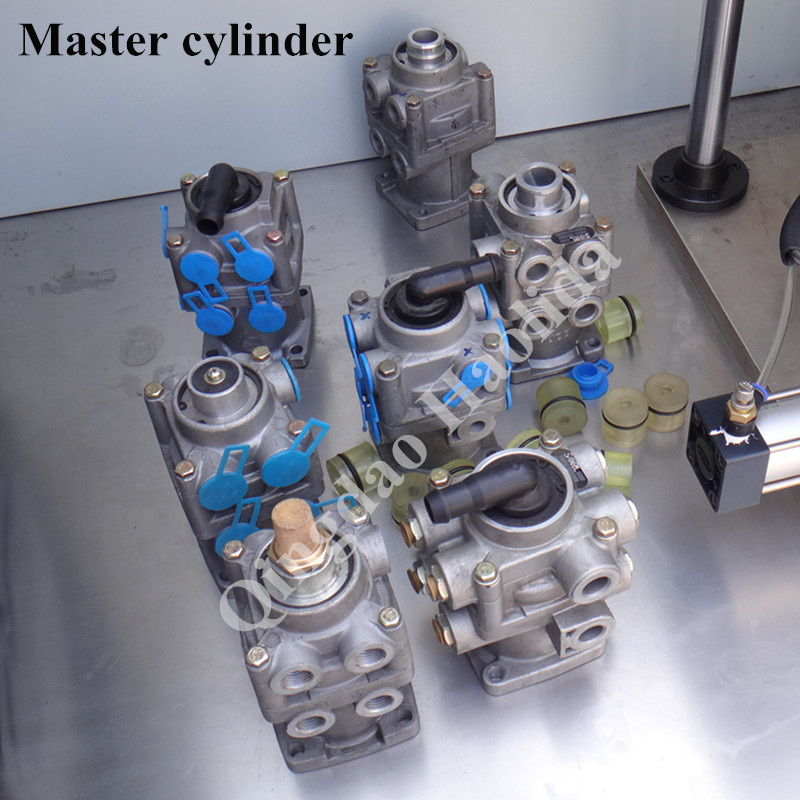

HLD-QZF-3Z model master cylinder test machine General introduction - This test bench follows the national auto industry standard,adopts computer control and mechatronics principle,a dedicated device for testing master valve.
- It is convenient in using, with automatic clamping function,etc, it can make accurate test of static characteristic, dynamic characteristic, brake pressure, air intake time, air chamber air pressure,etc of brake master valve.
- Built-in advanced servocontrol system, simulate different working condition and test automatically(one key operation).
- Adopts advanced touch screen system to control the whole test process, programming running, display the test results real time and curves.

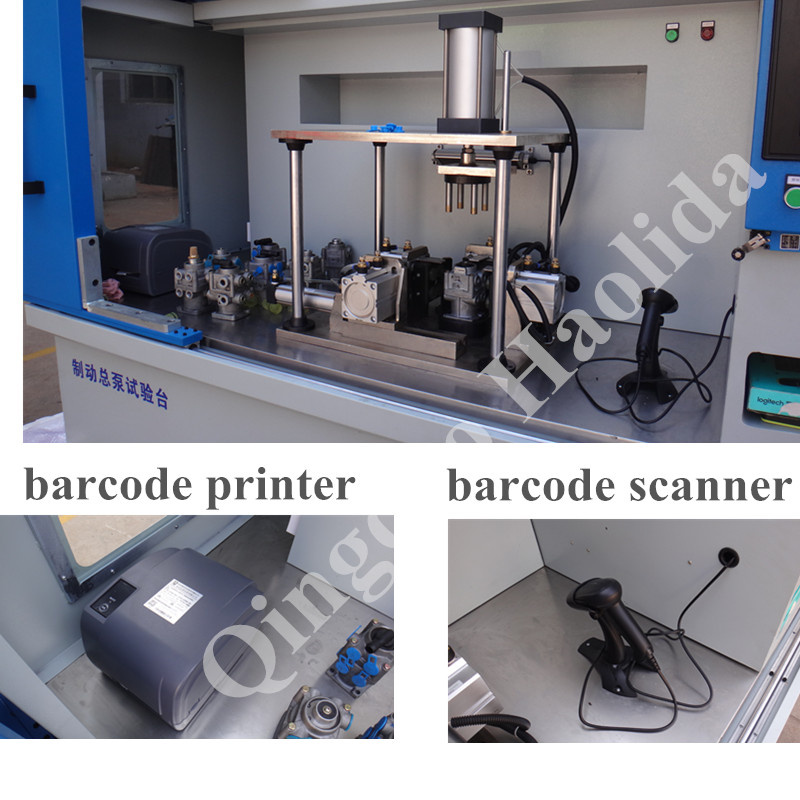

- Equipped with soft keyboard, can set serial number, store, and follow up the tested mater valve, can make a dynamic test and data record to the whole test process.
Test items: - Test the double chamber air intake pressure and pressure differential of the brake master valve;
- Test the brake force of the brake master valve pedal;
- Test the air intake time of the brake master valve;
- Test the air tightness performance of the brake master valve.
Technical parameter: Model no | HLD-QZF-3Z |
Language | English |
Material | Metal plate |
Painting | Powder painting, durable and beautiful |
Color | Blue |
Voltage | 220V 50 Hz |
input air source | 0-1.6Mpa |
the tested pressure range | 0-1.6Mpa (adjustable) |
test accuracy grade | ±0.5% |
servo motor power | 400W |
brake force range | 0-500kg |
Accessories: |
Accessory wires, etc. |
Others you may want to know: |
MOQ | 1set |
Warranty period | 12 months |
Payment term | T/T 50% in advance, the balance should be paid before delivery (negotiable) |
Delivery time | 35 days after receiving downpayment |
HS code | 90312000.90 |
Why Choose us: - 32 years' design,development and produce experience
- Professional R&D team
- Strict QC
- A good pre-sale and after-sale service
- Can design and make according to customer's requests
Prod Model: |
HLD-QZF-3Z |
Power: |
220V 50Hz |
Certification: |
RoHS |
Update Method: |
by Hard Disk |
Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment. We obtained tens of national patent on some related products. Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.
We are located in Qingdao city, Shandong province, with convenient transportation access. Our factory is thirty minutes' drive to Qingdao airport, and two hours' drive to the loading port.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have passed the ISO9001-2008 international quality system authentication. We gained many honors in automobile maintenance and repair industry, we are a standing member of the China Automobile Maintenance and Repairing Equipment Trade Association, One of the ten most influential company in automobile maintenance and repair industry, we are also a designated factory by General Armament Department of CPLA.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Our sales network covers North America, South America, European, South Africa, Russia, Asia, Middle East, etc.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are also sincerely looking for steady and long-term cooperative local agents in different areas. We are looking forward to forming successful business relationships with new clients around the world in the near future.
