Automobile Electrical Universal Test Equipment
Price: |
US $ 1/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |

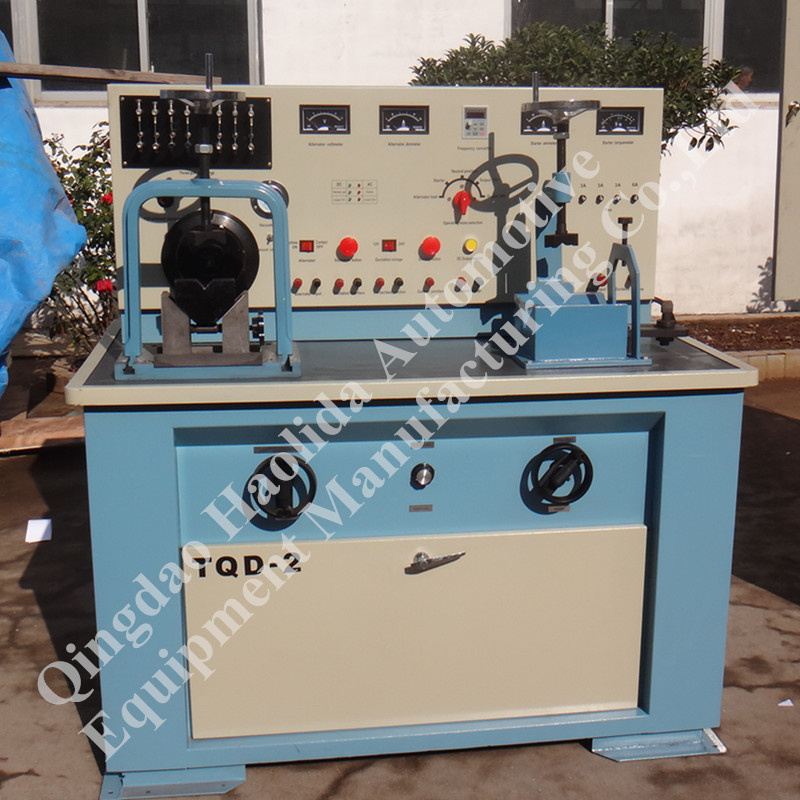

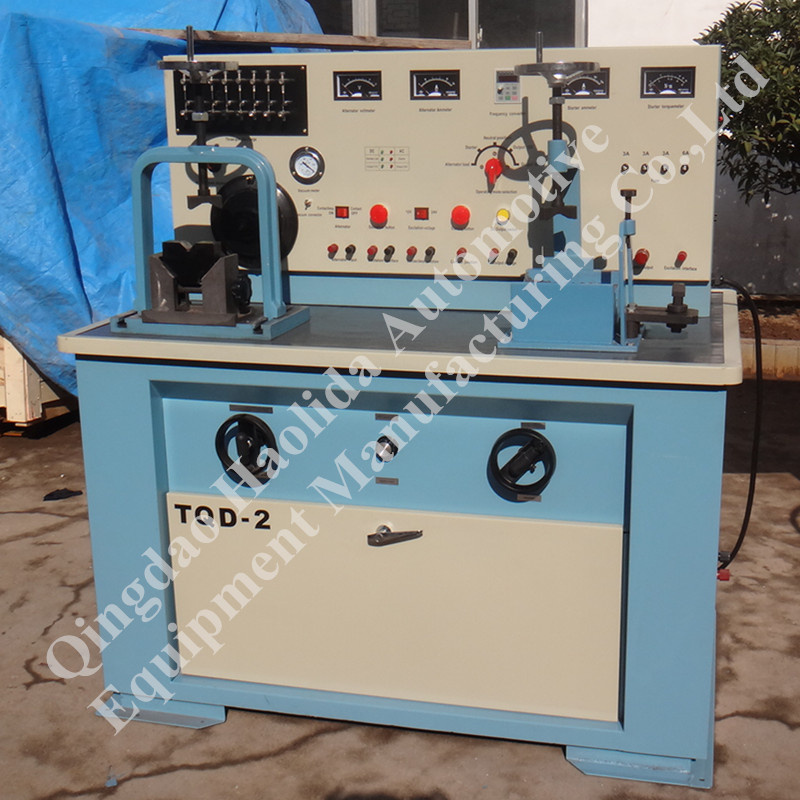

TQD-2 model Automobile Electrical Universal Test Equipment General introduction1. This test bench uses variable frequency speed regulation ,pointer instrument display. 2. It is used to test electrical appliances of automobile like generator, starter, distributor, ignition coil, electric wiper and electric horn, ignition coil, etc. Advantages:1. It uses variable frequency speed regulation 2. It displays result by pointer instrument .3. It is easy to learn and operate.4. It is with fuse protection.5. It is with indicator lamp following each step and warn you the problems.6. It possesses high control sensitivity and strong controllability. Test items:Test Starter: 5.5 KW, (12V 24V 48V). 0-1000A,0-100N.MTest Alternator & Generator: 1.2 KW, (12V 24V 48V), 5000RPMTest generator: no load and load ,speed, voltage,current; Test starter: no load, load, braking torque; Test electronic regulator: regulate voltage and current, limit current; Test distributor: ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact; Test battery: voltage; test electric horn: sound;Test electric wiper: action;Test ignition coil Technical parameter: Model no | TQD-2 |
Language | English/Spanish, etc |
Material | Metal plate |
Painting | Powder painting, durable and beautiful |
Color | Blue |
Voltage | 220V 50 Hz (other voltage acceptable) |
Motor power | 1.5KW |
Regulating speed of frequency converter | 0-5000Rpm |
Frequency converter power | 7.5KW |
External battery | Prepare one self for starter testing |
Turning direction | Positive and negative |
Adjusting mode | Rotary |
Three-pin discharge | 8 groups in parallel |
ignition angle index plate | 360°division |
range of adjusting clearance | 0-15mm |
Testing starter max braking current | 1000A |
Test starter max braking torque | 100N.m |
Charge function | No |
Accessories: |
Accessory wires, blank plates for starters, fuses, etc. |
Others you may want to know: |
MOQ | 1set |
Warranty period | 12 months |
Payment term | T/T 50% in advance, the balance should be paid before delivery (negotiable) |
Delivery time | 15 days after receiving downpayment |
HS code | 90312000.90 |
Packing sizes | 1440*900*1580mm=2.05CBM |
Weight | N.W: 250kgs G.W: 280kgs |
Why Choose us:1. 32 years' design,development and produce experience2. Professional R&D team3. Strict QC4. A good pre-sale and after-sale service5. Can design and make according to customer's requests
Prod Model: |
TQD-2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Automobile Electrical Universal Test Equipment |
Power: |
220V 50/60Hz |
Motor Power: |
1.5kw |
Certification: |

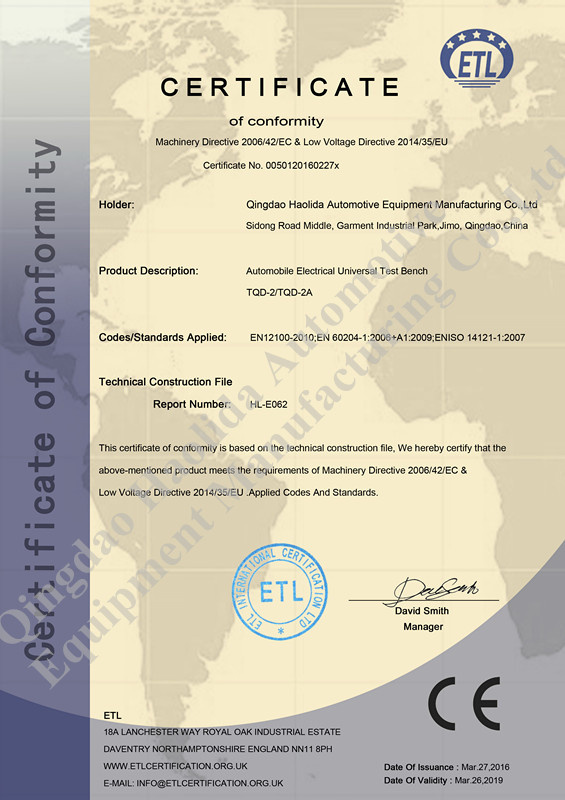

ISO |
Update Method: |
by Hard Disk |
Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment. We obtained tens of national patent on some related products. Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.
We are located in Qingdao city, Shandong province, with convenient transportation access. Our factory is thirty minutes' drive to Qingdao airport, and two hours' drive to the loading port.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have passed the ISO9001-2008 international quality system authentication. We gained many honors in automobile maintenance and repair industry, we are a standing member of the China Automobile Maintenance and Repairing Equipment Trade Association, One of the ten most influential company in automobile maintenance and repair industry, we are also a designated factory by General Armament Department of CPLA.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Our sales network covers North America, South America, European, South Africa, Russia, Asia, Middle East, etc.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are also sincerely looking for steady and long-term cooperative local agents in different areas. We are looking forward to forming successful business relationships with new clients around the world in the near future.
