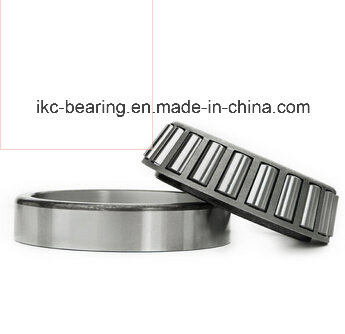

Automobile Bearing, Taper Roller Bearing Hm518445/Hm518410

Prod Model:	HM518445/HM518410
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery:	Stock
Type:	Wheel Hub Bearing
Material:	Chrome Steel
Tolerance:	P5
Certification:	ISO9001
Clearance:	C3
ABS:	Without ABS
Brand:	Ikc SKF NSK NTN Koyo Timken
Application:	All Cars

Product Description

Taper roller bearings

HM518445/HM518410	-	88.9	152.4	39.688
HM516449/HM516410	-	82.55	133.35	39.688
HM266449/HM266410	-	384.175	546.1	104.775
HH923649/HH923610	-	101.6	250.875	76.2
HH506348/HH506310	-	49.212	114.3	44.45
HH249949/HH249910	-	247.65	406.4	115.888

Tapered roller bearings are bearings that can take large axial forces (i.e., they are good thrust bearings) as well as being able to sustain large radial forces.

The inner and outer ring raceways are segments of cones and the rollers are also made with a taper so that the conical surfaces of the raceways and the roller axes if projected, would all meet at a common point on the main axis of the bearing.
This conical geometry is used as it gives a larger contact patch, which permits greater loads to be carried than with spherical (ball) bearings, while the geometry means that the tangential speeds of the surfaces of each of the rollers are the same as their raceways along the whole length of the contact patch and no differential scrubbing occurs. When a roller slides rather than rolls, it can generate wear at the roller-to-race interface, i.e. the differences in surface speeds creates a scrubbing action. Wear will degenerate the close tolerances normally held in the bearing and can lead to other problems. Much closer to pure rolling can be achieved in a tapered roller bearing and this avoids rapid wear.
The rollers are guided by a flange on the inner ring. This stops the rollers from sliding out at high speed due to their momentum.
The larger the half angles of these cones the larger the axial force that the bearing can sustain.
Tapered roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage). The non-separable inner ring and roller assembly is called the cone, and the outer ring is called the cup. Internal clearance is established during mounting by the axial position of the cone relative to the cup.
Metric tapered roller bearings follow the designation system defined by ISO 355.
 History
In 1898, Henry  was awarded a patent[1] for the tapered roller bearing. At the time, Taper roller bearing was a carriage-maker in St. Louis and held three patents for carriage springs. However, it was his patent for tapered roller bearings that allowed his company to become successful.
   Henry were a breakthrough at the end of the 19th century because bearings used in wheel axles had not changed much since ancient times. They relied on bearings enclosed in a case that held lubricants. These were called journal bearings and depended on lubricants to function. Without proper lubrication[2], these bearings would fail due to excessive heat caused by friction.  Henry was able to significantly reduce the friction on his bearings by using a cup and cone design incorporating tapered bearings which actually rolled, which reduced the load placed on the bearings by distributing the weight and load evenly across the cups, cones, and bearings.
 Applications
In many applications tapered roller bearings are used in back-to-back pairs so that axial forces can be supported equally in either direction.
Pairs of tapered roller bearings are used in car and vehicle wheel bearings where they must cope simultaneously with large vertical (radial) and horizontal (axial) forces. Applications for tapered roller bearings are commonly used for moderate speed, heavy duty applications where durability is required. Common real world applications are in agriculture, construction and mining equipment, axle systems, gear box, engine motors and reducers.

Item details



30202	7202E	15	35	11	14.9	13.4	12000	16000	0.053kgs
30244	7244E	220	400	73	-	-	-	-	35.5
30340	7340E	200	420	80	1120	1450	820	1100	53.5
30352	7352E	260	540	114	-	-	-	-	108
32205	7505	25	72	24.25	-	-	-	-	0.174
30302	7302E	15	42	13	22.8	21.5	9000	12000	0.094
30203	7203E	17	40	12	20.8	21.8	9000	12000	0.079
30303	7303E	17	47	14	28.2	27.2	8500	11000	0.129
32303	7603E	17	47	19	31.9	29.9	9400	13000	0.17
32904	2007904E	20	37	12	13.2	17.5	9500	13000	0.056
32004	2007104E	20	42	15	25	28.2	8500	11000	0.095
30204	7204E	20	47	14	28.2	30.5	8000	10000	0.126
30304	7304E	20	52	15	30.5	28.4	8300	11000	0.17
32304	7604E	20	52	21	42.8	46.2	7500	9500	0.23
329/22	-	22	40	12	15	20	8500	11000	0.065
320/22	20071/22E	22	44	15	26	30.2	8000	10000	0.1
32905	2007905E	25	42	12	16	21	6300	10000	0.064
32005	2007105E	25	47	15	28	34	7500	9500	0.11
33005	3007105E	25	47	17	32.5	42.5	7500	9500	0.129
30205	7205E	25	52	15	32.2	37	7000	9000	0.154
33205	3007205E	25	52	22	47	55.8	7000	9000	0.216
30305	7305E	25	62	17	46.8	48	6300	8000	0.263
31305	27305E	25	62	17	40.5	46	6300	8000	0.262
32305	7605E	25	62	24	61.5	68.8	6300	8000	0.368
329/28	-	28	45	12	16.8	22.8	750D	9500	0.069
320/28	20071/28E	28	52	16	31.5	40.5	6700	8500	0.142
332/28	30072/28E	28	58	24	58	68.2	6300	8000	0.286
32906	2007906E	30	47	12	17	23.2	7000	9000	0.072
32006X2	2007106X	30	55	16	27.8	35.5	6300	8000	0.16
32006	2007106E	30	55	17	35.8	46.8	6300	8000	0.17
33006	3007106E	30	55	20	43.8	58.8	6300	8000	0.201
30206	7206E	30	62	17.5	43.2	50.5	6000	7500	0.231
32206	7506E	30	62	20	51.8	63.8	6000	7500	0.287
33206	3007206E	30	62	25	63.8	75.5	6000	7500	0.342
30306	7306E	30	72	21	59	63	5600	7000	0.387
23334	7634	170	360	120	-	-	-	-	-
31306	27306E	30	72	21	52.5	60.5	5600	7000	0.392
32306	7606E	30	72	27	81.5	96.5	5600	7000	0.562
329/32	-	32	52	14	23.8	32.5	6300	8000	0.106
320/32	20071/32E	32	58	17	36.5	49.2	6000	7500	0.187
332/32	30072/32E	32	65	26	68.8	82.2	5600	7000	0.385
32907	2007907E	35	55	14	25.8	34.8	6000	7500	0.114
32007X2	2007117E	35	62	17	33.8	47.2	5600	7000	0.21
32007	2007107E	35	62	18	43.2	59.2	5600	7000	0.224
33007	3007107E	35	62	20	40.8	53.8	6200	8200	0.25
30207	7207E	35	72	17	54.2	63.5	5300	6700	0.331
32207	7507E	35	72	23	70.5	89.5	5300	6700	0.445
33207	3007207E	35	72	28	82.5	102	5300	6700	0.515
30307	7307E	35	80	21	75.2	82.5	5000	6300	0.515
31307	27307E	35	80	21	65.8	76.8	5000	6300	0.514
32307	7607E	35	80	31	99	118	5000	6300	0.763
32908X2	2007908	40	62	14	21.2	28.2	5600	7000	0.14
32908	2007908E	40	62	15	31.5	46	5600	7000	0.155
32008X2	-	40	68	18	39.8	55.2	5300	6700	0.27
32008	2007108E	40	68	19	51.8	71	5300	6700	0.267
33008	3007108E	40	68	22	60.2	79.5	5300	6700	0.306
33108	3007708E	40	75	26	84.8	110	5000	6300	0.496
30208	7208E	40	80	18	63	74	5000	6300	0.422
32208	7508E	40	80	23	77.8	97.2	5000	6300	0.532
33208	3007208E	40	80	32	105	135	5000	6300	0.715
30308	7308E	40	90	23	90.8	108	4500	5600	0.747
31308	27308E	40	90	23	81.5	96.5	4500	5600	0.727
32308	7608E	40	90	33	115	148	4500	5600	1.04
32909X2	-	45	68	14	22.2	32.8	5300	6700	-
32909	7007909E	45	68	15	32	48.5	5300	6700	0.18
32009X2	2007109X	45	75	19	44.5	62.5	5000	6300	0.32
32009	2007109E	45	75	20	58.5	81.5	5000	6300	0.337
33009	3007109E	45	75	24	72.5	100	5000	6300	0.398
33109	3007709E	45	80	26	87	118	4500	5600	0.535
30209	7209E	45	85	19	67.8	83.5	4500	5600	0.474
32209	7509E	45	85	23	80.8	105	4500	5600	0.573
33209	3007209E	45	85	32	110	145	4500	5600	0.771
30309	7309E	45	100	25	108	130	4000	5000	0.984
31309	27309E	45	100	25	95.5	115	4000	5000	0.944
32309	7609E	45	100	36	145	188	4000	5000	1.4
32910X2	-	50	72	14	22.2	32.8	5000	6300	0.7
32910	2007910E	50	72	15	36.8	56	5000	6300	0.181
32010X2	2007110X	50	80	19	45.8	66.2	4500	5600	0.31
32010	2007110E	50	80	20	61	89	4500	5600	0.366
33010	3007110E	50	80	24	76.8	110	4500	5600	0.433
33110	3007710E	50	85	26	89.2	125	4300	5300	0.572
30210	7210E	50	90	20	73.2	92	4300	5300	0.529
32210	7510E	50	90	23	82.8	108	4300	5300	0.626
33210	3007210E	50	90	32	112	155	4300	5300	0.825
30310	7310E	50	110	27	130	158	3800	4800	1.28
31310	27310E	50	110	27	108	128	3800	4800	1.21
32310	7610E	50	110	42.5	178	235	3800	4800	1.89
32911	2007911E	55	80	17	41.5	66.8	4800	6000	0.262
32011X2	-	55	90	22	63.8	93.2	4000	5000	0.53
32011	2007111E	55	90	23	80.2	118	4000	5000	0.551
33011	3007111E	55	90	27	94.8	145	4000	5000	0.651
33111	3007711E	55	95	30	115	165	3800	4800	0.843
30211	7211E	55	100	21	90.8	115	3800	4800	0.713
32211	7511E	55	100	25	108	142	3800	4800	0.853
33211	3007211E	55	100	35	142	198	3800	4800	1.15
30311	7311E	55	120	29	152	188	3400	4300	1.63
31311	27311E	55	120	29	130	158	3400	4300	1.56
32311	7611E	55	120	43	202	270	3400	4300	2.37
32912X2	-	60	85	16	34.5	56.5	4000	5000	0.24
32912	2007912E	60	85	17	46	73	4000	5000	0.279
32012	2007112E	60	95	23	81.8	122	3800	4800	0.584
33012	3007112E	60	95	27	96.8	150	3800	4800	0.691
33112	3007712E	60	100	30	118	172	3600	4500	0.895
30212	7212E	60	110	22	102	130	3600	4500	0.904
32212	7512E	60	110	28	132	180	3600	4500	1.17
33212	3007212E	60	110	38	165	230	3600	4500	1.51
30312	7312E	60	130	31	170	210	3200	4000	1.99
31312	27312E	60	130	31	145	178	3200	4000	1.9
32312	7612E	60	130	46	228	302	3200	4000	2.9
32913	2007913E	65	90	17	45.5	73.2	3800	4800	0.295
32013X2	2007113	65	100	22	67	102	3600	4500	0.63
32013	2007113E	65	100	23	82.8	128	3600	4500	0.62
33013	3007113E	65	100	27	98	158	3600	4500	0.732
33113	3007713E	65	110	34	142	220	3400	4300	1.3
30213	7213E	65	120	23	120	152	3200	4000	1.13
32213	7513E	65	120	31	160	222	3200	4000	1.55
33213	3007213E	65	120	41	202	282	3200	4000	1.99
30313	7313E	65	140	33	195	242	2800	3600	2.44
31313	27313E	65	140	33	165	202	2800	3600	2.37
32313	7613E	65	140	48	260	350	2800	3000	3.51
32914X2	-	70	100	19	53.2	85.5	3600	4500	-
32914	2007914E	70	100	20	70.8	115	3600	4500	0.471
32014X2	-	70	110	24	83.8	128	3400	4300	0.85
32014	2007114E	70	110	25	105	160	3400	4300	0.839
33014	3007114E	70	110	31	135	220	3400	4300	1.07
33114	3007714E	70	120	37	172	268	3200	4000	1.7
30214	7214E	70	125	24	132	175	3000	3800	1.26
32214	7514E	70	125	31	168	238	3000	3800	1.64
33214	3007214E	70	125	41	208	29.8	3000	3800	2.1
30314	7314E	70	150	35	218	272	2600	3400	2.98
31314	27314E	70	150	35	188	230	2600	3400	2.86
32314	7614E	70	150	51	257	315	2700	3600	4.11
32915	2007915E	75	105	20	78.2	125	3400	4300	0.49
32015X2	-	75	115	24	85.2	135	3200	4000	0.88
32015	2007115E	75	115	25	102	160	3200	4000	0.875
33015	3007115E	75	115	31	132	220	3200	4000	1.12
33115	3007715E	75	125	37	175	280	3000	3800	1.78
30215	7215E	75	130	25	138	185	2800	3600	1.36
32215	7515E	75	130	31	170	242	2800	3600	1.74
33215	3007215E	75	130	41	208	300	2800	3600	2.17
30315	7315E	75	160	37	252	318	2400	3200	3.57
31315	27315E	75	160	37	208	258	2400	3200	3.38
32315	7615E	75	160	55	348	482	2400	3200	5.37
32916	2007916E	80	110	20	79.2	128	3200	4000	0.514
32016X2	-	80	125	27	102	162	3000	3800	1.18
32016	2007116E	80	125	29	140	220	3000	3800	1.27
33016	3007116E	80	125	36	182	305	3000	3800	1.63
33116	3007716E	80	130	37	180	292	2800	3600	1.87
30216	7216E	80	140	26	160	212	2600	3400	1.67
32216	7516E	80	140	33	198	278	2600	3400	2.13
33216	3007216E	80	140	46	245	362	2600	3400	2.83
30316	7316E	80	170	39	278	352	2200	3000	4.27
31316	27316E	80	170	39	230	288	2200	3000	4.05
32316	7616E	80	170	58	388	542	2200	3000	6.38
32917X2	-	85	120	22	74.2	125	3400	3800	0.73
32917	2007917E	85	120	23	96.8	165	3400	3800	0.767
32017X2	-	85	130	27	105	170	2800	3600	1.25
32017	2007117E	85	130	29	140	220	2800	3600	1.32
33017	3007117E	85	130	36	180	305	2800	3600	1.69
33117	3007717E	85	140	41	215	355	2600	3400	2.43
30217	7217E	85	150	31	178	238	2400	3200	2.06
32217	7517E	85	150	36	228	325	2400	3200	2.68
23217	-	85	150	49	282	415	2400	3200	3.52
30317	7317E	85	180	41	305	388	2000	2800	4.96
31317	27317E	85	180	41	255	318	2000	2800	4.69
32317	7617E	85	180	60	422	592	2000	2800	7.31
32918X2	-	90	125	22	77.8	140	3200	3600	-
32918	2007918E	90	125	23	95.8	165	3200	3600	0.796
32018X2	2007118	90	140	30	122	192	2600	3400	1.7
32018	2007118E	90	140	32	170	270	2600	3400	1.72
33018	3007118E	90	140	39	232	388	2600	3400	2.2
33118	3007718E	90	150	45	252	415	2400	3200	3.13
30218	7218E	90	160	30	200	270	2200	3000	2.54
32218	7518E	90	160	40	270	395	2200	3000	3.44
33218	3007218E	90	160	55	330	500	2200	3000	4.55
30318	7318E	90	190	43	342	440	1900	2600	5.8
31318	27318E	90	190	43	282	358	1900	2600	5.46
32318	7618E	90	190	64	478	682	1900	2600	8.81
32919	2007919E	95	130	23	97.2	170	2600	3400	0.831
32019X2	-	95	145	30	122	192	2400	3200	1.7
32109	-	95	145	32	175	280	2400	3200	1.79
33019	3007119E	95	145	39	230	390	2400	3200	2.26
33119	3007719E	95	160	49	298	498	2200	3000	3.94
30219	7219E	95	170	32	228	308	2000	2800	3.04
30336	7336E	180	380	75	901	1110	940	1300	39.7
32219	7519E	95	170	43	302	448	2000	2800	4.24
33219	3007219E	95	170	58	378	568	2000	2800	5.48
30319	7319E	95	200	45	317	368	2000	2600	6.32
31319	27319E	95	200	45	310	400	1800	2400	6.46
32319	7619E	95	200	67	427	544	2000	2600	9.35
32920	2007920E	100	140	25	128	218	2400	3200	1.12
32020X2	2007120E	100	150	30	125	205	2200	3000	1.79
32020	2007120E	100	150	32	172	282	2200	3000	1.85
33020	3007120E	100	150	39	230	390	2200	3000	2.33
35120	-	100	165	52	308	528	2000	2800	4.31
30220	7220E	100	180	34	255	350	1900	2600	3.72
32220	7520E	100	180	46	340	512	1900	2600	5.1
33220	3007220E	100	180	63	438	665	1900	2600	6.71
30320	7320E	100	215	47	344	400	1800	2400	7.76
31320	27320E	100	215	51	372	488	1600	2000	8.59
32320	7620E	100	215	73	491	637	1800	2400	12.2
32921	2007921E	105	145	25	128	225	2200	3000	1.16
32021X2	2007121	105	160	33	162	270	2000	2800	2.5
32021	2007121E	105	160	35	205	335	2000	2800	2.4
33021	3007121E	105	160	43	258	438	2000	2800	2.97
33121	3007721E	105	175	56	352	608	1900	2600	5.29
30221	7221E	105	190	36	285	398	1800	2400	4.38
32221	7521E	105	190	50	380	578	1800	2400	6.26
33221	3007221E	105	190	68	498	770	1800	2400	8.12
30321	7321E	105	225	49	371	432	1700	2300	8.74
31321	27321E	105	225	53	398	525	1500	1900	9.58
32321	7621E	105	225	77	543	707	1800	2300	13.9
32922X2	2007922	110	150	24	85.5	148	2000	2800	1.1
32922	2007922E	110	150	25	130	232	2000	2800	1.2
32022X2	2007122	110	170	36	182	302	1900	2600	3.1
32022	2007122E	110	170	38	245	402	1900	2600	3.02
33022	3007122E	110	170	47	288	502	1900	2600	3.74
33122	3007722E	110	180	56	372	638	1800	2400	5.5
30222	7222E	110	200	38	315	445	1700	2200	5.21
32222	7522E	110	200	53	430	665	1700	2200	7.43
30322	7322E	110	240	50	407	475	1600	2100	10.4
31322	27322E	110	240	57	458	610	1400	1800	12.1
32322	7622E	110	240	80	607	797	1600	2200	16.6
32924	2007924E	120	165	29	172	318	1800	2400	1.78
32024X2	2007124	120	180	36	198	338	1700	2200	3.1
32024	2007124E	120	180	38	242	405	1700	2200	3.18
33024	3007124E	120	180	48	298	535	1700	2200	4.07
33124	3007724E	120	200	62	448	778	1600	2000	7.68
30224	7224E	120	215	40	338	482	1500	1900	6.2
32224	7524E	120	215	62	478	758	1500	1900	9.6
30324	7324E	120	260	55	505	611	1500	2000	13.7
31324	27324E	120	260	62	535	725	1300	1700	15.3
32324	7624E	120	260	86	825	1230	1300	1700	22.1
32926X2	2007926	130	180	30	142	260	1700	2200	2.31
32926	2007926E	130	180	32	205	380	1700	2200	2.34
32026X2	2007126	130	200	42	242	418	1600	2000	4.46
32026	2007126E	130	200	45	335	568	1600	2000	4.94
33026	3007126E	130	200	55	400	728	1600	2000	6.14
30226	7226E	130	230	40	365	520	1400	1800	6.94
32226	7526E	130	230	64	552	888	1400	1800	11.4
30326	7326E	130	280	58	640	855	1100	1500	17.3
31326	27326E	130	280	66	592	805	1100	1500	18.4
32928X2	2007928	140	190	30	145	265	1600	2000	2.43
32928	2007928E	140	190	32	208	392	1600	2000	2.47
32028X2	2007128	140	210	42	258	452	1400	1800	5.21
32028	2007128E	140	210	45	330	568	1400	1800	5.15
33028	3007128E	140	210	56	408	755	1400	1800	6.57
30228	7228E	140	250	42	408	585	1200	1600	8.73
32228	7528E	140	250	68	645	1050	1200	1600	14.4
30328	7328E	140	300	62	722	975	1000	1400	21.4
31328	27328E	140	300	70	678	928	1000	1400	22.8
32930X2	2007930	150	210	36	198	368	1400	1800	-
32930	2007930E	150	210	38	260	510	1400	1800	3.87
32030X2	2007130	150	225	45	292	525	1300	1700	6.2
32030	2007130E	150	225	48	368	635	1300	1700	6.25
33030	3007130E	150	225	59	460	875	1300	1700	7.98
30230	7230E	150	270	45	450	645	1100	1500	10.8
32230	7530E	150	270	73	720	1180	1100	1500	18.2
30330	7330E	150	320	65	802	1090	950	1300	25.2
31330	27330E	150	320	75	772	1070	950	1300	27.4
32932X2	2007932	160	220	36	218	405	1300	1700	3.79
32932	2007932E	160	220	38	262	525	1300	1700	4.07
32032X2	2007132	160	240	48	345	632	1200	1600	7.7
32032	2007132E	160	240	51	420	735	1200	1600	7.66
30232	7232E	160	290	48	512	738	1000	1400	13.3
32232	7532E	160	290	84	858	1430	1000	1400	23.3
30332	7332E	160	340	68	878	1190	900	1200	29.5
32934X2	2007934	170	230	36	222	418	1200	1600	3.84
32934	2007934E	170	230	38	280	560	1200	1600	4.33
32034X2	2007134	170	260	54	385	728	1100	1500	10.1
32034	2007134E	170	260	57	520	920	1100	1500	10.4
30234	7234E	170	310	52	590	865	1000	1300	16.6
32234	7534E	170	310	86	968	1640	1000	1300	28.6
30334	7334E	170	360	72	995	1370	850	1100	35.6
32936	2007936E	180	250	45	340	708	1100	1500	6.44
32036X2	2007136	180	280	60	502	890	1000	1400	14.7
32036	2007136E	180	280	64	640	1150	1000	1400	14.1
30236	7236E	180	320	52	610	912	900	1200	17.3
32236	7536E	180	320	86	998	1720	900	1200	29.9
30936	-	180	380	75	1090	1500	900	1100	40.7
32938X2	2007938	190	260	42	292	580	1000	1400	6.52
32938	2007938E	190	260	45	360	740	1000	1400	6.66
32038X2	2007138	190	290	60	502	932	950	1300	14.1
32038	2007138E	190	290	64	652	1180	950	1300	14.6
30238	7238E	190	340	55	698	1030	850	1100	20.8
32238	7538E	190	340	92	1120	1900	850	1100	36.1
32940X2	2007940	200	280	48	345	710	950	1300	8.86
32940	2007940E	200	280	51	460	950	950	1300	9.43
32040X2	2007140	200	310	66	575	1120	900	1200	17.4
32040	2007140E	200	310	70	782	1420	900	1200	18.9
30240	7240E	200	360	58	685	972	940	1200	25.6
32240	7540E	200	360	98	1320	2180	800	1000	43.2
32944X2	2007944	220	300	48	372	795	900	1200	10.1
32944	2007944E	220	300	51	470	978	900	1200	10
32044X2	2007144	220	340	72	702	1330	800	1000	22.3
32044	2007144E	220	340	76.5	908	1670	800	1000	24.4
32948X2	2007948	240	320	48	390	860	800	1000	10.9
32948	2007948E	240	320	51	520	1060	800	1000	10.7
32048X2	2007148	240	360	72	710	1420	700	900	25.5
32048	2007148E	240	360	76	920	1730	700	900	25.9
32952X2	2007952	260	360	60	525	1150	700	900	19.2
32952	2007952E	260	360	63.5	688	1470	700	900	18.6
32052X2	2007152	260	400	82	902	1810	670	850	37.8
32052	2007152E	260	400	87	1120	2170	670	850	38
32956	20079562	280	380	63.5	745	1580	630	800	19.7
32056X2	2007156	280	420	82	622	1940	600	750	39.6
32056	2007156E	280	420	87	1190	2290	600	750	40.2
32960X2	2007950	300	420	72	778	1700	600	750	30.2
32960	2007960E	300	420	76	1020	2200	600	750	31.5
32060X2	2007160	300	460	95	1050	2190	560	700	55.9
32060	2007160E	300	460	100	1520	2940	560	700	57.5
32964X2	2007964	320	440	72	798	1760	560	700	44.7
32964	2007964E	320	440	76	1040	2320	560	700	33.3
32064X2	2007164	320	480	95	1050	2190	530	670	59.1
32064	2007164E	320	480	100	1540	3000	530	670	60.6
32968X2	2007968	340	460	72	805	1830	530	670	34.3
32968	2007968E	340	460	76	1050	2380	530	670	34.8
32972X2	2007972	360	480	72	838	1940	500	630	35.8
32972	2007972E	360	480	76	1060	2430	500	630	36.3
32203	7503	17	40	16	-	-	-	-	-
32328	7628	140	300	102	-	-	-	-	-
32332	7632	160	340	114	1220	1720	1100	1400	47.9
33120	3007720E	100	165	52	-	-	-	-	4.31
31038X2	7138	190	290	51	-	-	-	-	13.5
31068X2	7168	340	540	86	-	-	-	-	57
31080X2	7180	400	600	95	-	-	-	-	84
31084X2	7184	420	620	95	-	-	-	-	91.7
31088X2	7188	440	650	96.4	-	-	-	-	99.4
310/500X2	71/500	500	720	110	-	-	-	-	135
310/560X2	71/560	560	820	121	-	-	-	-	191
310/600X2	71/600	600	870	124	-	-	-	-	235
310/630X2	71/630	630	920	135	-	-	-	-	278
310/900X2	71/900	900	1280	190	-	-	-	-	703
30244/SO	-	220	400	73	-	-	-	-	35.4
32204	7504	20	47	19.25	-	-	-	-	0.151
32216/YB2	-	80	140	38.5	-	-	-	-	2.134
32244	7544E	220	400	108	1190	1930	830	1100	56.8
32248	7548E	240	440	120	1530	2480	740	980	76.4
T5FD32/YB	-	32	75	29.75	-	-	-	-	0.628
TSFD040	-	40	90	35.25	-	-	-	-	1.06
32311/YB2	7611EK	55	120	45.5	-	-	-	-	2.355
T5F060	-	60	130	46	-	-	-	-	2.972
T5CD065	-	65	140	51	-	-	-	-	3.75
T5CD070	-	70	150	54	-	-	-	-	4.54
T5GD075	-	75	160	58	-	-	-	-	5.448
32326	7626E	130	280	93	852	1160	1400	1800	26.5
32330	7630	150	320	114	-	-	-	-	37.1
32334	7634E	170	360	120	1310	1830	1000	1300	56.9
30607	-	35	65	18	-	-	-	-	0.23
30610	7710	50	82	21.5	-	-	-	-	0.33
30612	-	60	120	46	-	-	-	-	2.22
30613	807813E	65	150	54	-	-	-	-	4.5
T2ED070	-	70	130	42	233	319	3000	4000	2.48
30616	7816E	80	130	32	-	-	-	-	1.6
32318X2	-	90	160	50	-	-	-	-	3.83
32321X3	-	105	215	78	-	-	-	-	12.6

LM48549X/LM48510	-	34.925	65.088	18.288	-	-	-	-	0.251
LM48548A/LM48510	-	34.925	58.088	18.034	-	-	-	-	0
LM48548/LM48511A	-	34.925	65.088	21.082	-	-	-	-	0
LM48548/LM48510A	-	34.925	65.088	18.034	-	-	-	-	0.262
LM48548/LM48510	-	34.925	65.088	18.034	-	-	-	-	0.26
LM451349A/LM451310	-	266.7	355.6	57.15	-	-	-	-	0
LM451349/LM451310	-	266.7	355.6	57.15	-	-	-	-	15.1
LM451345/LM451310	-	263.525	355.6	57.15	-	-	-	-	0
LM377449/LM377410	-	558.8	736.6	104.775	-	-	-	-	0
LM300849/LM300811	-	40.988	67.975	17.5	-	-	-	-	0
LM29749/LM29711	-	38.1	65.088	19.812	-	-	-	-	0
LM29749/LM29710	-	38.1	65.088	18.034	-	-	-	-	0.233
LM29748/LM29748	-	38.1	65.088	18.034	-	-	-	-	0.23
LM29748/LM29710	-	38.1	65.088	18.034	-	-	-	-	0
LM272249/LM272210	-	482.6	615.95	85.725	-	-	-	-	0
L476549/L476510	-	549.275	692.15	80.962	-	-	-	-	0
L467549/L467510	-	406.4	508	61.912	-	-	-	-	0
L45449/L45410	-	29	50.292	14.224	-	-	-	-	0.118
L44649/L44610	-	26.988	50.292	14.224	-	-	-	-	0.126
L44649/L44120	-	26.9	50.3	14.22	-	-	-	-	0.122
L44643L/L44610	-	25.4	50.292	14.22	-	-	-	-	0.129
L44643/L44610	-	25.4	50.29	14.224	-	-	-	-	0.128
L44642/L44610	-	25.4	50.292	14.224	-	-	-	-	0
L44640/L44610	-	23.812	50.292	14.224	-	-	-	-	0
L432348/L432310	-	158.75	205.583	23.812	-	-	-	-	0
L357049NW/L3570100	37961K	304.8	393.7	107.95	-	-	-	-	29.8
L357049/L357010D	2G37961K	304.8	393.7	107.95	-	-	-	-	30.1
L357049/L357010	-	304.8	393.7	50.8	-	-	-	-	14.6
L225849/L225818	-	127	180.975	25.4	-	-	-	-	0
L225842/L225810	-	120.65	196.862	25.4	-	-	-	-	0
L183449/L183410	-	762	889	88.9	-	-	-	-	91.9
L183448/L183410	-	760	889	88.9	-	-	-	-	93.5
L163149/L163110D	-	355.6	444.5	136.525	-	-	-	-	44.6
L163149/L163110	-	355.6	444.5	60.325	-	-	-	-	0
KM88048/KM88010	-	33.338	68.262	22.225	-	-	-	-	0.382
KM802048/KM802011	-	41.275	82.55	26.543	-	-	-	-	0.623
KM349547/KM349510	-	257.18	342.4	57.15	-	-	-	-	14
KM348449/KM348410	-	247.65	346.075	63.5	-	-	-	-	17.4
KM249747/KM249710	-	257.175	358.775	71.438	-	-	-	-	21.7
KLM501349/KLM501314	-	41.275	73.431	21.43	-	-	-	-	0.36
KLM48548A/KLM48511A	-	34.925	65.088	18.034	-	-	-	-	0.26
KLM300849/KLM300811	-	41	68	17.6	-	-	-	-	0.247
KLM300849/KLM30081	-	40.988	67.975	18	-	-	-	-	0.239
KLM29749/KLM29710	-	38.1	65.088	18.288	-	-	-	-	0.235
KJM911242/KHM911210	-	53.975	130.175	36.512	-	-	-	-	2.24
KJM822049/KJM822010	-	110	165	35	-	-	-	-	2.63
KJM734449/KJM734410	-	170	240	46	-	-	-	-	6.28
KJM716649/KJM716610	-	85	130	30	-	-	-	-	1.39
KJM714249/KJM714210-3	-	75	120	31	-	-	-	-	1.28
LM249747NW/LM2497100	37951K	254	347.622	101.6	-	-	-	-	23.9
LM241149/LM241110	-	203.2	276.225	42.862	-	-	-	-	0
LM201047/LM201011	-	63.5	122.238	38.1	-	-	-	-	1.93
LM12749/LM12711	-	21.979	45.975	15.494	-	-	-	-	0.12
LM12749/LM12710	-	21.979	45.237	15.494	-	-	-	-	0.116
LM12748/LM12710	-	21.43	45.237	15.494	-	-	-	-	0.118
LM11949/LM11910	-	19.05	45.237	15.49	-	-	-	-	0.122
LM11749/LM11710	-	17.462	28.5	14.605	-	-	-	-	0.026
LM10497A/LM104911	-	49.987	82.55	21.59	-	-	-	-	0
LM104949E/LM104911	-	50.8	82.55	21.59	-	-	-	-	0.967
LM104949/LM104912	-	50.8	82.931	21.59	-	-	-	-	0
LM104949/LM104911A	-	50.8	82.55	25	-	-	-	-	0.442
LM104949/LM104911	-	50.8	82.55	21.59	-	-	-	-	0.429
LM104949/LM104910	-	50.8	82.55	21.59	-	-	-	-	0.418
LM104949/JLM104910	-	50.8	82	21.975	-	-	-	-	0
LM102949/LM102911	-	45.242	82.55	21.59	-	-	-	-	0
LM102949/LM102910	-	45.242	73.431	19.558	-	-	-	-	0.318
LL778149/LL778110	-	584.2	685.8	49.212	-	-	-	-	28.5
LL687949/LL687910	-	977.9	1130.3	66.675	-	-	-	-	0
LL225749/LL225710	-	127	165.895	18.258	-	-	-	-	0.466
LL217849/LL217810	-	88.9	121.442	15.038	-	-	-	-	0
L865547/L865512	-	381	479.425	49.212	-	-	-	-	0
L860049/L860010	-	330.2	415.925	47.625	-	-	-	-	0
L853049/L853010	-	276.225	352.512	36.512	-	-	-	-	0
L68149/L68111	-	34.988	59.975	15.875	-	-	-	-	0
L68149/L68110	-	34.981	59.131	15.875	-	-	-	-	0.166
L610549/L610510	-	63.5	94.458	19.05	-	-	-	-	0.449
L610515/L610510	-	63.5	94.458	19.05	-	-	-	-	0
L521949/L521910	-	107.95	146.05	21.433	-	-	-	-	0
KJM714249/KJM714210	-	75	120	31	-	-	-	-	1.28
KJM511946/KJM511910	-	65	110	28	-	-	-	-	1.06
KJLM104948/KJLM104910	-	50	82	21.976	-	-	-	-	0.425
KJL848849/KJL848811	-	254	324.975	39	-	-	-	-	8.06
KJHM534149/KJHM534110	-	170	230	39	-	-	-	-	4.45
KJH211749/KJH211710	-	65	120	39	-	-	-	-	1.86
KHM926740/KHM926710	-	114.3	228.6	33.975	-	-	-	-	9.78
KHM911242/KHM911210	-	53.975	130.175	36.512	-	-	-	-	2.24
KHM237545/KHM237510	-	117.8	288.925	63.5	-	-	-	-	16.7
KHM237542/KHM237510	-	174.625	288.925	63.5	-	-	-	-	16.9
KHH437549/KHH437510	-	165.1	336.55	92.075	-	-	-	-	37.4
KH242649/KH242610	-	206.375	336.55	98.425	-	-	-	-	33
HM926747/HM926710	-	127	228.6	53.975	-	-	-	-	0
HM911245/HM911210	-	60.325	130.175	36.512	-	-	-	-	0
HM903249A/HM903210	-	44.45	95.25	30.958	-	-	-	-	0
HM903249/HM903210	-	44.45	95.25	30.958	-	-	-	-	0.99
HM89449/HM89411	-	36.512	76.2	29.37	-	-	-	-	0
HM89449/HM803110	-	36.513	76.2	29.37	-	-	-	-	0.632
HM89446/HM89446	-	34.925	76.2	29.37	-	-	-	-	0.646
HM89446/HM89410	-	34.925	76.2	29.37	-	-	-	-	0.657
HM89444/HM89410	-	33.338	76.2	29.37	-	-	-	-	0
HM89443/HM89410	-	33.338	76.2	29.37	-	-	-	-	0
HM89440/HM89410	-	31.75	76.2	29.37	-	-	-	-	0
HM88649/HM88610	-	34.925	72.233	25.4	-	-	-	-	0.489
HM88648A/HM903210	-	0	0	0	-	-	-	-	0
HM88542/HM88510	-	31.75	73.025	29.37	-	-	-	-	0.618
HM813849/HM813811	-	71.438	127	36.512	-	-	-	-	0
HM813846/HM813811	-	69.85	127	36.512	-	-	-	-	0
HM813843/HM813811	-	61.912	127	36.512	-	-	-	-	0
HM813842/HM813811	-	63.5	127	36.512	-	-	-	-	0
HM813841/HM813811	-	60.325	127	36.512	-	-	-	-	0
HM807046/HM807010	-	50.8	104.775	36.512	-	-	-	-	1.49
HM807040/HM807010	-	44.45	104.175	36.512	-	-	-	-	1.62
HM803149/HM803112	-	44.45	92.075	30.162	-	-	-	-	0.953
HM803149/HM803110	-	44.45	88.9	30.162	-	-	-	-	0.835
HM803149/10	-	44.45	88.9	30.162	-	-	-	-	0.83
HM803146/HM803110	-	41.275	88.9	30.162	-	-	-	-	0.915
HM803145/HM803110	-	41.275	88.9	30.163	-	-	-	-	0.892
HM801346X/HM801310	-	38.1	82.55	29.37	-	-	-	-	0.11
HM617049/HM617010	-	85.725	142.138	42.862	-	-	-	-	0
HM603049/HM603012	-	45.242	77.788	19.842	-	-	-	-	0.391
HM518445/LM518410	-	88.9	152	39.688	-	-	-	-	0
HM518445/HM518410	-	88.9	152.4	39.688	-	-	-	-	2.86
HM516449/HM516410	-	82.55	133.35	39.688	-	-	-	-	0
HM266449/HM266410	-	384.175	546.1	104.775	-	-	-	-	0
HH923649/HH923610	-	101.6	250.875	76.2	-	-	-	-	0
HH506348/HH506310	-	49.212	114.3	44.45	-	-	-	-	0
HH249949/HH249910	-	247.65	406.4	115.888	-	-	-	-	0
HH234048/HH234010	-	152.4	307.975	88.9	-	-	-	-	30.9
HH224346/HH224310	-	114.3	212.725	66.675	-	-	-	-	0
HH224340/HH224310	-	107.95	212.725	66.675	-	-	-	-	0
HH224335/HH224310	-	101.6	212.725	66.675	-	-	-	-	11.1
HH221449/HH221410	-	101.6	190.5	57.15	-	-	-	-	7.87
HH221434/HH221410	-	88.9	190.5	57.15	-	-	-	-	7.87
HH221430/HH221410	-	76.2	190.5	57.15	-	-	-	-	0
H917840-90010	-	76.2	180.975	14.3	-	-	-	-	13.6
H913849/H913810	-	69.85	146.05	41.175	-	-	-	-	2.97
H913842/H913810	-	61.912	146.05	41.275	-	-	-	-	0
H715343/H715311	-	68.262	136.525	46.038	-	-	-	-	0
H715341/H715311	-	66.675	136.525	46.038	-	-	-	-	0
H715340/H715311	-	65.088	136.525	46.038	-	-	-	-	0
H715336/H715311	-	63.5	136.525	46.038	-	-	-	-	0
H715334/H715310	-	61.912	139.7	46.038	-	-	-	-	0
H715332/H715311	-	60.325	136.525	46.038	-	-	-	-	0
H714345/H715311	-	71.438	136.525	46.038	-	-	-	-	0
H414249/H414210	-	71.438	136.525	41.275	-	-	-	-	0
H414245/H414210	-	68.262	136.525	41.275	-	-	-	-	0
H414242/H414210	-	66.675	136.525	41.275	-	-	-	-	0
H414235/H414210	-	63.5	136.525	41.275	-	-	-	-	3.03
H247549/247510	-	234.95	384.175	112.712	-	-	-	-	0
H247535/H247510	-	200.025	384.175	112.712	-	-	-	-	0
H242649/H242610	-	206.375	336.55	98.425	-	-	-	-	0
H239649/H239612	-	187.325	320.675	88.9	-	-	-	-	0
H221647NA/K426864	-	99.995	225	119.962	-	-	-	-	25.1
EE941205X/EE941950	-	304.8	495.3	76.2	-	-	-	-	0
EE923095/EE923175	-	241.3	444.5	101.6	-	-	-	-	65.9
EE911600/EE912400	-	406.4	609.6	92.075	-	-	-	-	0
EE843220/EE843290	-	558.8	736.6	88.108	-	-	-	-	0
EE822100/EE822175	-	254	444.5	76.2	-	-	-	-	0
EE790120/EE790221	-	304.8	558.8	136.525	-	-	-	-	0
EE790114/EE790221	-	292.1	558.8	136.525	-	-	-	-	0
EE763330/EE763410	-	838.2	1041.4	93.662	-	-	-	-	168
EE755285/EE755360	-	723.9	914.4	84.138	-	-	-	-	0
EE755280/EE755360	-	711.2	914.4	85.725	-	-	-	-	0
EE752300/EE752380	-	762	965.2	93.662	-	-	-	-	0
EE724120/EE724195	-	304.8	495.3	95.25	-	-	-	-	0
EE722110/EE722185	-	279.4	469.9	95.25	-	-	-	-	0
EE655270/EE655345	-	685.8	876.3	93.662	-	-	-	-	0
EE649240/EE649310	-	609.6	787.4	93.662	-	-	-	-	110
EE649239/EE649310	-	609.6	787.4	93.662	-	-	-	-	108
EE640192/EE640260	-	488.95	660.4	93.662	-	-	-	-	0
EE526132/EE526190	-	330.2	482.6	85.725	-	-	-	-	0
EE430900/EE431575	-	228.6	400.05	88.9	-	-	-	-	0
EE430888/EE431575	-	225.425	400.05	88.6	-	-	-	-	0
EE420751/EE421437	-	190.5	365.049	92.075	-	-	-	-	38.5
EE390095/EE390200	-	241.3	508	117.475	-	-	-	-	96.4
EE350750/EE351687/P6	-	190.5	428.625	106.362	-	-	-	-	70.56
EE333140/EE338197	-	355.6	501.65	90.488	-	-	-	-	0
EE333137/EE333197	-	349.25	501.65	90.488	-	-	-	-	0
EE328167/EE328269	-	425.45	685.698	142.875	-	-	-	-	0
EE295950/EE295193	-	241.3	488.95	120.65	-	-	-	-	0
EE295110/EE295193	-	279.4	488.95	120.65	-	-	-	-	0
EE295102/EE295193	-	260.35	488.95	120.65	-	-	-	-	0
EE291250/EE291750	-	317.5	444.5	63.5	-	-	-	-	0
EE291201/EE291749	3-736	304.8	444.5	63.5	-	-	-	-	25.1
EE277455/EE277565	-	1155.7	1435.1	120.65	-	-	-	-	0
EE275108/EE275155	-	273.05	393.7	73.817	-	-	-	-	0
EE275105/EE275155	-	266.7	393.7	73.817	-	-	-	-	0
EE275100/EE275155	-	254	393.7	73.817	-	-	-	-	0
EE275095/EE275155	-	241.3	393.7	73.817	-	-	-	-	0
EE244180/EE244235	-	457.2	596.9	76.2	-	-	-	-	0
EE243196/EE243250	-	498.475	634.873	80.962	-	-	-	-	62.33
EE243192/EE243250	-	489.026	634.873	80.962	-	-	-	-	0
EE243190/EE243250	-	482.6	634.873	80.962	-	-	-	-	0
EE241701/EE242375	-	431.8	603.25	76.2	-	-	-	-	0
EE234160/EE234220	-	406.4	558.8	65.088	-	-	-	-	0
EE234156/EE234215	-	396.875	546.1	76.2	-	-	-	-	0
EE231462/EE232025	-	371.475	514.35	74.612	-	-	-	-	0
EE221026/EE221575	-	260.35	400.05	69.85	-
