Automobile Air Braking Valves Test Rig

Name: Automobile Air Braking Valves Test Rig
Brand: ibuyautoparts.com
SKU: 817734475
Availability: InStock
Rating: 4.4 (97 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

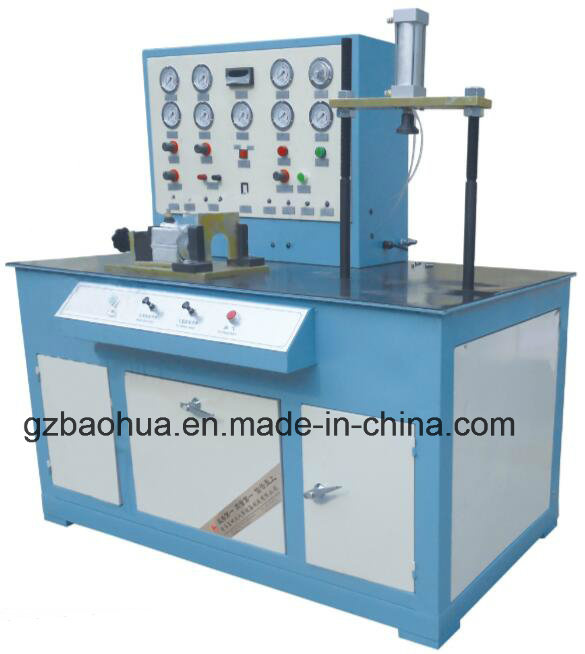

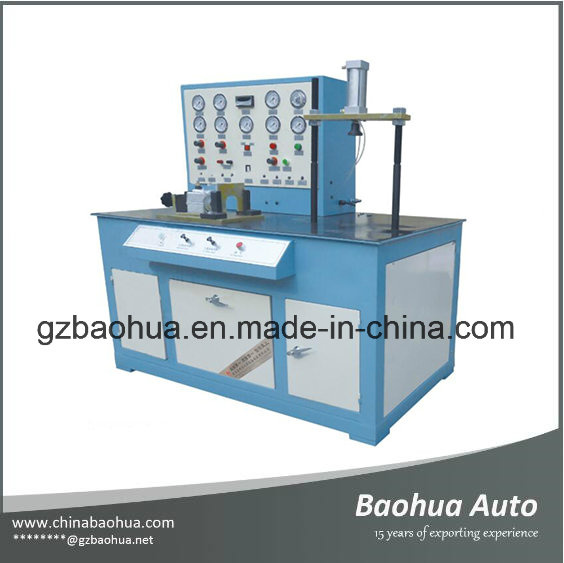

Model:QYZ-3 Automobile Air Braking Valves Test Rig
General introduction
This brake valve test bench is used mainly for testing performance of brake master cylinder, brake cylinder, quick release valve and relay valve, differential valve, four circuit valve, etc in automobile brake system.
It equips with quick coupler, uses high-precision air pressure adjusting valve and pressure gage, with the features of sensitive operation, convenient reading the data , safe and reliable.
Advantages:

1. It is with indicator lamp following each step and warn you the problems.

2. It possesses high control sensitivity and strong controllability.

3. It is with high precision air pressure regulation valve and pressure gauge

4. It is with quick coupler, improve the working efficiency

5. It is suitable for repair and test passenger cars, with air braking system.

Test items:
1. resistancetoairloss of brake master cylinder,and the time needs to inflate air from main air tank to air chamber through brake master cyliner ( air-in and air pass time)
2. resistancetoairloss of brake cylinder: the main air tank inflate air to air chamber,
when reaches the rated pressure, maintain the pressure
3. resistancetoairloss and quick release of quick release valve
4.On-off and resistance of air loss of relay valve
5.On-off, resistancetoairloss and quick release of differential valve
6.Opening pressure and resistancetoairloss of four circuit valve
7.Performance of solenoid valve of braking system

Test Parameter

Language	English
Material	Metal plate
Painting	Powder painting, durable and beautiful
Voltage	AC 220V 50Hz

Input air source	0-1.0Mpa
Tested pressure range	0-1.0Mpa (adjustable)
Test precision grade:	±1%
DC input	12V 24V
Current	5V
Others you may want to know
Warranty period	1
Payment term	T/T 100% in advance, the balance should be paid before delivery (negotiable)
Delivery time	30 days after receiving payment
HS code	90312000.90
Packing sizes	17009501680=2.71CBM
Parts:	Accessory wires, etc.

Prod Model:	QYZ-3
Packing Size:	17009501680mm
Color:	Blue
Language:	English
Input Air Source:	0-1.0MPa
Warranty:	1year

Guangzhou Baohua Auto Maintenance Equipment Trade Co., Ltd is founded in 1998 and located in Guangzhou city. We have a professional research technical team in automobile maintenance Equipment.

We have more than 1000 kinds of car equipment and 2000 kinds of accessories. We are Manufacturer of car lift, spray booth, wheel alignment, A/C refrigerant recycle and fill machine, Nitrogen generator, Injector tester, Pneumatic sander with extraction system, automatic Car/Bus washing machine. What's more, we can provide our clients with a whole set of Garage Equipment, sheet metal Equipment and Tire shop repair Equipment.

We insists on the principle of "quality first and service first, we pay great attention to our reputation. So our products are sold well at home and overseas because of good quality product and excellent service. We will establish a mutual benefit business relationship. The most important is that we can offer our customers one-stop service.
